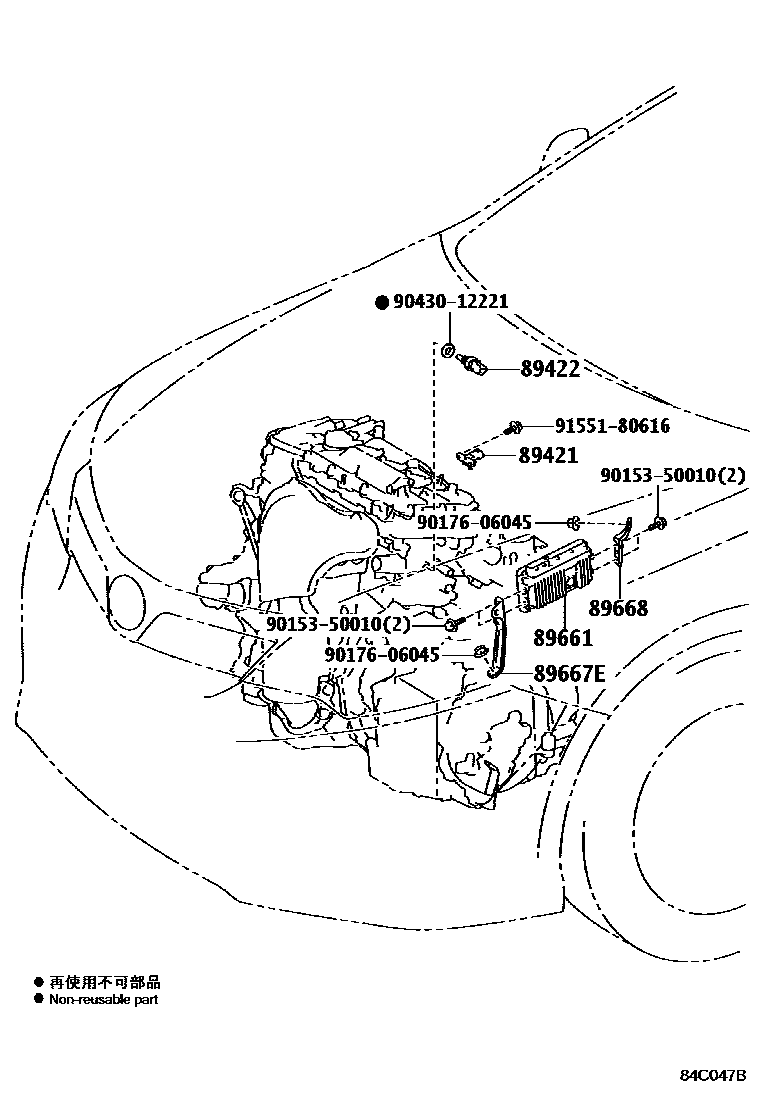

Toyota CAMRY 电子燃油喷射系统 — Figure 8404
Toyota CAMRY EPC diagram 8404, 电子燃油喷射系统, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89421 | Vacuum sensor assembly (for E.F.I.) | 89421-26030 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-33030 |
| 89661 | Engine control ECU | 89661-33G70 · 89661-33G71 · 89661-33G72 · 89661-33N80 |
| 89667E | No. 1 engine control ECU bracket | 89667-33150 |
| 89668 | No. 2 engine control ECU bracket | 89668-33230 |
