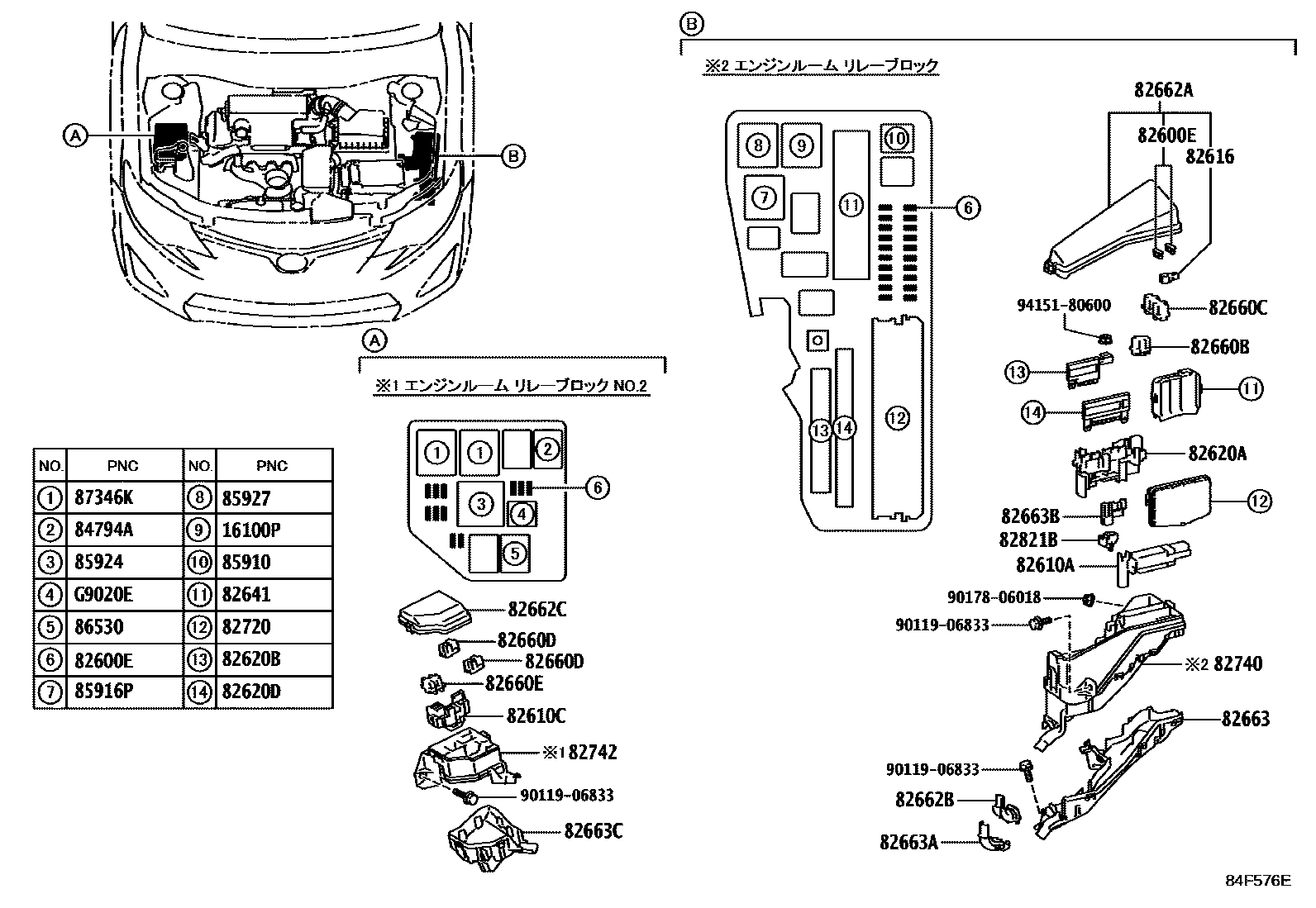

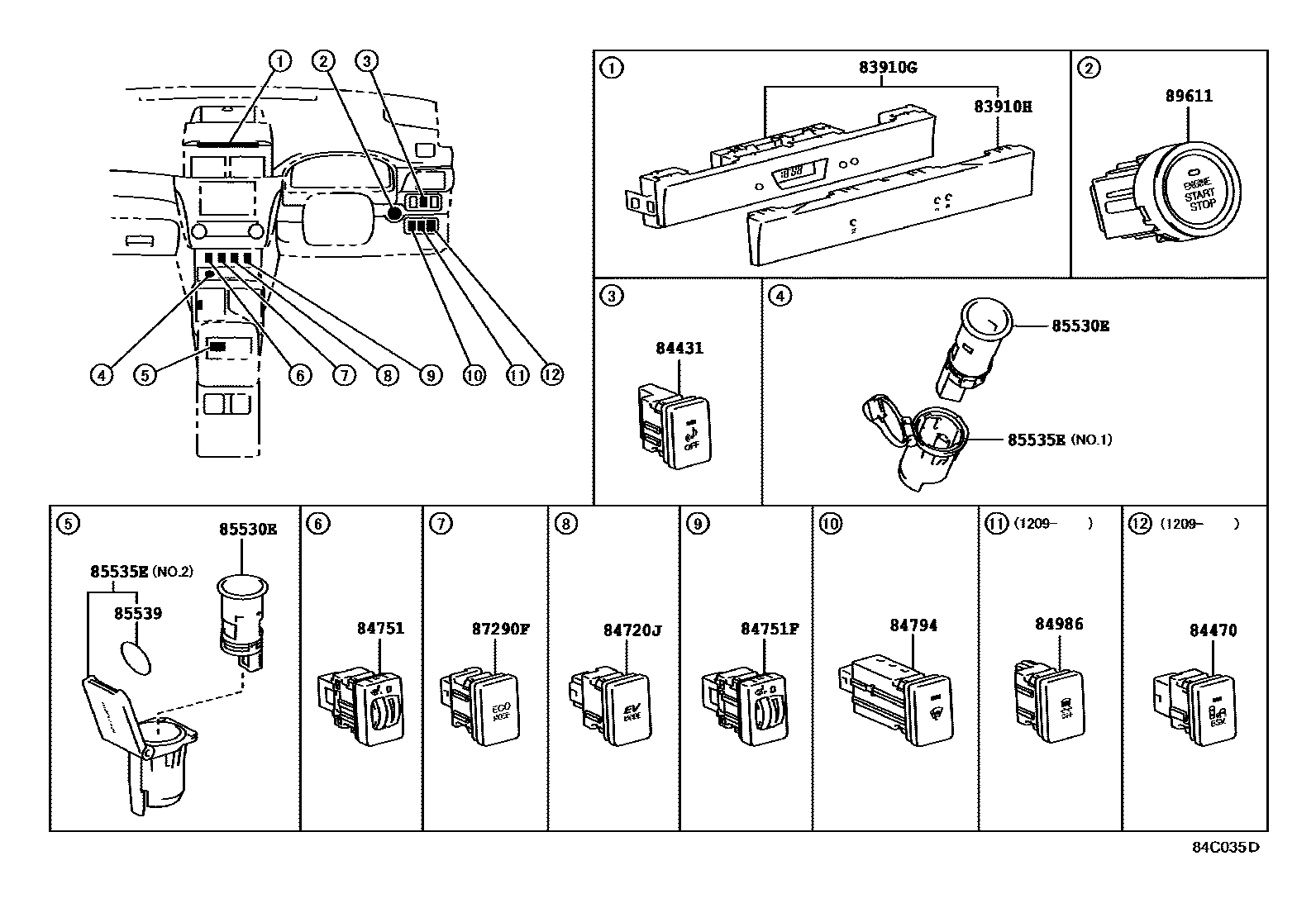

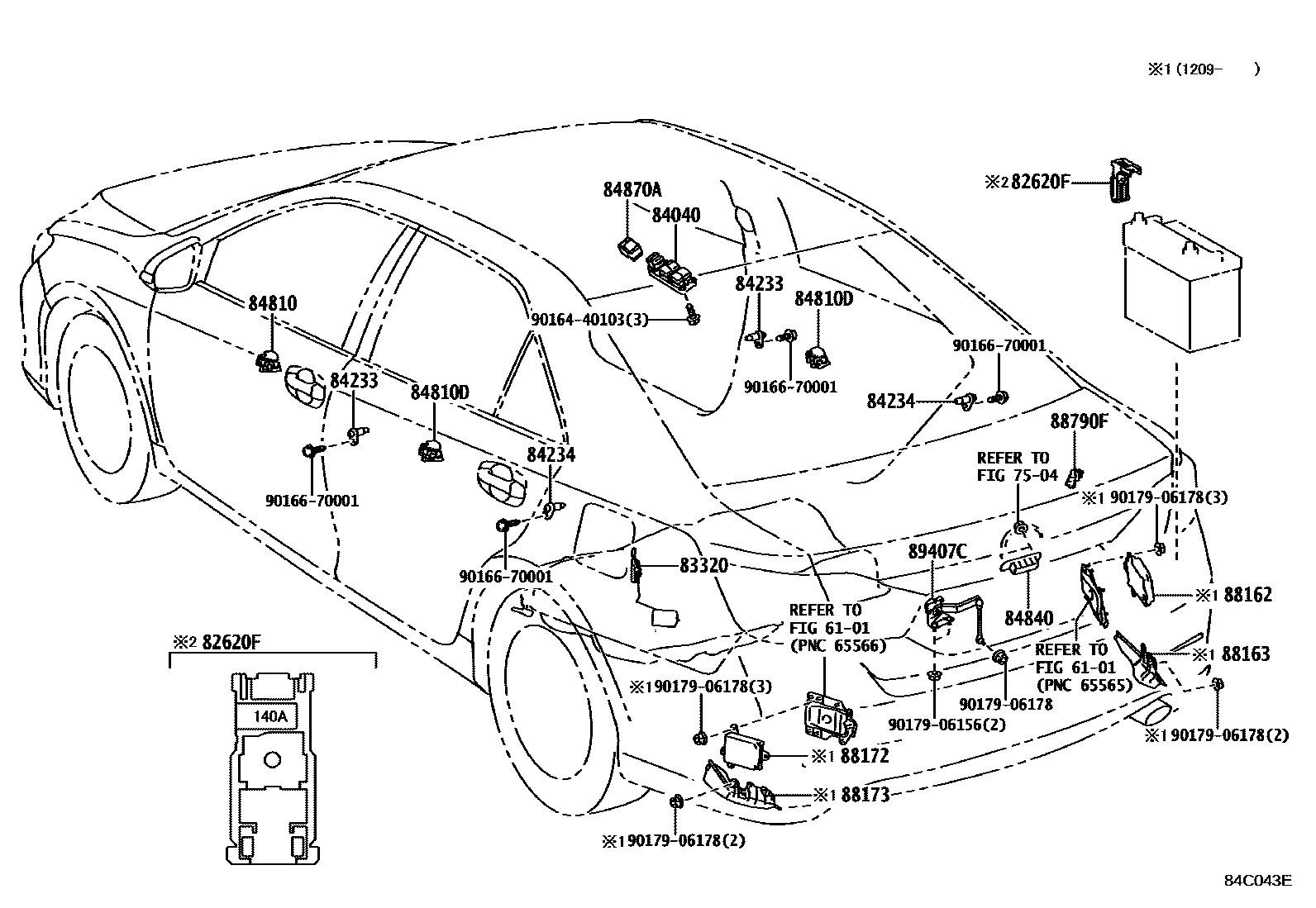

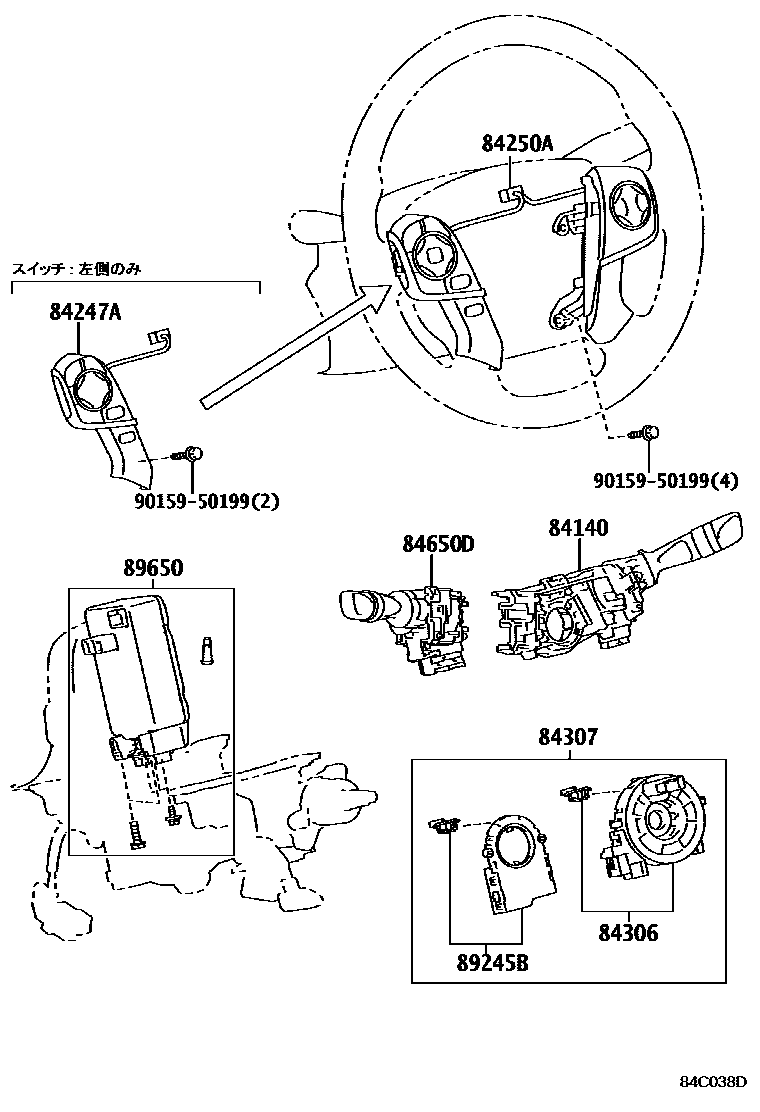

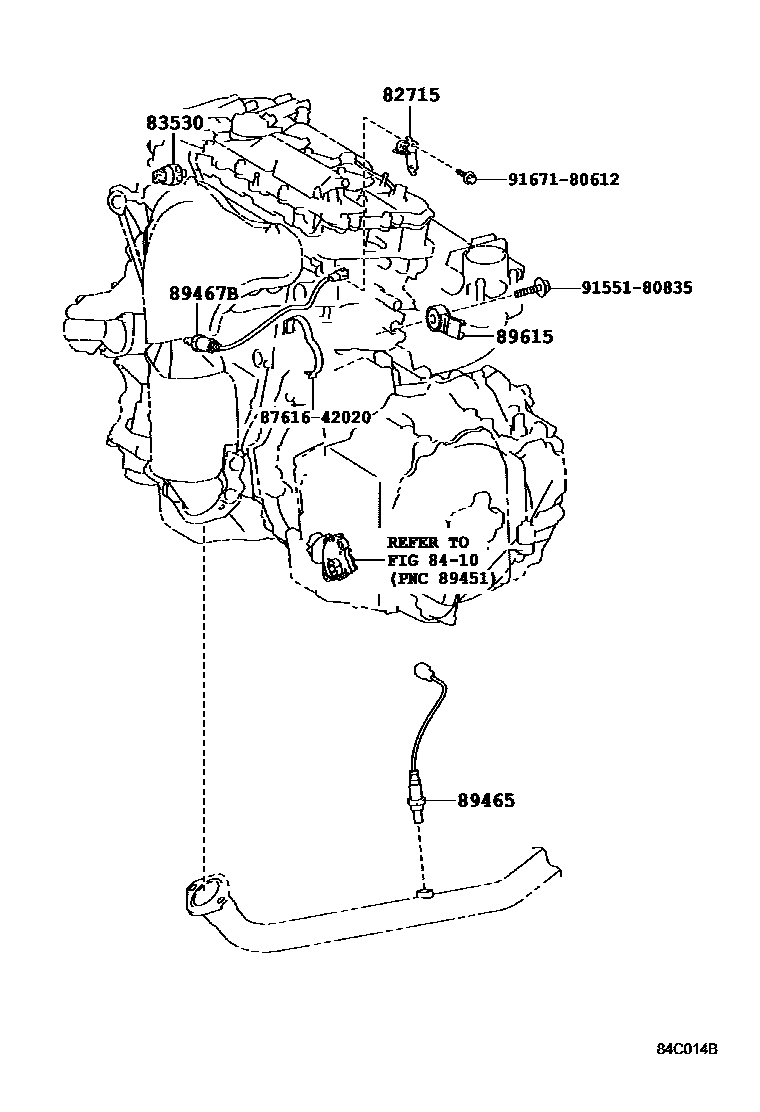

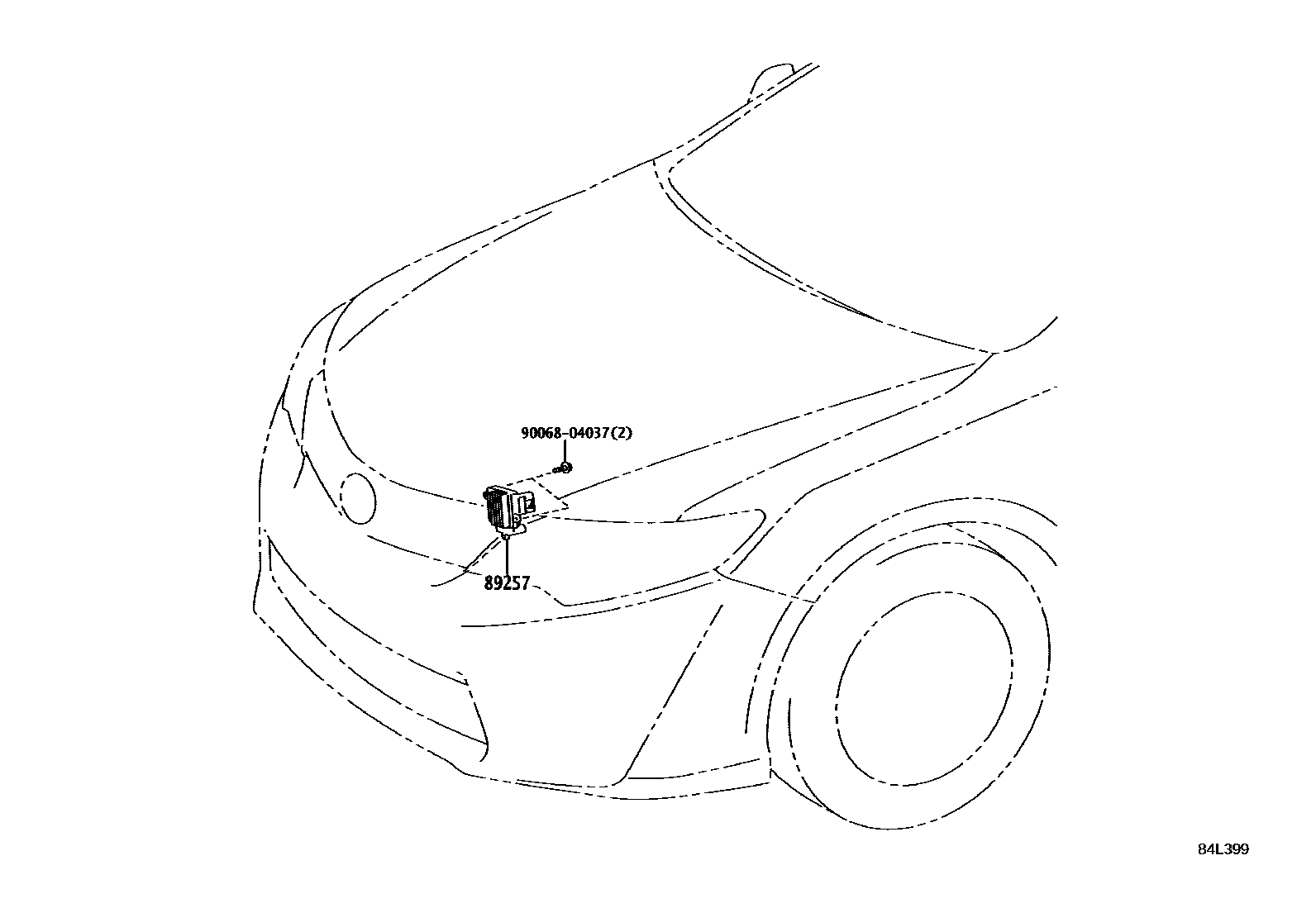

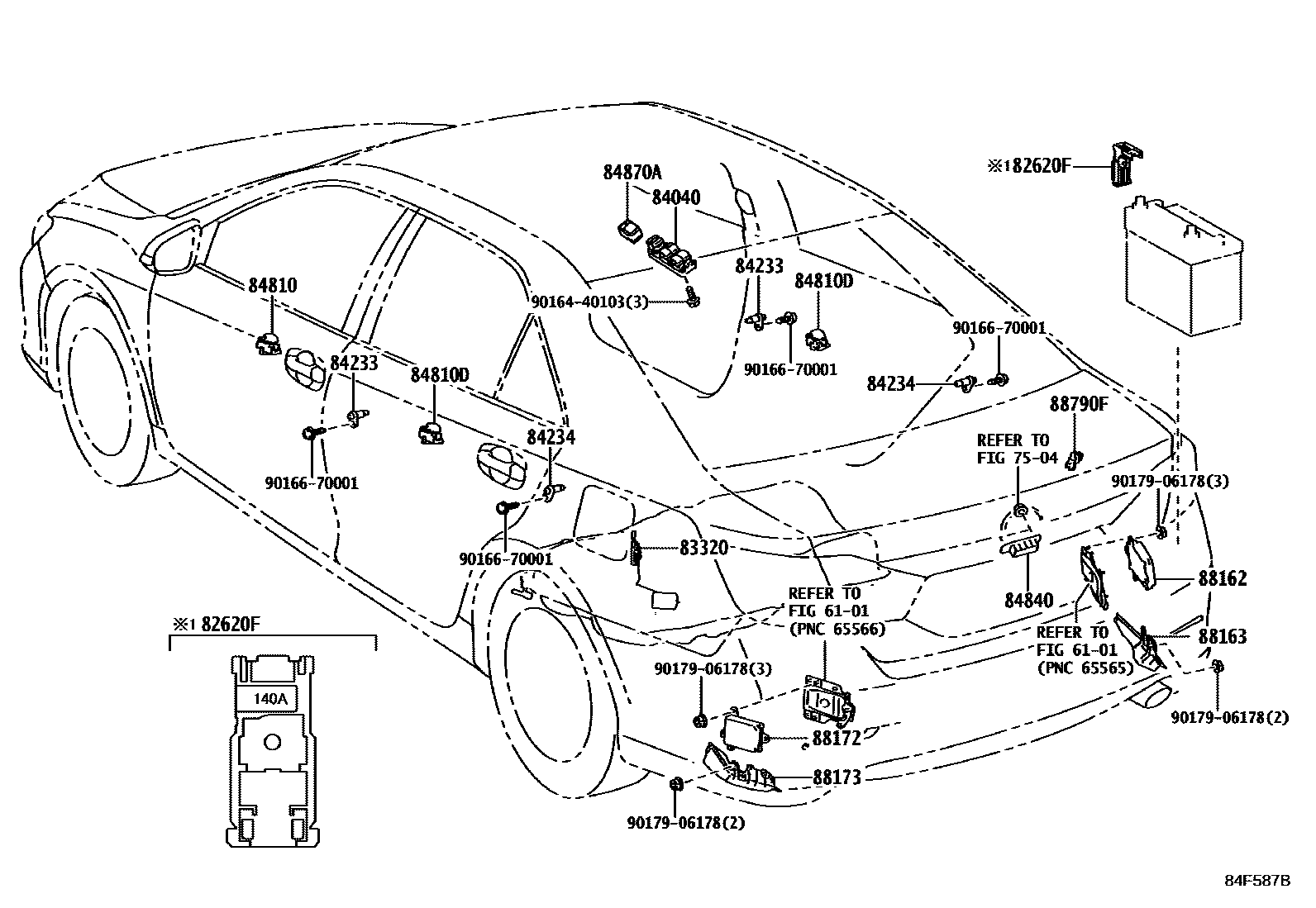

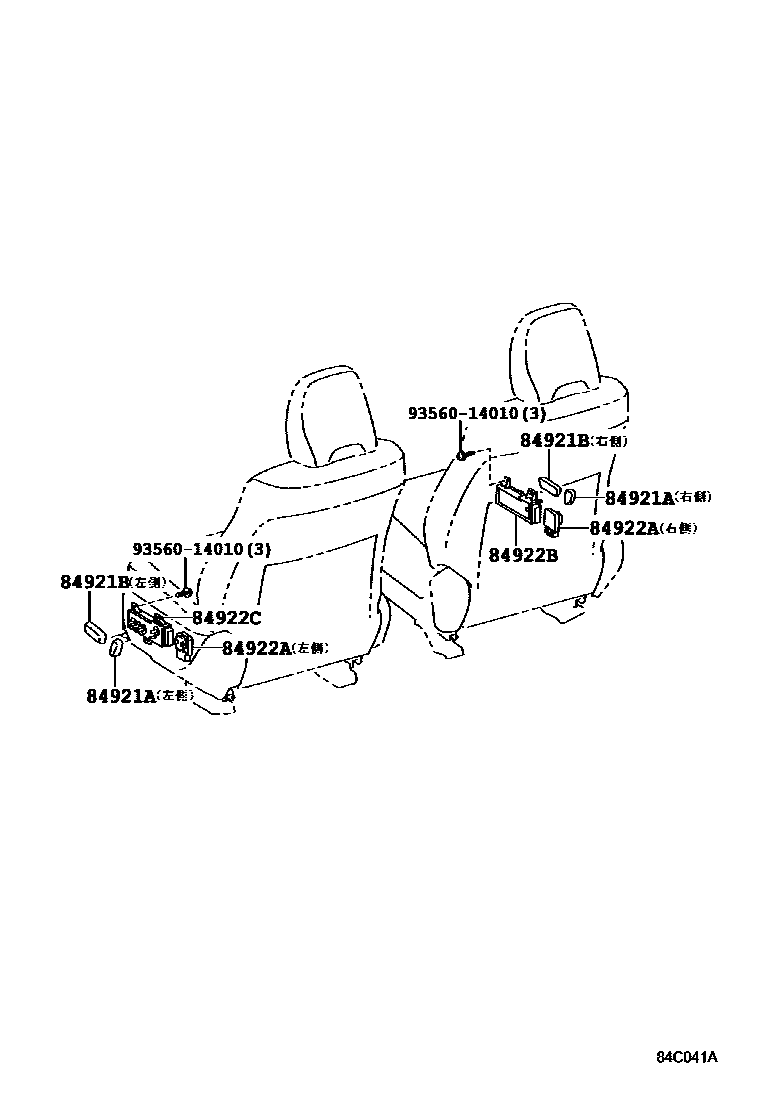

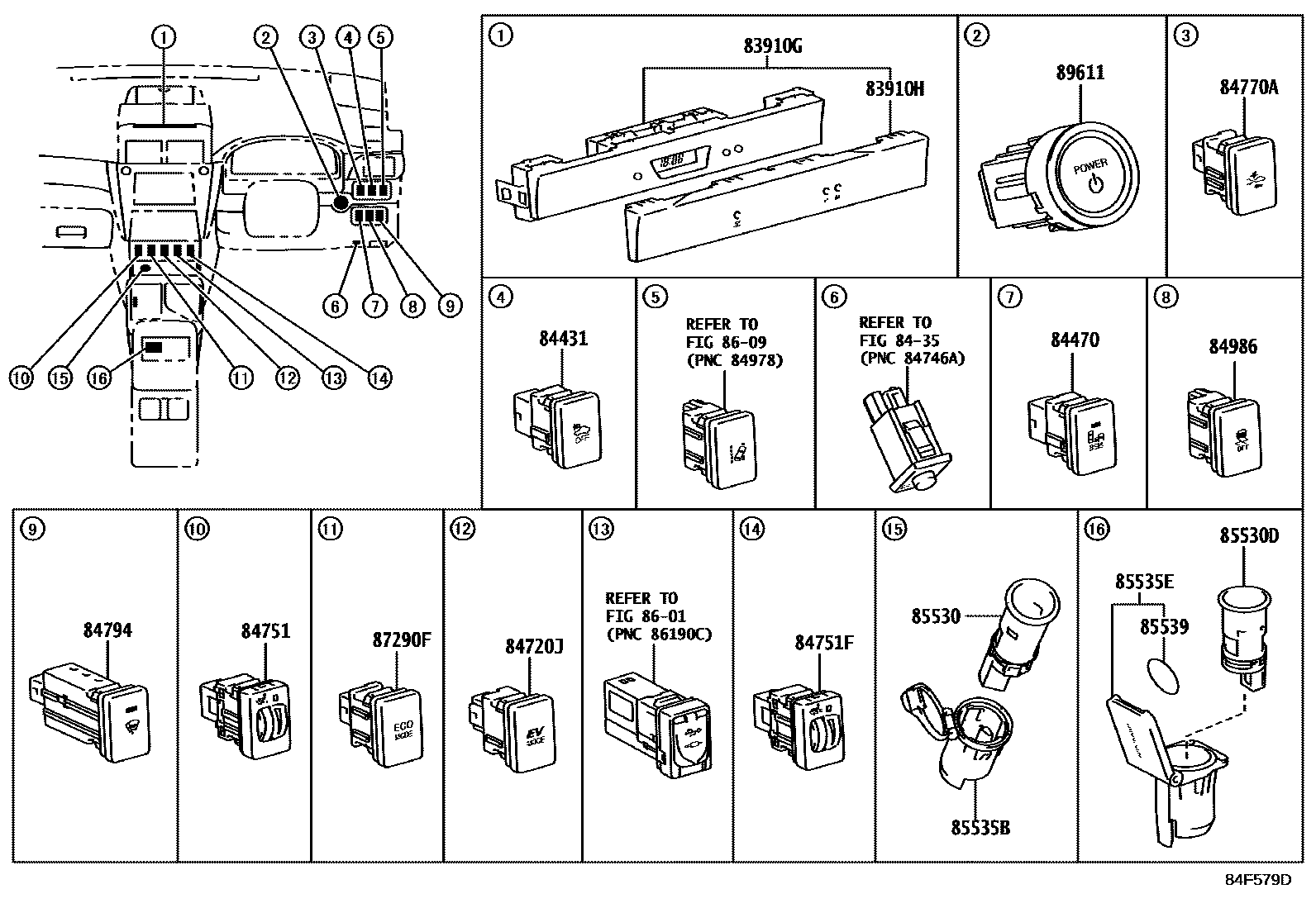

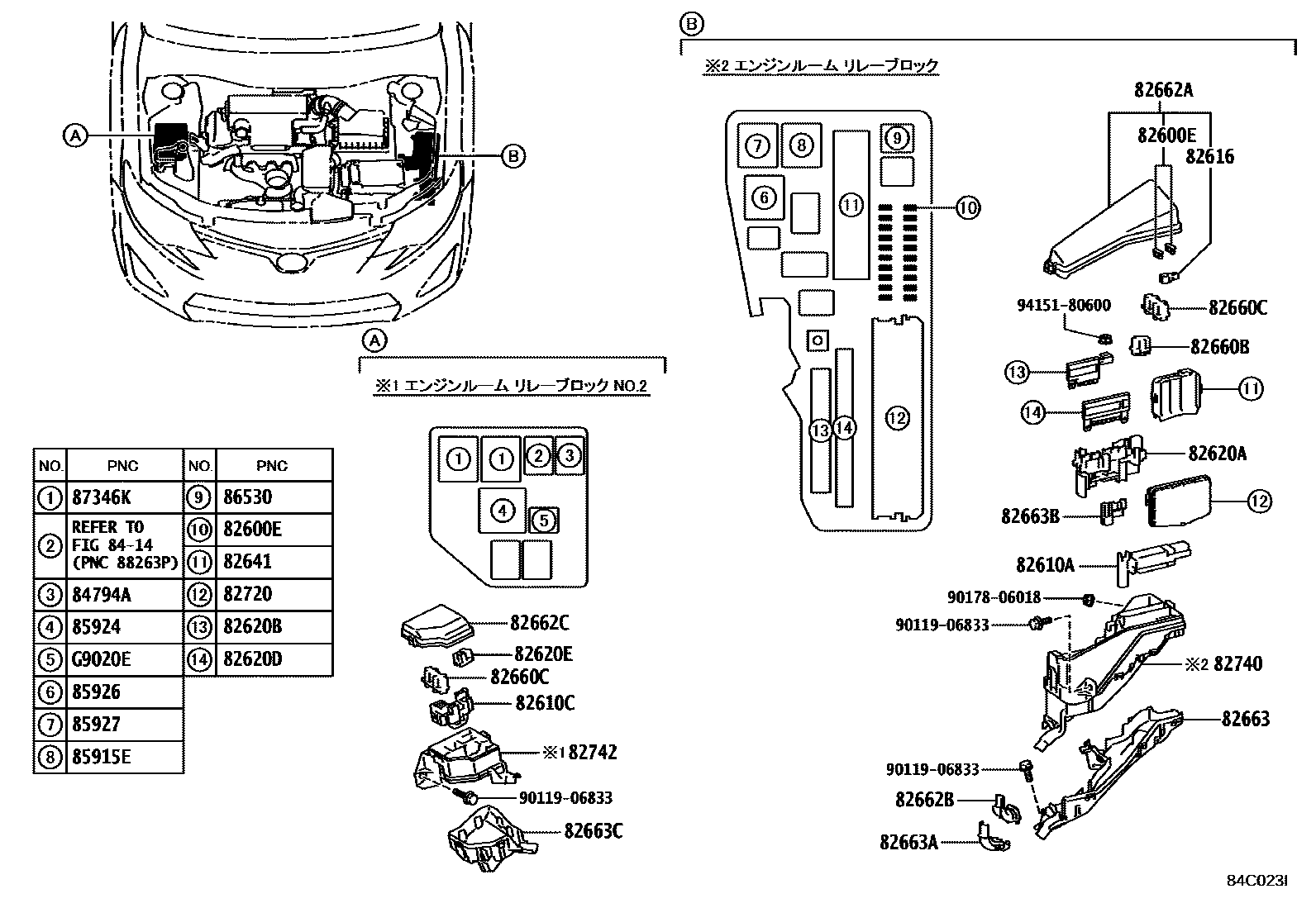

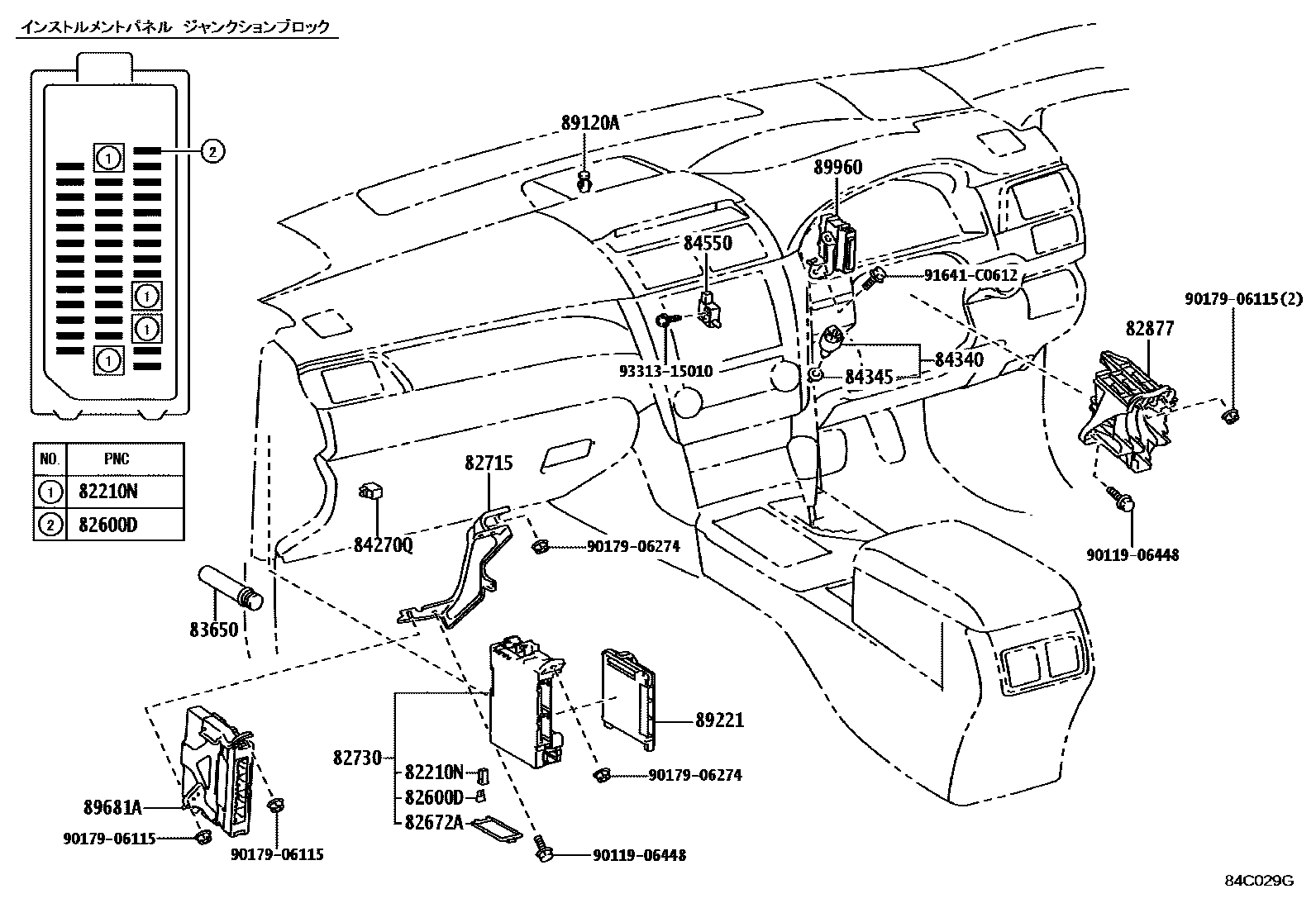

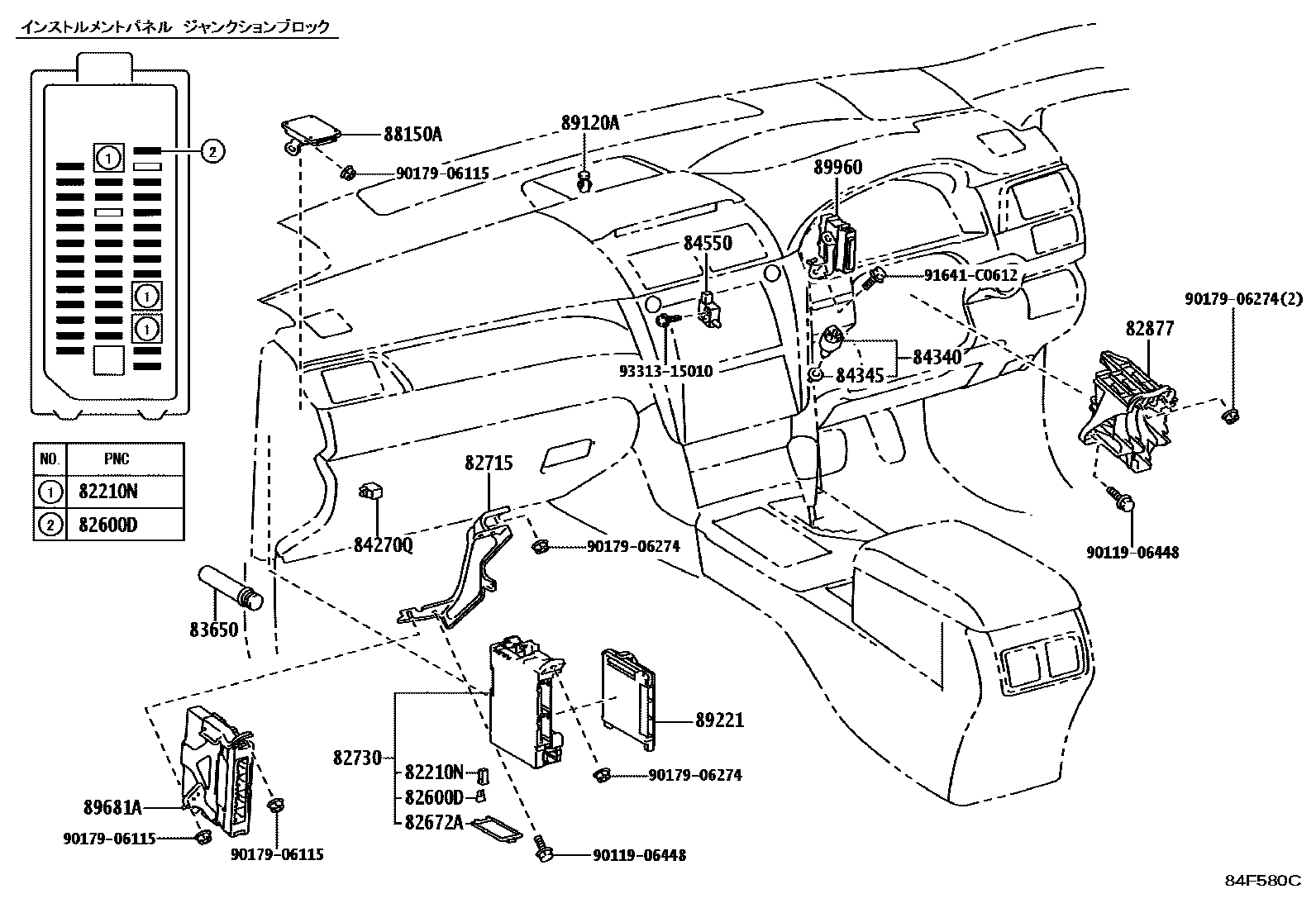

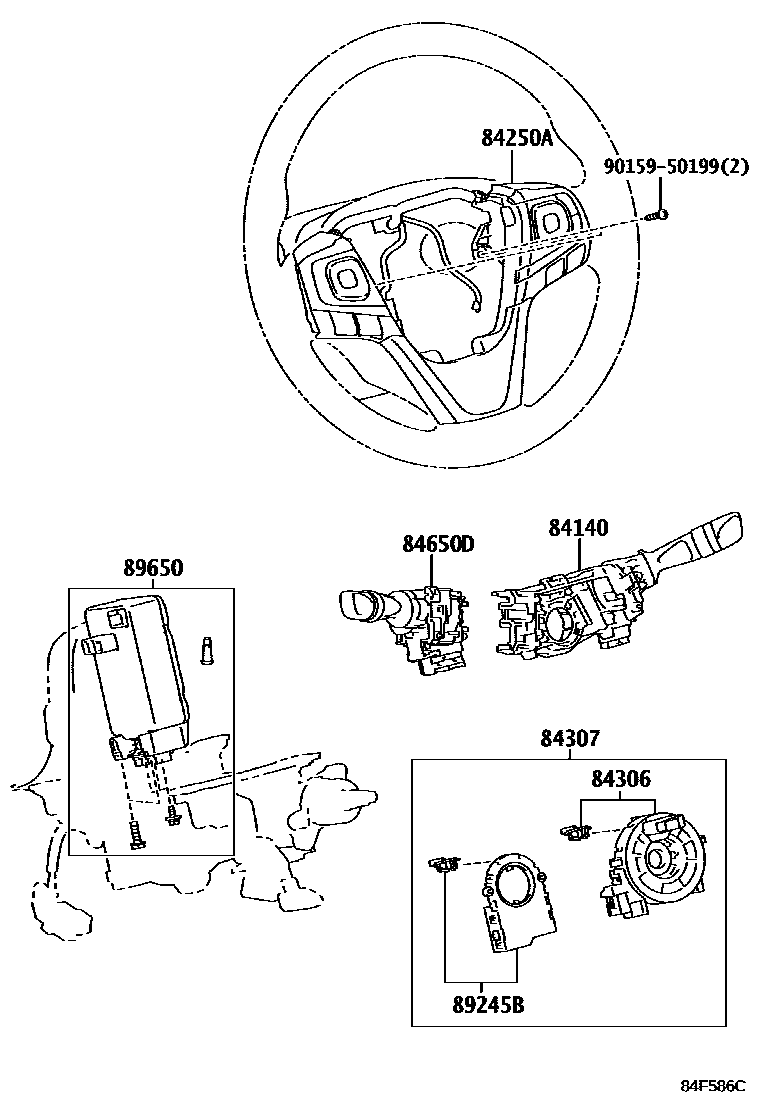

Toyota CAMRY 开关和继电器和ECU — Figure 8401
Toyota CAMRY EPC diagram 8401, 开关和继电器和ECU, with 13 images and 99 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100P | water pump relay | 90987-02025 |
| 82210N | Instrument panel fuse | 90982-08306 |
| 82600D | Dashboard fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 |
| 82600E | Engine room fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82610A | Fuse box assembly | 82610-33090 · 82610-33120 |
| 82610C | Fuse box assembly | 82610-33100 |
| 82616 | fuse puller | 82616-58010 |
| 82620A | Fuse box assembly | 82620-33050 |
| 82620B | Fuse box assembly | 82620-33070 |
| 82620D | Fuse box assembly | 82620-33060 |
| 82620E | Fuse box assembly | 82620-44040 |
| 82620F | Toyota part | 82620-47070 |
| 82641 | Integrated relay No. 1 | 82641-33150 · 82641-33180 |
| 82660B | Relay assembly | 82660-48030 |
| 82660C | Relay assembly | 82660-33040 |
| 82660D | Relay assembly | 82660-48020 |
| 82660E | Relay assembly | 82660-33040 |
| 82662A | No. 1 relay box upper cover | 82662-33410 · 82662-33520 · 82662-33730 · 82662-33740 |
| 82662B | No. 2 relay box upper cover | 82662-33420 |
| 82662C | No. 3 relay box upper cover | 82662-33300 · 82662-33320 · 82662-33620 |
| 82663 | Relay box lower cover | 82663-33140 |
| 82663A | No. 2 relay box lower cover | 82663-33160 |
| 82663B | No. 3 relay box lower cover | 82663-33170 |
| 82663C | No. 4 relay box lower cover | 82663-33180 |
| 82672A | Junction box cover | 82672-33381 · 82672-33382 |
| 82715 | Wire harness clamp bracket | 82715-33E30 · 82715-33F40 |
| 82720 | Engine room junction box assembly | 82720-33290 · 82720-33450 · 82720-33470 |
| 82730 | Instrument panel junction box assembly | 82730-33F91 · 82730-33F92 · 82730-33P50 |
| 82740 | Engine room relay box assembly | 82740-33050 |
| 82742 | Engine room No. 2 relay box | 82742-33040 |
| 82821B | Connector cover | 82821-33400 |
| 82877 | Right ECU integrated box | 82877-33010 |
| 83320 | Fuel gauge sensor assembly | 83320-33130 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28020 · 83530-60020 |
| 83650 | fuse | 90986-01005 |
| 83910G | clock assembly | 83910-33220 |
| 83910H | clock cover | 8391B-33020 |
| 84040 | Multi-channel network main switch assembly | 84040-30250 · 84040-33080 |
| 84140 | Headlight dimmer switch assembly | 84140-33220 · 84140-33221 · 84140-33230 · 84140-33231 |
| 84233 | Door control light switch assembly (for front door) | 84231-60070 |
| 84234 | Door control light switch assembly (for rear door) | 84231-60070 |
| 84247A | Steering wheel decorative cover left switch | 84247-06130 · 84247-33040 |
| 84250A | Steering wheel decorative cover switch assembly | 84250-06280 · 84250-33330 · 84250-33410 · 84250-33420 · 84250-33430 · 84250-33440 |
| 84270Q | headlight relay | 90987-02027 |
| 84306 | Spiral cable sub-assembly | 84306-39015 · 84308-33080 |
| 84307 | Spiral cable sub-assembly with sensor | 84307-33070 · 84307-33090 · 84307-33140 · 84307-33150 · 84307-33190 |
| 84340 | brake light switch assembly | 84340-19025 · 84340-49065 · 84340-69115 |
| 84345 | Brake light switch base adjuster | 84345-51010 |
| 84431 | vehicle intrusion speaker switch | 84431-33010 · 84431-33050 · 84431-33051 |
| 84470 | Warning release switch assembly | 84470-33020 · 84470-33040 · 84470-33041 |
| 84550 | Parking brake switch assembly | 84550-47010 |
| 84650D | Toyota part | 84652-33470 |
| 84720J | Mode selection switch assembly | 84720-33080 · 84720-33090 · 84720-33091 |
| 84751 | Seat heater switch | 84751-33080 · 84751-33100 · 84751-33101 |
| 84751F | Seat heater switch | 84751-35140 · 84751-35141 · 84751-60240 |
| 84770A | Collision prediction system cancel switch assembly | 84770-33020 · 84770-33021 |
| 84794 | Front wiper de-icer switch | 84794-33040 · 84794-42030 · 84794-42031 |
| 84794A | Front wiper de-icer relay | 90987-02027 |
| 84810 | Electric window lift switch assembly | 84810-30220 · 84810-33120 |
| 84810D | Rear electric window lift switch assembly | 84810-30220 · 84810-33120 |
| 84840 | Trunk door opening switch assembly | 84840-28030 |
| 84870A | Exterior rearview mirror switch assembly | 84872-52040 |
| 84922B | Front right electric seat switch | 84922-60190 |
| 84922C | Front left electric seat switch | 84922-60170 |
| 84986 | vehicle stability control switch | 84988-33090 · 84988-33091 · 84988-48070 |
| 85530 | No. 1 power socket assembly | 85530-42010 |
| 85530D | No. 2 power socket assembly | 85530-42010 |
| 85530E | No. 3 power socket assembly | 85530-42010 |
| 85535B | No. 1 power outlet cover | 85535-30020 |
| 85535E | No. 2 power outlet cover | 85535-30020 · 85535-33080 |
| 85539 | Power socket attention labels | 85539-60010 |
| 85910 | Circuit breaking relay assembly | 90987-02027 |
| 85915E | relay | 90987-02025 |
| 85916P | headlight relay | 90987-02025 |
| 85924 | Ignition control relay | 90987-02025 |
| 85926 | Headlight dimmer relay | 90987-02025 |
| 85927 | cooling fan relay | 90987-02025 |
| 86530 | Speaker relay assembly | 90987-02027 |
| 87290F | ECO switch assembly | 87290-33030 · 87290-33031 · 87290-33060 |
| 87346K | PTC heater relay | 90987-02025 |
| 88150A | Driving assistance ECU assembly | 88150-33110 |
| 88162 | Blind spot monitor right sensor | 88162-0W100 · 88162-0W220 · 88162-33060 |
| 88163 | Blind spot monitor right side cover | 88163-06010 · 88163-33020 |
| 88172 | Blind spot monitor left sensor | 88162-0W100 · 88162-0W220 · 88162-33060 |
| 88173 | Blind spot monitor left cover | 88173-06010 · 88173-33020 |
| 88790F | Thermistor assembly | 88790-22131 |
| 89120A | Automatic light control sensor | 89121-50020 |
| 89221 | Multi-channel network body ECU | 89220-33010 · 89220-33410 · 89220-33420 · 89220-33A80 |
| 89245B | steering sensor | 89245-39015 · 89245-39025 · 89245-39055 · 8924B-33010 |
| 89257 | Cooling fan ECU | 89257-30080 |
| 89407C | Rear height control sensor sub-assembly | 89407-41010 |
| 89465 | oxygen sensor | 89465-33470 |
| 89467B | air fuel ratio sensor | 89467-48190 |
| 89611 | push button start switch | 89611-30140 · 89611-30141 · 89611-30142 · 89611-33020 · 89611-33021 |
| 89615 | knock control sensor | 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-33160 · 89650-33720 |
| 89681A | Power management control ECU | 89690-33020 · 89690-33110 · 89690-33150 · 89690-33250 |
| 89960 | Headlight beam height adjustment ECU assembly | 89960-33420 |
| G9020E | Hybrid water pump relay | 90987-02027 |
