Toyota CAMRY 线束和卡夹 — Figure 8202

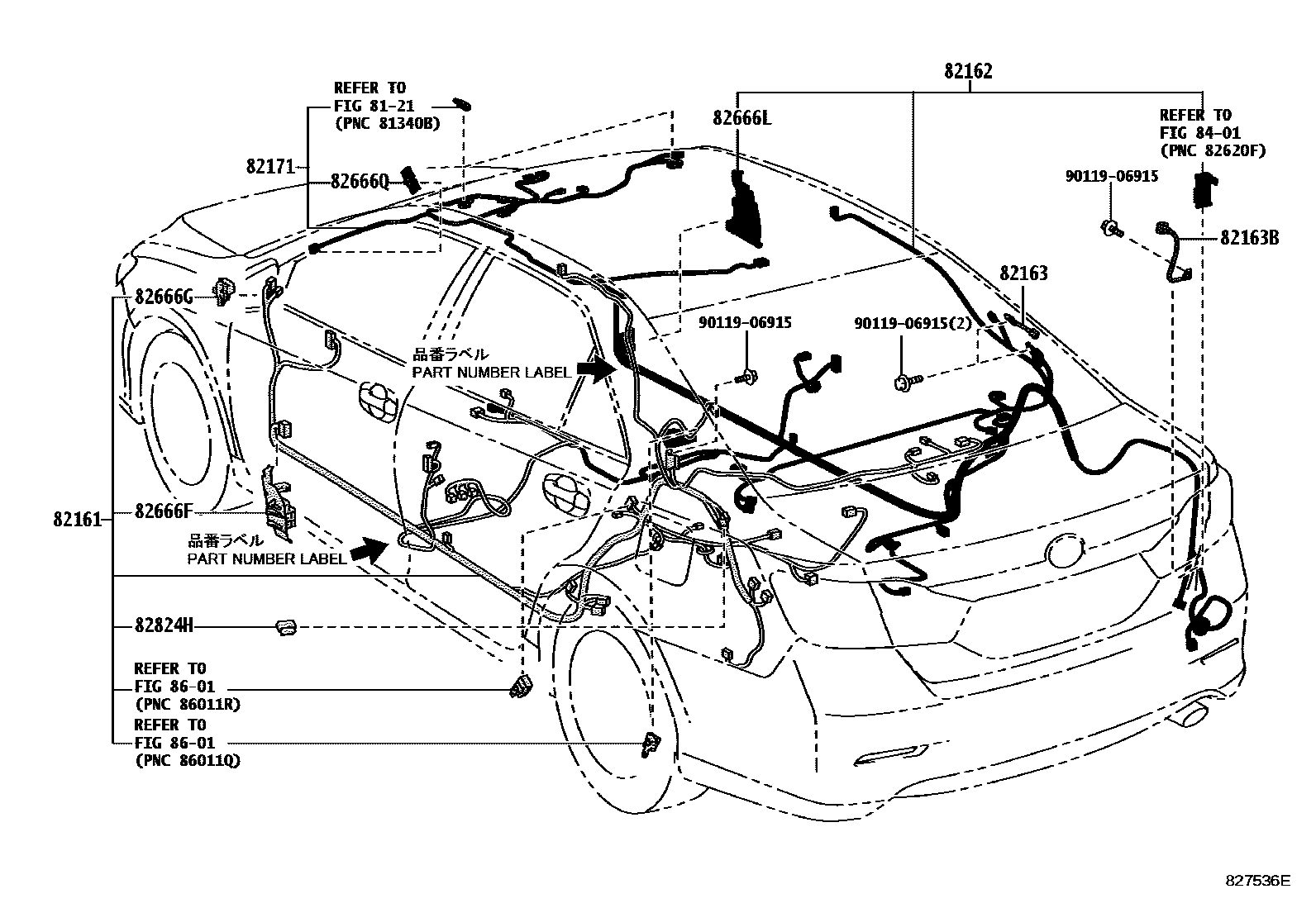

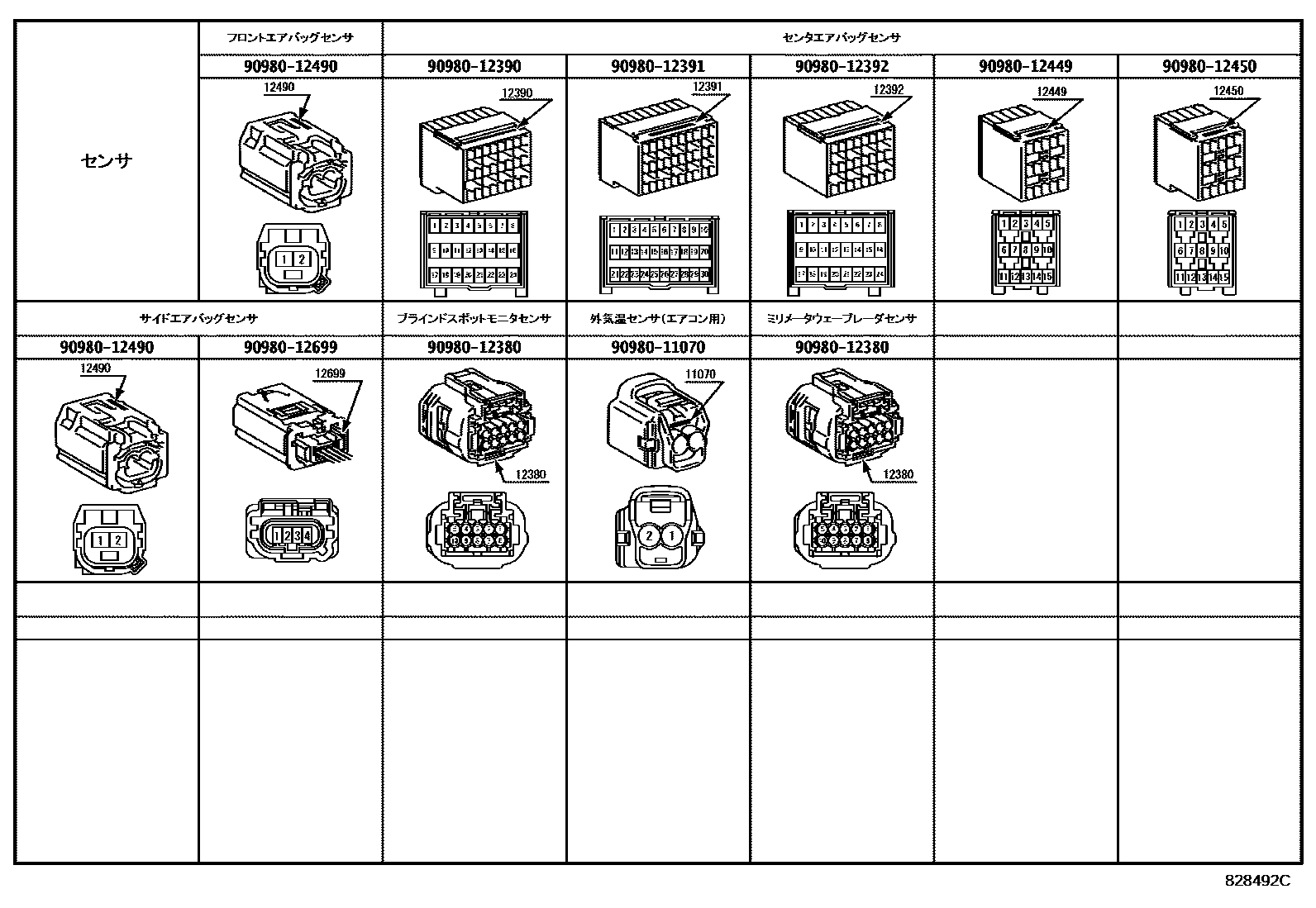

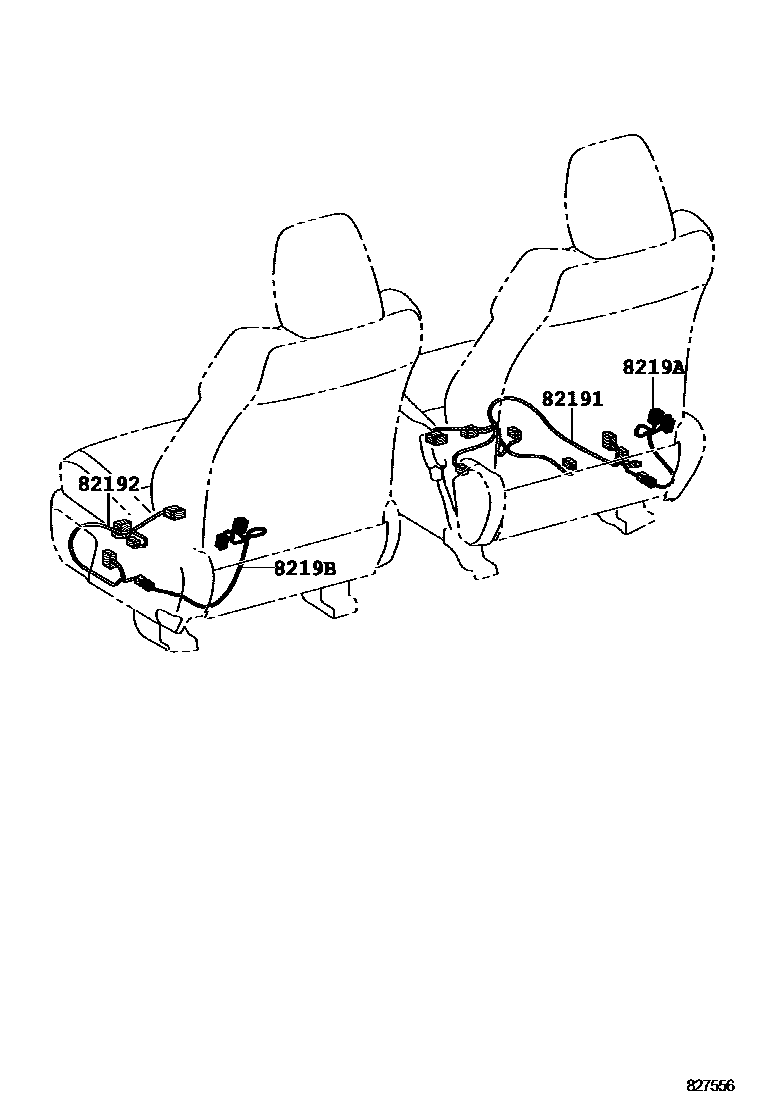

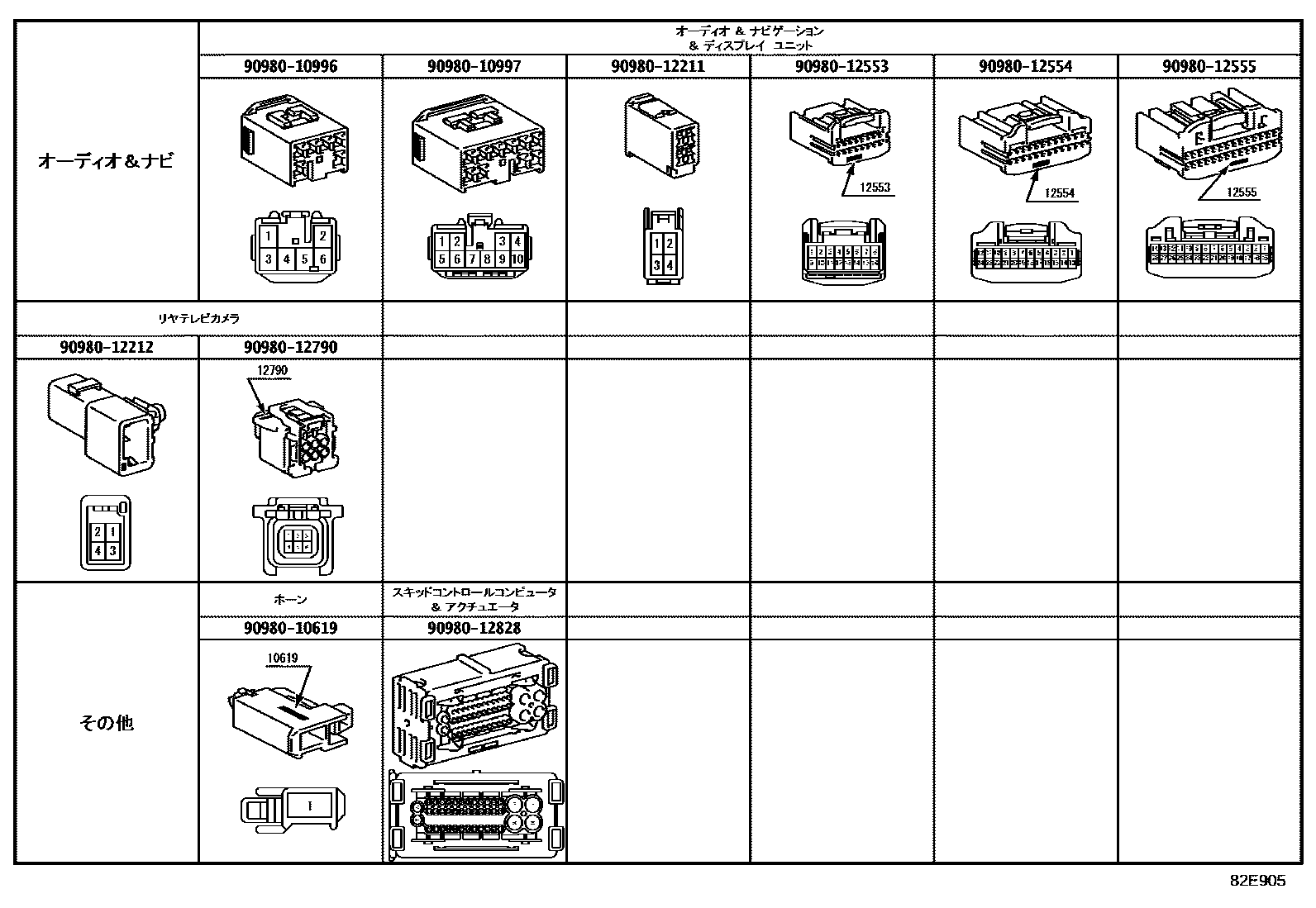

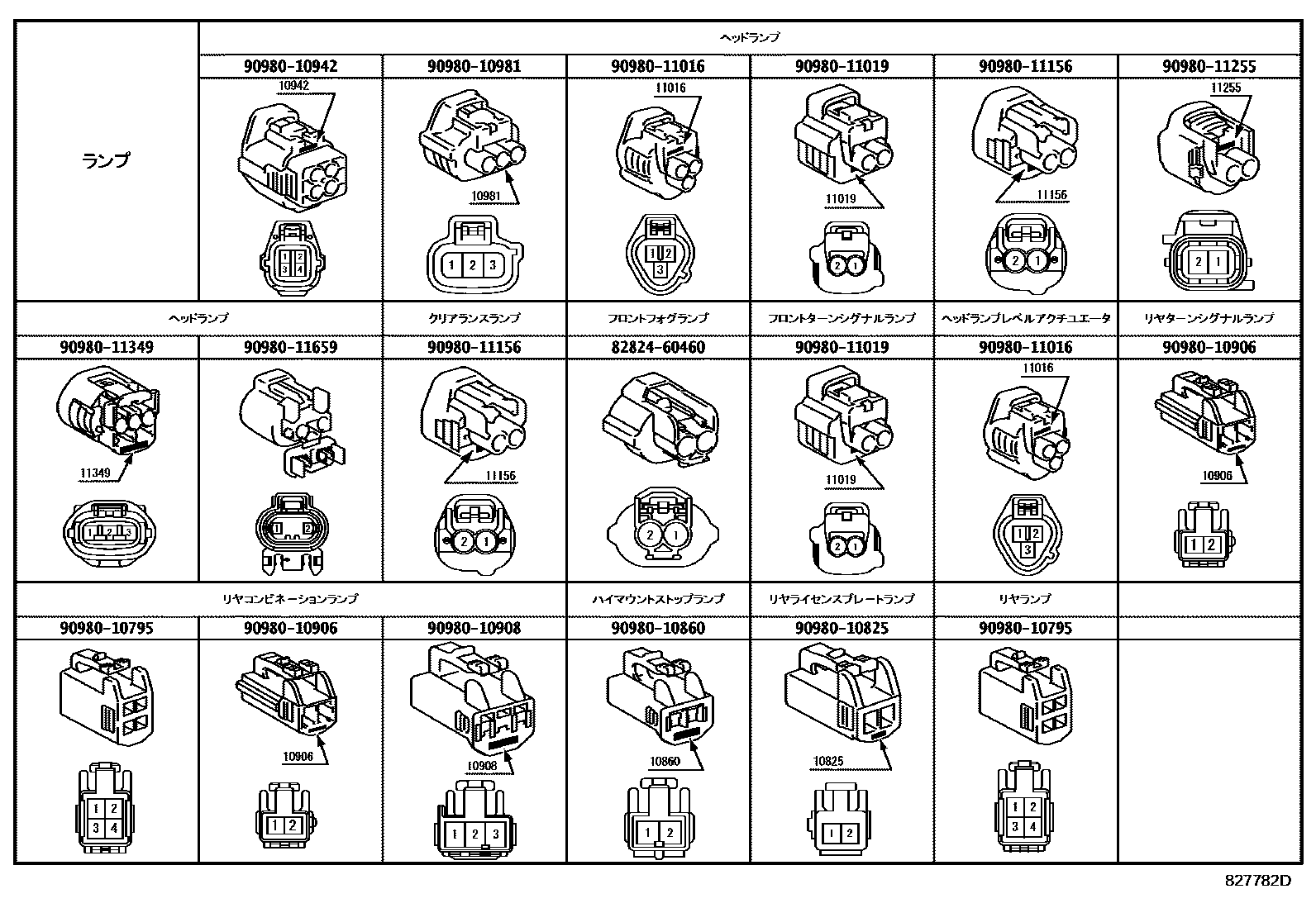

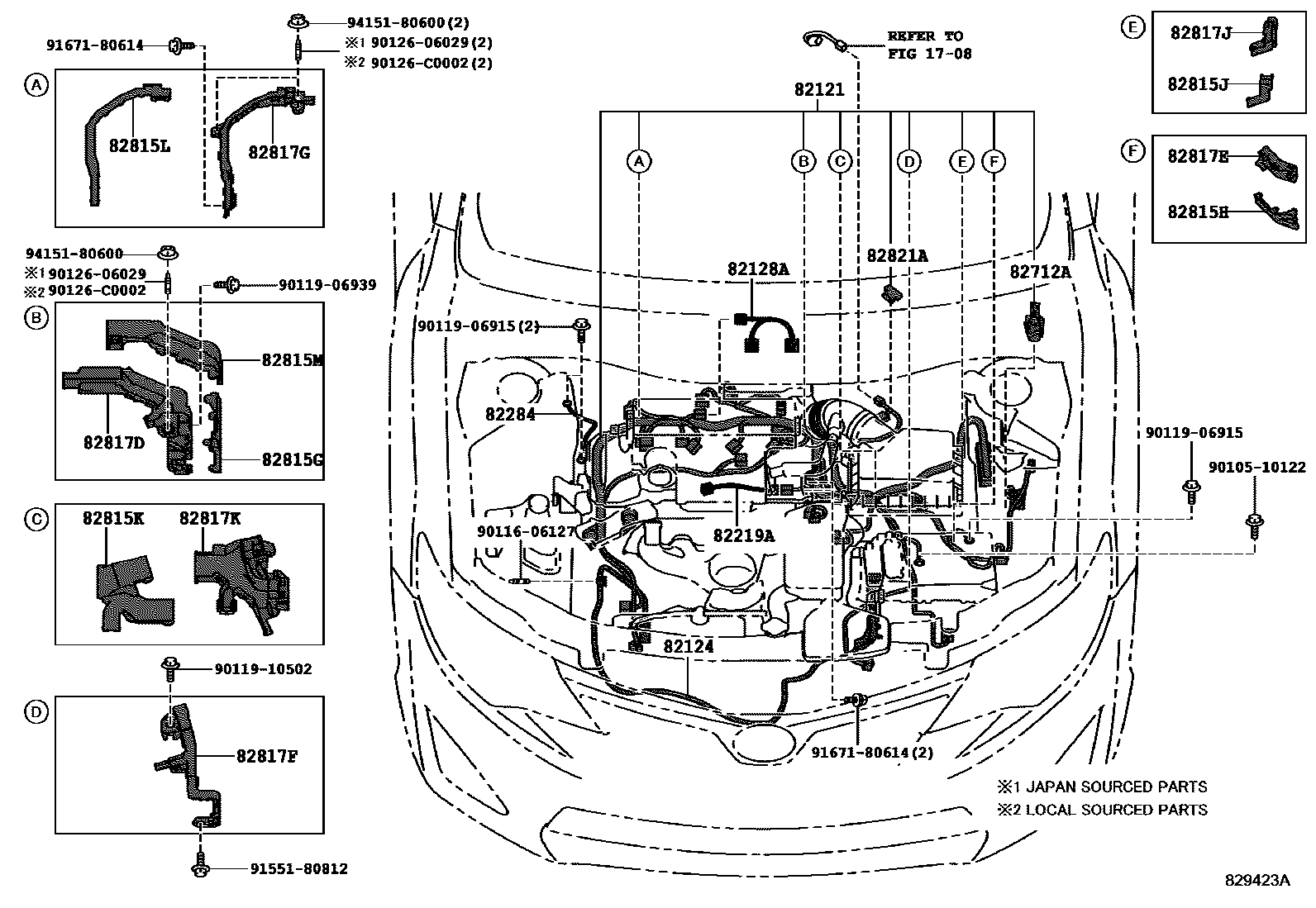

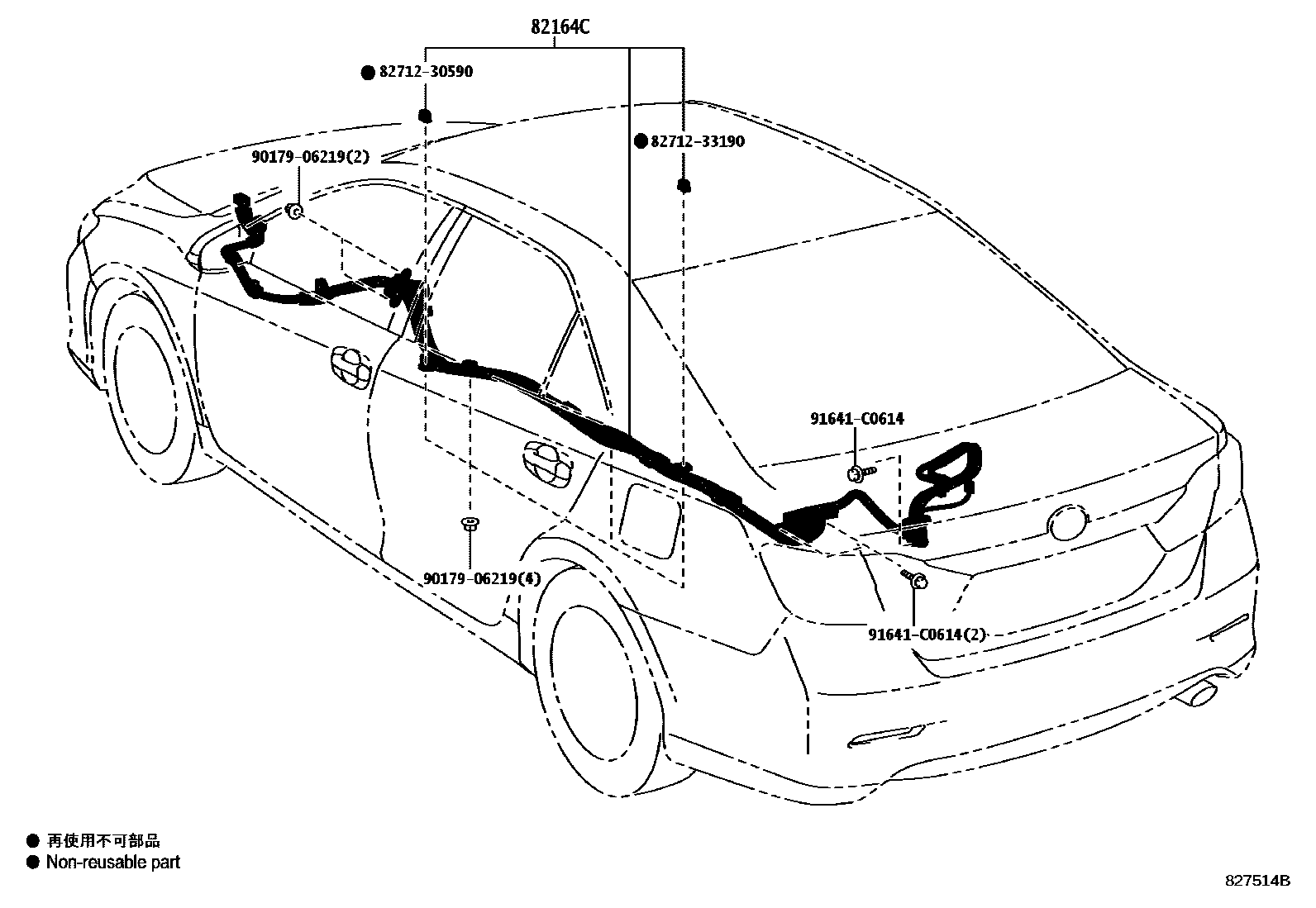

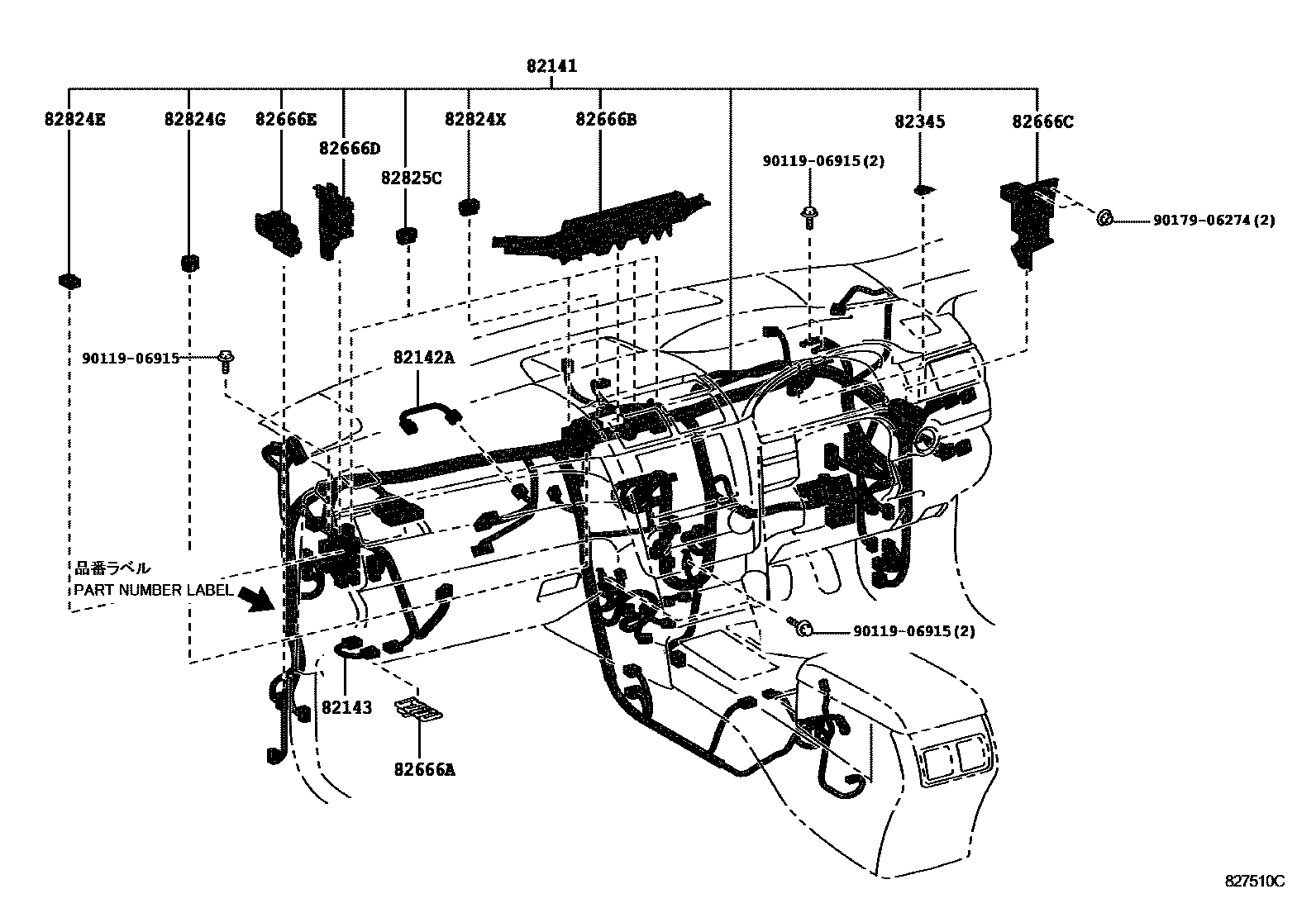

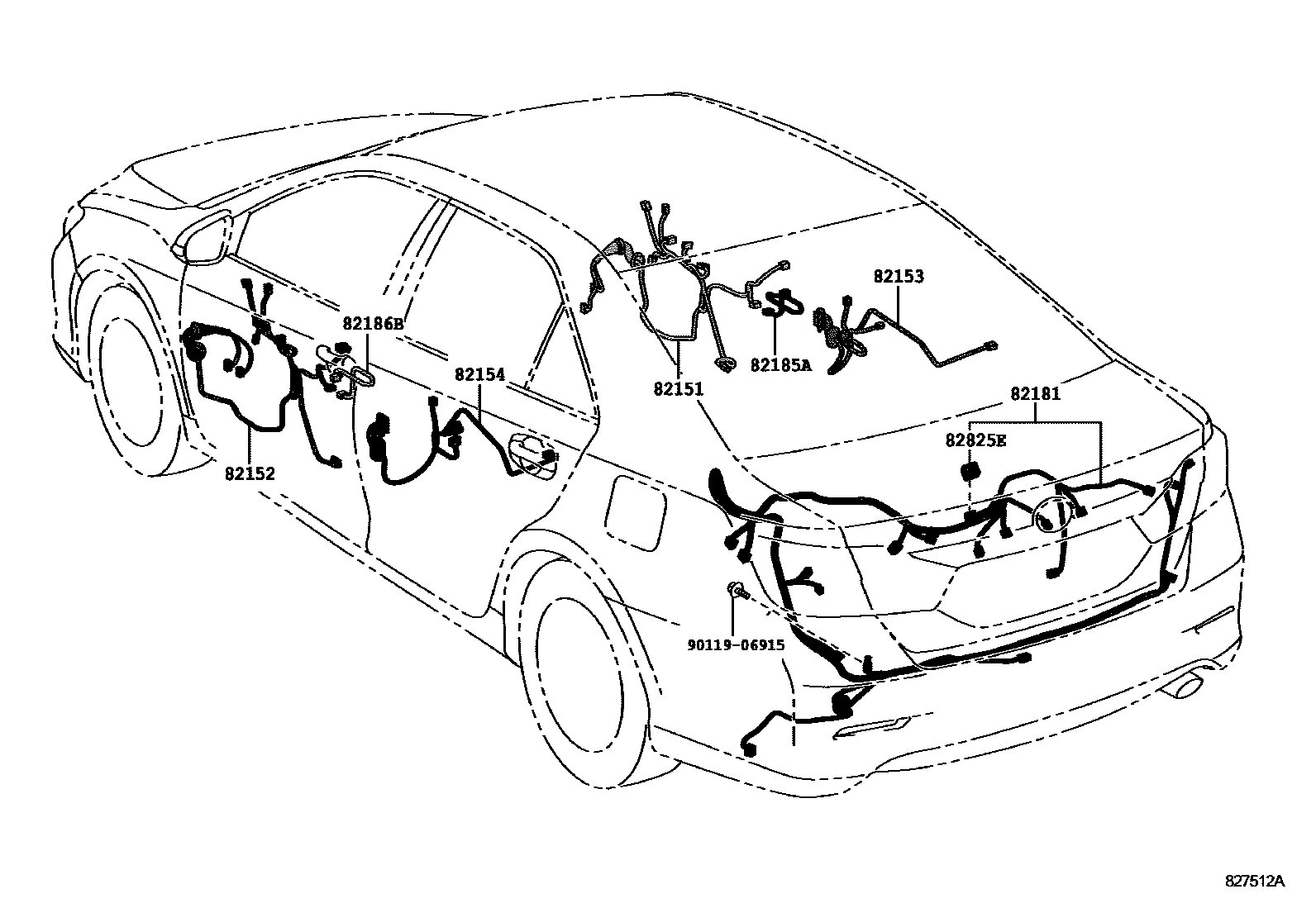

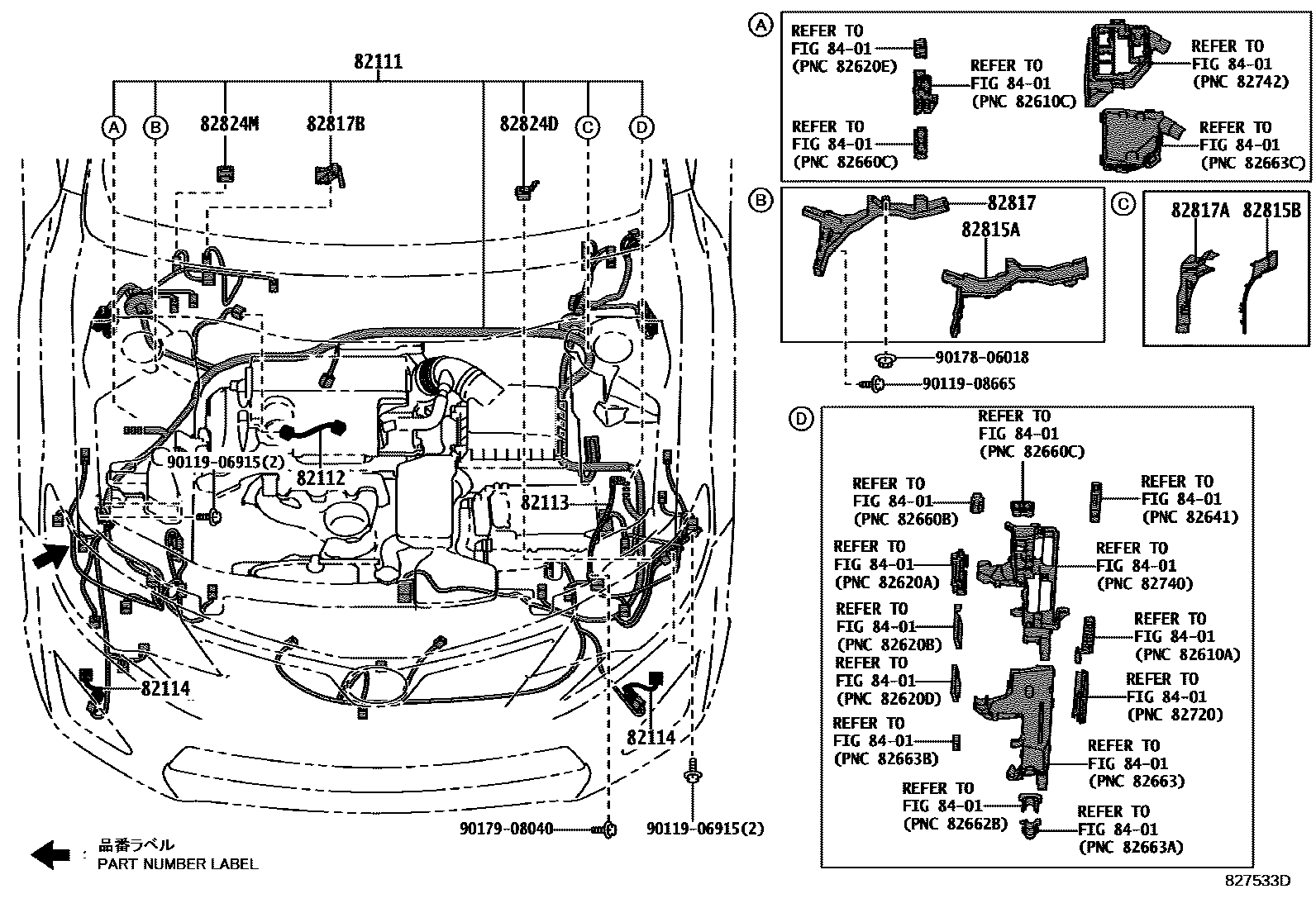

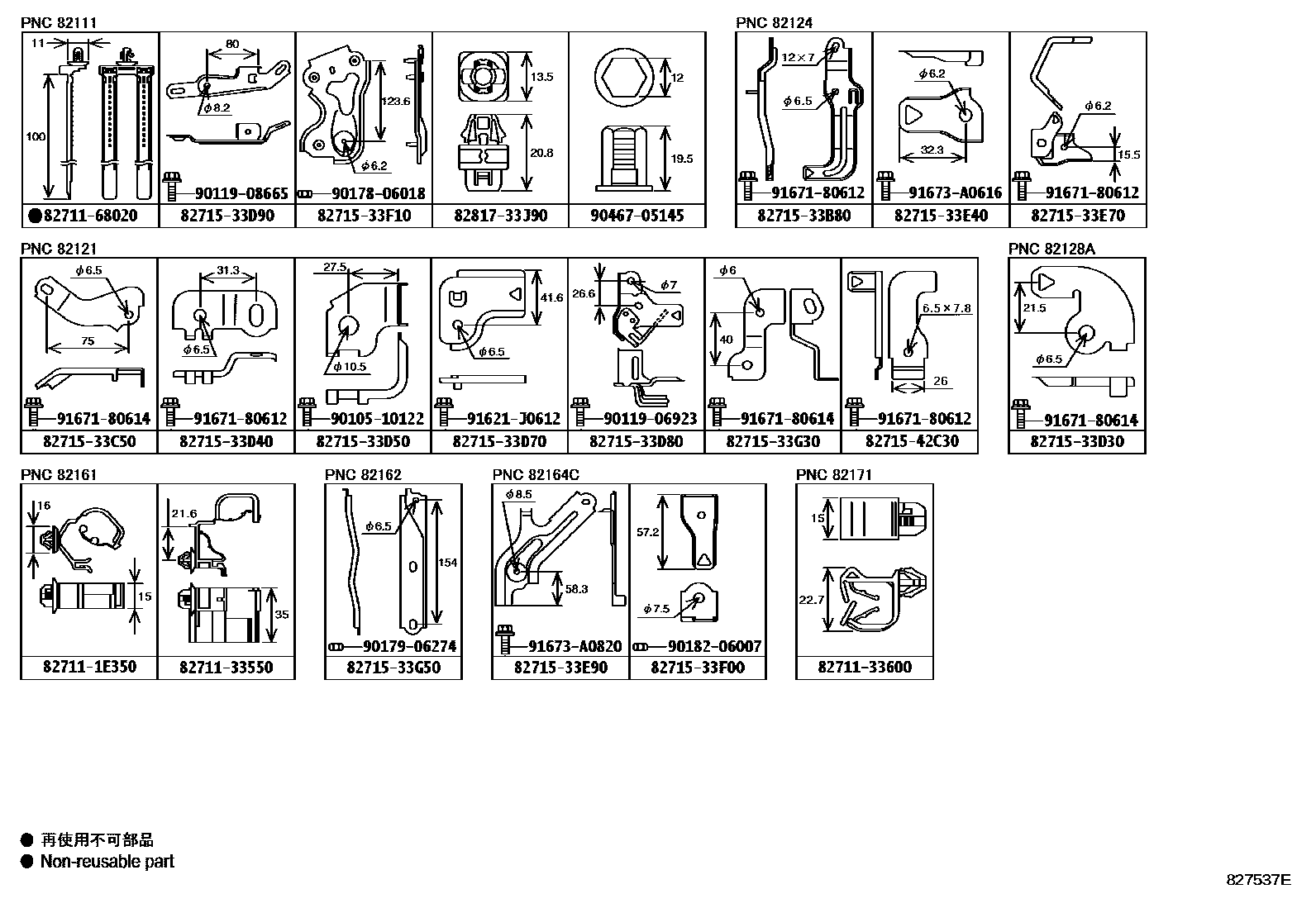

Toyota CAMRY EPC diagram 8202, 线束和卡夹, with 11 images and 66 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82111 | Engine room main wiring harness | 82111-33M00 · 82111-33M10 · 82111-33M11 · 82111-33N90 · 82111-33Q60 · 82111-33Q61 · 82111-33Q62 · 82111-33Q80 · 82111-3TL70 · 82111-3TL80 · 82111-3TM80 · 82111-3TM90 · 82111-3TN10 · 82111-3TN20 |
| 82112 | Engine room wiring harness No. 2 | 82112-33090 |
| 82113 | Engine room wiring harness No. 3 | 82113-33040 |
| 82114 | Engine room wiring harness No. 4 | 82114-33010 · 82114-33050 · 82114-33070 · 82114-33090 |
| 82121 | Engine wiring harness | 82121-33D50 |
| 82124 | Engine No. 4 wiring harness | 82124-33090 |
| 82128A | Engine wiring harness No. 8 | 82128-33010 |
| 82141 | Dashboard wiring harness | 82141-33V40 · 82141-33V41 · 82141-33V42 · 82141-33V43 · 82141-33W20 · 82141-33W21 · 82141-33W22 · 82141-33W23 · 82141-3TB10 · 82141-3TB11 · 82141-3TB20 · 82141-3TB21 · 82141-3TE80 · 82141-3TE81 · 82141-3TF40 · 82141-3TF41 · 82141-3TF90 · 82141-3TG10 · 82141-3TG11 · 82141-3TG60 · 82141-3TG61 · 82141-3TG80 · 82141-3YK10 · 82141-3YK20 · 82141-3YK30 · 82141-3YK40 · 82141-3YK50 · 82141-3YK60 · 82141-3YL60 · 82141-3YL70 · 82141-3YL80 · 82141-3YL90 · 82141-3YM00 · 82141-3YM10 · 82141-3YM20 · 82141-3YM30 · 82141-3YM40 · 82141-3YM50 · 82141-3YM70 · 82141-3YM80 |
| 82142A | Instrument panel wiring harness No. 2 | 82140-33030 |
| 82143 | Instrument panel wiring harness No. 3 | 82143-33130 |
| 82151 | Right front door wiring harness | 82151-33C80 · 82151-33C81 · 82151-33C82 |
| 82152 | Left front door wiring harness | 82152-33D30 · 82152-33D31 |
| 82153 | Rear door wiring harness No. 1 | 82153-33300 |
| 82154 | Rear door wiring harness No. 2 | 82154-33230 |
| 82161 | floor wiring harness | 82161-33N50 · 82161-33N51 · 82161-33N52 · 82161-33N53 · 82161-33P30 · 82161-33P31 · 82161-33P32 · 82161-33P33 · 82161-33Y20 · 82161-33Y40 · 82161-3TN60 · 82161-3TN80 |
| 82162 | Floor wiring harness No. 2 | 82162-33S20 · 82162-33S21 · 82162-33S22 · 82162-33S30 · 82162-33S31 · 82162-33S50 · 82162-33Y20 · 82162-33Y21 · 82162-3TA10 · 82162-3TA20 · 82162-3TA40 |
| 82163 | Floor wiring harness No. 3 | 82163-33110 |
| 82163B | No. 5 floor wiring harness | 82165-33100 |
| 82164C | No. 4 floor wiring harness | 82164-33140 · 82164-33141 |
| 82171 | Roof No. 1 wiring harness | 82171-33E70 · 82171-33E71 · 82171-33E80 · 82171-33E81 · 82171-33E90 · 82171-33E91 · 82171-33F20 · 82171-33F21 · 82171-33J10 · 82171-33J20 |
| 82181 | Luggage No. 1 wiring harness | 82181-33440 · 82181-33441 · 82181-33442 · 82181-33500 · 82181-33501 · 82181-33502 · 82181-33660 · 82181-33661 · 82181-33670 · 82181-33671 · 82181-33672 · 82181-33710 · 82181-33720 · 82181-33740 · 82181-33750 · 82181-33E10 · 82181-33E20 · 82181-33E40 · 82181-33E50 |
| 82185A | Right front smart door wiring harness | 82185-33090 |
| 82186B | Left front smart door wiring harness | 82186-33020 |
| 82191 | Front right seat wiring harness | 82191-33610 · 82191-33620 |
| 82192 | Front left seat wiring harness | 82192-33540 |
| 8219A | Wire harness No. 2, right side of front seat | 8219A-33010 |
| 8219B | Wire harness No. 2, left side of front seat | 8219B-33010 |
| 82219A | sensor harness | 82219-33060 |
| 82284 | Ground wire | 82284-33050 |
| 82345 | diode | 82345-12050 |
| 82666A | Connector holder No. 2 | 82666-60610 |
| 82666B | No. 3 connector holder | 82666-33430 |
| 82666C | No. 4 connector holder | 82666-33440 |
| 82666D | No. 5 connector holder | 82666-33450 |
| 82666E | No. 6 connector holder | 82666-33510 |
| 82666F | No. 7 connector holder | 82666-33470 |
| 82666G | No. 8 connector holder | 82666-33480 |
| 82666L | No. 9 connector holder | 82666-33490 |
| 82666Q | No. 12 connector holder | 82666-60220 |
| 82712A | Wire harness bracket | 82712-33080 |
| 82815A | Wiring harness protector cover | 82815-33440 |
| 82815B | Wiring harness protector cover | 82815-33740 |
| 82815G | Wiring harness protector cover | 82815-33500 |
| 82815H | Wiring harness protector cover | 82815-33510 |
| 82815J | No. 7 wire harness protector cover | 82815-33520 |
| 82815K | No. 8 wire harness protector cover | 82815-33680 |
| 82815L | No. 9 wire harness protector cover | 82815-33730 |
| 82815M | No. 10 wire harness protector cover | 82815-33750 |
| 82817 | No. 1 wire harness protection device | 82817-33D00 |
| 82817A | No. 2 wire harness protection device | 82817-33J00 |
| 82817B | No. 3 wire harness protection device | 82817-33K10 |
| 82817D | No. 5 wire harness protection device | 82817-33D80 |
| 82817E | No. 6 wire harness protection device | 82817-33D90 |
| 82817F | No. 7 wire harness protection device | 82817-33E00 |
| 82817G | No. 8 wire harness protection device | 82817-33E10 |
| 82817J | No. 9 wire harness protection device | 82817-33E20 |
| 82817K | No. 10 wire harness protection device | 82817-33G70 |
| 82821A | Connector cover | 82821-33330 |
| 82824D | Harness connector | 82824-48020 |
| 82824E | Harness connector | 82824-30180 |
| 82824G | Harness connector | 82824-30220 |
| 82824H | Harness connector | 82824-30220 |
| 82824M | Harness connector | 82824-73030 |
| 82824X | Harness connector | 82824-50340 |
| 82825C | Harness connector | 82824-50360 |
| 82825E | Harness connector | 82824-30220 |
