Toyota CAMRY 后防护条 — Figure 7504

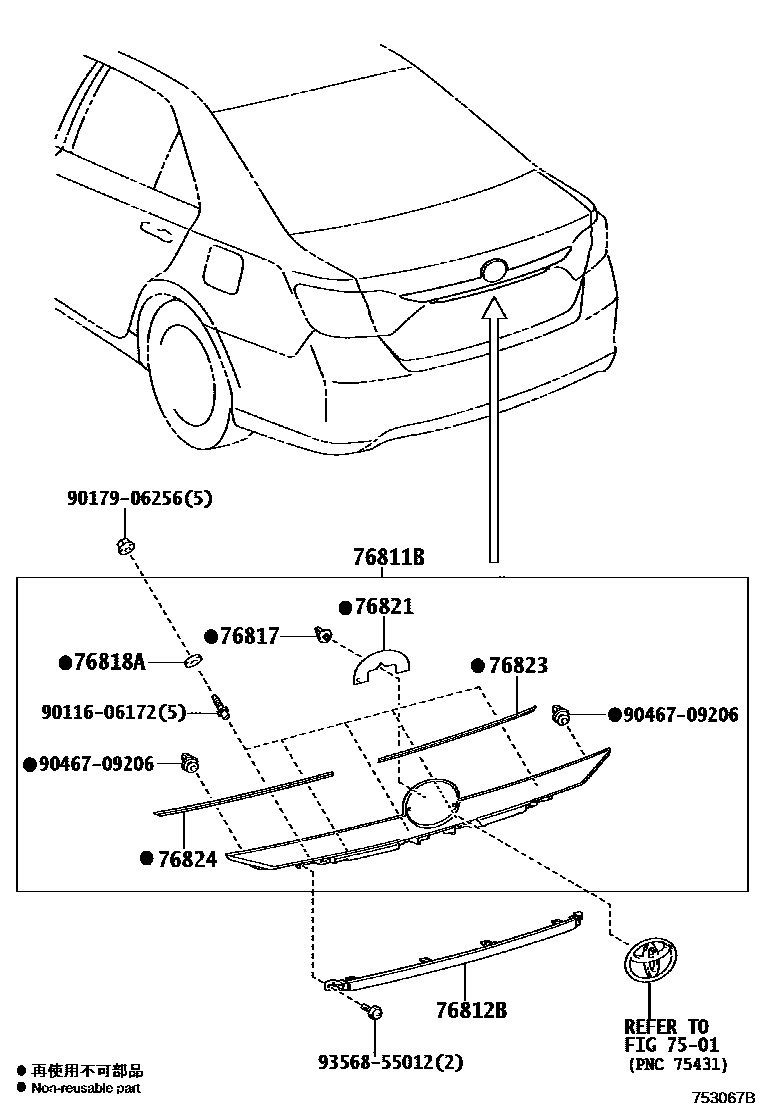

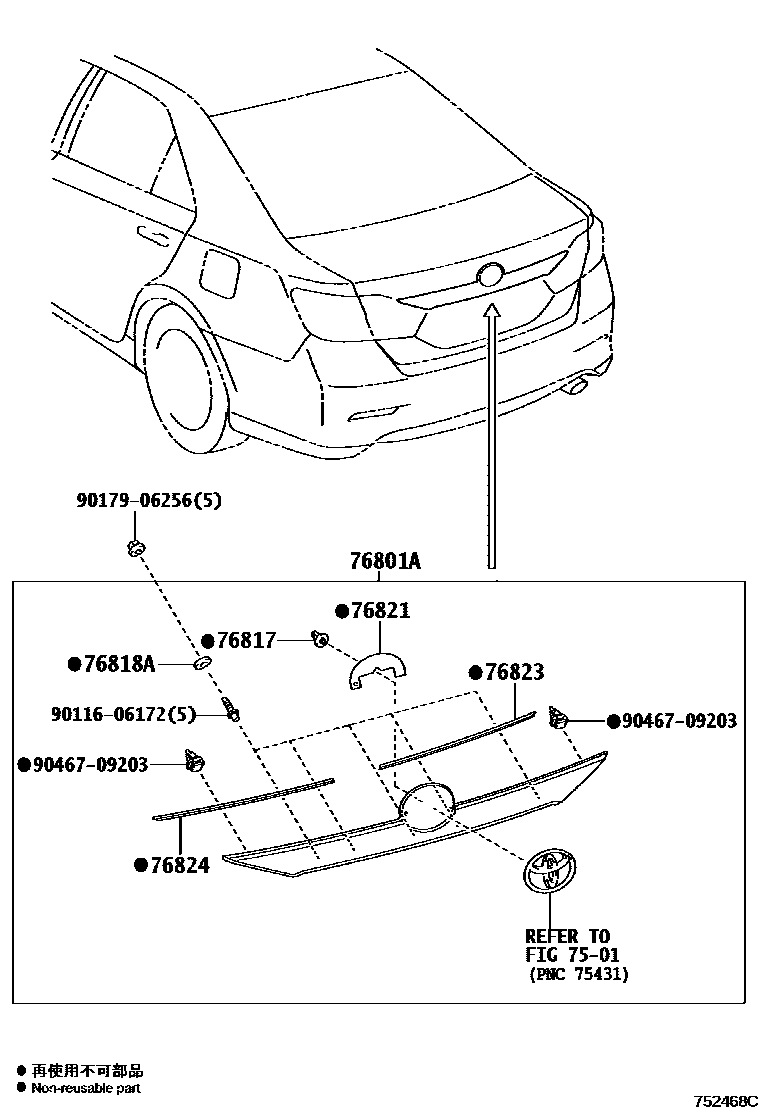

Toyota CAMRY EPC diagram 7504, 后防护条, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 76801A | Trunk door outer decorative strip sub-assembly | 76801-33410 · 76801-33430 |
| 76812B | No. 2 suitcase door outer decorative strip | 76812-33030 · 76812-33050 |
| 76817 | Rear door exterior decorative strip clip | 76817-12060 |
| 76818A | Luggage trim strip lining No. 1 | 76818-33010 |
| 76821 | Protective cover for rear door trim strip | 76821-33010 · 76821-33040 |
| 76823 | Rear door right side decorative strip protective cover | 76824-33010 · 76824-33030 |
| 76824 | Rear door left side decorative strip protective cover | 76825-33080 · 76825-33100 |
