Toyota CAMRY 侧防护条 — Figure 7503

Toyota CAMRY EPC diagram 7503, 侧防护条, with 2 images and 29 PNC and OE references.

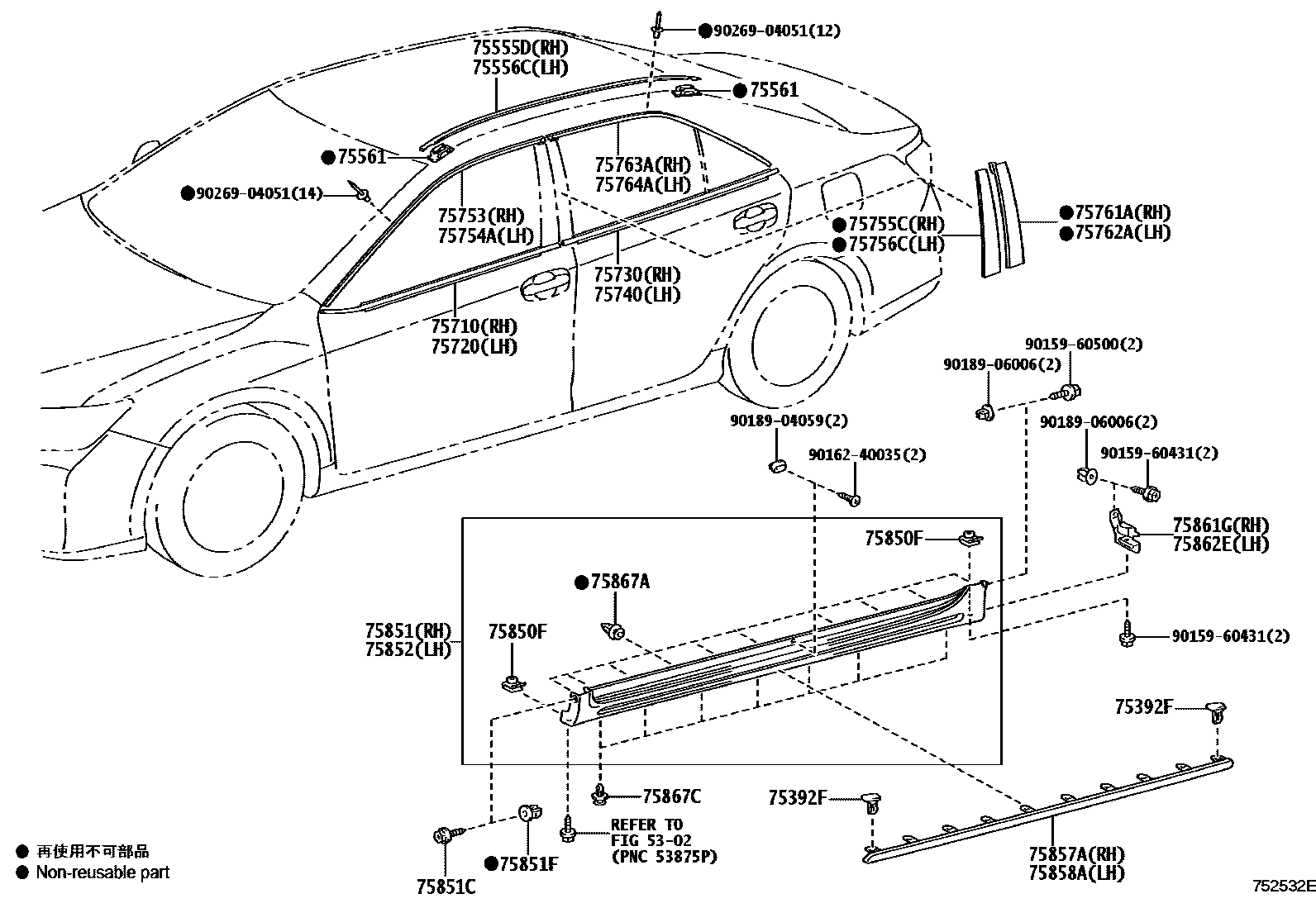

Toyota CAMRY 侧防护条 EPC diagram — 752532E
侧防护条 — 752532E (201108 – 201409)

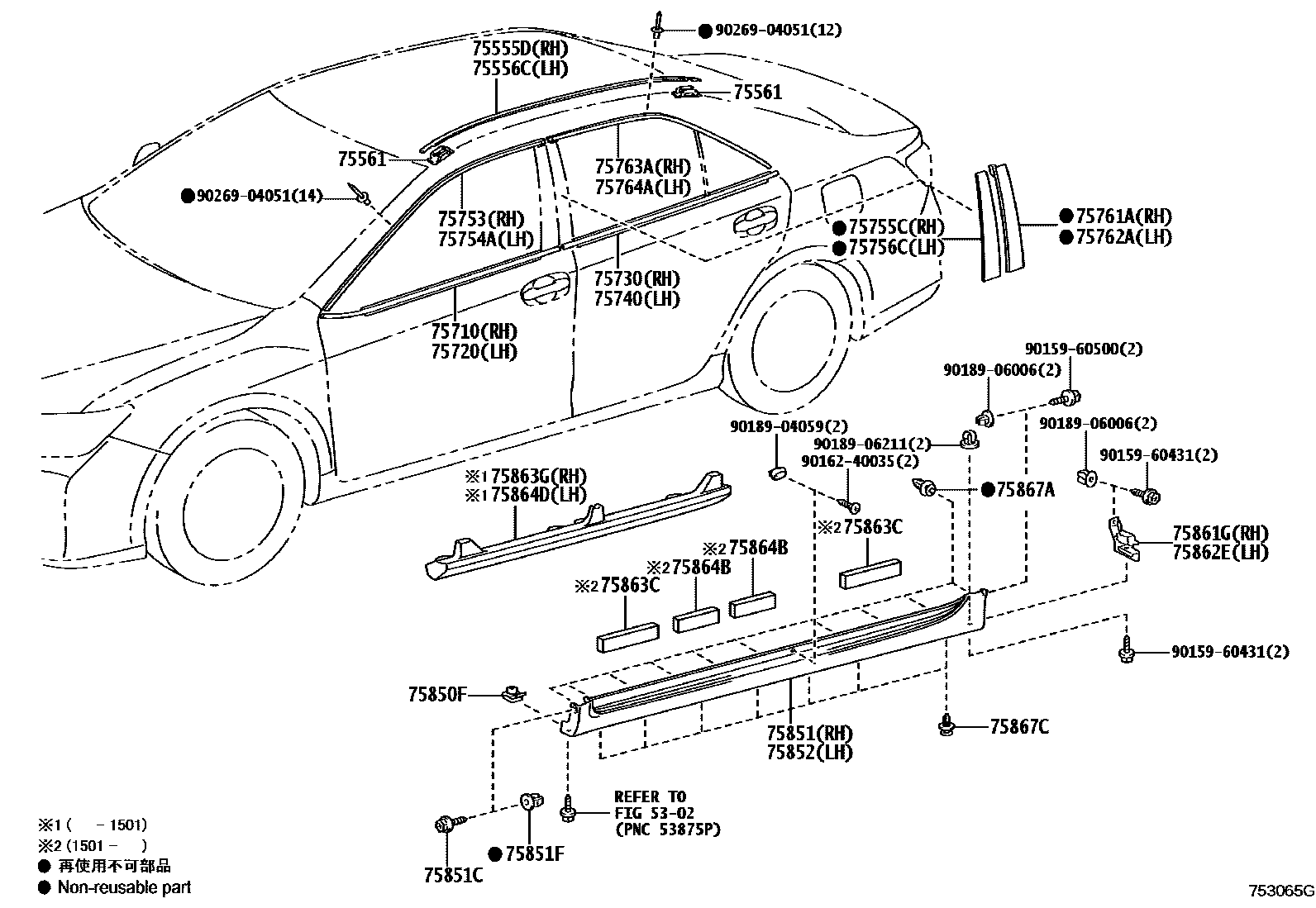

Toyota CAMRY 侧防护条 EPC diagram — 753065G
侧防护条 — 753065G (201409 – 999999)

PNC and OE references

PNCPart nameOE numbers
75392FExternal protective strip fixings75392-35220
75555DDrainage channel side decorative strip in the middle section on the right side of the roof75555-33050
75556CDrainage channel side decorative strip in the middle section on the left side of the roof75556-33050
75561No. 1 roof drain channel side decorative strip clip75561-33030
75710Right front door waistline protection strip assembly75710-33140
75720Left front door waistline protection strip assembly75720-33140
75730Right rear door waistline protection strip assembly75730-33140
75740Left rear door waistline protection strip assembly75740-33140
75753Protective strip on right front door window frame75753-33080
75754AProtective strip on left front door window frame75754-33080
75755CRight front door window frame rear protective strip75755-33050
75756CLeft front door window frame rear protective strip75756-33050
75761ARight rear door window frame front protective strip75761-33050
75762ALeft rear door window frame front protective strip75762-33050
75763AProtective strip on right rear door window frame75763-33100
75764AProtective strip on left rear door window frame75764-33100
75850FToyota part90183-06019
75851CToyota part90159-60500
75851FToyota part90189-06065
75857ARight side door sill panel protective strip cover75857-33010
75858ALeft side door sill panel protective strip cover75858-33010
75861GRight front door sill panel protective strip end cap75861-33030 · 75861-33050
75862ELeft front door sill panel protective strip end cap75862-33030 · 75862-33050
75863CNo. 3 rocker panel protective strip protective cover75863-33100
75863GToyota part75863-33020
75864BNo. 4 door sill panel protective strip protective cover75864-33080
75864DToyota part75864-33020
75867ADoor sill panel protective strip clip75867-33030 · 75867-68010
75867CDoor sill panel protective strip clip75867-33050
