Toyota CAMRY 警示铭牌(车外和车内) — Figure 7403

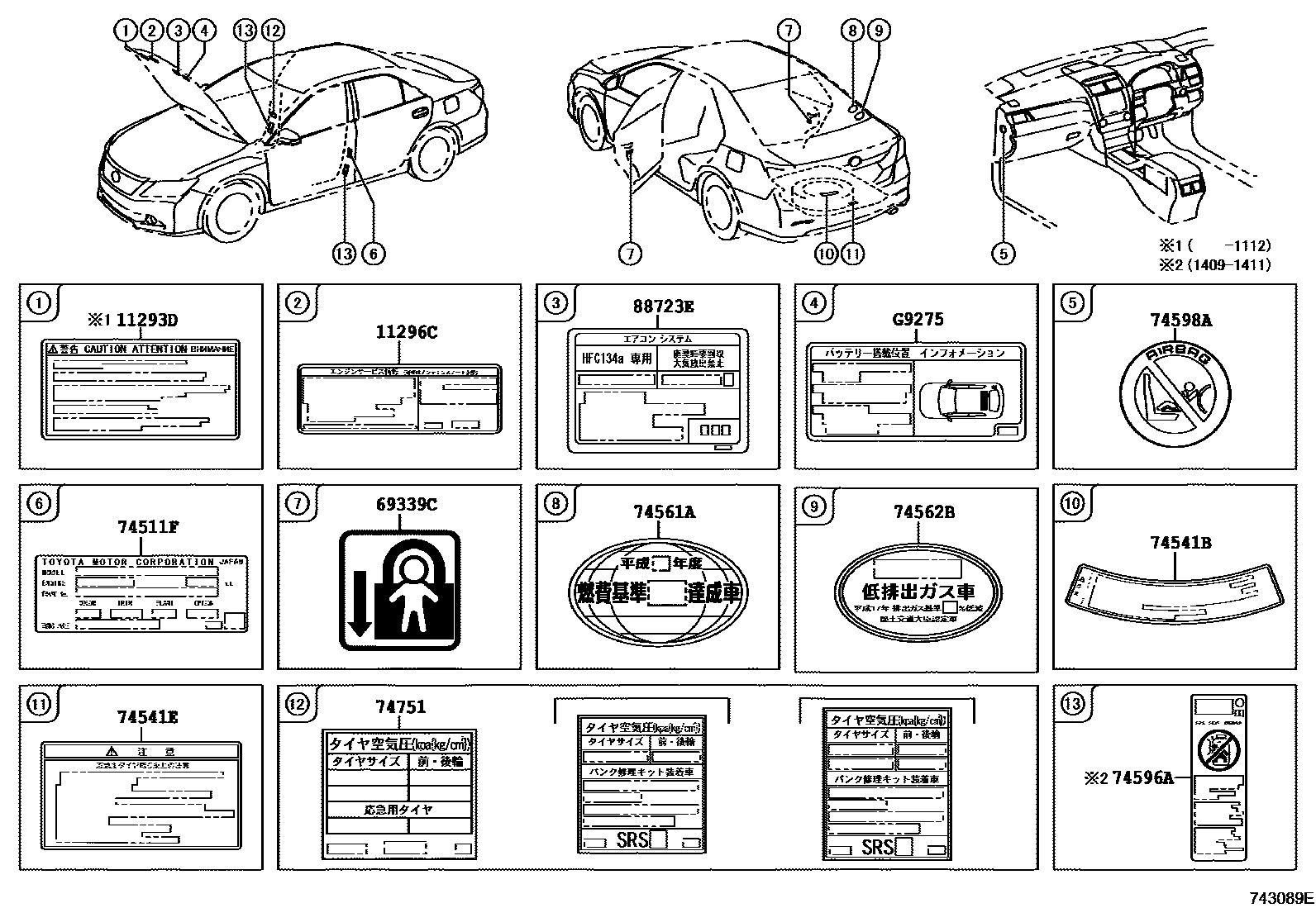

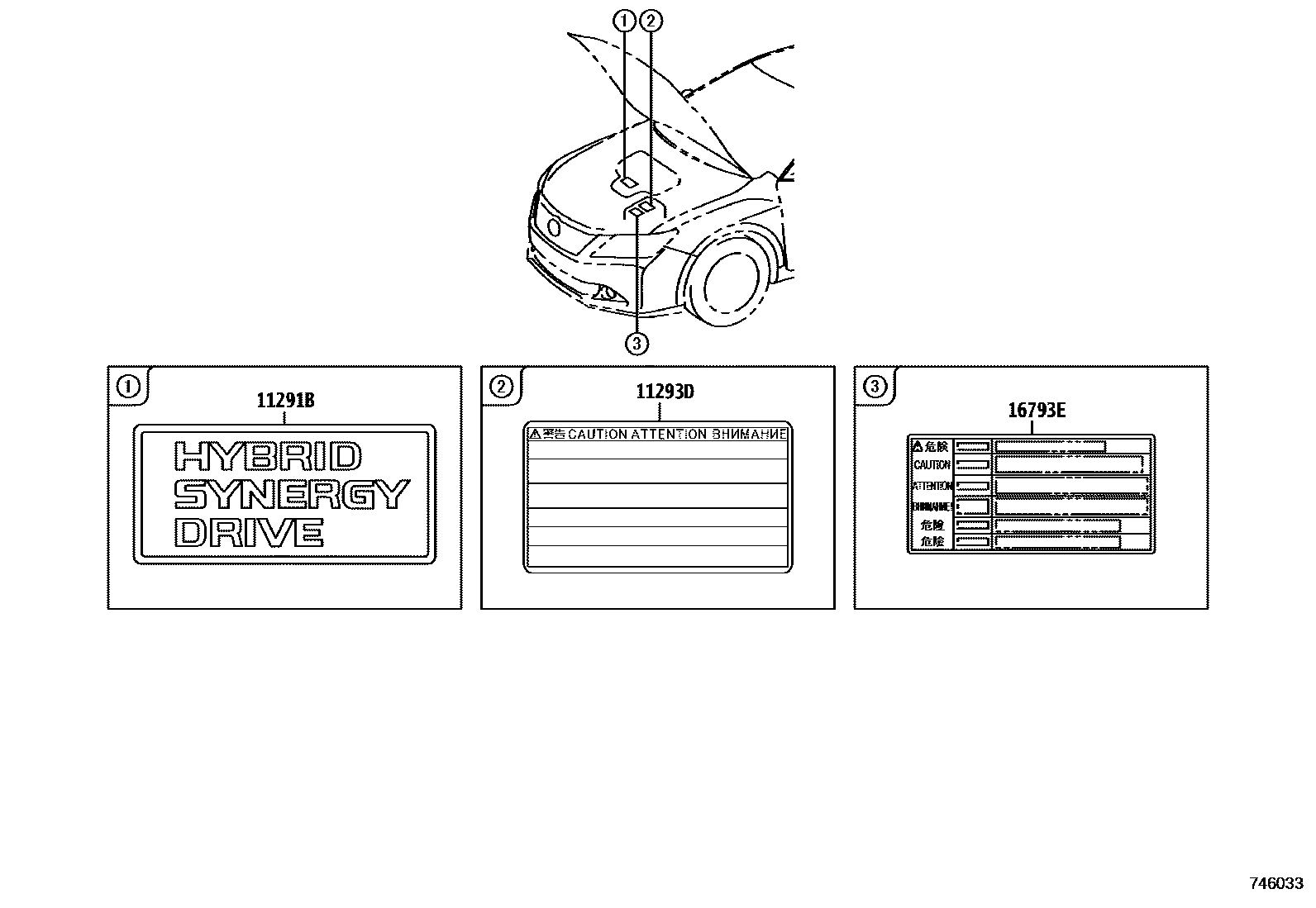

Toyota CAMRY EPC diagram 7403, 警示铭牌(车外和车内), with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11291B | Toyota part | 11291-36040 |
| 11293D | engine warning label | 11293-21090 · 11293-36070 |
| 11296C | Engine maintenance information label | 11296-36010 · 11296-37070 |
| 16793E | Toyota part | 16793-31040 |
| 69339C | Child Restraint Information Label | 69339-33040 |
| 74511F | Nameplate (laser identification label) | 74511-2B300 |
| 74541B | Small spare tire warning plate | 42668-20030 |
| 74541E | Small spare tire warning plate | 42668-28060 · 42668-28080 |
| 74561A | fuel consumption information label | 74561-13030 · 74561-28020 · 74561-48110 · 74561-48170 · 74561-48340 |
| 74562B | Emission information label | 74562-47010 |
| 74596A | Side air bag warning label | 74596-53011 |
| 74598A | Passenger air bag warning label | 74598-20010 |
| 74751 | tire pressure information label | 42661-33690 · 42661-33840 · 42661-33B50 · 42661-33B60 · 42661-33B70 |
| 88723E | Cooler maintenance warning label | 88733-33030 · 88733-33031 |
| G9275 | No. 1 battery warning label | G9275-76010 |
