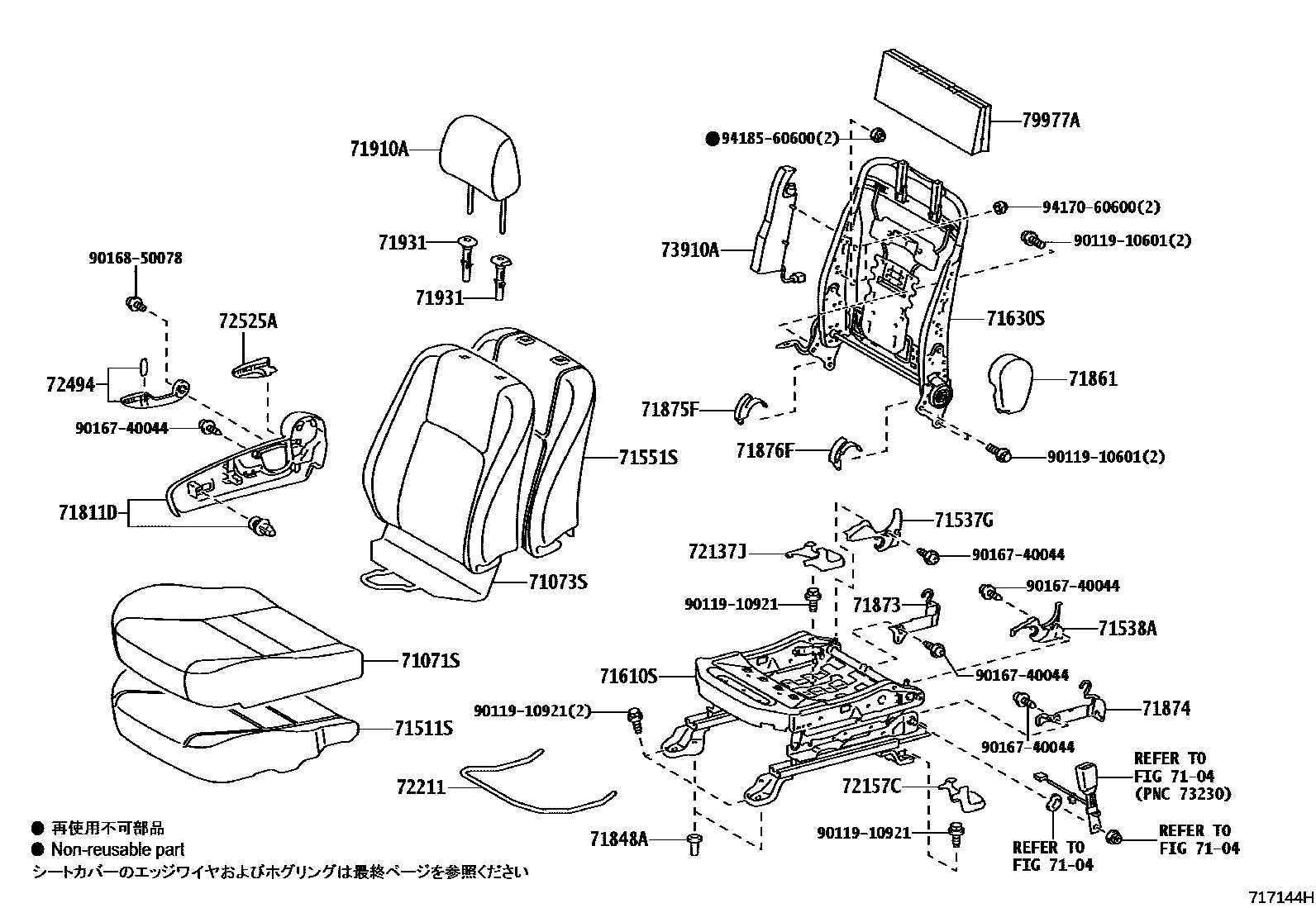

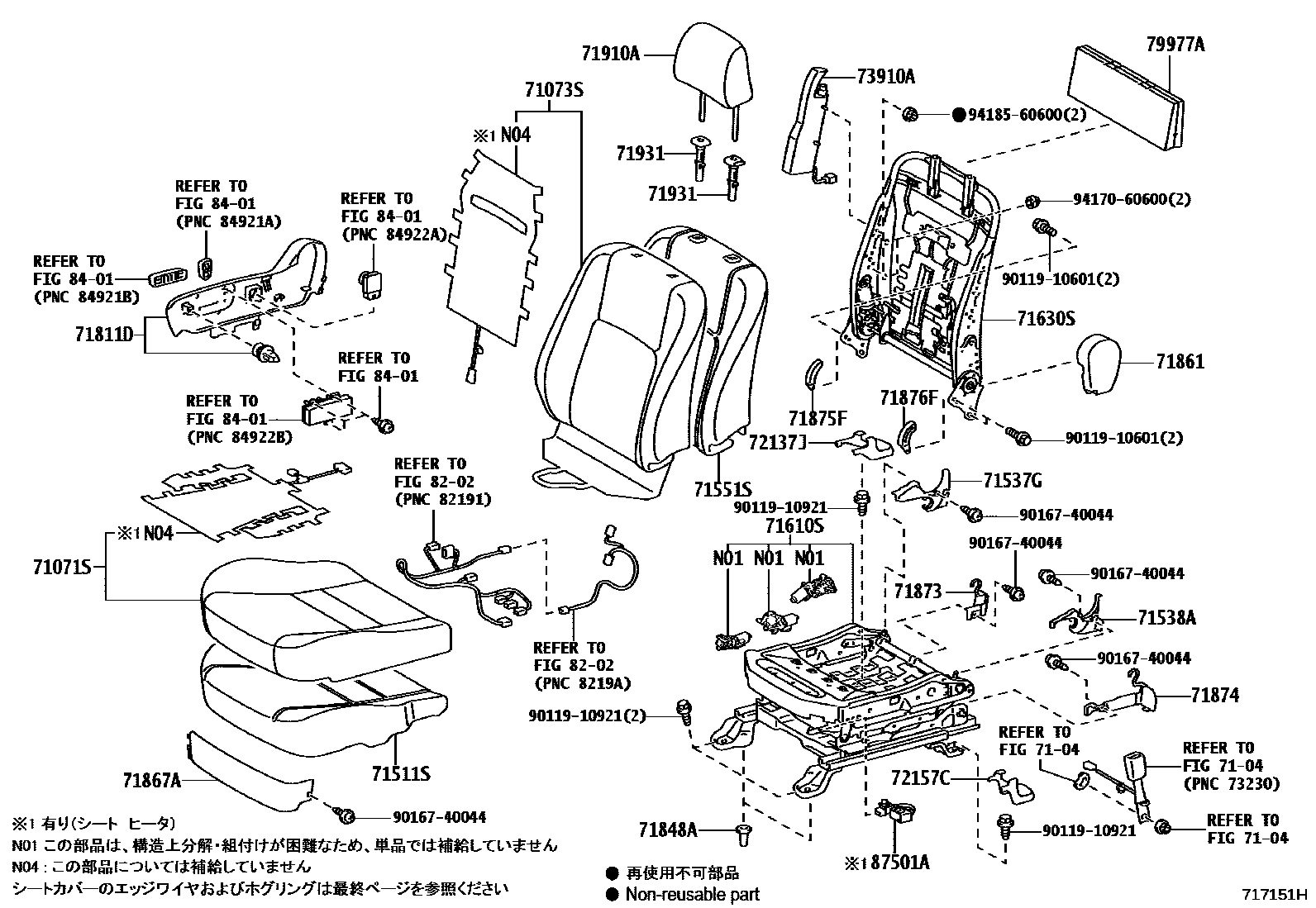

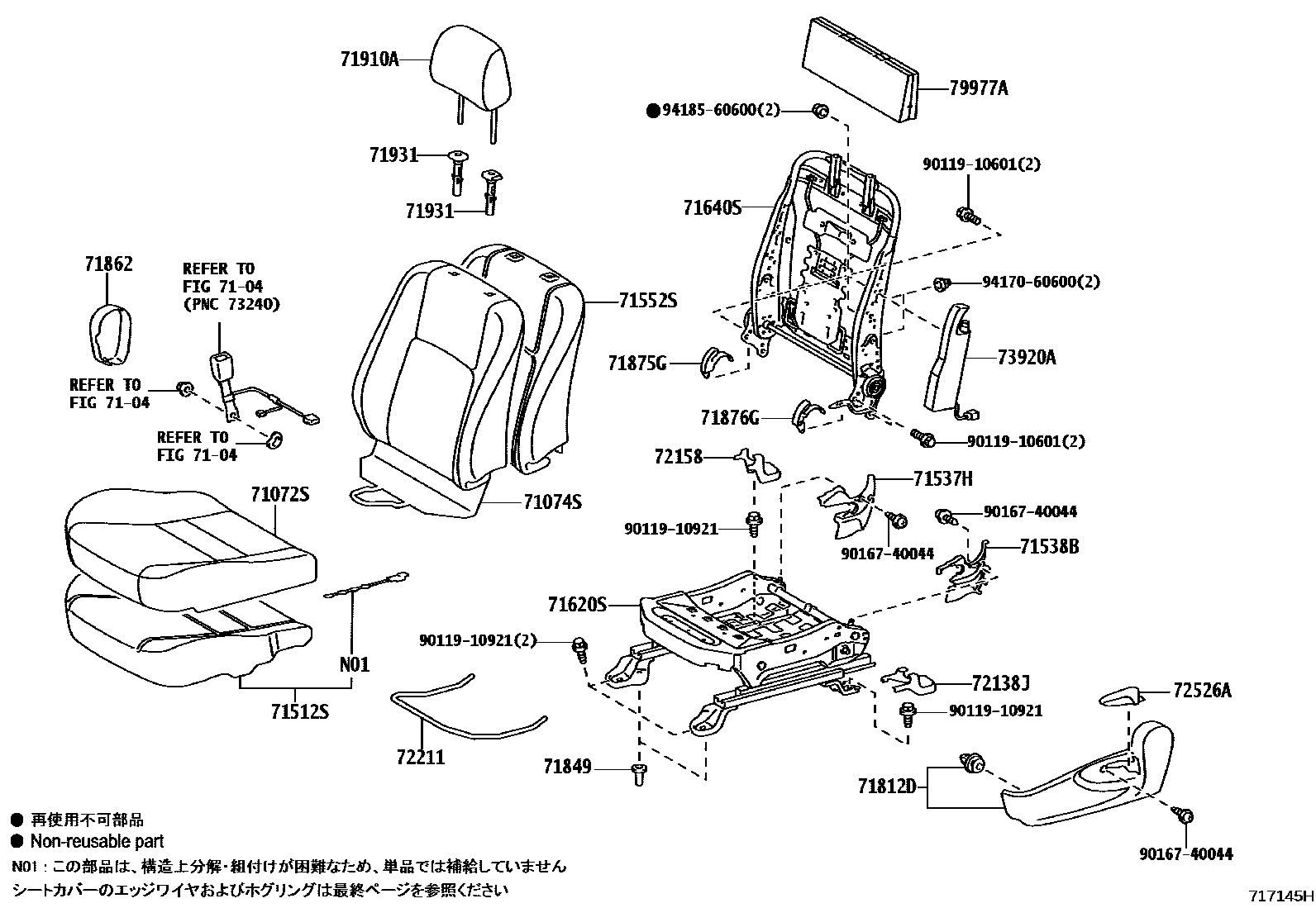

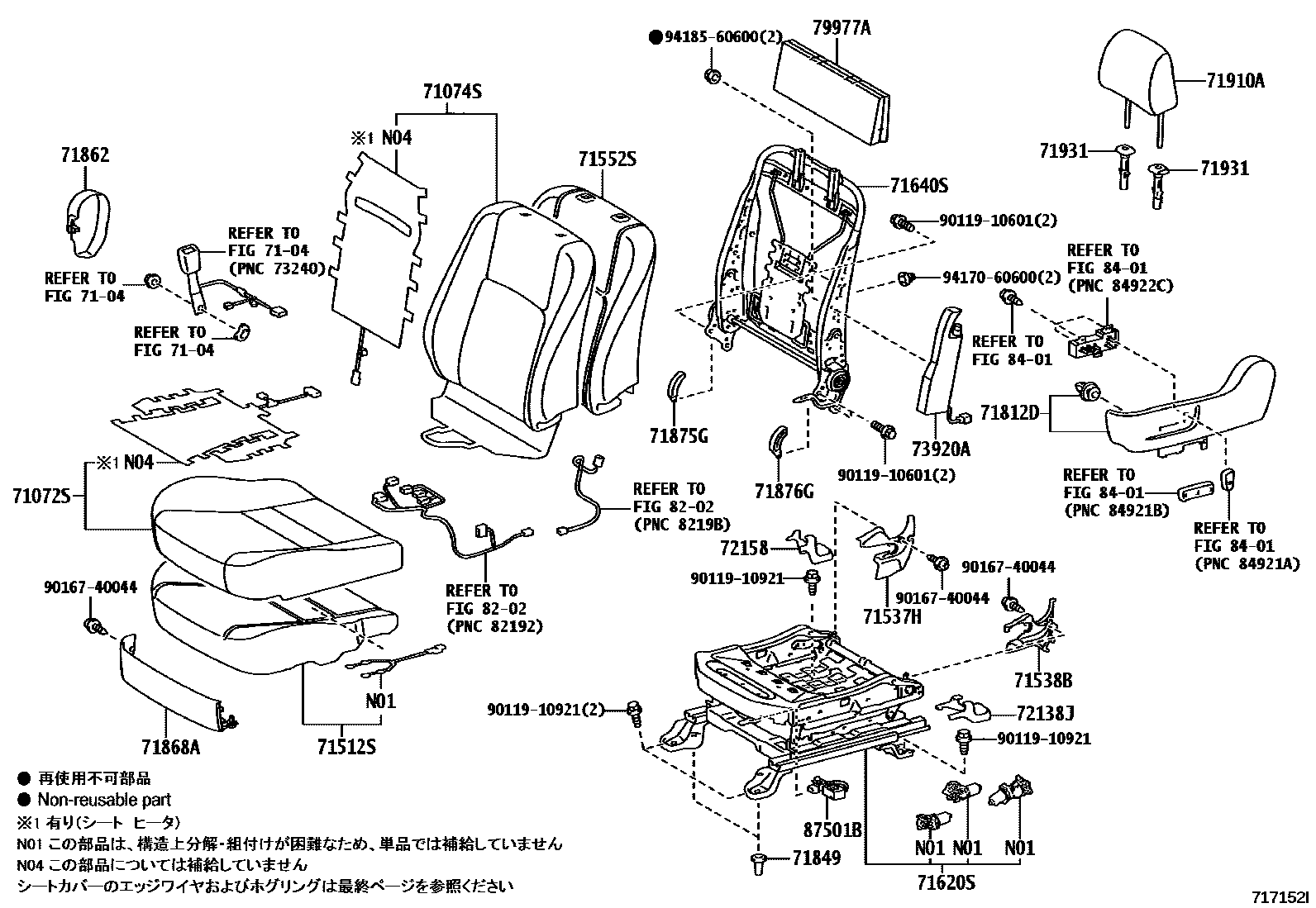

Toyota CAMRY 前排座椅和座椅滑轨 — Figure 7101
Toyota CAMRY EPC diagram 7101, 前排座椅和座椅滑轨, with 5 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71511S | Front right seat cushion cushion (for split seats) | 71511-33330 · 71511-33331 · 71511-33430 · 71511-33431 |
| 71512S | Front left seat cushion cushion (for split seats) | 71502-33180 · 71502-33181 · 71502-33190 · 71502-33191 |
| 71551S | Front right seat back cushion (for split seats) | 71551-33330 |
| 71552S | Front left seat back cushion (for split seats) | 71552-33220 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-33030 · 71610-33031 · 71610-33080 · 71610-33081 · 71610-33090 · 71610-33091 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-33040 · 71620-33041 · 71620-33100 · 71620-33101 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-33170 · 71630-33180 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-33060 · 71640-33070 |
| 71848A | Right seat adjuster cover | 71848-47010 |
| 71849 | left seat adjuster cover | 71848-47010 |
| 71873 | Front right seat cushion lower guard panel | 71873-47040 · 71873-60030 |
| 71874 | Front left seat cushion lower guard | 71874-33110 |
| 72211 | Seat slide adjustment handle | 72211-33040 |
| 73910A | Front right seat airbag assembly | 73910-33030 |
| 73920A | Front left seat airbag assembly | 73920-33030 |
| 79977A | Seat back felt pad | 79977-33010 |
| 87501A | Right seat heater control sub-assembly | 87501-60030 · 87501-60040 · 87501-60050 |
| 87501B | Left side seat heater control sub-assembly | 87501-60030 · 87501-60040 · 87501-60050 |
