Toyota CAMRY 后门板和后门玻璃 — Figure 6705

Toyota CAMRY EPC diagram 6705, 后门板和后门玻璃, with 3 images and 38 PNC and OE references.

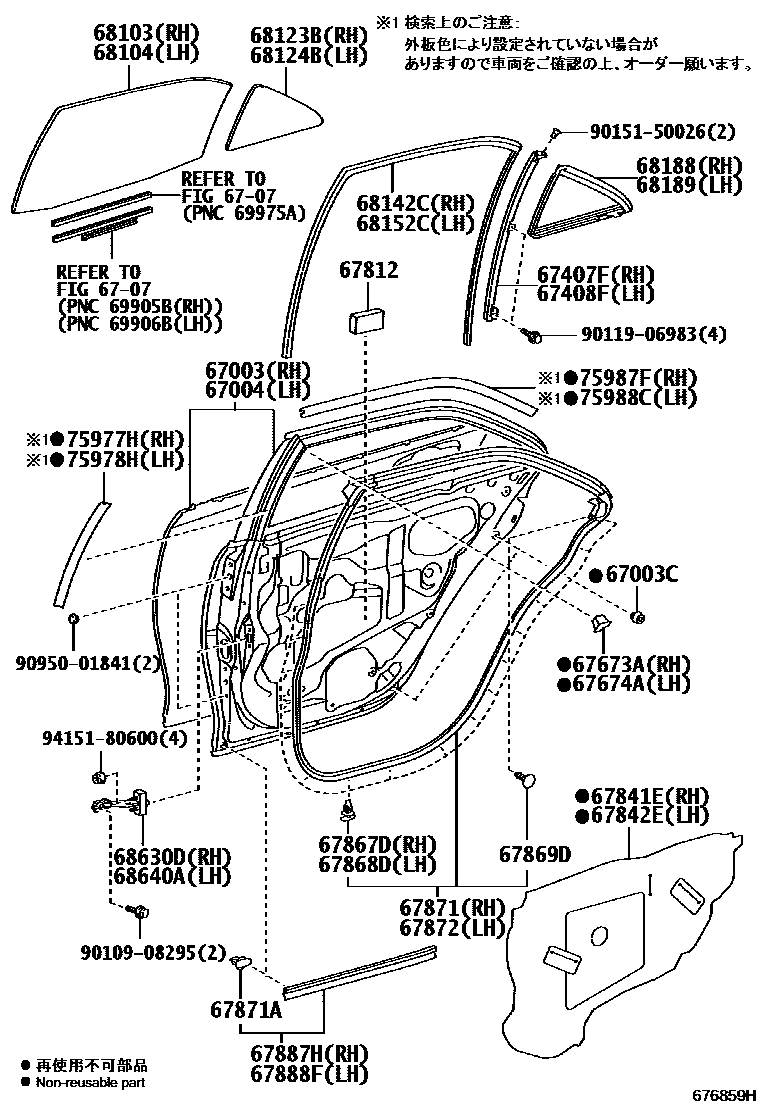

Toyota CAMRY 后门板和后门玻璃 EPC diagram — 676859H
后门板和后门玻璃 — 676859H (201108 – 999999)

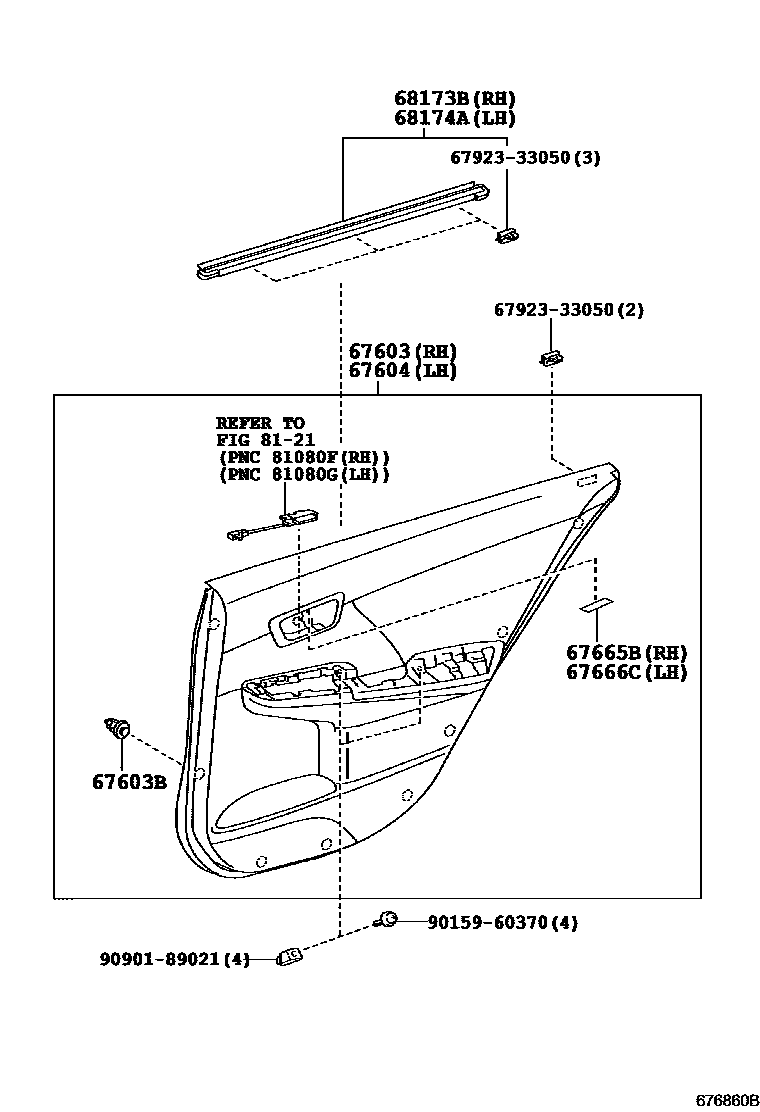

Toyota CAMRY 后门板和后门玻璃 EPC diagram — 676860B
后门板和后门玻璃 — 676860B (201108 – 201404)

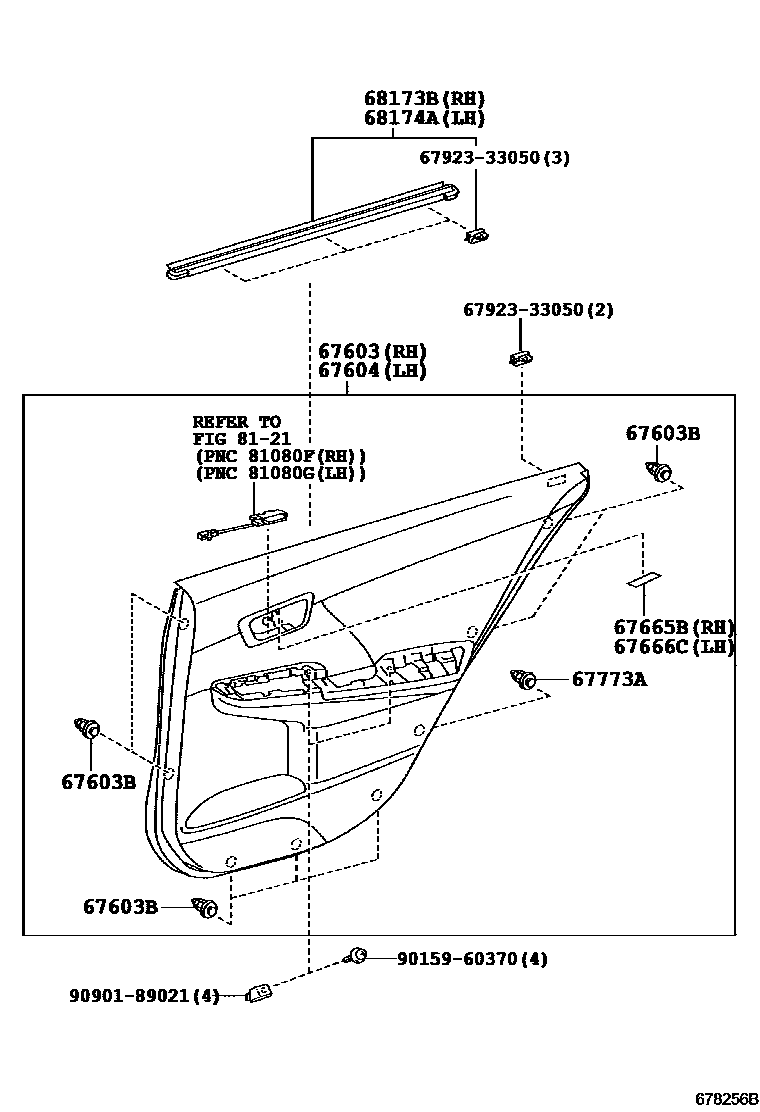

Toyota CAMRY 后门板和后门玻璃 EPC diagram — 678256B
后门板和后门玻璃 — 678256B (201404 – 999999)

PNC and OE references

PNCPart nameOE numbers
67003Right rear door panel sub-assembly67003-33200
67003CRear door panel cushion90541-09124
67004Left rear door panel sub-assembly67004-33200
67407FRight rear door window rear lower frame sub-assembly67407-33100
67408FLeft rear door window rear lower frame sub-assembly67408-33100
67603BCatch (for rear door trim panel)90467-09206
67665BRight rear door trim panel reflector67665-33020
67666CLeft rear door trim panel reflector67665-33020
67673ARight rear door frame decorative strip67673-33120 · 67673-33121
67674ALeft rear door frame decorative strip67674-33120 · 67674-33121
67773ARear door No. 1 decorative panel fixing clip67773-26030
67812Rear door silencer pad67811-33040
67841ERight rear door access hole cover67841-33120
67842ELeft rear door access hole cover67842-33120
67867DRight rear door seal strip fixing67867-12150
67868DLeft rear door seal strip fixing67867-12150
67869DCar door seal strip clip67868-30030
67871Right rear door sealing strip67871-33100
67871AFixings (for rear door sealing strip)67867-12150
67872Left rear door sealing strip67872-33100
67887HRight rear door seal No. 267887-33030
67888FLeft rear door seal No. 267888-33030
68103Right rear door glass sub-assembly68113-33170 · 68113-33240
68104Left rear door glass sub-assembly68114-33170 · 68114-33240
68123BRight rear door corner window glass68123-33080 · 68123-33160
68124BLeft rear door corner window glass68124-33080 · 68124-33160
68142CRight rear door glass lift slot68142-33110
68152CLeft rear door glass lift slot68152-33110
68173BRight rear door glass inner sealing strip68173-33080 · 68173-33081
68174ALeft rear door glass inner sealing strip68174-33080 · 68174-33081
68188Right rear door corner window seal68188-33060
68189Left rear door corner window seal68189-33060
68630DRight rear door opening limiter assembly68630-33092
68640ALeft rear door opening limiter assembly68630-33092
75977HRight rear door outer lower trim strip75977-33020
75978HLeft rear door outer lower trim strip75978-33020
75987FRight rear door outer trim75987-33040
75988CLeft rear door outer trim75988-33040
