Toyota CAMRY 前门板和前门玻璃 — Figure 6701

Toyota CAMRY EPC diagram 6701, 前门板和前门玻璃, with 3 images and 40 PNC and OE references.

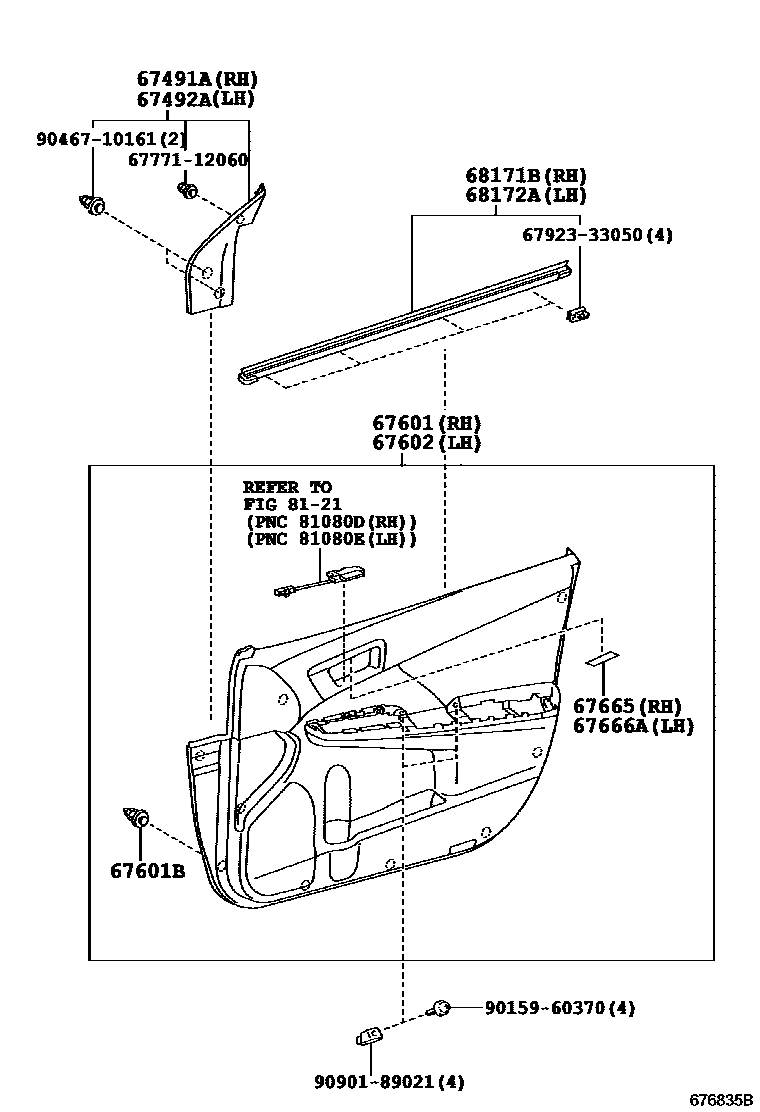

Toyota CAMRY 前门板和前门玻璃 EPC diagram — 676835B
前门板和前门玻璃 — 676835B (201108 – 201404)
Toyota CAMRY 前门板和前门玻璃 EPC diagram — 676858G
前门板和前门玻璃 — 676858G (201108 – 999999)

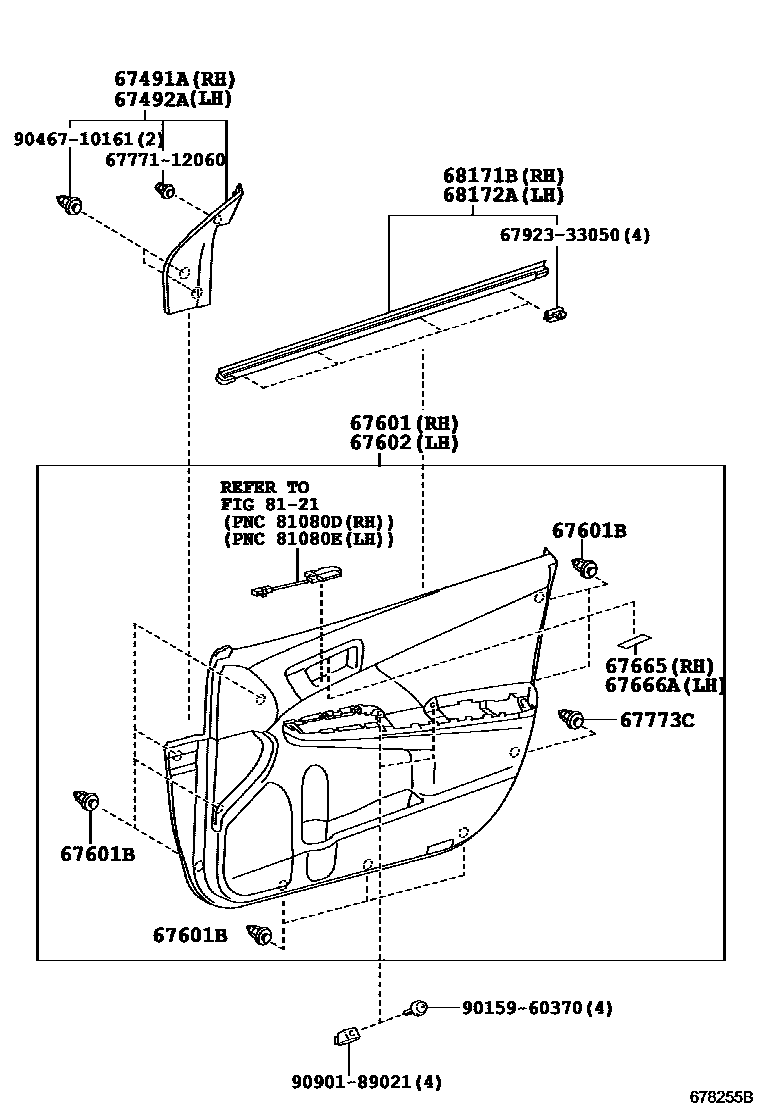

Toyota CAMRY 前门板和前门玻璃 EPC diagram — 678255B
前门板和前门玻璃 — 678255B (201404 – 999999)

PNC and OE references

PNCPart nameOE numbers
67001Right front door panel sub-assembly67001-33200 · 67001-33201
67001AFront door panel cushion90541-09124
67002Left front door panel sub-assembly67002-33200 · 67002-33201
67401FRight front door front lower door frame sub-assembly67401-33120
67402FLeft front door front lower door frame sub-assembly67402-33090
67403FRight front door rear lower door frame sub-assembly67403-33070
67404FLeft front door rear lower door frame sub-assembly67404-33070
67491ARight front door lower door frame bracket decorative strip67491-33140
67492ALeft front door lower door frame bracket decorative strip67492-33140
67601BCatch (for front door trim panel)90467-09206
67663DRight door frame decorative strip67663-33030 · 67663-76010
67664CLeft door frame decorative strip67664-33030 · 67664-76010
67665Right front door trim reflector67665-33020
67666ALeft front door trim reflector67665-33020
67773CDoor No. 1 decorative panel fixing clip67773-26030
67811Front door silencer pad67811-33040
67831Right front door access hole cover67831-33110
67832Left front door access hole cover67832-33110
67837KFront door ventilator seal67837-51010
67861Right front door seal67861-33090 · 67861-33110
67861AFixing piece (for front door sealing strip)67867-12150
67862Left front door seal67862-33090 · 67862-33110
67863BRight front door seal No. 267863-33030
67864BLeft front door seal No. 267864-33030
67867CRight front door seal strip fixing67867-12150
67868CLeft front door seal strip fixing67867-12150
67923Front door No. 1 reinforcement cushion pad67923-33080
67924Front door No. 2 reinforcement cushion pad67924-33050
68101Right front door glass sub-assembly68101-33160 · 68101-33340
68102Left front door glass sub-assembly68102-33160 · 68102-33350
68141CRight front door glass lift channel68141-33110
68151CLeft front door glass lift channel68151-33100
68171BRight front door glass inner sealing strip68171-33080 · 68171-33081 · 68171-33100
68172ALeft front door glass inner sealing strip68172-33090 · 68172-33091 · 68172-33110
68610BRight front door opening limiter assembly68610-33091
68620Left front door opening limiter assembly68610-33091
75975GRight front door outer lower trim strip75975-33020
75976GLeft front door outer lower trim strip75976-33020
75985BRight front door trim75985-33020
75986BLeft front door trim75986-33020
