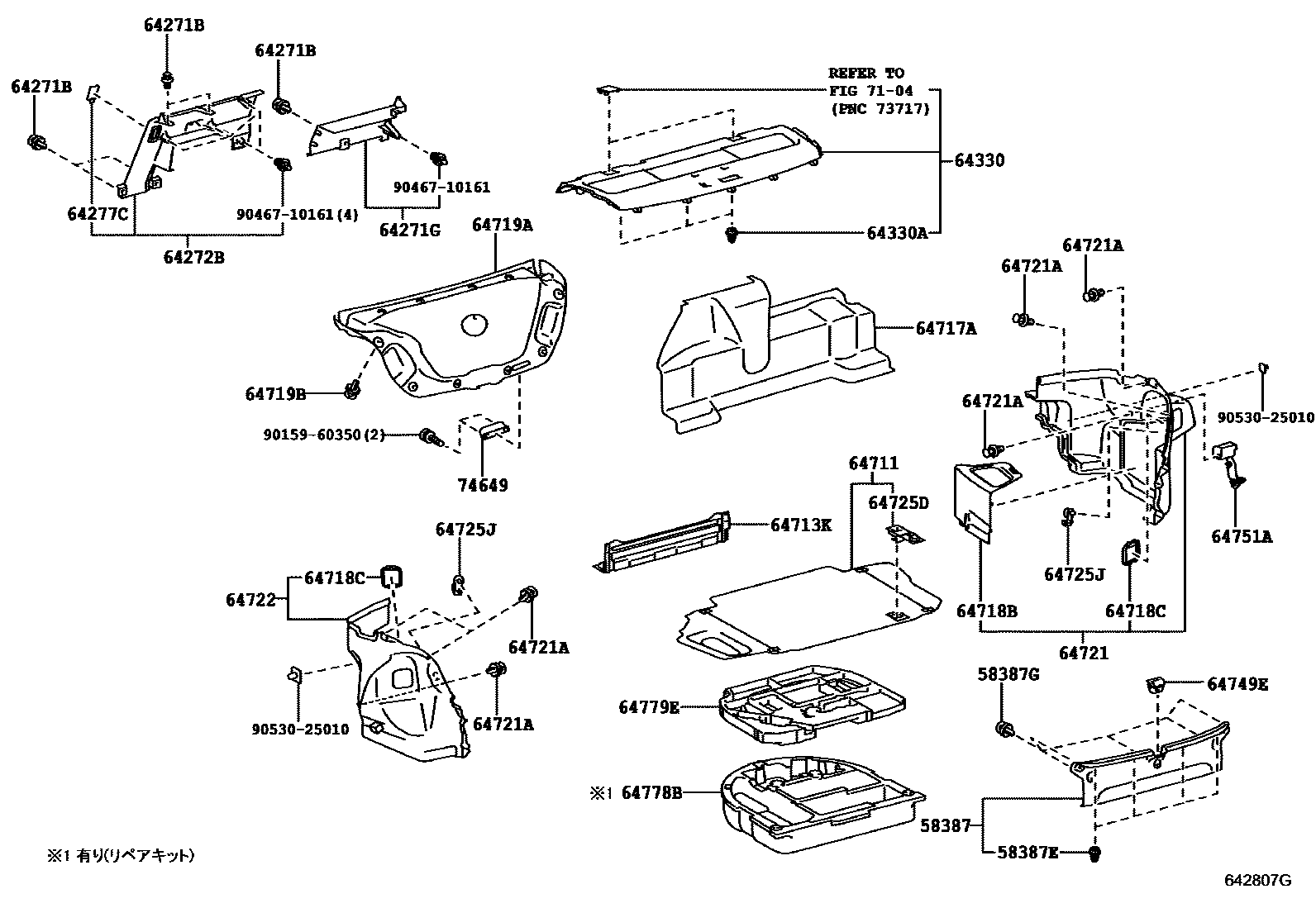

Toyota CAMRY 杂物箱板和行李箱垫 — Figure 6403
Toyota CAMRY EPC diagram 6403, 杂物箱板和行李箱垫, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58387 | Rear floor decorative panel | 58387-33111 |
| 58387E | Clip (for rear floor trim panel) | 90467-10161 |
| 58387G | Clip (for rear floor trim panel) | 90467-07201 · 90467-07215 |
| 64271B | Clip (for compartment partition) | 90467-07201 · 90467-07220 |
| 64271G | Right compartment partition | 64277-33010 |
| 64272B | Left compartment partition | 64271-33100 |
| 64277C | No. 2 carriage partition cover | 64275-33030 |
| 64330A | Clip (for glove box decorative panel) | 90467-10161 |
| 64718B | Trunk trim access hole cover | 64718-33040 |
| 64718C | Trunk trim access hole cover | 64718-33010 |
| 64719B | Catch (for trunk door) | 90467-07201 · 90467-07215 |
| 64721A | Clip (for trunk interior decoration cover) | 90467-07201 · 90467-07215 |
| 64749E | Trunk door latch cover | 64749-33010 |
| 64751A | No. 1 trunk door decorative cover bracket | 64751-33010 |
| 64778B | Spare tire protection device | 64778-33080 |
| 64779E | Spare tire cover bracket | 64779-33062 |
