Toyota CAMRY 行李箱门和行李箱锁 — Figure 6105

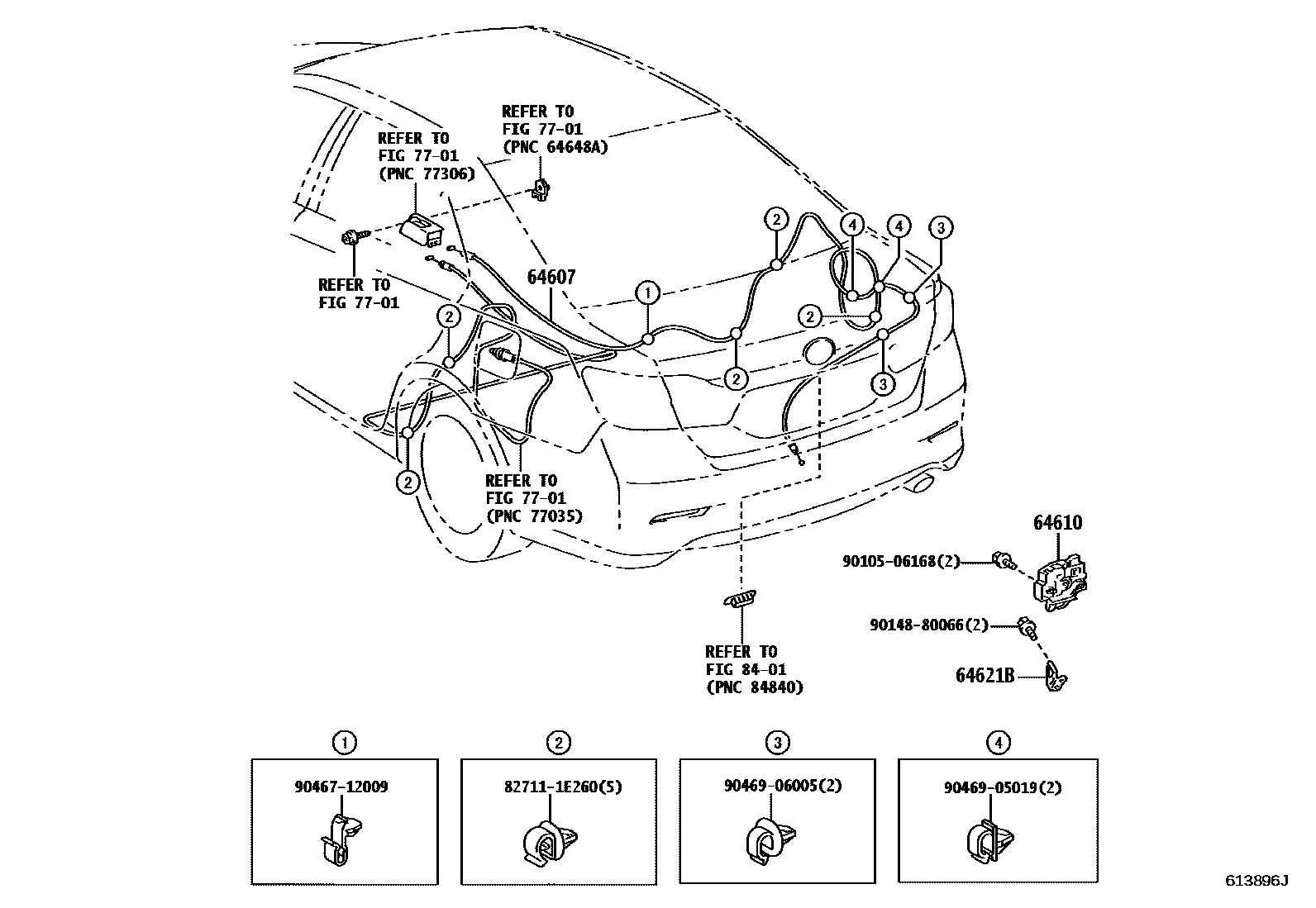

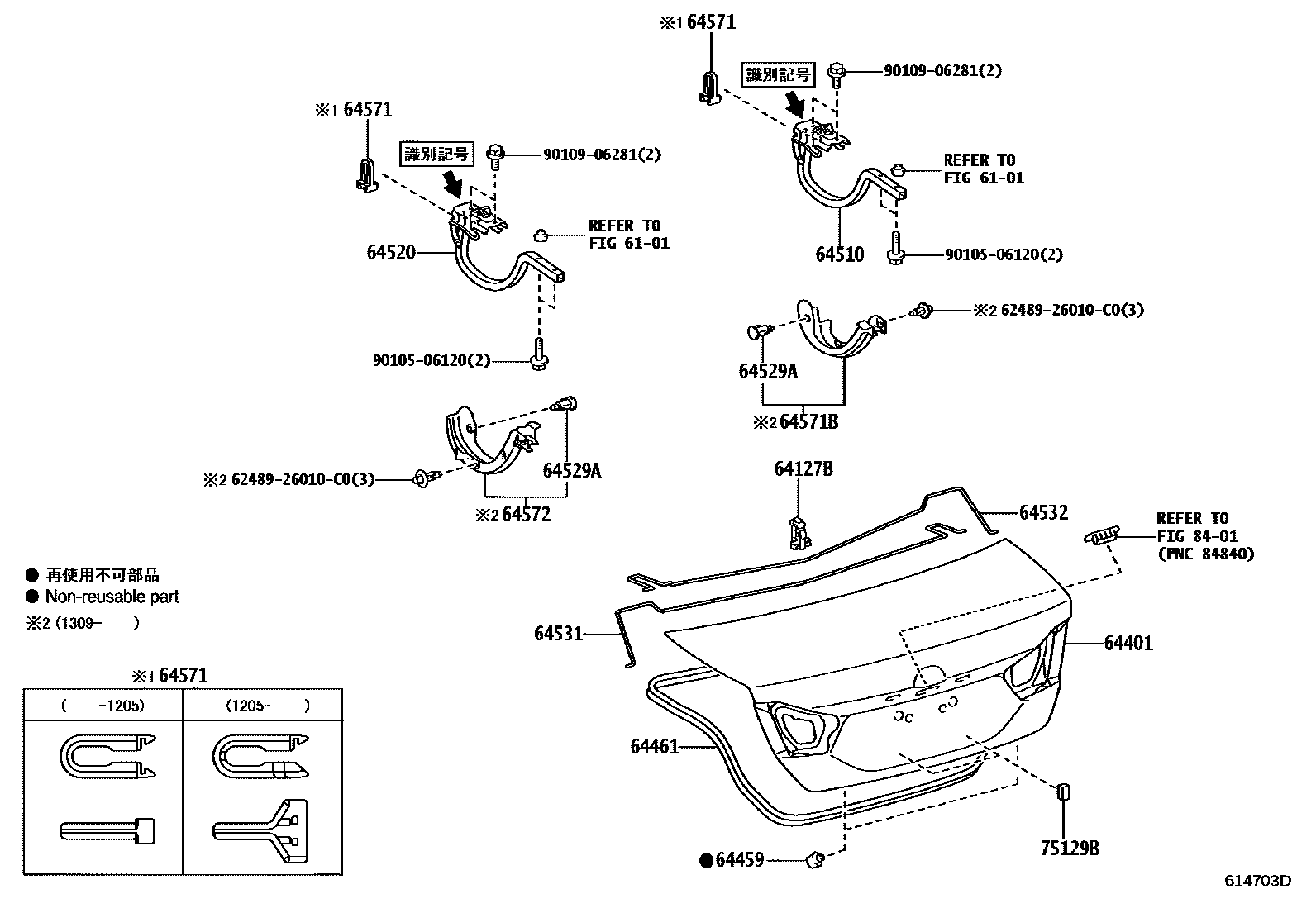

Toyota CAMRY EPC diagram 6105, 行李箱门和行李箱锁, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64127B | Trunk door torsion bar bracket | 64127-33111 |
| 64401 | Trunk door panel sub-assembly | 64401-33570 · 64401-33590 |
| 64459 | Trunk door cushion | 90541-09116 |
| 64461 | Trunk door seal | 64461-33090 |
| 64510 | Trunk door right hinge assembly | 64510-33090 · 64510-33091 · 64510-33100 · 64510-33101 · 64510-33110 · 64510-33111 |
| 64520 | Trunk door left hinge assembly | 64510-33090 · 64510-33091 · 64510-33100 · 64510-33101 · 64510-33110 · 64510-33111 |
| 64529A | Trunk door hinge gasket | 64529-33010 · 64529-33020 |
| 64531 | Trunk door right hinge torsion bar | 64531-33290 |
| 64532 | Trunk door left hinge torsion bar | 64532-33290 |
| 64571 | Trunk door hinge cover | 64571-33040 · 64571-33041 |
| 64571B | Trunk door right hinge cover | 64571-33060 |
| 64572 | Trunk door left hinge cover | 64572-33040 |
| 64607 | Trunk door lock control cable sub-assembly | 64607-33190 |
| 64610 | Trunk door lock assembly | 64600-33160 |
| 64621B | Trunk door latch | 64621-33030 |
| 75129B | rear license plate cushion | 75129-13020 |
