Toyota CAMRY 地板垫和地毯 — Figure 5804

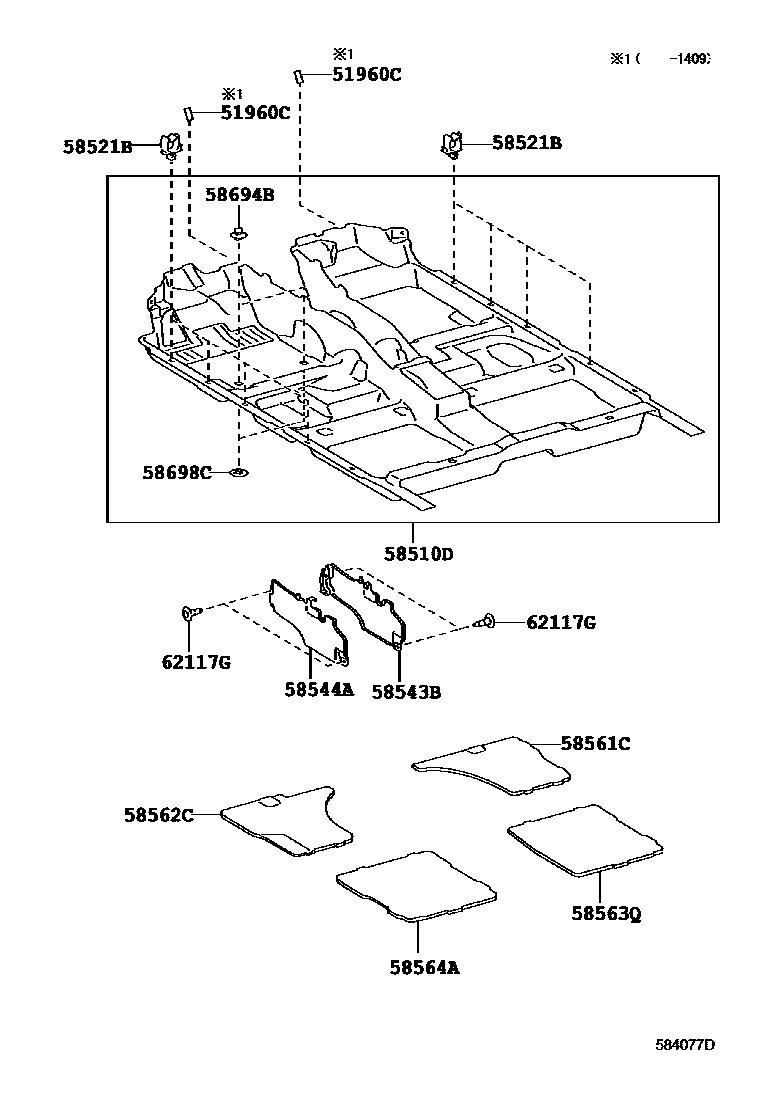

Toyota CAMRY EPC diagram 5804, 地板垫和地毯, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51960C | Front Towing Hook Assembly | 51960-33030 |
| 58521B | carpet hook | 58521-33080 |
| 58543B | Right carpet bracket | 58543-33080 |
| 58544A | left carpet bracket | 58544-33080 |
| 58561C | Front floor silencer No. 1 | 58561-33060 · 58561-33061 |
| 58562C | Front floor silencer No. 2 | 58562-33080 · 58562-33081 |
| 58563Q | Front floor silencer No. 3 | 58563-33060 · 58563-33061 |
| 58564A | Front floor silencer No. 4 | 58564-33070 · 58564-33071 |
| 58694B | Pad the fixing plate | 58694-76010 |
| 58698C | Fixing plate under the pad | 58698-76010 |
