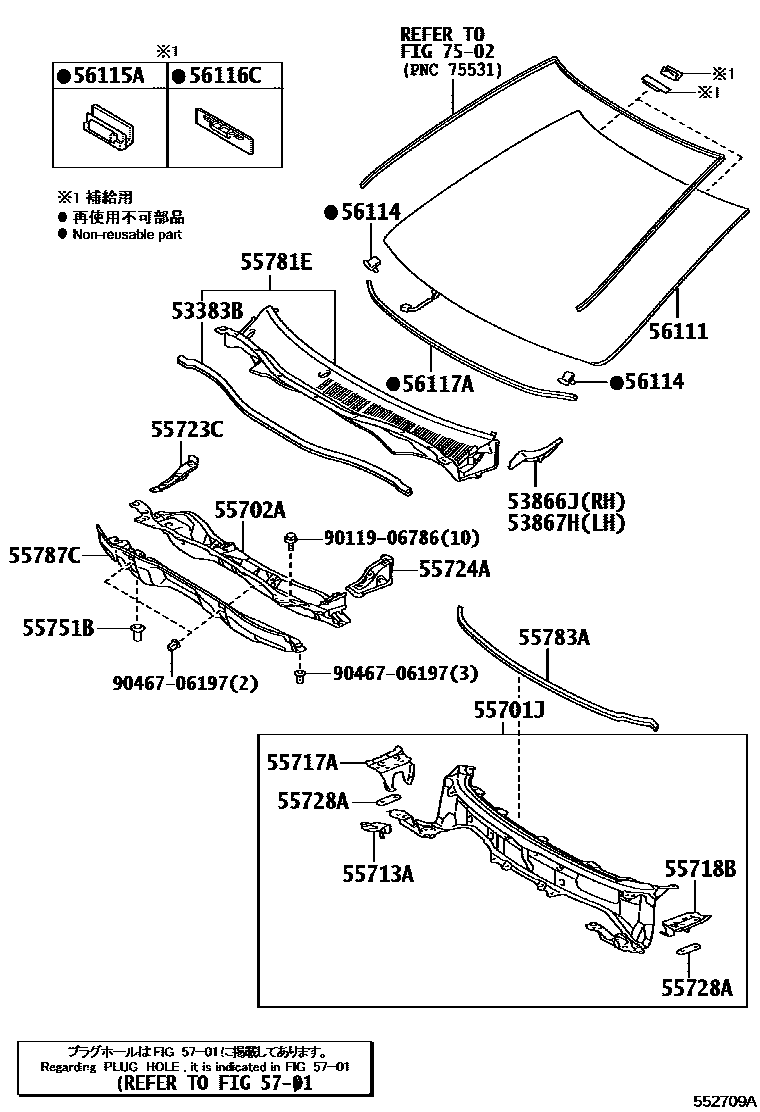

Toyota CAMRY 前围板和挡风玻璃 — Figure 5503
Toyota CAMRY EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-33090 · 53383-33130 |
| 53866J | Right front fender to cowl side seal | 53866-33080 |
| 53867H | Left front fender to cowl side seal | 53867-33080 |
| 55701J | Front wall upper outer panel sub-assembly | 55701-33180 |
| 55702A | Front cowl upper outer front panel sub-assembly | 55702-33090 · 55702-33091 |
| 55713A | Right front wall upper side panel | 55713-33050 |
| 55717A | Upper right inner panel of cowl | 55717-33060 |
| 55718B | Upper left inner panel of front wall | 55718-33060 |
| 55723C | Right front wall upper side reinforcement | 55723-33070 |
| 55724A | Left front wall upper side reinforcement | 55724-33080 |
| 55728A | Engine cover block reinforcement | 55728-33040 |
| 55751B | Front no. 1 water hose | 55751-33050 |
| 55781E | Ventilation grille sub-assembly on front apron | 55708-33170 · 55708-33171 · 55708-33180 · 55708-33181 |
| 55783A | Front cowl upper cover silencer pad | 55783-33080 |
| 55787C | No. 1 front wall upper cover thermal insulation pad | 55787-33100 |
| 56111 | windshield | 56101-33909 · 56101-33910 · 56101-33911 · 56101-33912 · 56101-33950 · 56101-33951 · 56101-33952 · 56101-33953 · 56101-33968 · 56101-33969 · 56101-33970 · 56101-33971 · 56101-33979 · 56101-33980 · 56101-33981 · 56101-33982 · 56101-33983 · 56101-33984 · 56101-33985 · 56101-33986 · 56101-33987 · 56101-33988 · 56101-33991 · 56101-33992 · 56101-33993 · 56101-33994 |
| 56114 | windshield stopper | 56114-33050 |
| 56115A | Windshield block No. 1 | 56115-30120 |
| 56116C | Windshield block 2 | 56116-22050 |
