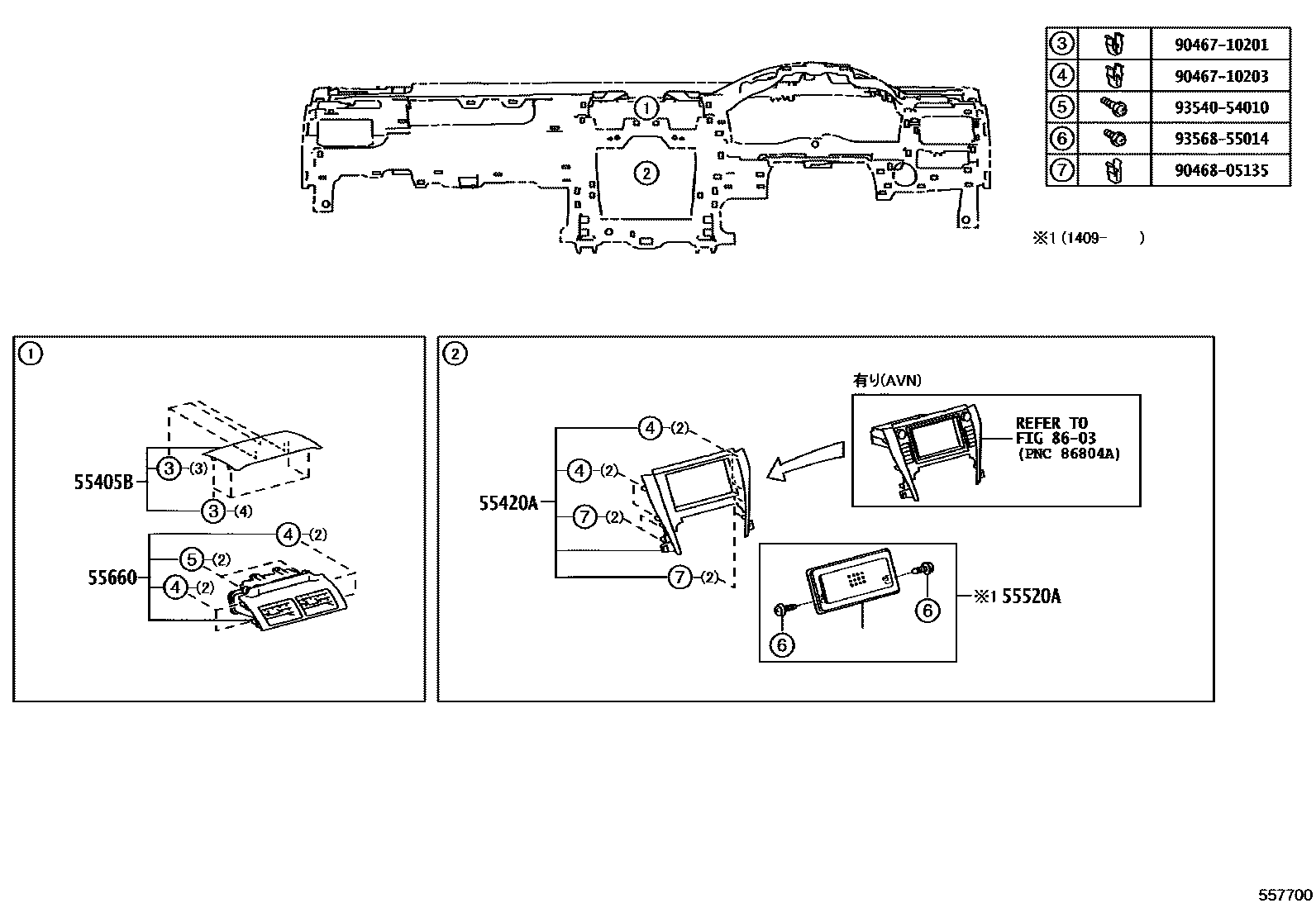

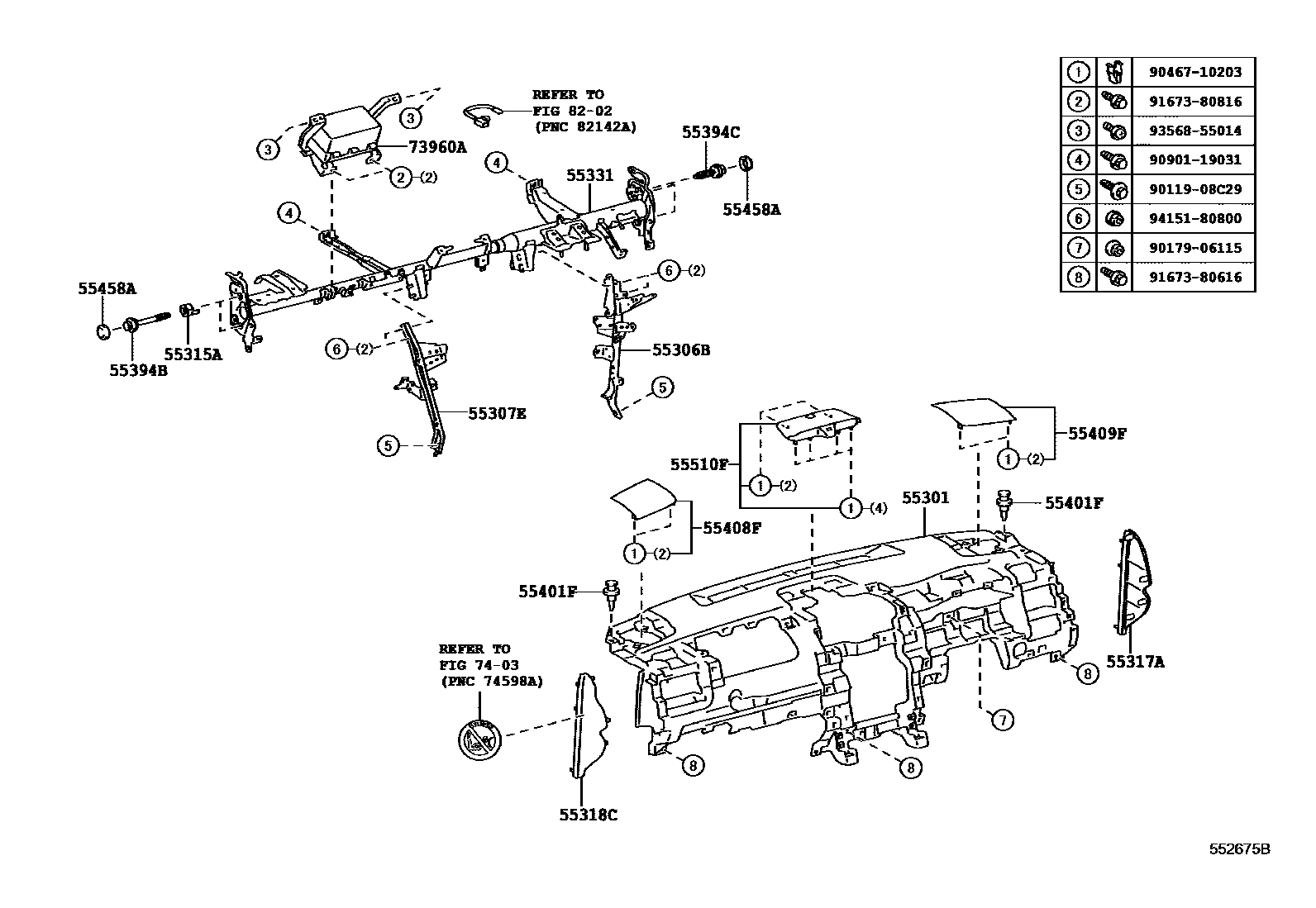

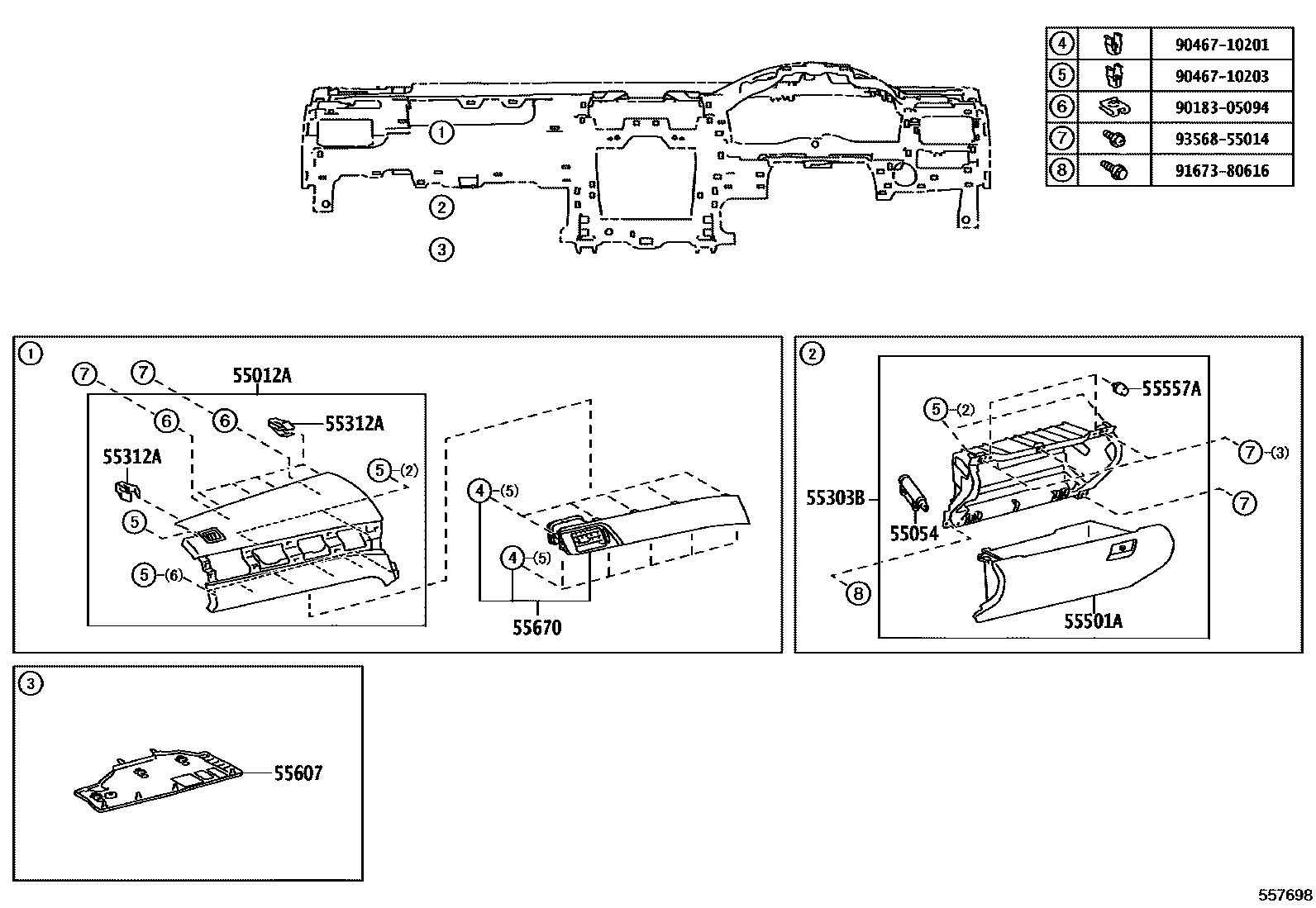

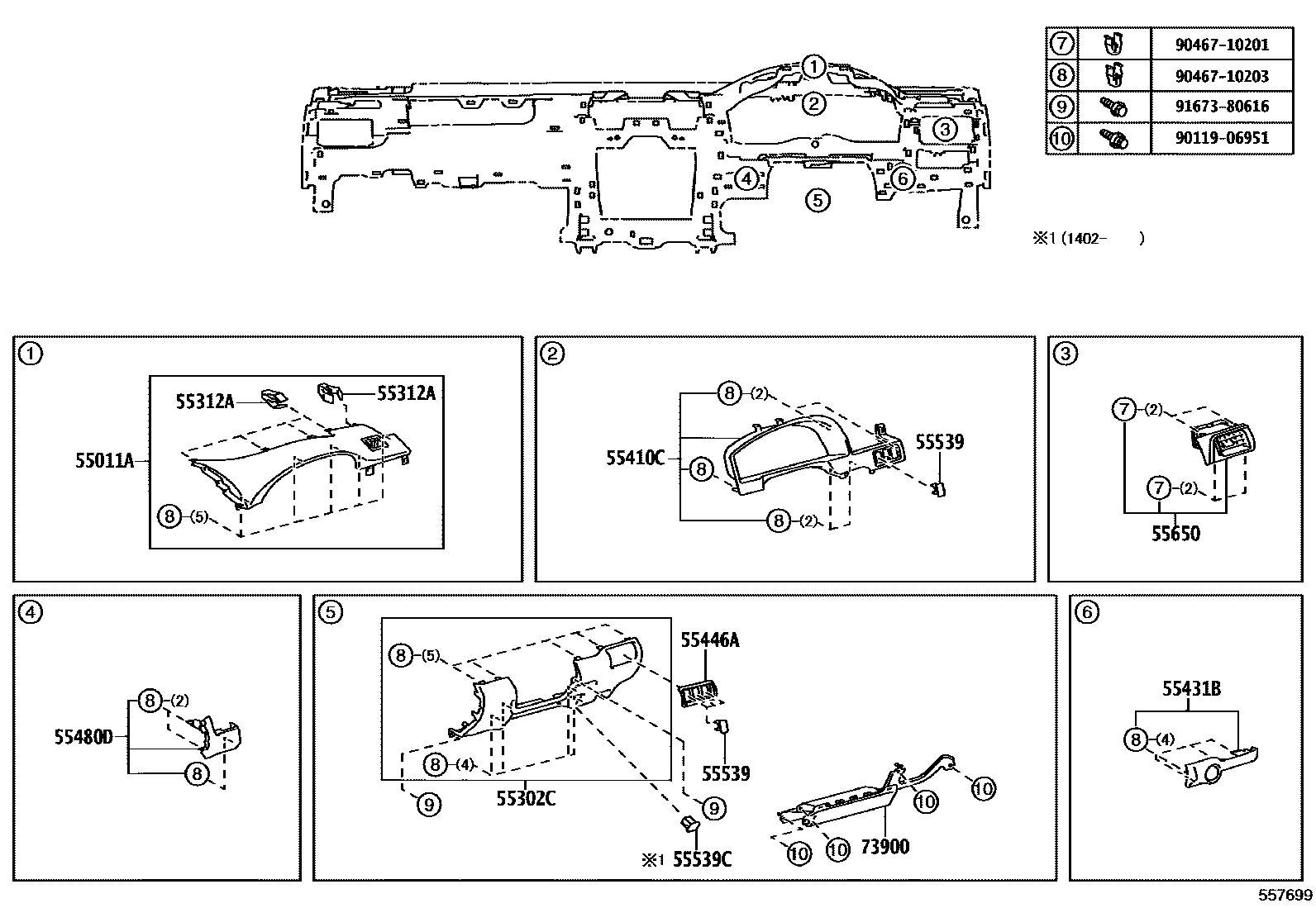

Toyota CAMRY 仪表板和手套箱 — Figure 5501
Toyota CAMRY EPC diagram 5501, 仪表板和手套箱, with 4 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-20020 · 55054-47010 |
| 55306B | Dashboard to cowl bracket sub-assembly | 55306-33130 |
| 55307E | Instrument panel No. 2 bracket sub-assembly | 55307-33160 |
| 55315A | Instrument panel spacer No. 1 | 55315-48160 |
| 55331 | Dashboard reinforcement | 55330-33390 · 55330-33420 |
| 55394B | Dashboard bolts | 90119-08C99 |
| 55394C | Dashboard bolts | 90119-08C98 |
| 55401F | Clip (for safety mat) | 52161-16010 |
| 55420A | Center instrument cluster decorative panel assembly | 55420-33020 · 55420-33021 · 55420-33030 |
| 55458A | Dashboard safety pad cover | 55458-22110 |
| 55520A | Stereo system hole cover assembly | 55520-47020 |
| 55522B | Radio tuner opening cover | 55522-52020 |
| 55557A | Glove box cover limit pad | 55557-60050 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-33130 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-33140 |
