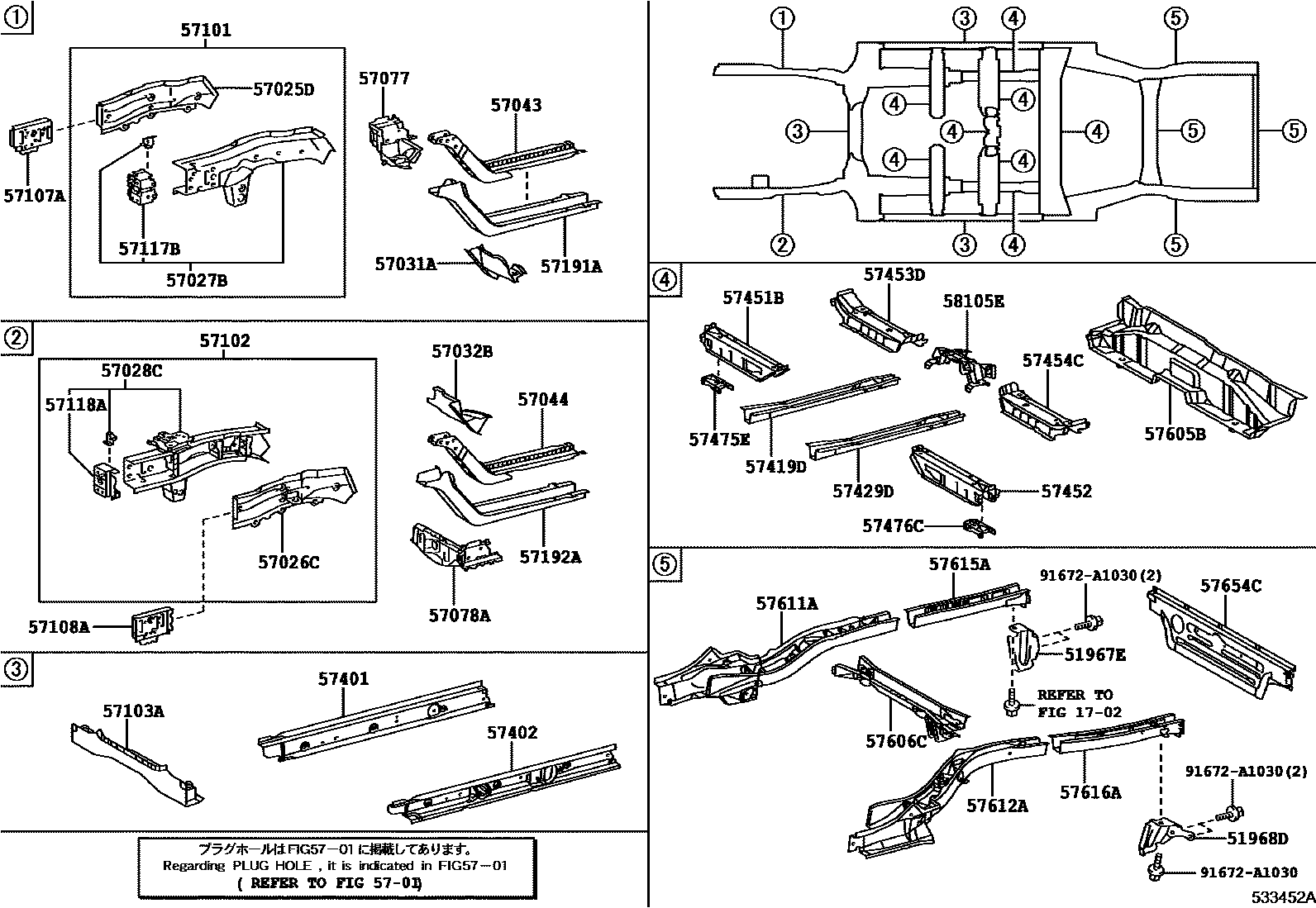

Toyota CAMRY Floor stringers — Figure 5305
Toyota CAMRY EPC diagram 5305, Floor stringers, with 1 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51967E | right rear transport hook | 51967-33030 |
| 51968D | Left rear transport hook | 51968-33030 |
| 57025D | Right front outer longitudinal beam sub-assembly | 57025-33020 |
| 57026C | Left front outer longitudinal beam sub-assembly | 57026-33020 |
| 57027B | Right front inner longitudinal beam sub-assembly | 57027-33011 |
| 57028C | Left front inner longitudinal beam sub-assembly | 57028-33051 |
| 57031A | No. 2 right front longitudinal beam reinforcement sub-assembly | 57031-33010 · 57031-33011 |
| 57032B | No. 2 left front longitudinal beam reinforcement sub-assembly | 57032-33010 · 57032-33011 |
| 57043 | Right front longitudinal beam rear reinforcement sub-assembly | 57043-33040 |
| 57044 | Left front longitudinal beam rear reinforcement sub-assembly | 57044-33020 |
| 57077 | Right front anti-torsion box-section sub-assembly | 57077-33040 |
| 57078A | Left front anti-torsion box-section sub-assembly | 57078-33040 · 57078-33041 |
| 57101 | Right front longitudinal beam sub-assembly | 57101-33904 |
| 57102 | Left front longitudinal beam sub-assembly | 57102-33904 |
| 57103A | Floor No. 3 beam sub-assembly | 57103-33051 · 57103-33052 |
| 57107A | No. 2 right front longitudinal beam plate sub-assembly | 57107-33032 |
| 57108A | No. 2 left front longitudinal beam plate sub-assembly | 57108-33032 |
| 57117B | Install reinforcement on the right side of the front bumper | 57117-33050 |
| 57118A | Install reinforcement on the left side of the front bumper | 57118-33050 |
| 57191A | Right rear longitudinal member inside front floor | 57191-33010 |
| 57192A | Left rear longitudinal member inside front floor | 57192-33010 |
| 57401 | Main floor right longitudinal beam sub-assembly | 57401-33121 |
| 57402 | Main floor left longitudinal beam sub-assembly | 57402-33121 |
| 57419D | Front floor right rear lower reinforcement | 57419-33050 |
| 57429D | Left rear reinforcement under front floor | 57429-33020 |
| 57451B | Front floor right cross member | 57451-33060 |
| 57452 | Front floor left cross member | 57452-33031 |
| 57453D | Front floor right cross member | 57453-33060 |
| 57454C | Front floor left longitudinal beam | 57454-33060 |
| 57475E | Front floor right cross member panel | 57475-33010 |
| 57476C | Front floor left cross member panel | 57476-33010 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-33110 |
| 57606C | Rear floor No. 2 cross member sub-assembly | 57606-33140 |
| 57611A | Rear floor right longitudinal beam | 57611-33901 |
| 57612A | Rear floor left longitudinal beam | 57612-33901 |
| 57615A | Rear floor right rear longitudinal member | 57615-33921 |
| 57616A | Rear floor left rear longitudinal member | 57616-33914 |
| 57654C | Rear floor beam No. 3 | 57654-33020 |
| 58105E | Front floor and rear upper sub-panel sub-assembly | 58105-33020 |
