Toyota CAMRY 前翼子板挡泥板和前围板 — Figure 5304

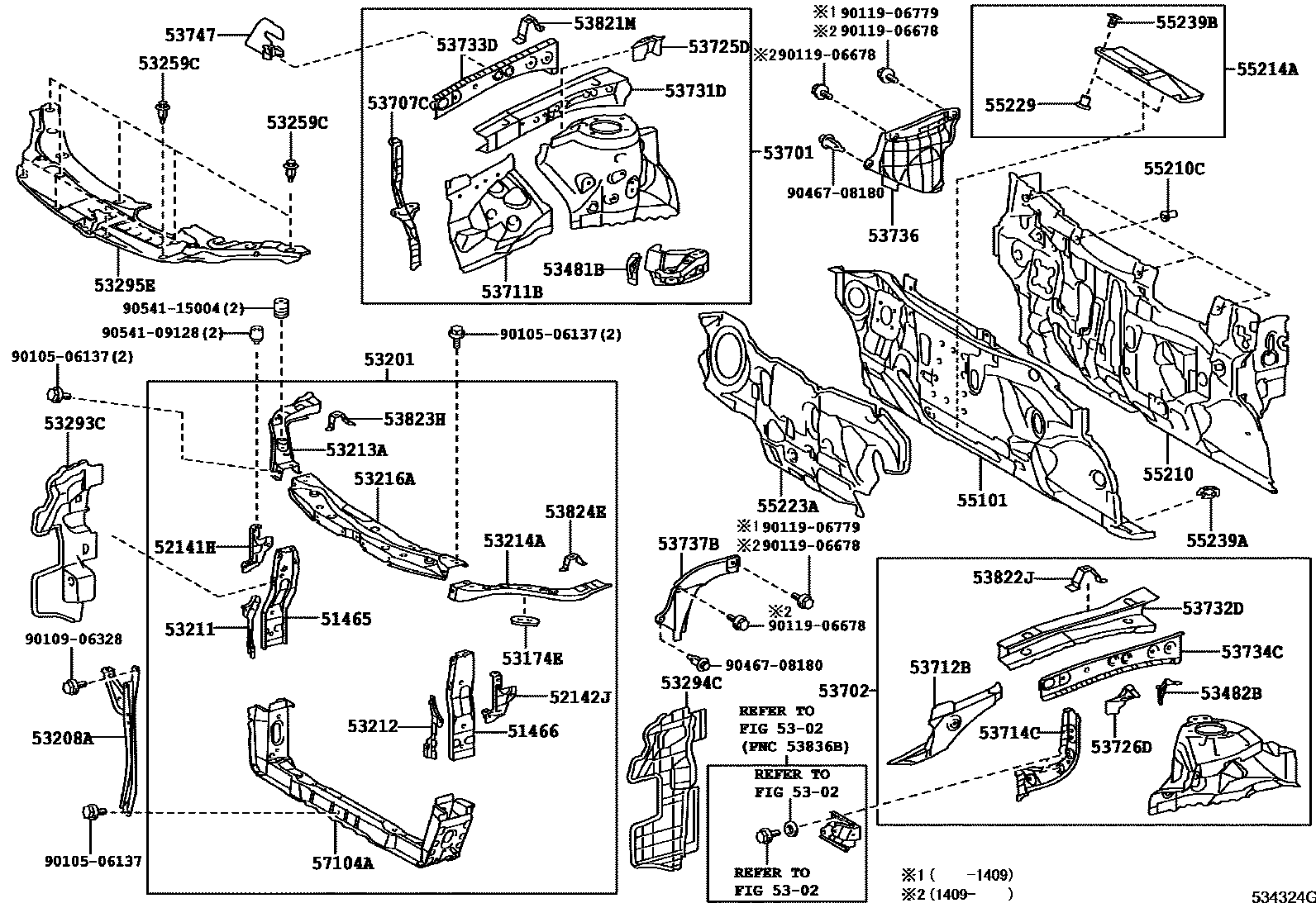

Toyota CAMRY EPC diagram 5304, 前翼子板挡泥板和前围板, with 1 images and 46 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51465 | Radiator upper right bracket | 51465-33060 |
| 51466 | Radiator upper left bracket | 51466-33070 |
| 52141H | Front bumper right upper arm | 52141-33110 |
| 52142J | Front bumper left upper arm | 52142-33080 |
| 53174E | Radiator bracket side bracket | 53174-33020 |
| 53201 | Radiator bracket sub-assembly | 53201-33182 |
| 53208A | Engine cover lock bracket sub-assembly | 53208-33050 · 53208-33051 |
| 53211 | Radiator right side support | 53211-33081 |
| 53212 | Radiator left support | 53212-33081 |
| 53213A | Radiator upper right bracket | 53213-33050 |
| 53214A | Radiator upper left bracket | 53214-33050 |
| 53216A | Radiator upper bracket | 53216-33150 |
| 53259C | Clip (radiator bracket to frame seal) | 90467-07211 · 90467-07217 |
| 53293C | Radiator right baffle | 53293-33090 · 53293-33130 |
| 53294C | Radiator left baffle | 53294-33090 · 53294-33130 |
| 53295E | Cold air intake pipe seal | 53295-33070 · 53295-33100 |
| 53481B | Engine cover right support rod bracket | 53481-33050 |
| 53482B | Engine cover left support rod bracket | 53482-33040 |
| 53701 | Right front fender fender sub-assembly | 53701-33170 |
| 53702 | Left front fender fender sub-assembly | 53702-33130 |
| 53707C | Right front fender fender front extension sub-assembly | 53707-33010 |
| 53711B | Right front fender front fender | 53711-33080 |
| 53712B | Left front fender front fender | 53712-33050 |
| 53714C | Left front fender fender front extension | 53714-33030 · 53714-33031 |
| 53725D | No. 2 front spring bracket right side reinforcement | 53725-33020 |
| 53726D | No. 2 left front fender fender | 53726-33020 |
| 53731D | Right front fender to cowl side upper beam | 53731-33090 |
| 53732D | Left front fender to cowl side upper beam | 53732-33080 |
| 53733D | Right front fender to cowl side front lower beam | 53733-33050 |
| 53734C | Left front fender to cowl side front lower beam | 53734-33050 |
| 53736 | Right front fender fender seal | 53736-33040 |
| 53737B | Left front fender fender seal | 53737-33020 |
| 53747 | Right air sealing plate | 53747-33020 |
| 53821M | No. 1 right front fender rear bracket | 53821-33050 |
| 53822J | No. 1 left front fender rear bracket | 53822-33040 |
| 53823H | Right front fender corner panel | 53823-33030 |
| 53824E | Left front fender corner panel | 53824-33030 |
| 55101 | Front apron sub-assembly | 55101-33430 |
| 55210 | Front wall insulation pad assembly | 55210-33221 |
| 55210C | clip | 90467-06197 |
| 55214A | No. 2 insulation pad for front wall panel | 55214-33070 |
| 55223A | Front wall outer heat insulation pad | 55223-33220 |
| 55229 | No. 4 heat insulation pad for front wall | 55229-48020 |
| 55239A | No. 3 insulation pad for front wall panel | 55239-33020 |
| 55239B | Footrest No. 2, front floor | 55239-48020 |
| 57104A | Front cross member sub-assembly | 57104-33051 · 57104-33052 |
