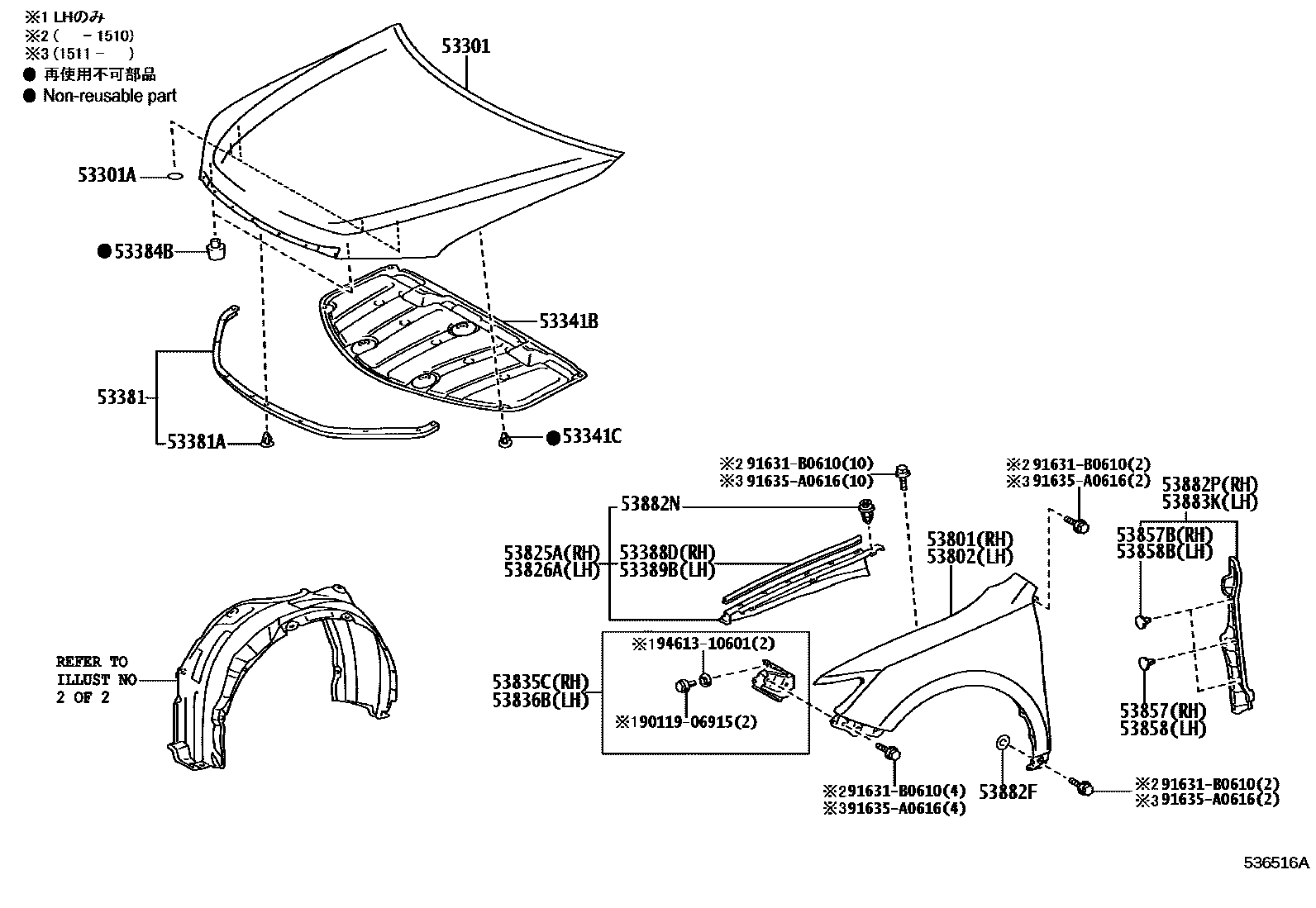

Toyota CAMRY 发动机盖和前翼子板 — Figure 5302
Toyota CAMRY EPC diagram 5302, 发动机盖和前翼子板, with 2 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-33110 · 53301-33200 · 53301-33201 · 53301-33210 |
| 53301A | Hole plug (for engine cover) | 90950-06124 |
| 53341B | engine cover gasket | 53341-33180 |
| 53341C | Clip (for engine cover gasket) | 90467-09050 |
| 53381 | Engine cover to radiator bracket seal | 53381-33070 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90467-08011 |
| 53384B | Engine cover center cushion | 53384-22080 |
| 53388D | Engine cover to right front fender seal | 53388-33050 |
| 53389B | Engine cover to left front fender seal | 53388-33050 |
| 53801 | Right front fender sub-assembly | 53811-33210 |
| 53802 | Left front fender sub-assembly | 53812-33210 |
| 53825A | Right front fender protection piece | 53825-33030 |
| 53826A | Protection piece on left front fender | 53826-33040 |
| 53835C | Right front side panel bracket | 53835-33080 |
| 53836B | Left front side panel bracket | 53804-33030 |
| 53857 | Right front fender external panel fixing piece | 53857-47011 |
| 53857B | Right front fender external panel fixing piece | 53857-47011 |
| 53858 | Left front fender external panel fixing piece | 53857-47011 |
| 53858B | Left front fender external panel fixing piece | 53857-47011 |

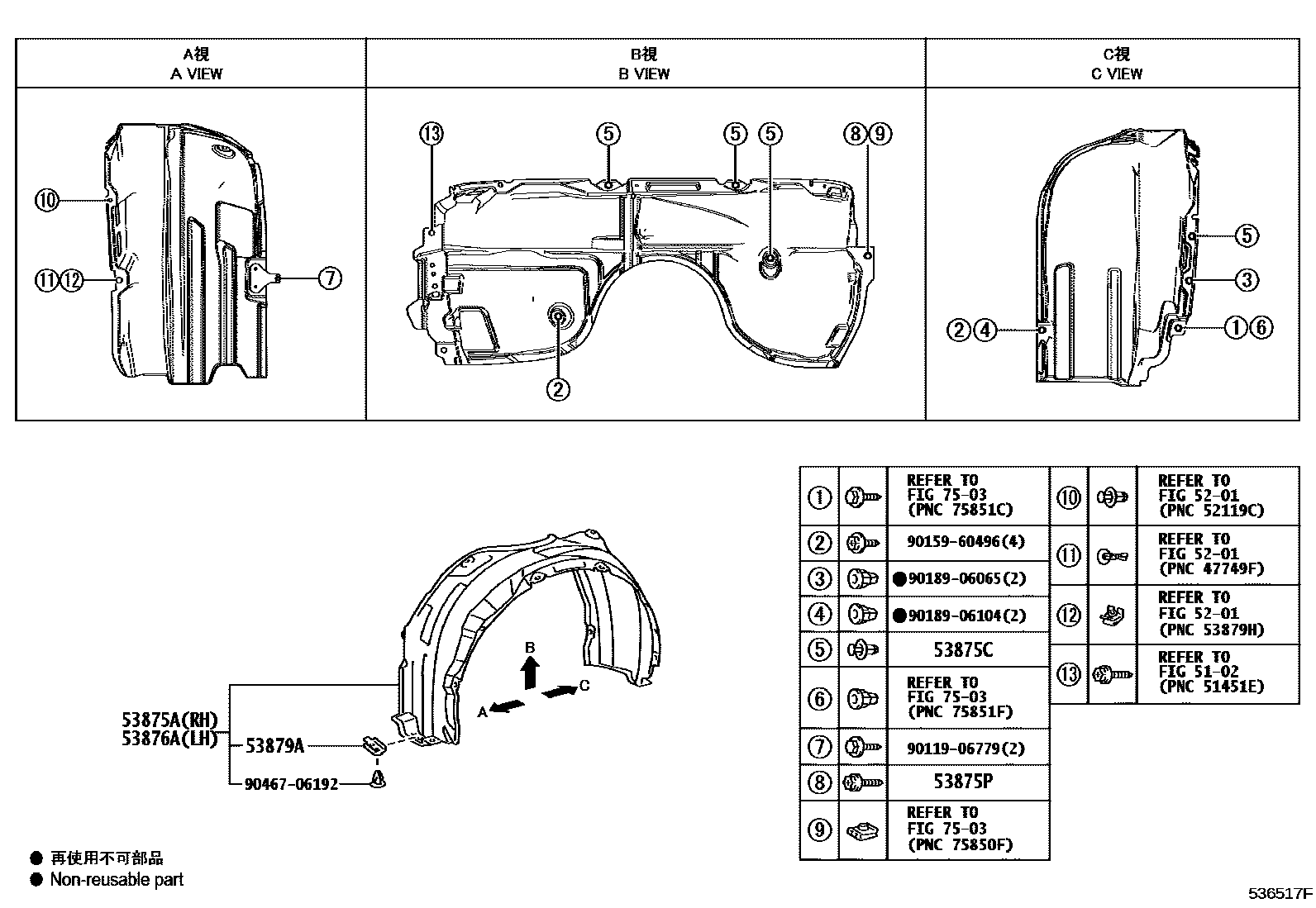

| 53875A | Right front fender lining | 53805-33010 · 53805-33050 |
| 53875C | Front fender lining clip | 90467-07166 |
| 53875P | Toyota part | 90159-60431 |
| 53876A | Left front fender lining | 53806-33040 · 53806-33060 |
| 53879A | Front fender lining fixing parts | 53879-28040 |
| 53882F | front fender seal | 53882-30030 |
| 53882N | Clip (for front fender seal) | 90467-09219 |
| 53882P | Right front fender seal | 53882-33050 |
| 53883K | Left front fender seal | 53883-33050 |
