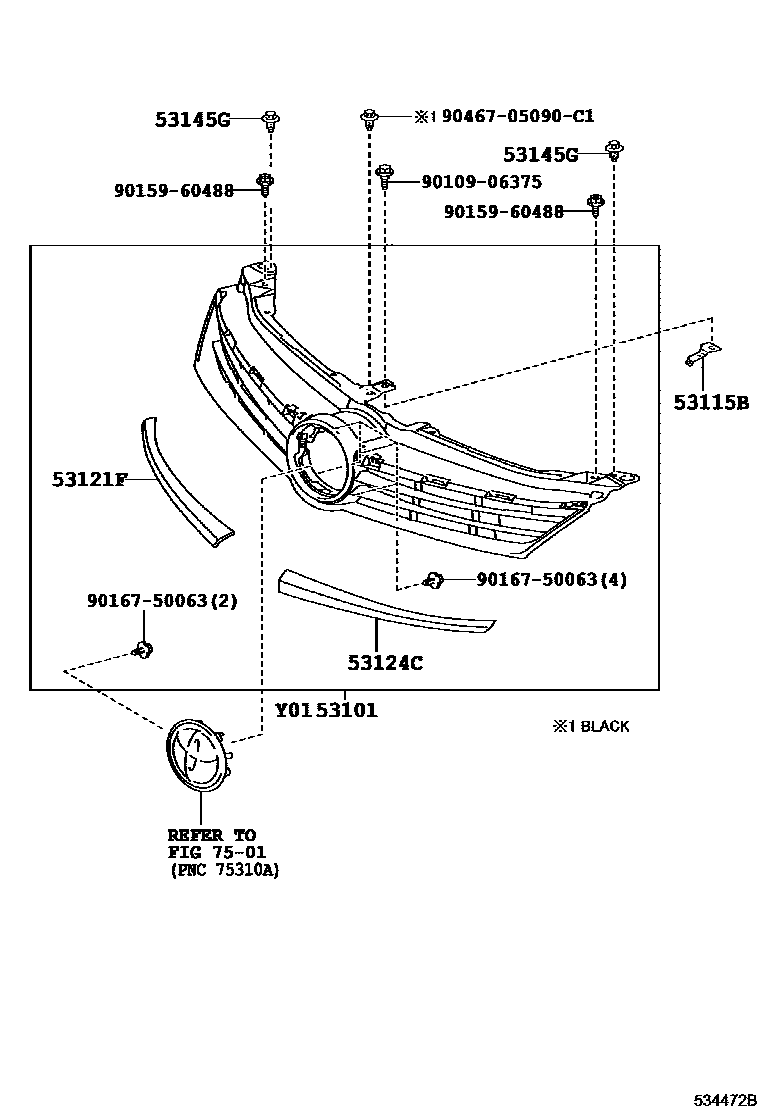

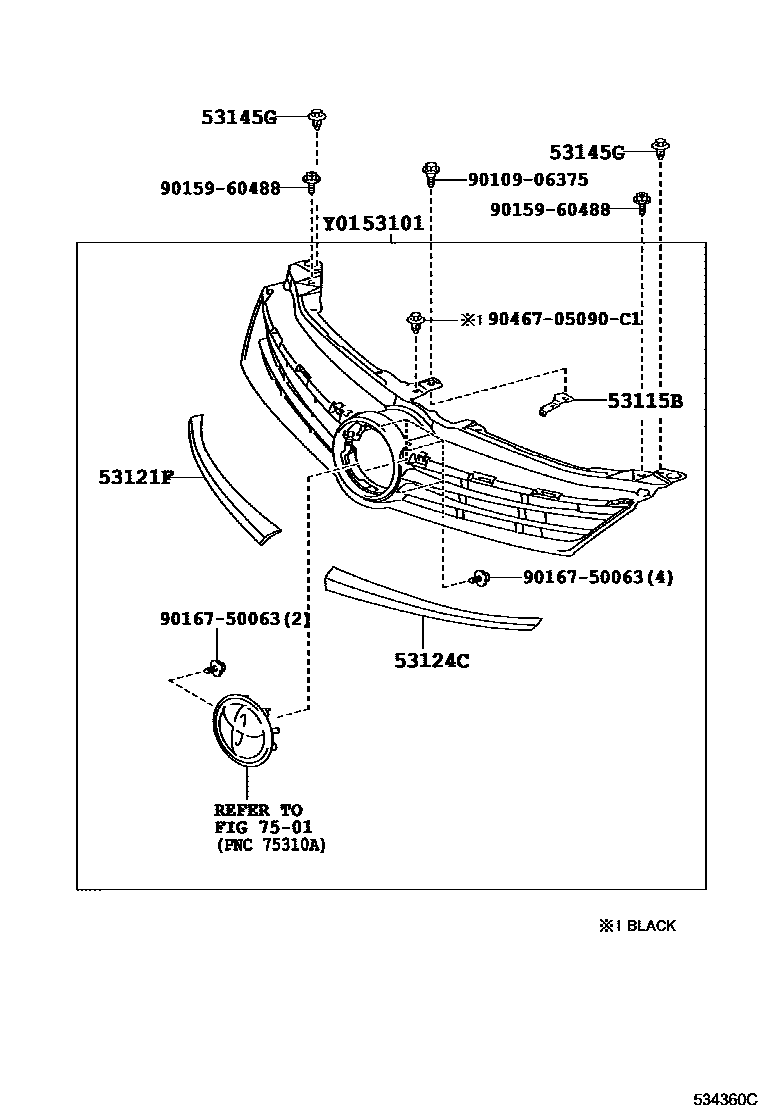

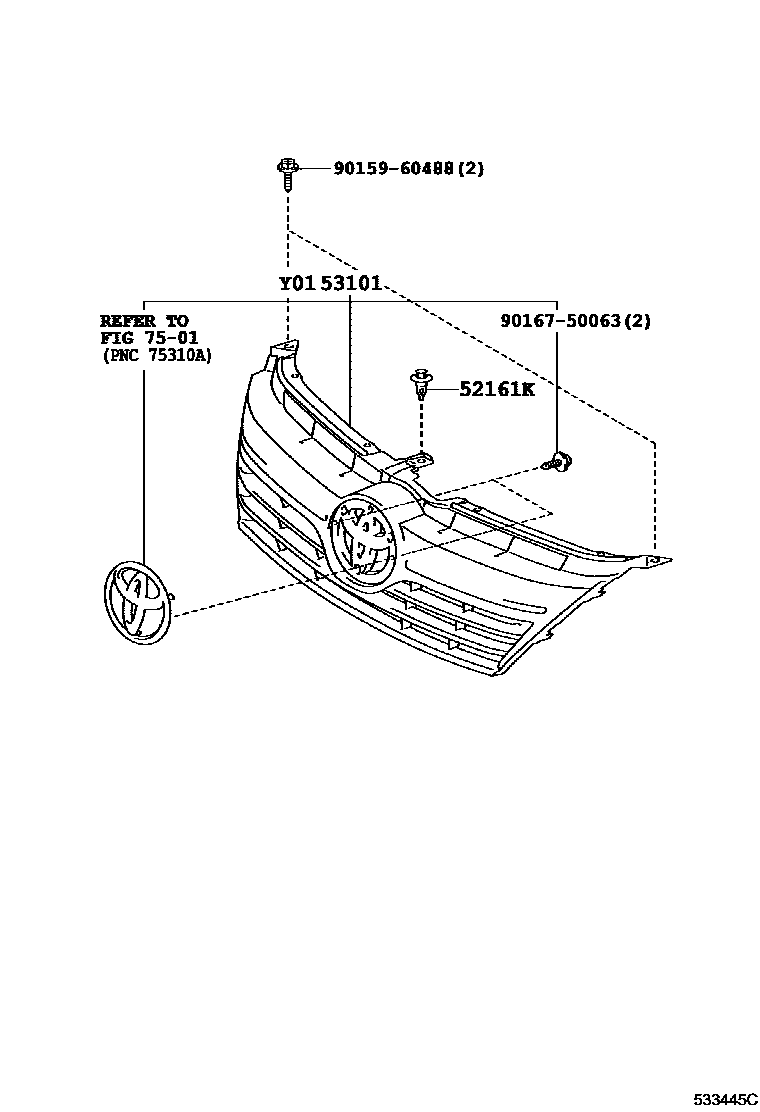

Toyota CAMRY radiator grille — Figure 5301
Toyota CAMRY EPC diagram 5301, radiator grille, with 3 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161K | front bumper insert | 52161-16010 |
| 53101 | Radiator grille sub-assembly | 53101-33380 · 53101-33490 · 53101-33491 · 53101-33492 · 53101-33901 · 53101-33903 |
| 53115B | Radiator grille bracket | 53115-33040 |
| 53121F | Radiator grille upper right protective strip | 53121-33030 |
| 53124C | Radiator grille upper left protective strip | 53124-33010 |
| 53145G | Radiator grille clip | 90467-05170 |
