Toyota CAMRY 制动配管和卡箍 — Figure 4708

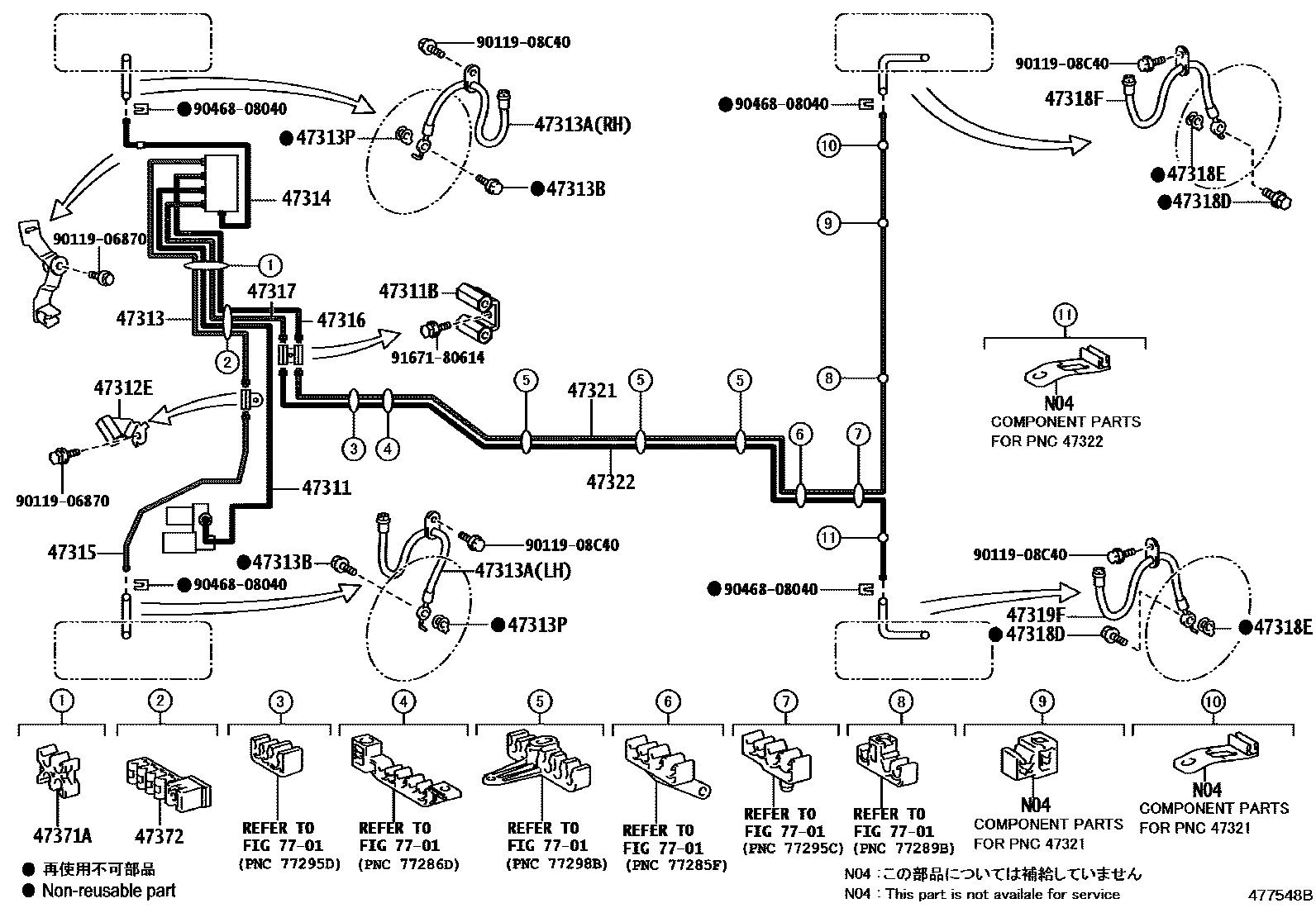

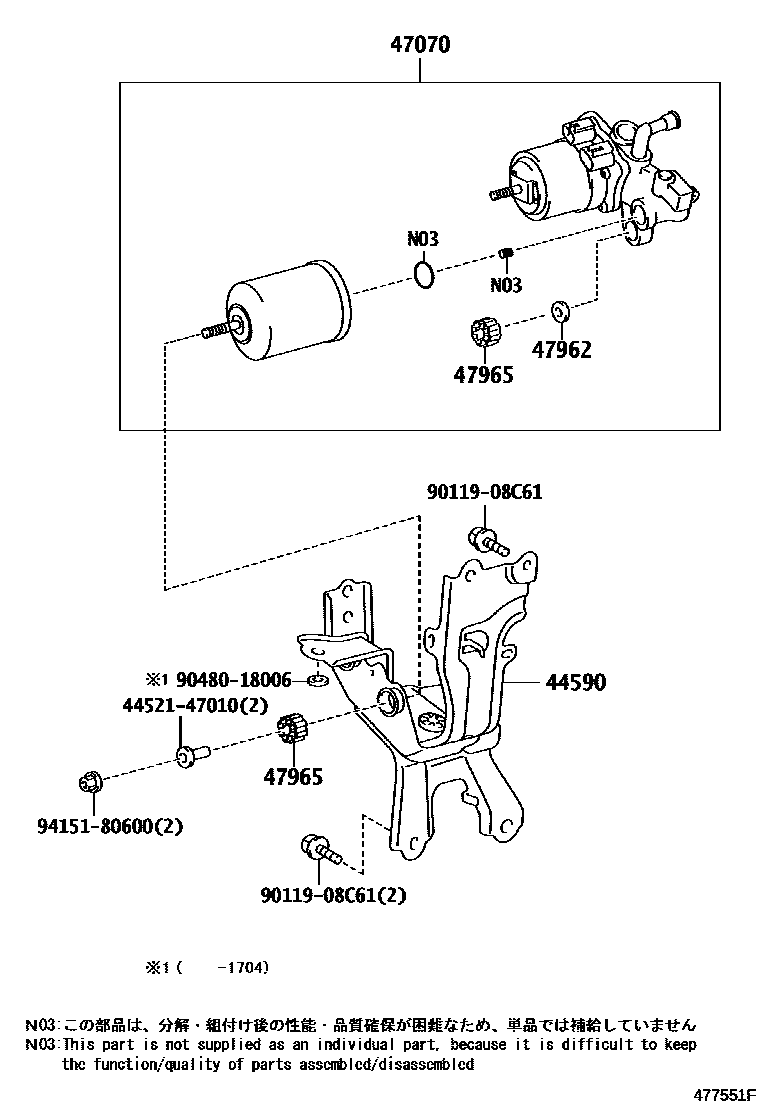

Toyota CAMRY EPC diagram 4708, 制动配管和卡箍, with 2 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44590 | Brake actuator bracket assembly | 47940-33010 |
| 47070 | Brake booster pump assembly | 47070-33040 |
| 47311 | No. 1 front brake pipe | 47311-33290 · 47311-33291 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10260 |
| 47312E | No. 2 pipe joint (for front brake pipe) | 90412-10280 |
| 47313 | No. 3 front brake pipe | 47313-33250 |
| 47313A | No. 1 front flexible hose | 90947-02G45 · 90947-02G48 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313P | Gasket (for front flex hose) | 47389-50021 |
| 47314 | No. 4 front brake pipe | 47314-33200 · 47314-33270 |
| 47315 | No. 5 front brake pipe | 47315-33270 · 47315-33320 |
| 47316 | No. 6 front brake pipe | 47316-33330 |
| 47317 | No. 7 front brake pipe | 47317-33320 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50021 |
| 47318F | Right rear flexible hose | 90947-02G49 |
| 47319F | Left rear flexible hose | 90947-02G50 |
| 47321 | No. 1 rear brake pipe | 47321-33180 · 47321-33200 |
| 47322 | No. 2 rear brake pipe | 47322-33150 · 47322-33170 |
| 47371A | No. 1 brake pipe clamp | 90464-00876 |
| 47372 | No. 2 brake pipe clamp | 90949-01D87 |
| 47962 | brake booster pump collar | 47962-60090 |
| 47965 | brake booster pump bushing | 47965-30010 |
