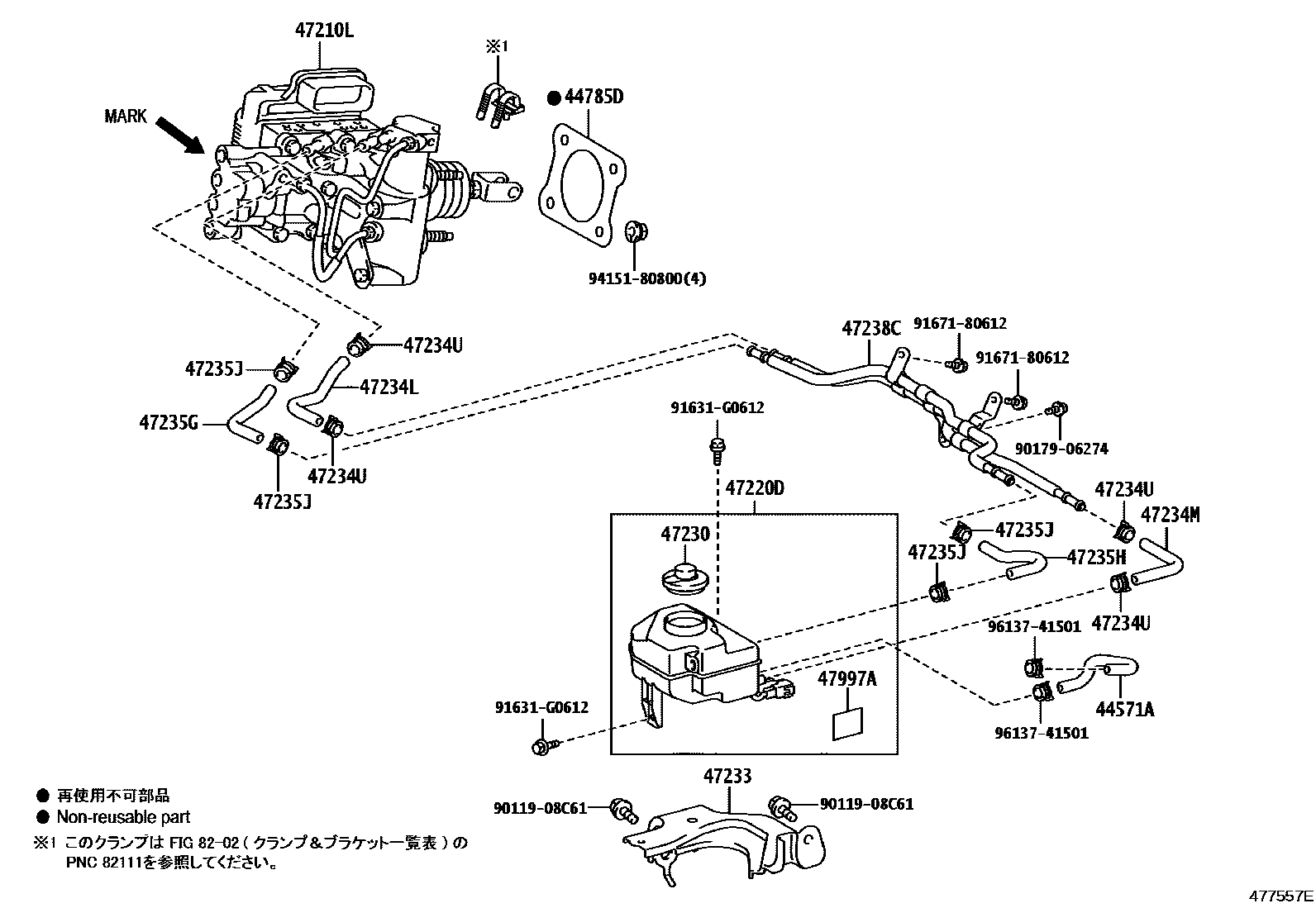

Toyota CAMRY 制动总泵 — Figure 4702
Toyota CAMRY EPC diagram 4702, 制动总泵, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44571A | No. 1 brake actuator hose | 44571-33120 |
| 44785D | brake master cylinder gasket | 44785-12040 |
| 47210L | Brake booster assembly with master cylinder | 47050-33031 · 47050-33130 · 47050-33140 · 47050-33180 |
| 47220D | Brake master cylinder fluid reservoir assembly | 47220-33260 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-20140 |
| 47233 | Reservoir tank bracket | 47233-33040 |
| 47234L | Reservoir Tank No. 1 Hose | 47234-33040 |
| 47234M | Reservoir Tank No. 1 Hose | 47234-33050 |
| 47234U | Clamp (for reservoir tank No. 1 hose) | 96137-41501 |
| 47235G | Reservoir tank No. 2 hose | 47235-33030 |
| 47235H | Reservoir tank No. 2 hose | 47235-33040 |
| 47235J | Clamp (for reservoir tank No. 2 hose) | 96137-41501 |
| 47238C | Reservoir tube | 47238-33030 |
| 47997A | Accumulator No. 1 Warning Label | 47997-76010 |
