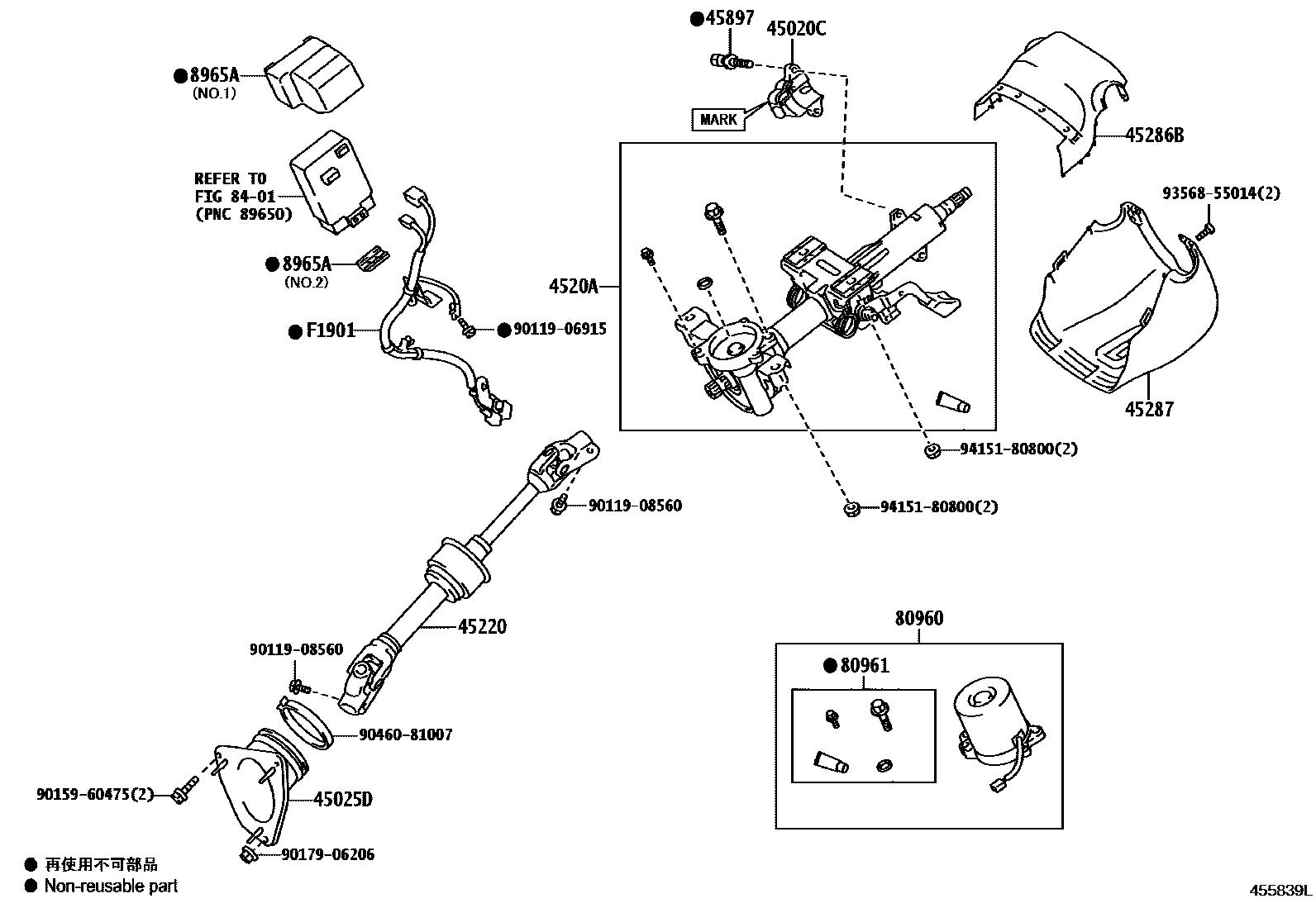

Toyota CAMRY Steering Column & Shaft — Figure 4501
Toyota CAMRY EPC diagram 4501, Steering Column & Shaft, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45020C | Toyota part | 45020-06130 · 45020-33170 |
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-33140 |
| 4520A | Electric steering column sub-assembly | 4520A-33050 |
| 45220 | Steering intermediate shaft assembly | 45220-33290 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
| 80960 | Power steering motor assembly | 80960-33060 |
| 80961 | Toyota part | 80961-33010 |
| 8965A | Power steering ECU protection device | 8965A-06040 · 8965A-06050 · 8965A-33030 · 8965A-33040 |
| F1901 | ECU wiring harness sub-assembly | F1901-06050 · F1901-33060 |
