Toyota CAMRY 车轮和车轮盖 — Figure 4103

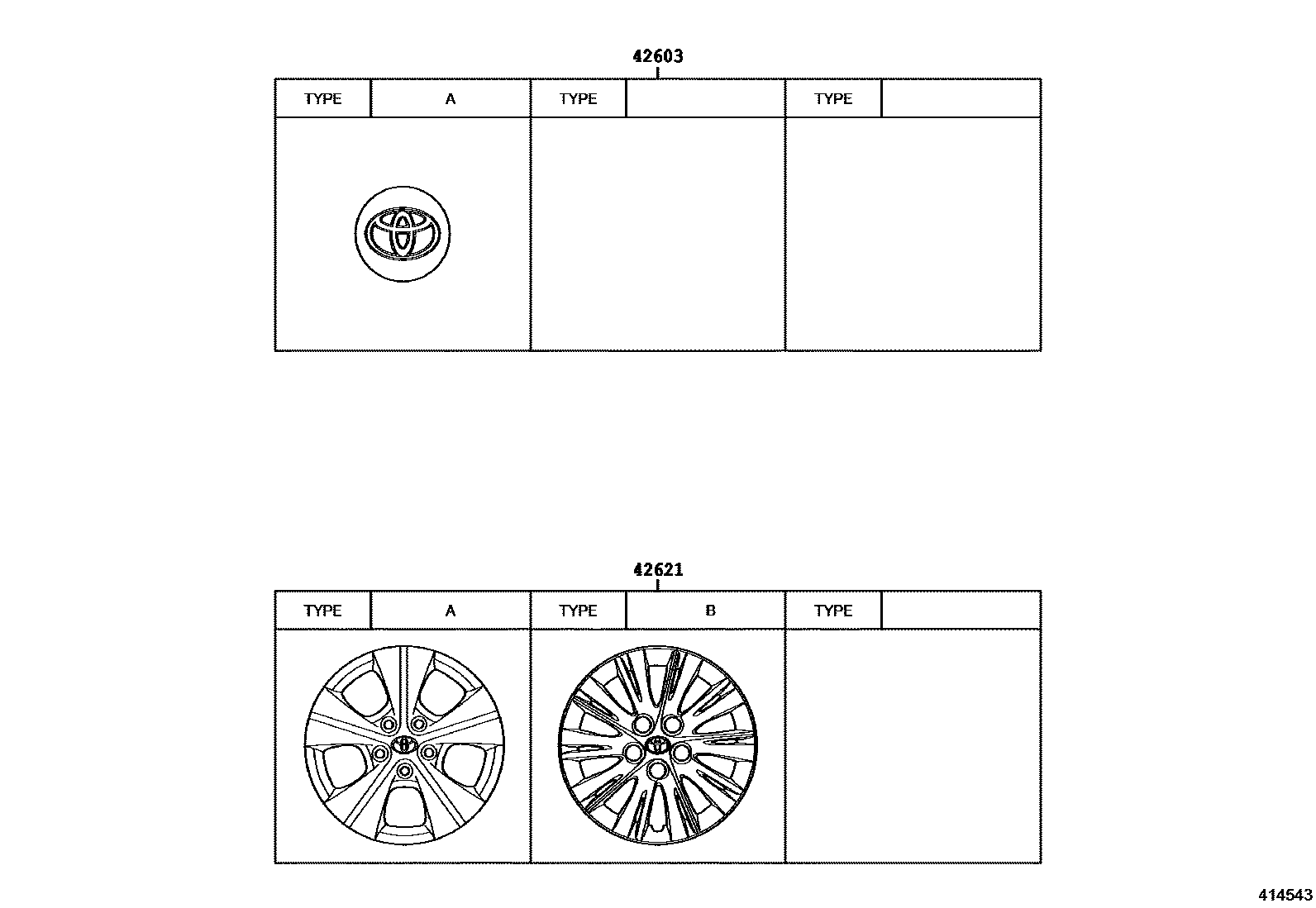

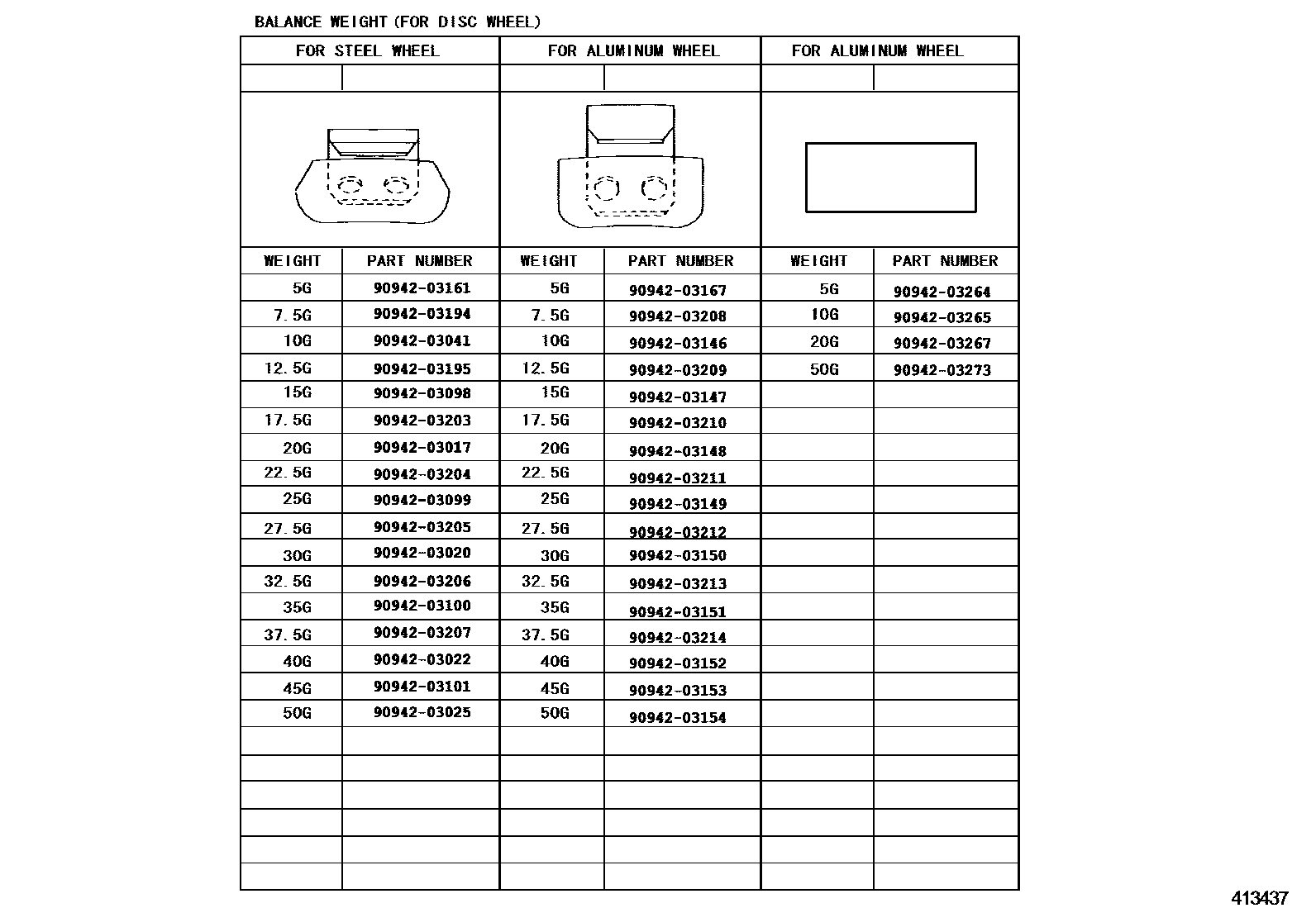

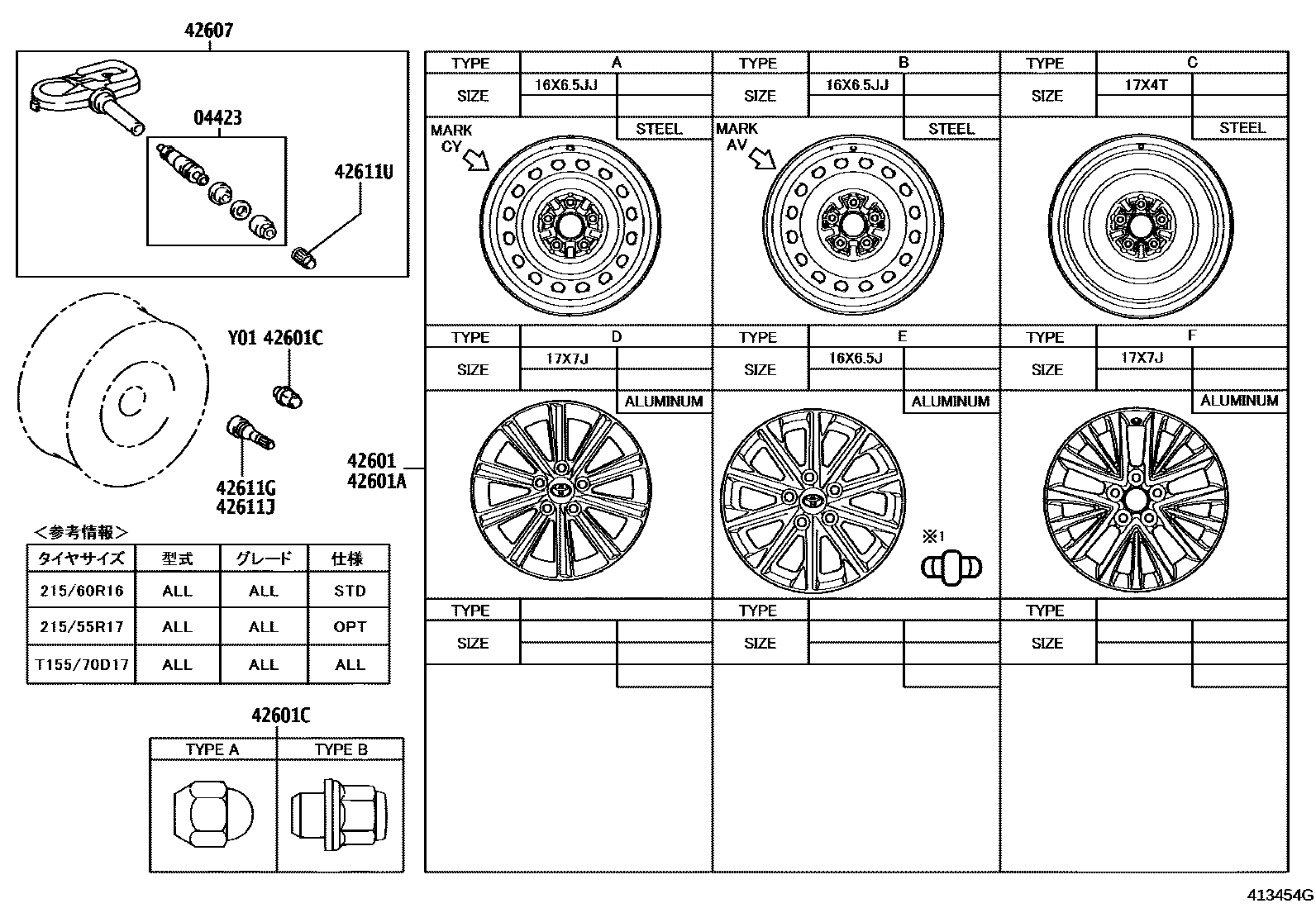

Toyota CAMRY EPC diagram 4103, 车轮和车轮盖, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04423 | Tire pressure monitoring valve or balancer valve mounting assembly | 04423-33060 |
| 42601 | spoke wheel | 42611-33491 · 42611-33541 · 42611-33790 · 42611-33800 · 42611-33840 · 4261A-33120 · 4261A-33130 |
| 42601A | Spoke wheel (for spare tire) | 42611-33510 |
| 42601C | Hub nut (for axle) | 90942-01033 · 90942-01082 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-12730 · 42603-48130 · 42603-48140 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-39005 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
| 42611U | tire valve cover | 90942-05039 |
| 42621 | wheel cover | 42602-33160 · 42602-33180 |
