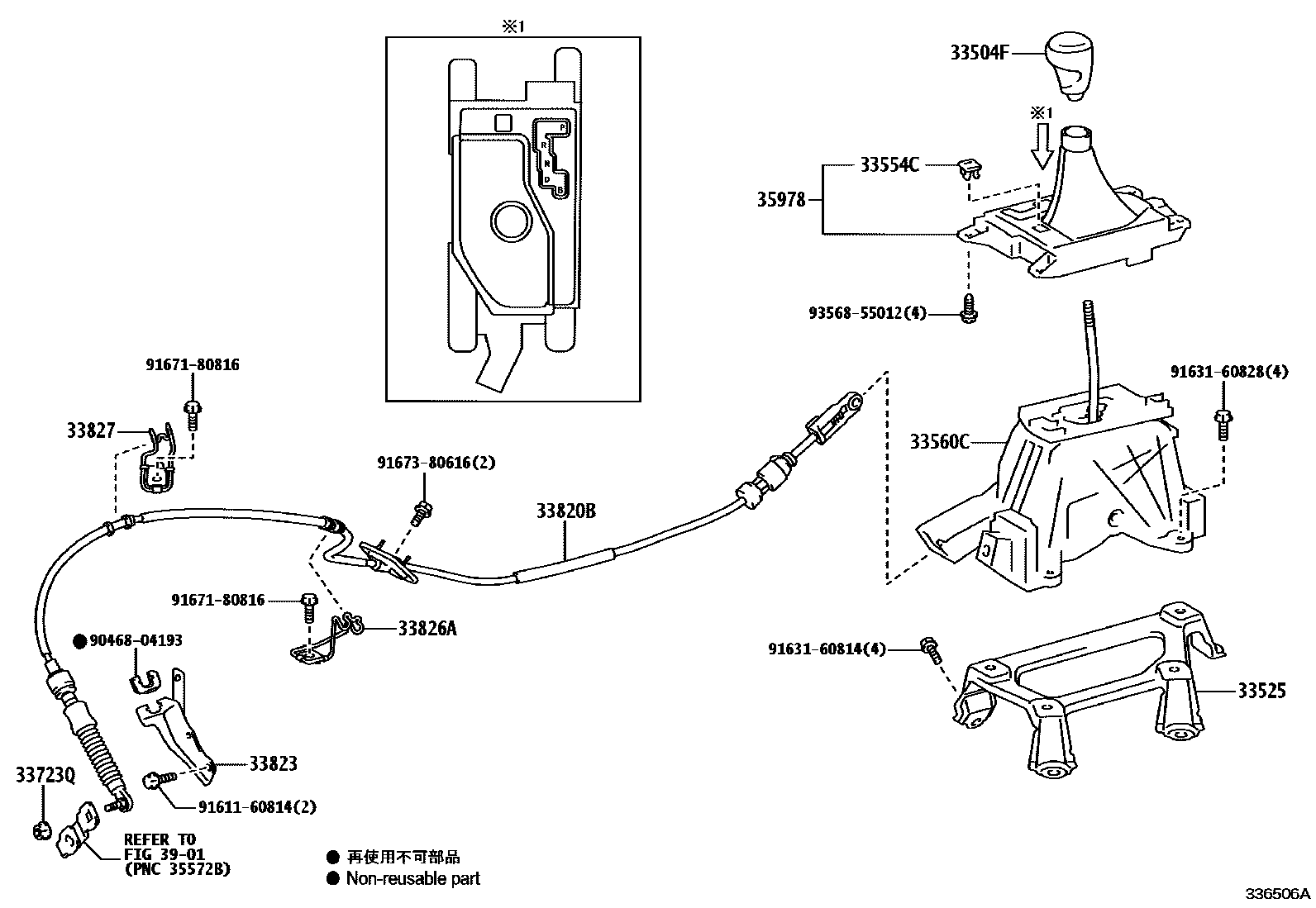

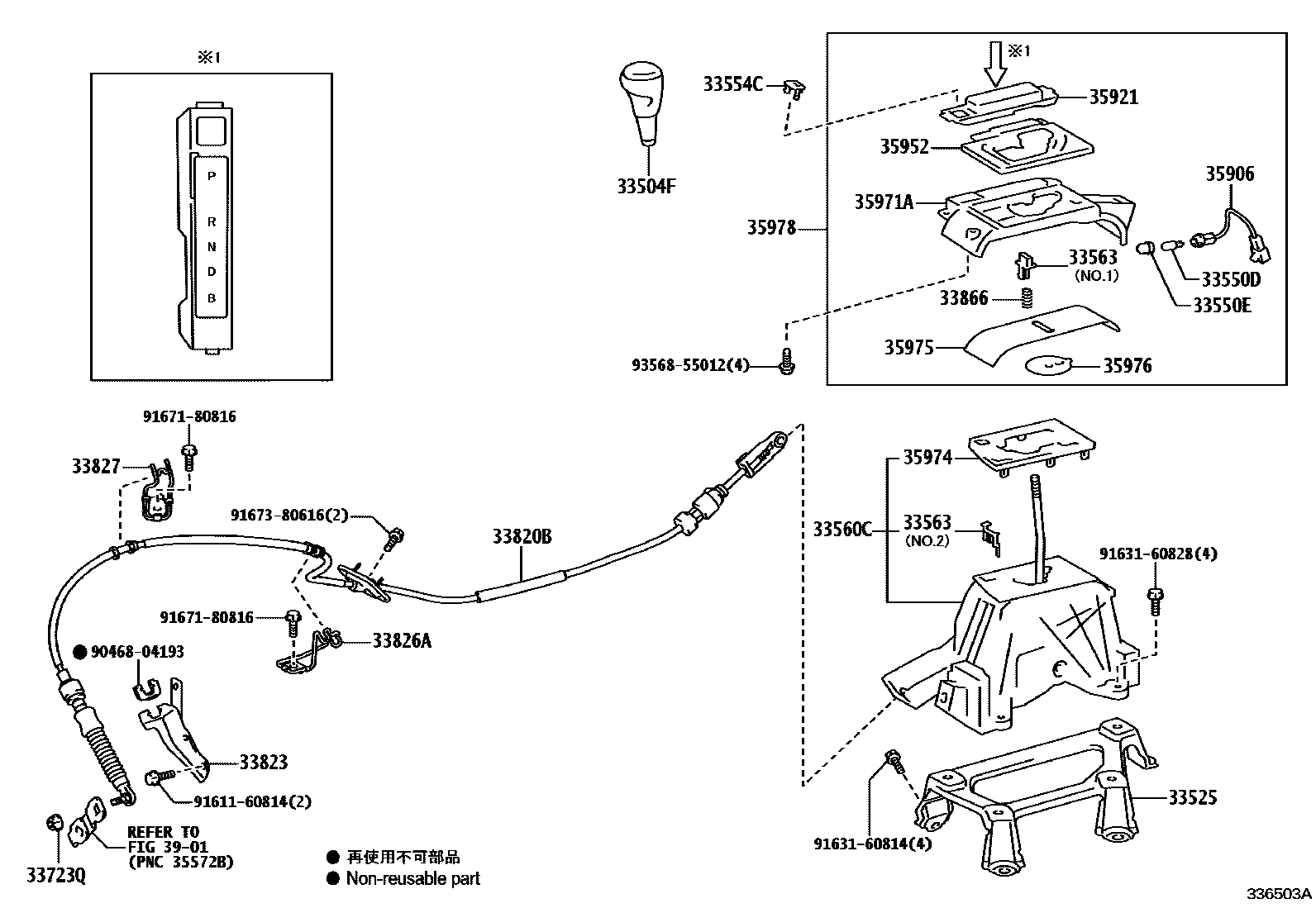

Toyota CAMRY Shift Lever & Retainer — Figure 3312
Toyota CAMRY EPC diagram 3312, Shift Lever & Retainer, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33525 | shift lever bracket | 58123-33010 |
| 33550D | position indicator light bulb | 35955-20010 · 90981-11018 |
| 33550E | position indicator cover | 35956-12010 · 90339-04053 |
| 33554C | Shift lock release button cover | 33554-33120 · 33554-33140 · 33554-33150 |
| 33560C | Lower shift lever assembly | 33560-33310 · 33560-33311 |
| 33563 | Shift lock release button | 33563-33280 · 33563-33311 |
| 33723Q | Nut (for connecting rod swivel joint) | 90179-08054 |
| 33820B | Transmission control cable assembly | 33820-33350 |
| 33823 | No. 1 transmission control cable bracket | 33823-33060 |
| 33826A | No. 2 transmission control cable bracket | 33826-33060 |
| 33827 | No. 3 transmission control cable bracket | 33827-33050 |
| 33866 | Shift lock release spring | 33866-42020 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-33140 |
| 35921 | control position indicator board | 35921-33291 · 35921-33310 |
| 35952 | Position indicator lampshade | 35952-33050 |
| 35971A | Position indicator light upper shell | 35971-33200 |
| 35974 | Position indicator light lower shell | 35974-33170 |
| 35975 | Slide cover (for position indicator light) | 35975-33120 |
| 35976 | Slide No. 2 (for position indicator light) | 35976-33140 |
| 35978 | Shift lever position indicator light | 35978-33121 · 35978-33241 · 35978-33310 |
