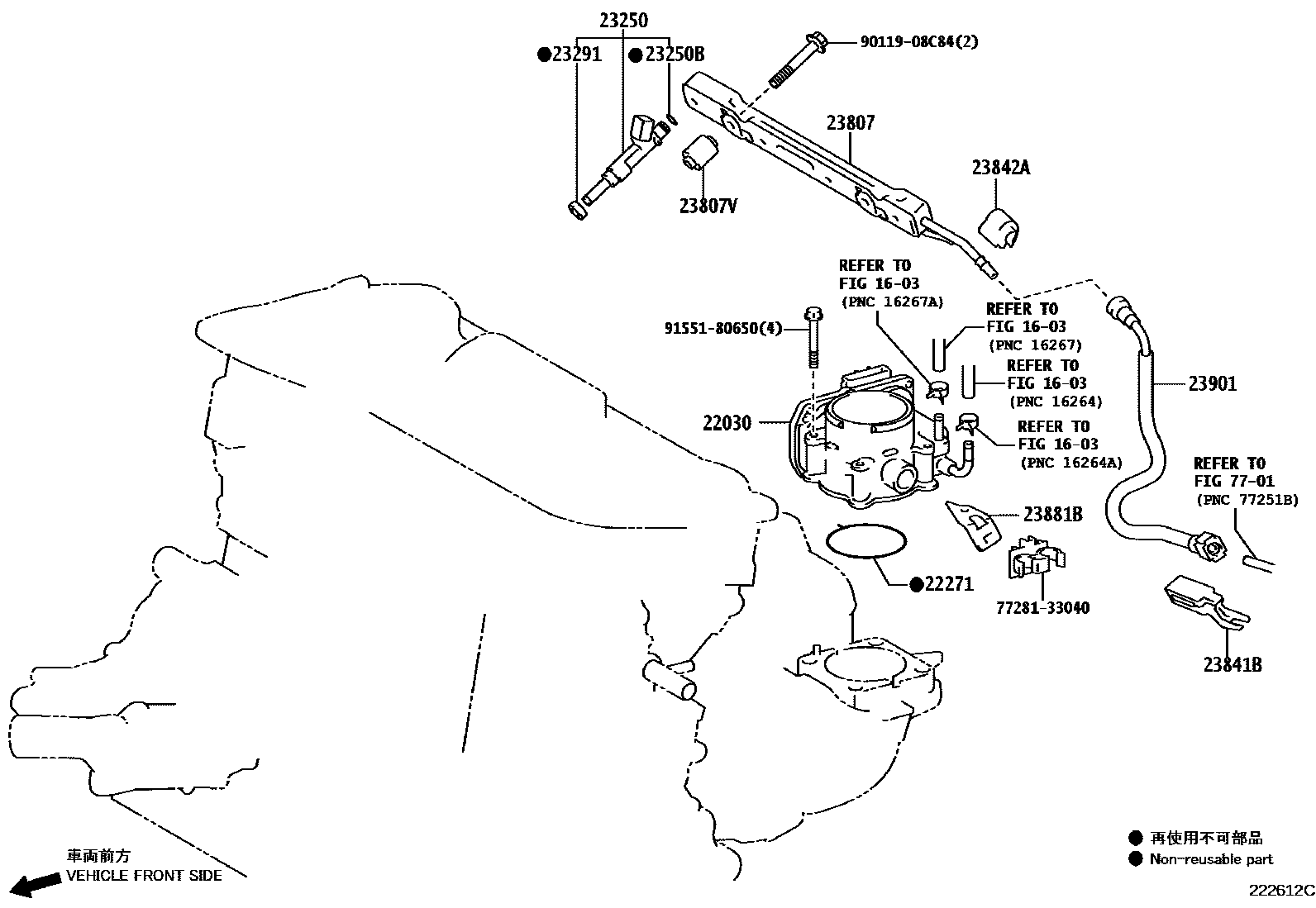

Toyota CAMRY 燃油喷射系统 — Figure 2211
Toyota CAMRY EPC diagram 2211, 燃油喷射系统, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22030 | Electronic throttle body assembly | 22030-36020 |
| 22271 | Throttle body gasket | 22271-36020 |
| 23250 | Fuel injector assembly | 23209-39175 |
| 23250B | O-ring (for fuel injector) | 90301-07037 |
| 23291 | Injector vibration isolation pad | 23291-28020 |
| 23807 | Oil pipe sub-assembly | 23814-36030 · 23814-36050 |
| 23807V | No. 1 spacer (for oil pipe) | 23891-36010 |
| 23841B | No. 1 fuel pipe clamp (for EFI) | 23841-31070 |
| 23842A | No. 2 fuel line clamp (for EFI) | 23842-28010 |
| 23881B | fuel hose bracket | 23881-36030 |
| 23901 | Fuel pipe sub-assembly | 23901-36050 |
