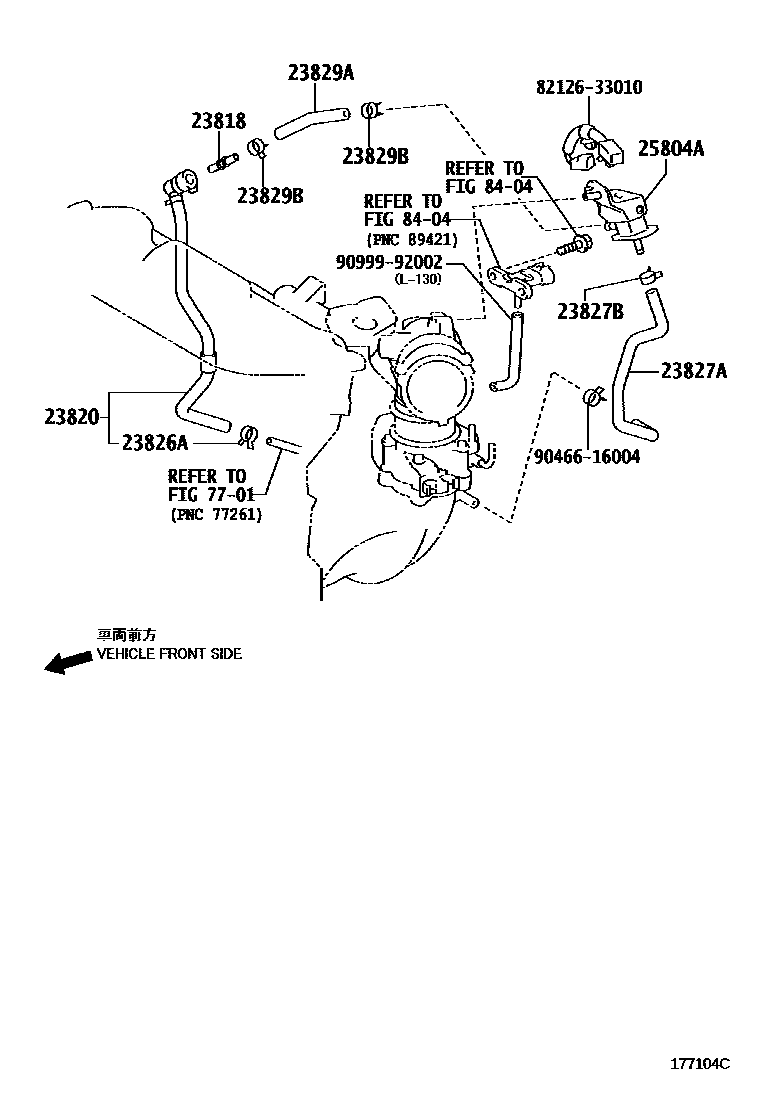

Toyota CAMRY vacuum tube — Figure 1708
Toyota CAMRY EPC diagram 1708, vacuum tube, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23818 | Fuel vapor supply pipe | 23818-36020 |
| 23820 | Fuel vapor supply hose assembly | 23820-36050 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 96132-51300 |
| 23827A | No. 2 fuel vapor supply hose | 23827-36100 |
| 23827B | Clamp (for No. 2 fuel vapor supply hose) | 90466-13004 |
| 23829A | Fuel vapor supply hose | 23829-36020 |
| 23829B | Clamp (for fuel vapor supply hose) | 90467-12056 |
| 25804A | Vacuum switch valve sub-assembly | 25805-36010 |
