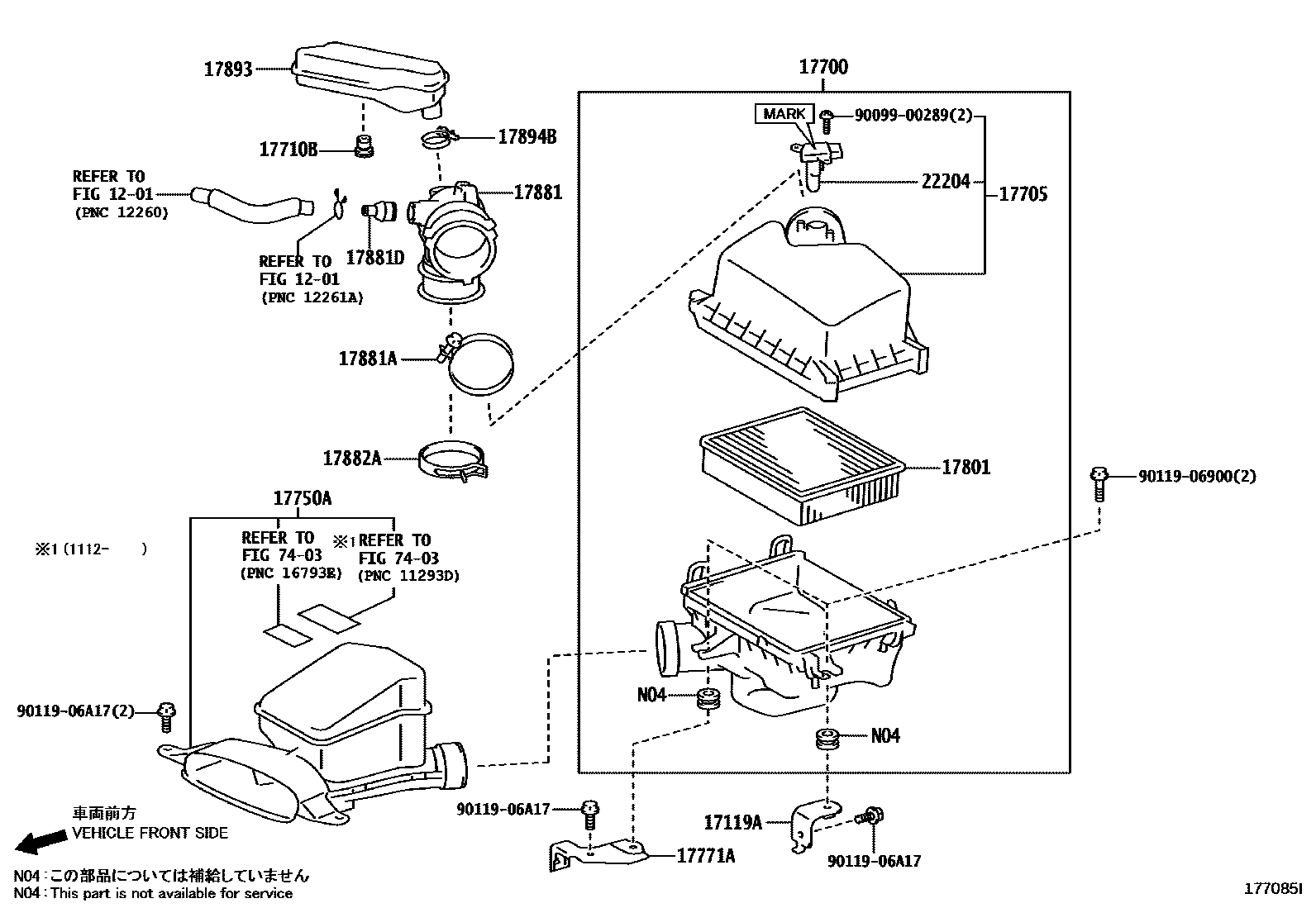

Toyota CAMRY Air Cleaner — Figure 1703
Toyota CAMRY EPC diagram 1703, Air Cleaner, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17119A | air filter bracket | 17119-36020 |
| 17700 | air filter assembly | 17700-36250 |
| 17705 | Air filter cover sub-assembly | 17705-36070 |
| 17710B | gasket | 90480-16049 |
| 17750A | Air filter air inlet assembly | 17750-36030 · 17750-36031 |
| 17771A | air filter bracket | 17771-36040 |
| 17801 | Air filter element sub-assembly | 17801-38011 |
| 17881 | No. 1 air cleaner hose | 17881-36110 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10880 |
| 17881D | Connector tube (for air cleaner hose) | 90904-06008 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90466-62002 |
| 17893 | Intake resonator | 17893-36060 |
| 17894B | Hose clamp (for intake resonator No. 2) | 96111-10430 |
| 22204 | Intake air flow meter assembly | 22204-0T040 · 22204-0V010 · 22204-0V020 · 22204-28010 |
