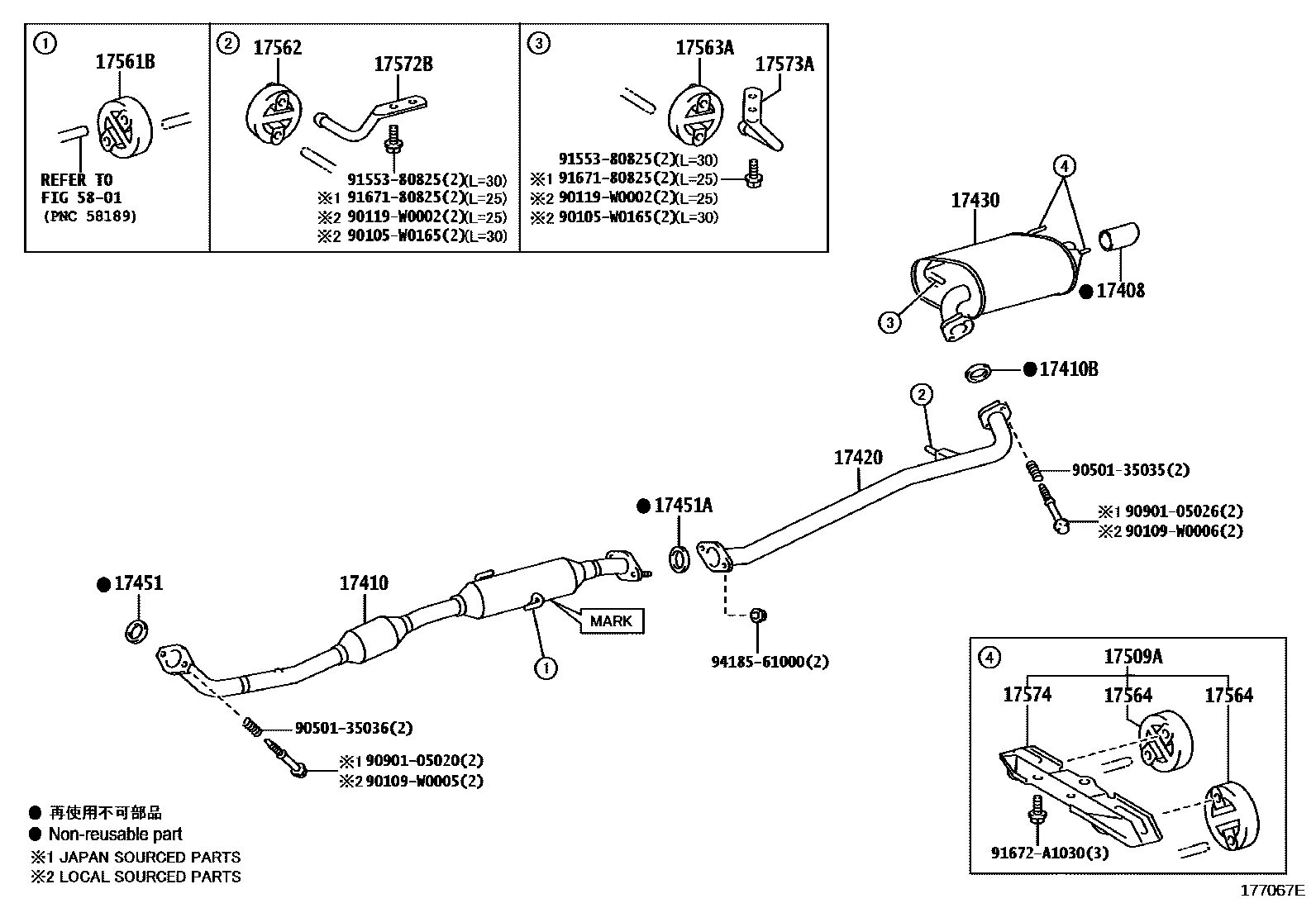

Toyota CAMRY Exhaust Pipe — Figure 1702
Toyota CAMRY EPC diagram 1702, Exhaust Pipe, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17408 | Exhaust pipe tail throat sub-assembly | 17408-31080 |
| 17410 | Front exhaust pipe assembly | 17410-36240 |
| 17410B | Exhaust pipe gasket | 17451-28022 |
| 17420 | Central exhaust pipe assembly | 17420-36100 |
| 17430 | Exhaust tailpipe assembly | 17430-36140 · 17430-36150 |
| 17451 | Exhaust pipe gasket | 17451-28070 |
| 17451A | No. 2 exhaust pipe gasket | 90917-06078 |
| 17509A | No. 4 exhaust pipe bracket sub-assembly | 17508-36060 |
| 17561B | No. 1 exhaust pipe lifting lug | 17565-31040 |
| 17562 | No. 2 exhaust pipe lifting lug | 17565-0D100 · 17565-22030 |
| 17563A | No. 3 exhaust pipe lifting lug | 17565-0J031 · 17565-22040 |
| 17564 | No. 4 exhaust pipe lifting lug | 17565-22030 |
| 17572B | No. 2 exhaust pipe bracket | 17573-31020 |
| 17573A | No. 3 exhaust pipe bracket | 17576-31070 |
| 17574 | No. 4 exhaust pipe bracket | 17574-36070 |
