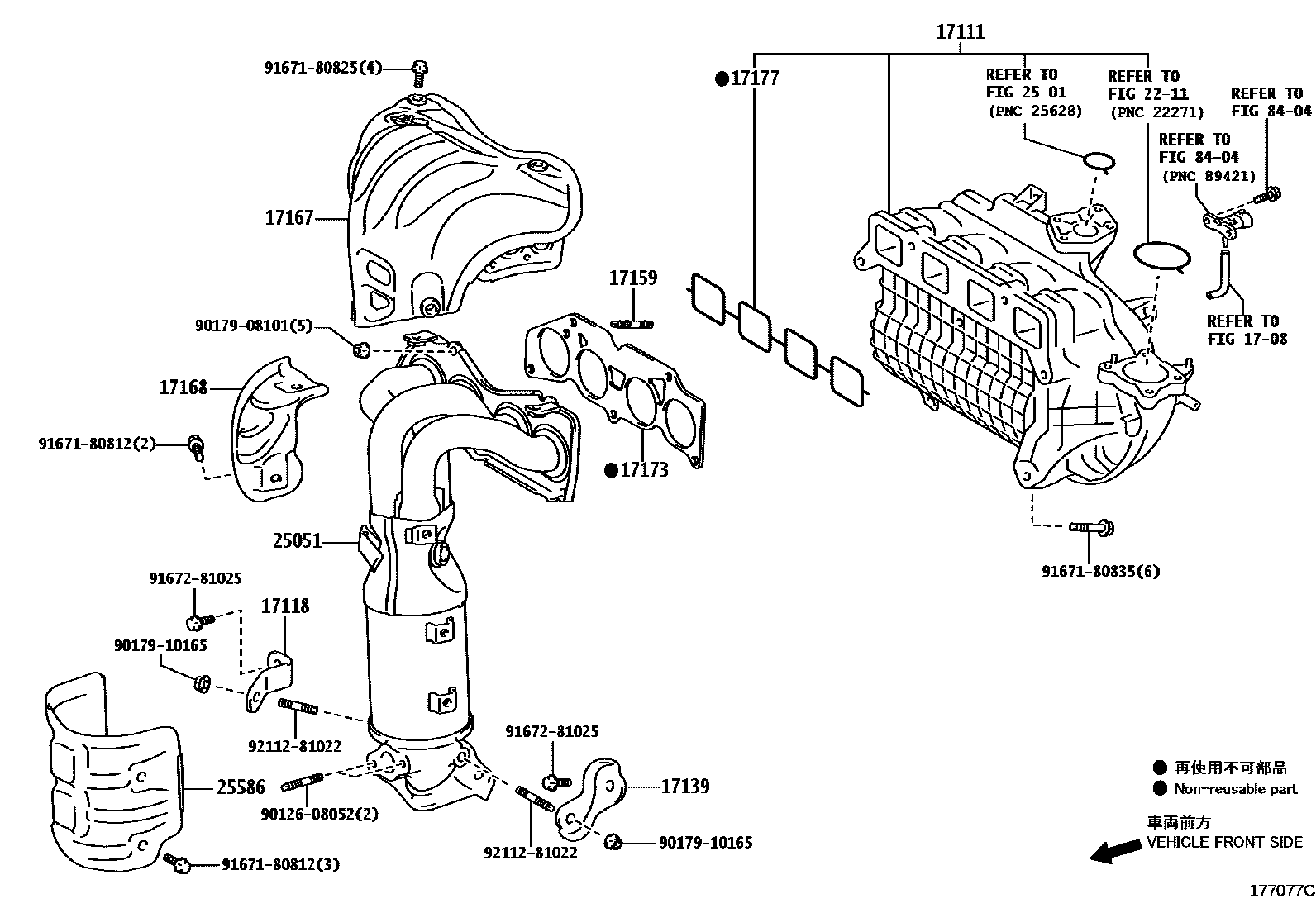

Toyota CAMRY Manifold — Figure 1701
Toyota CAMRY EPC diagram 1701, Manifold, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17111 | Intake Manifold | 17120-36050 |
| 17118 | Manifold stays | 17118-36020 |
| 17139 | No. 2 manifold stay | 17139-36040 |
| 17159 | Studs (for manifold to cylinder head) | 90126-08037 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-36011 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-36010 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-36020 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17171-36020 |
| 25051 | Exhaust manifold three-way catalytic converter sub-assembly | 25051-36120 |
| 25586 | No. 1 manifold three-way catalytic converter vibration isolation pad | 25586-36020 |
