Toyota CAMRY RADIATOR & WATER OUTLET — Figure 1603

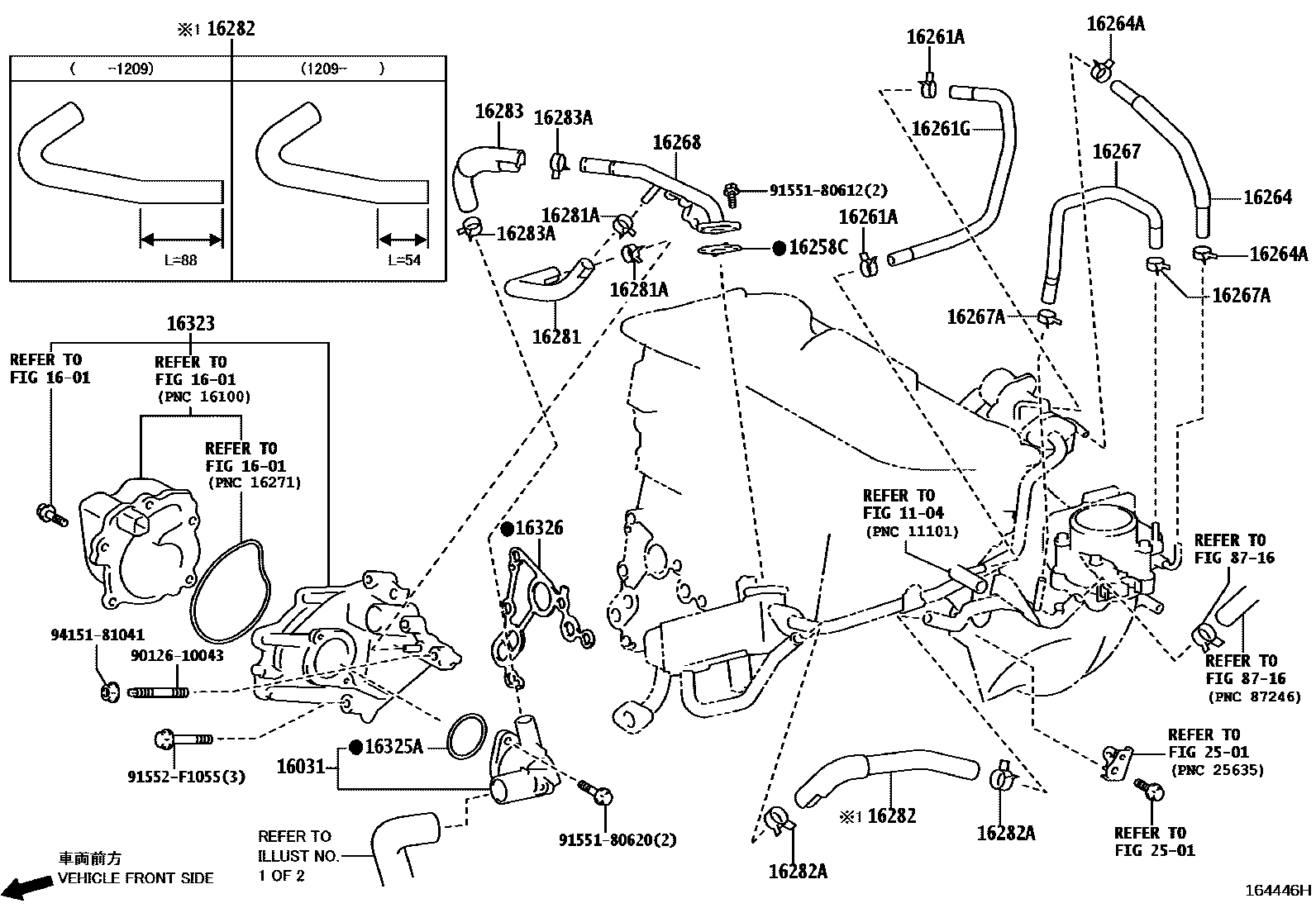

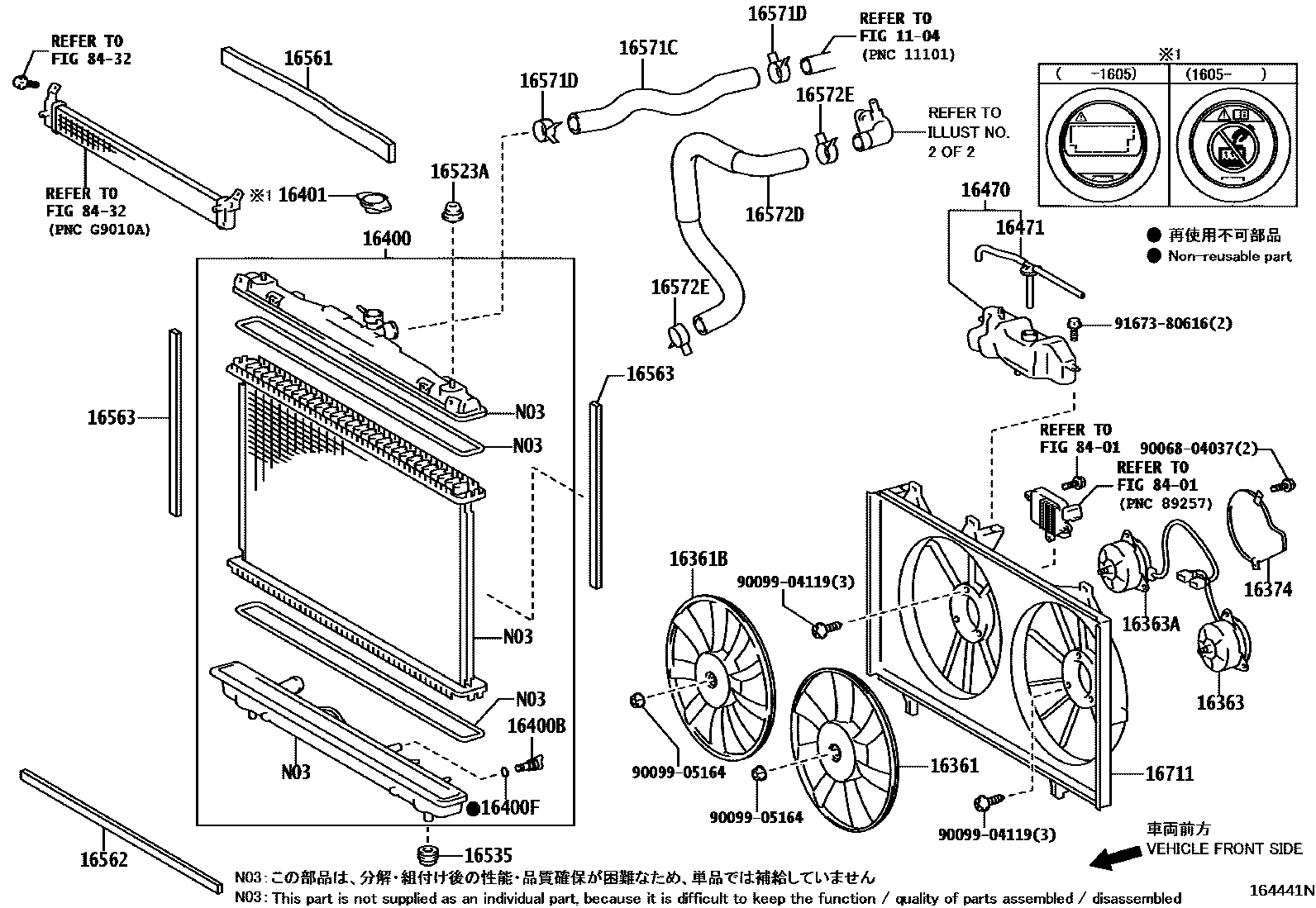

Toyota CAMRY EPC diagram 1603, RADIATOR & WATER OUTLET, with 2 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16031 | INLET SUB-ASSY, WATER W/THERMOSTAT | 16031-36010 |
| 16258C | Gasket (for water bypass pipe) | 16258-36020 · 16258-36100 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 96137-41501 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-36040 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-36030 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 96137-41501 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-36040 · 16267-36080 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 96137-41501 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-36080 · 16268-36081 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-36020 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 96137-41501 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16282-36020 · 16282-36021 · 16282-36022 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 90466-21001 |
| 16283 | HOSE, WATER BY-PASS, NO.6 | 16283-36030 · 16283-36031 |
| 16283A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.6 | 90466-21001 |
| 16323 | HOUSING, WATER INLET | 16032-36050 |
| 16325A | Water inlet shell gasket | 16325-36010 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16326-36010 |
| 16361 | Fan | 16361-36020 |
| 16361B | Fan No. 2 | 16361-36070 |
| 16363 | cooling fan motor | 16363-20270 |
| 16363A | Cooling fan motor No. 2 | 16363-36070 |
| 16374 | Cooling fan motor vibration isolation pad | 16366-36100 |
| 16400 | Radiator assembly | 16400-36260 |
| 16400B | Radiator drain switch screw plug | 16417-21280 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 |
| 16401 | Radiator cover sub-assembly | 16401-31520 · 16401-36020 |
| 16470 | Radiator reservoir assembly | 16470-36010 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-36010 |
| 16523A | Radiator bracket cushion | 16523-20020 |
| 16535 | Radiator lower support | 16535-28060 |
| 16561 | Seal No. 1 (radiator to bracket) | 16561-36020 |
| 16562 | Seal No. 2 (radiator to bracket) | 16562-28010 |
| 16563 | Seal No. 3 (radiator to bracket) | 16563-36010 |
| 16571C | Radiator hose No. 1 | 16571-36110 |
| 16571D | No. 1 radiator hose clip | 90466-35001 |
| 16572D | Radiator hose No. 2 | 16572-36120 |
| 16572E | No. 2 radiator hose clip | 90466-35001 |
| 16711 | fan cover | 16711-36130 |
