Toyota CAMRY Camshaft & Valve — Figure 1302

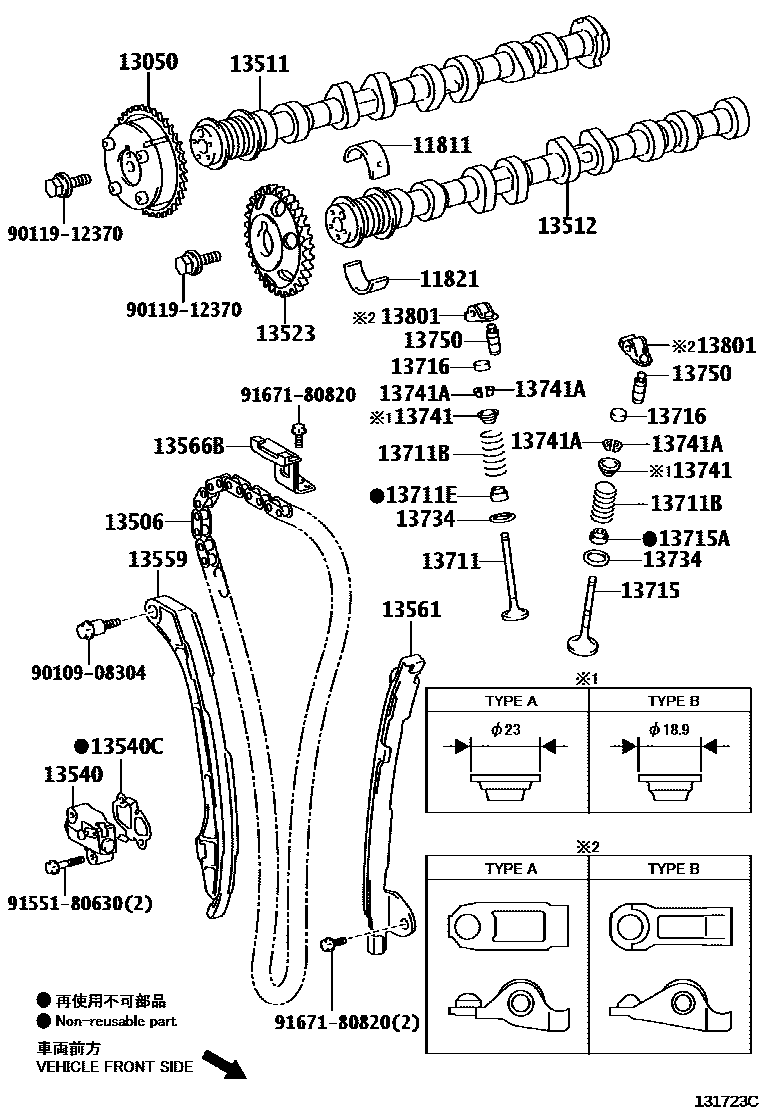

Toyota CAMRY EPC diagram 1302, Camshaft & Valve, with 1 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11811 | No. 1 camshaft bearing | 11811-36010 |
| 11821 | No. 2 camshaft bearing | 11821-36010 |
| 13050 | Camshaft timing gear assembly | 13050-36011 · 13050-36020 |
| 13506 | Chain sub-assembly | 13506-36010 · 13506-36030 |
| 13511 | camshaft | 13501-36030 |
| 13512 | Camshaft No. 2 | 13502-36020 |
| 13523 | Camshaft timing gear or sprocket | 13523-36020 |
| 13540 | No. 1 chain tensioner assembly | 13540-36010 · 13540-36040 |
| 13540C | Pad (for chain tensioner) | 13552-36010 |
| 13559 | chain tensioner guide plate | 13559-36010 · 13559-36040 |
| 13561 | No. 1 chain shock absorber | 13561-36010 · 13561-36030 |
| 13566B | Timing chain guide plate | 13566-36010 · 13566-36011 |
| 13711 | intake valve | 13711-36060 |
| 13711B | Compression spring (for inner side) | 90501-34016 · 90501-34022 |
| 13711E | Intake valve stem oil seal | 90913-02101 |
| 13715 | exhaust valve | 13715-36020 |
| 13715A | Exhaust valve stem oil seal | 90913-02112 |
| 13716 | valve stem cover | 13716-75020 |
| 13734 | Valve spring seat | 13734-62020 |
| 13741 | Valve spring seat ring | 13741-20021 · 13741-36010 |
| 13741A | Valve spring seat lock plate | 90913-03028 |
| 13750 | Valve lash adjuster assembly | 13750-31030 · 13750-36020 |
| 13801 | No. 1 valve rocker arm sub-assembly | 13801-23011 · 13801-36020 |
