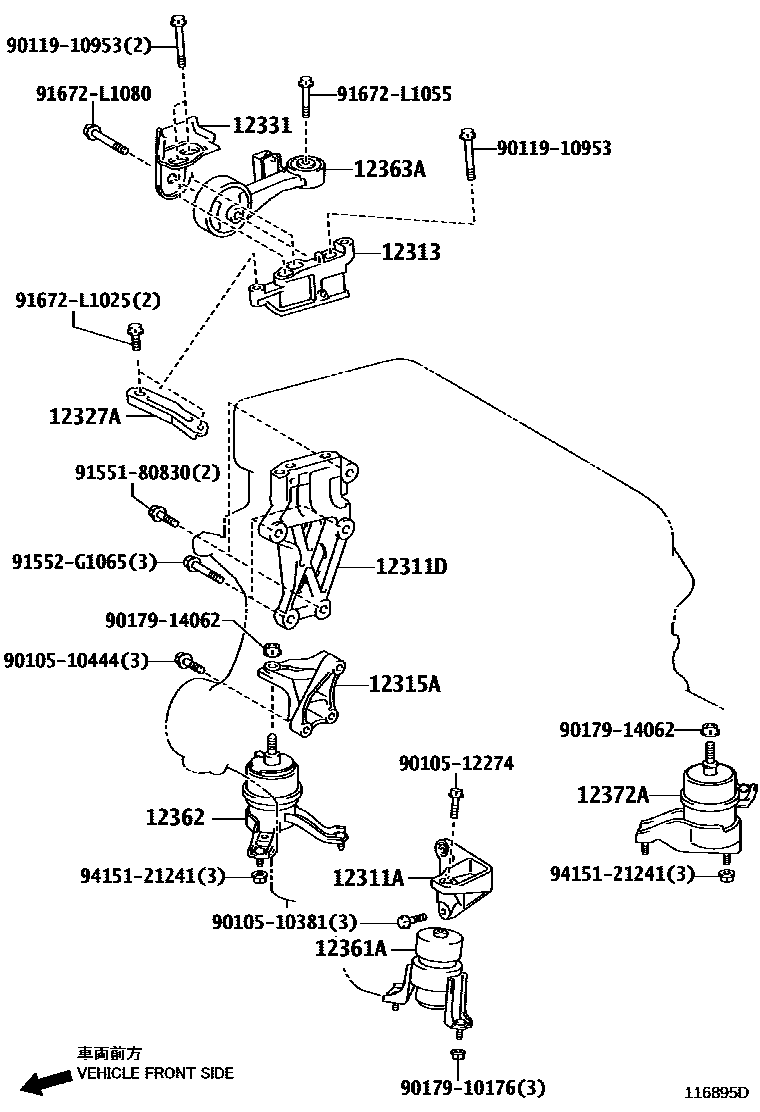

Toyota CAMRY Engine Mounting — Figure 1107
Toyota CAMRY EPC diagram 1107, Engine Mounting, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-36070 |
| 12311D | engine mounting bracket | 12313-36010 |
| 12313 | Engine mount control bracket (for transversely mounted engines) | 12313-36040 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12319-36030 |
| 12327A | Engine No. 2 right side mounting bracket | 12327-36020 |
| 12331 | Engine No. 3 right side mounting bracket | 12331-36020 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-36090 · 12361-36091 |
| 12362 | Engine right side mounting vibration isolation pad (for transversely mounted engine) | 12362-36050 · 12362-36051 · 12362-36052 |
| 12363A | Engine movement control lever | 12363-36050 · 12363-36080 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-28250 |
