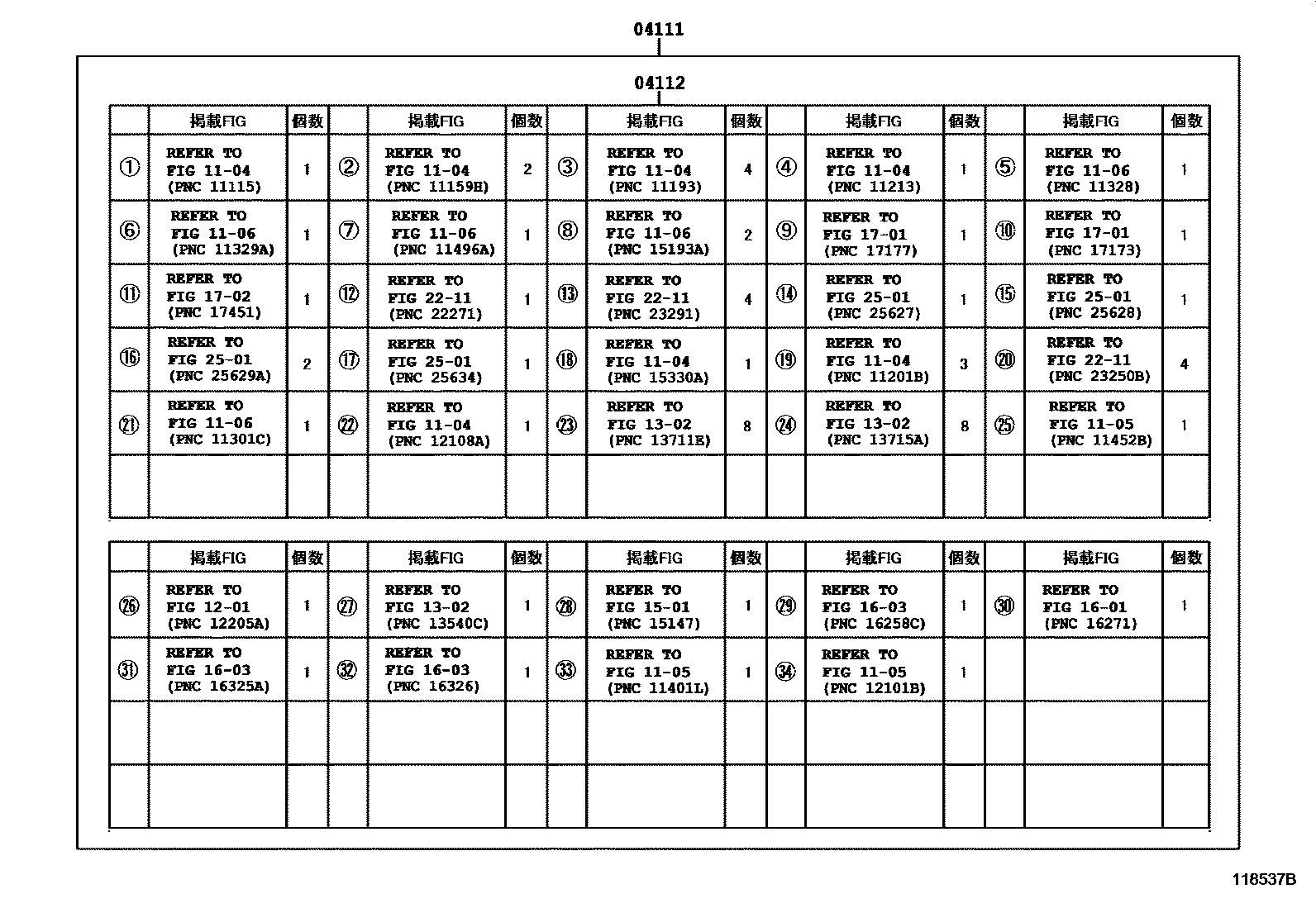

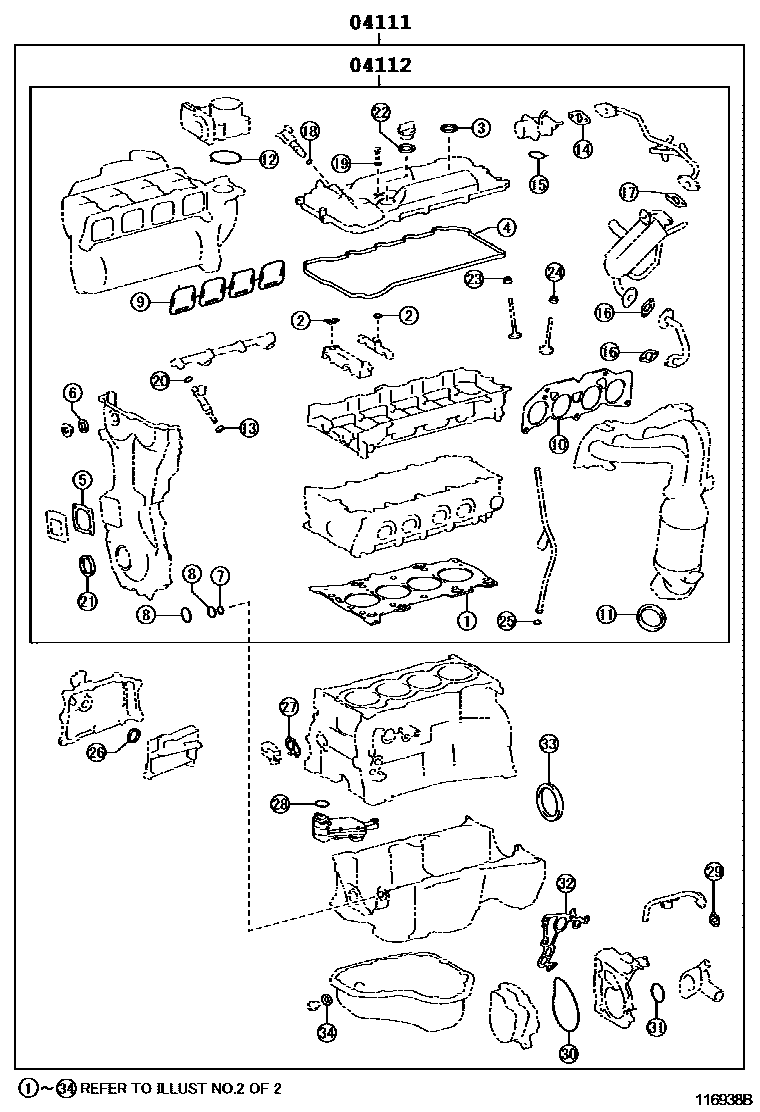

Toyota CAMRY Engine Overhaul Gasket Kit — Figure 1103
Toyota CAMRY EPC diagram 1103, Engine Overhaul Gasket Kit, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04111 | Engine overhaul gasket assembly | 04111-36112 · 04111-36113 · 04111-36114 · 04111-36115 · 04111-36150 · 04111-36151 · 04111-36152 |
| 04112 | Engine valve grinding pad assembly | 04112-36091 · 04112-36092 · 04112-36093 · 04112-36130 · 04112-36131 |
