Toyota CAMRY 后视镜 — Figure 8701

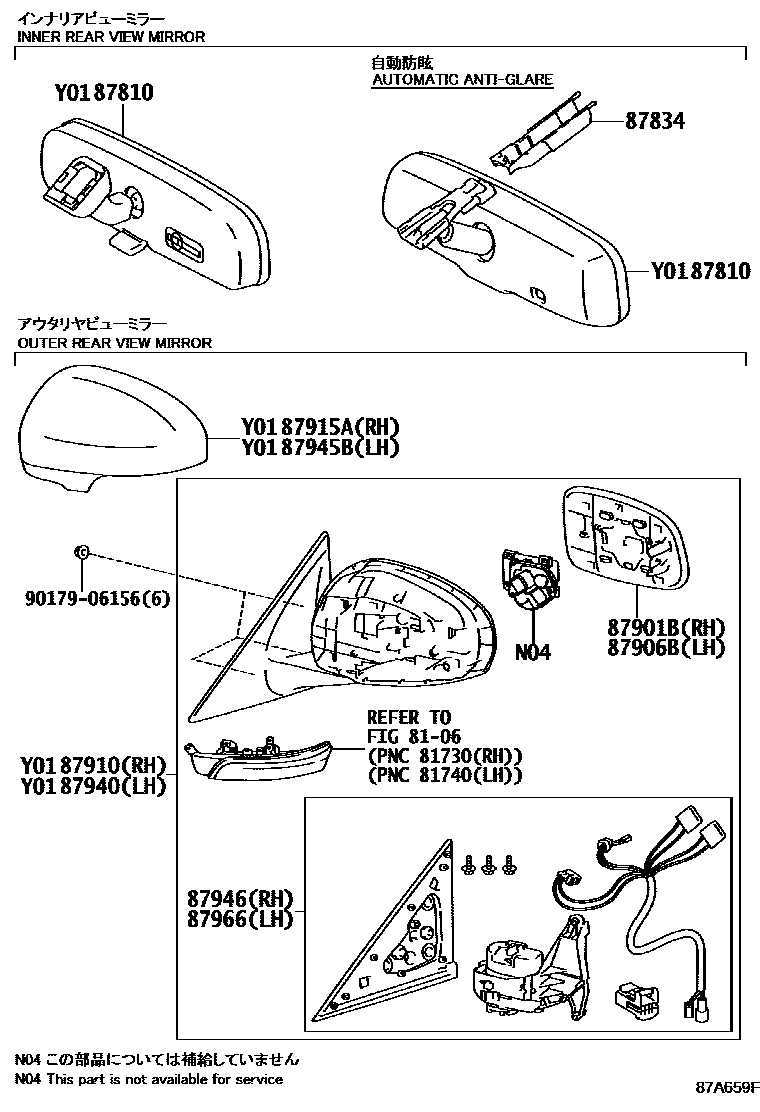

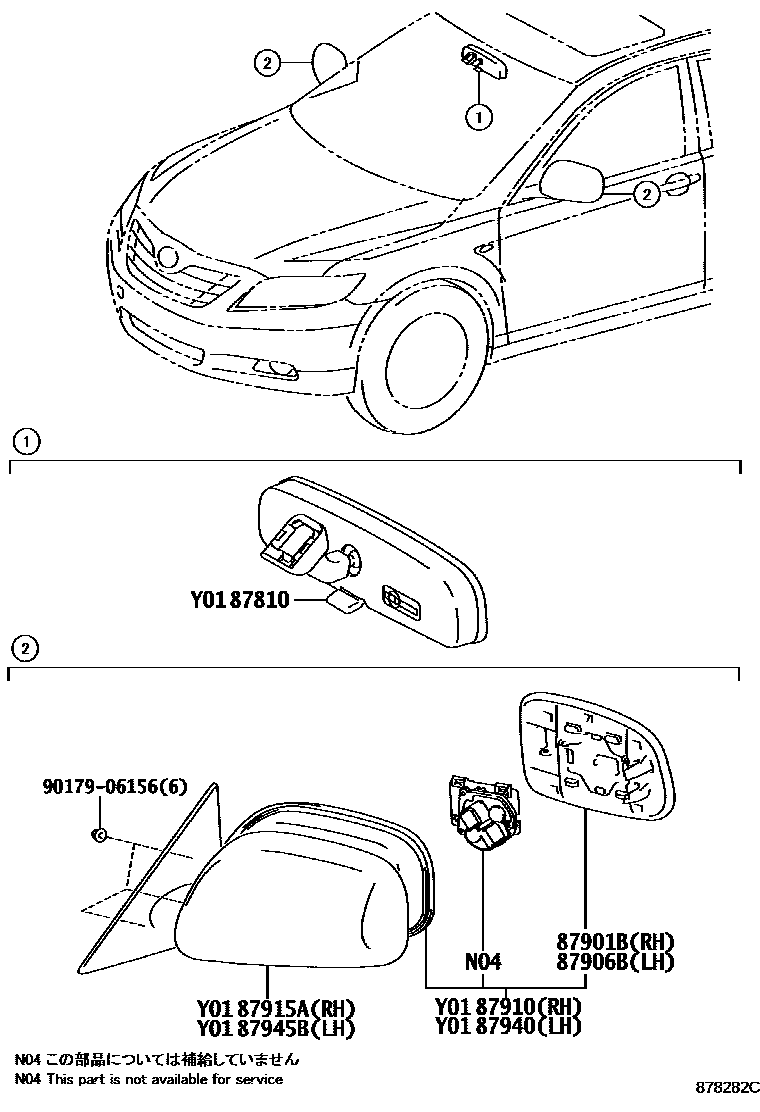

Toyota CAMRY EPC diagram 8701, 后视镜, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-0W260 · 87810-60190 · 87810-60191 |
| 87834 | Interior rearview mirror stay fixing cover | 87818-33010 |
| 87901B | Right exterior rearview mirror sub-assembly | 87931-33690 · 87931-33820 |
| 87906B | Left exterior rearview mirror sub-assembly | 87961-33670 · 87961-33810 |
| 87910 | Right exterior rearview mirror assembly | 87910-33690 · 87910-33820 · 87910-33821 |
| 87940 | Left exterior rearview mirror assembly | 87940-33670 · 87940-33810 · 87940-33811 |
| 87946 | Right exterior rearview mirror retractor | 87946-33820 |
| 87966 | Left exterior rearview mirror retractor | 87966-33810 |
