Toyota CAMRY antenna — Figure 8604

Toyota CAMRY EPC diagram 8604, antenna, with 2 images and 4 PNC and OE references.

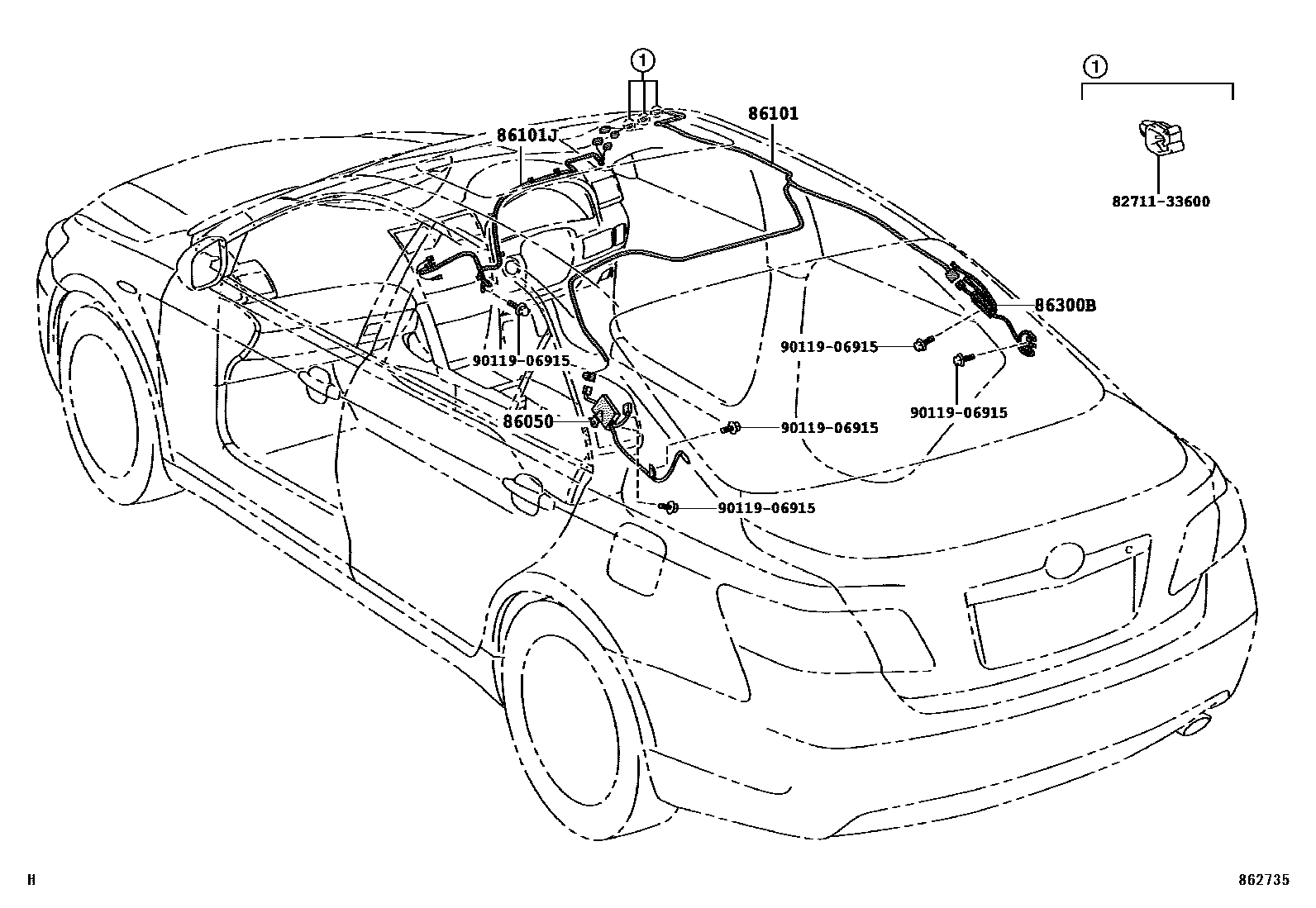

Toyota CAMRY antenna EPC diagram — 862735
antenna — 862735 (200601 – 999999)

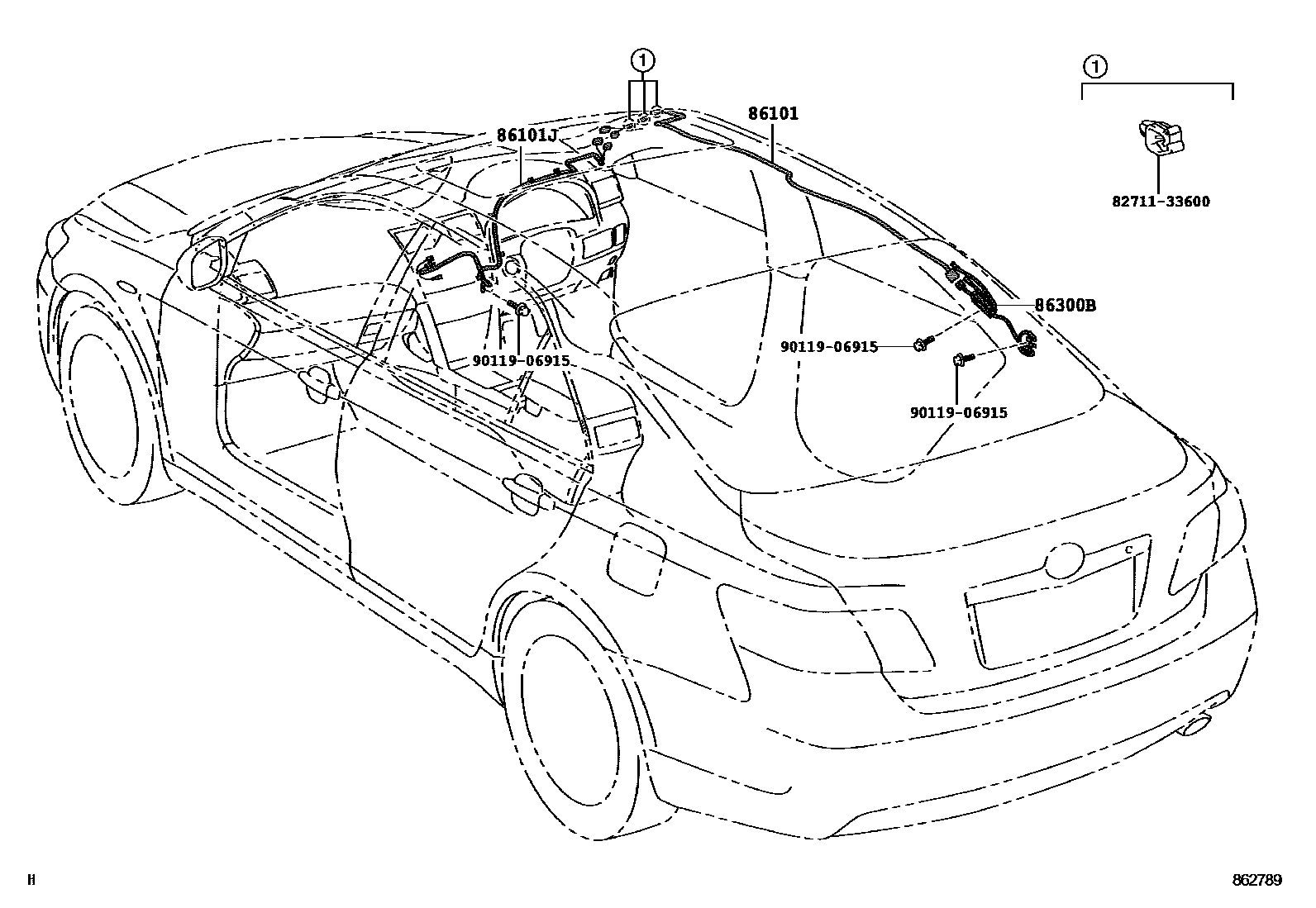

Toyota CAMRY antenna EPC diagram — 862789
antenna — 862789 (200601 – 999999)

PNC and OE references

PNCPart nameOE numbers
86050Monitor antenna assembly86050-33130
86101Antenna wire sub-assembly86101-33550 · 86101-33551 · 86101-33570 · 86101-33571 · 86101-33600 · 86101-33610 · 86101-33790
86101JNo. 2 antenna wire sub-assembly86101-33630 · 86101-33640 · 86101-33850 · 86101-33851 · 86101-33860
86300BAmplifier antenna assembly86300-33310 · 86300-33311
