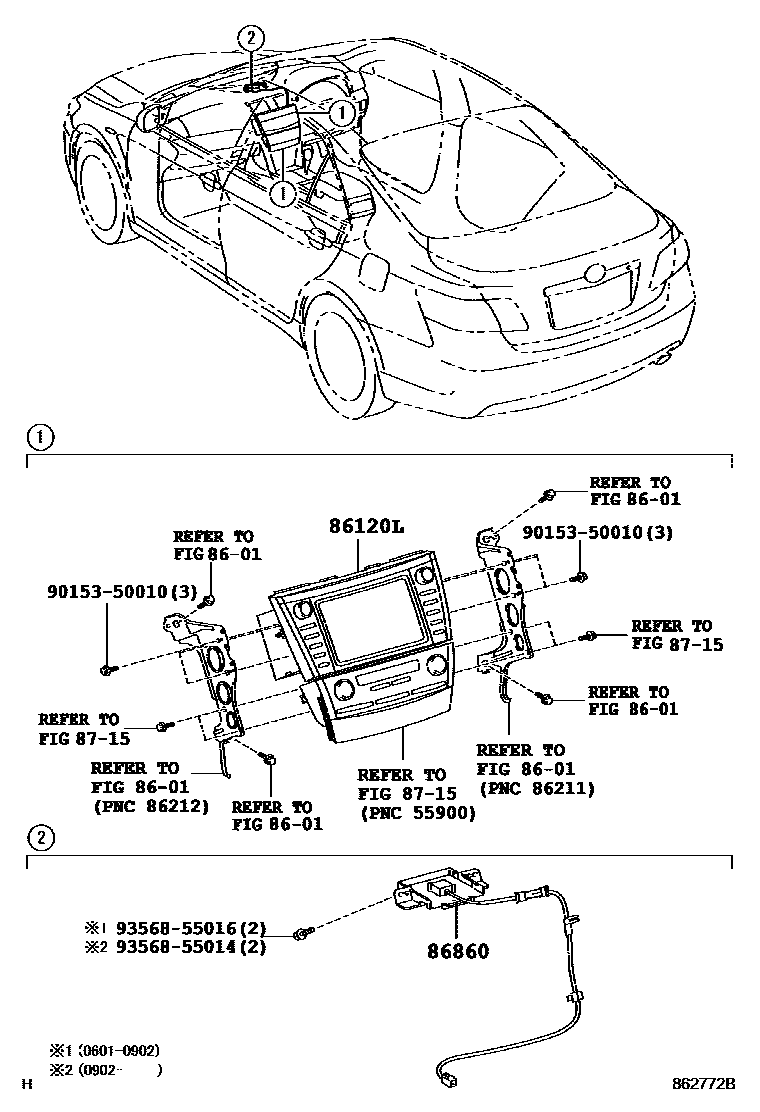

Toyota CAMRY 导航和前监视器显示屏 — Figure 8603
Toyota CAMRY EPC diagram 8603, 导航和前监视器显示屏, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86120L | Navigation receiver assembly | 86100-33210 · 86100-33211 · 86100-33212 · 86100-33213 · 86100-33214 · 86100-33215 · 86100-33216 · 86100-33290 · 86100-33291 · 86100-33292 · 86100-33293 · 86100-33294 · 86100-33295 |
| 86860 | Navigation antenna assembly | 86860-33130 |
