Toyota CAMRY 收音机、放大器和冷凝器 — Figure 8601
Toyota CAMRY EPC diagram 8601, 收音机、放大器和冷凝器, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

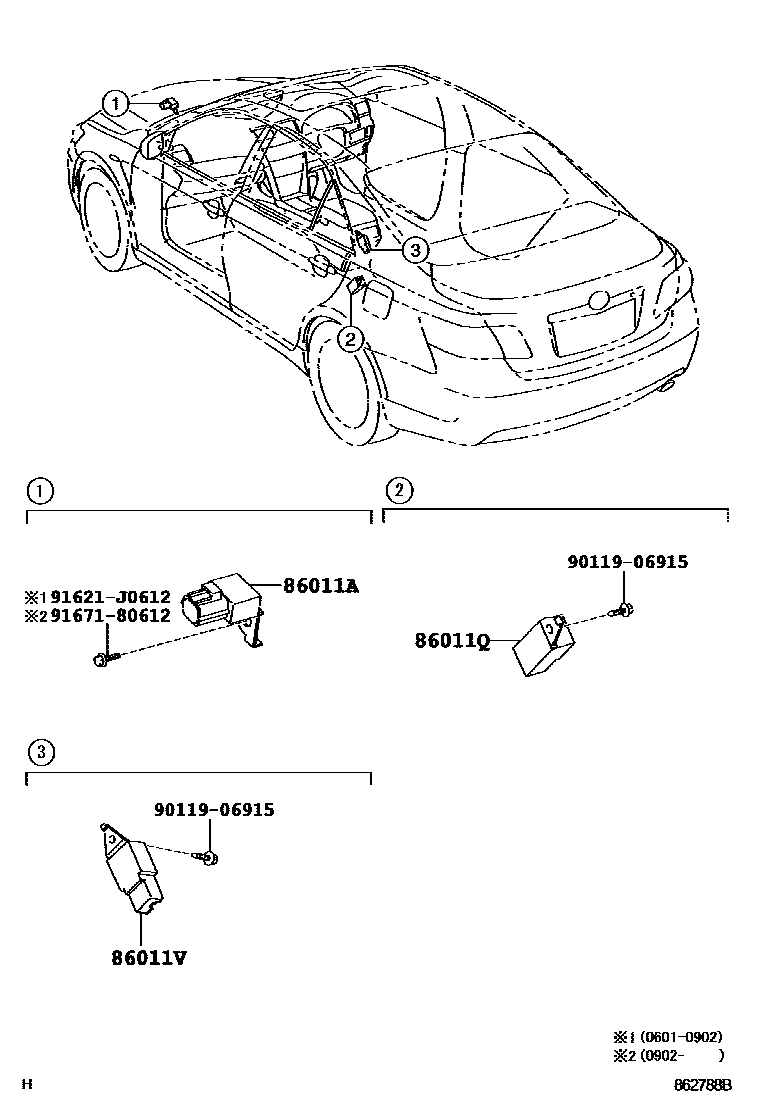

| 86011A | radio settings phase modulator | 90980-04157 |
| 86011Q | radio settings phase modulator | 90980-04148 |
| 86011V | radio settings phase modulator | 90980-04198 |

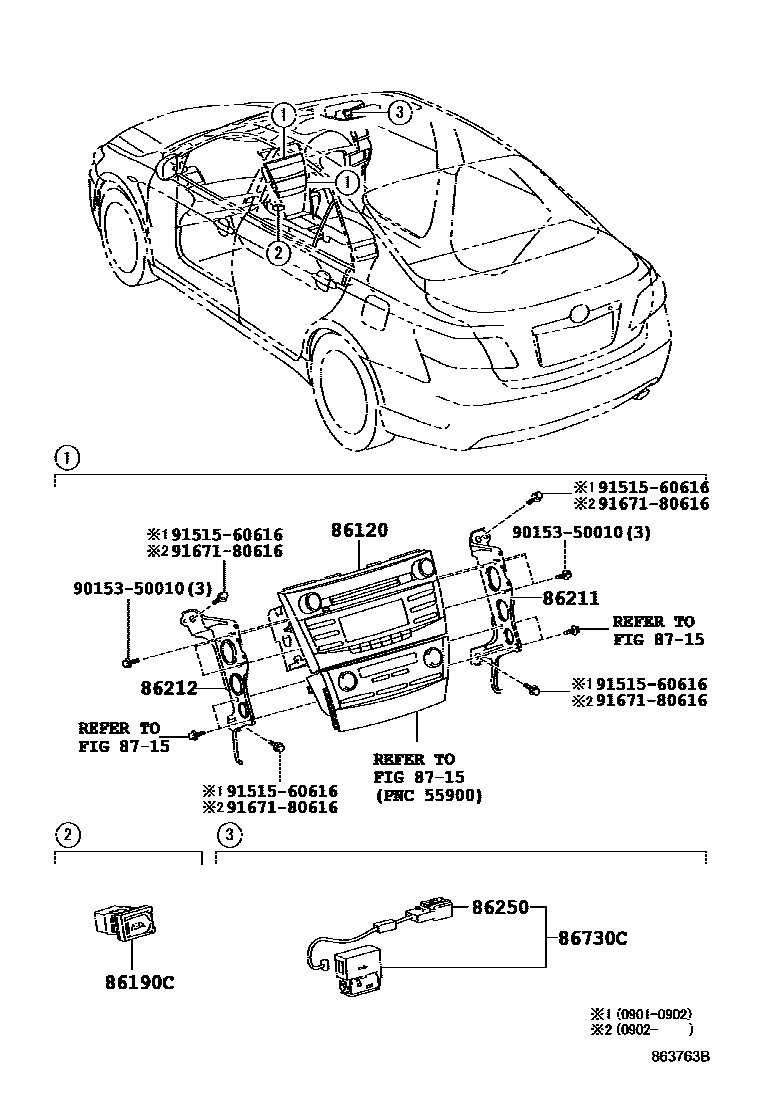

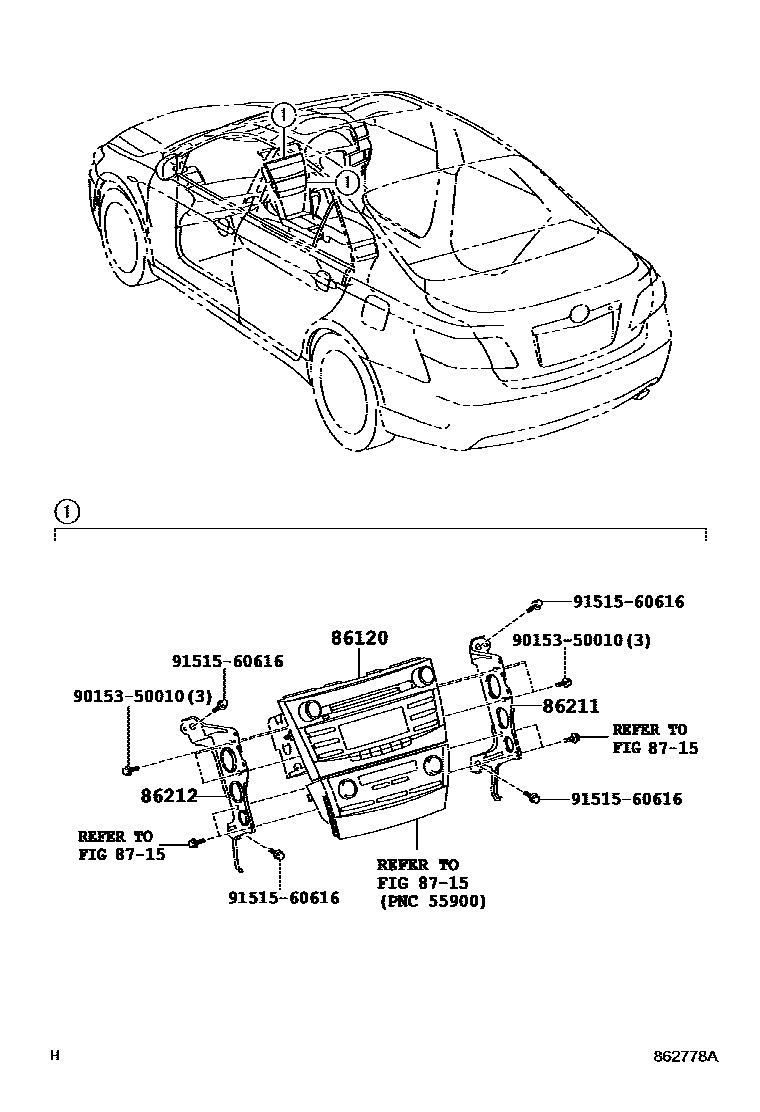

| 86120 | Radio assembly | 86120-33830 · 86120-33D30 |
| 86190C | Stereo socket connector assembly No. 1 | 86190-48010 |
| 86211 | No. 1 radio bracket | 86211-33210 |
| 86212 | No. 2 radio bracket | 86212-33210 |
| 86250 | amplifier loudspeaker assembly | 86250-52020 |
| 86730C | Telephone amplifier assembly | 86730-33070 |
