Toyota CAMRY 挡风玻璃刮水器 — Figure 8501

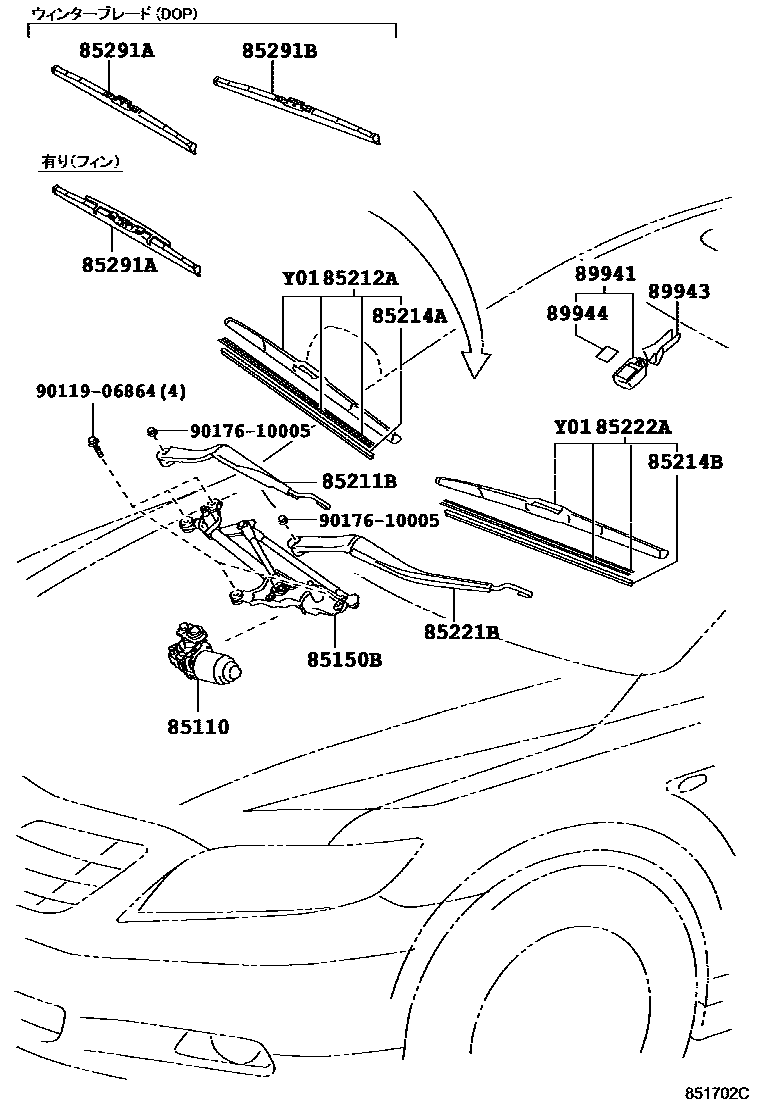

Toyota CAMRY EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-33310 · 85110-33320 |
| 85150B | Wiper connecting rod assembly | 85150-33250 |
| 85211B | Right front wiper arm | 85211-33290 |
| 85212A | Right front wiper blade | 85212-33240 |
| 85214A | Right wiper rubber strip | 85214-30380 |
| 85214B | Left wiper rubber strip | 85214-53090 |
| 85221B | Left front wiper arm | 85221-33270 · 85221-33271 |
| 85222A | Left front wiper blade | 85222-53060 |
| 85291A | Right front wiper blade for winter use | 85291-30060 · 85291-50060 · 85291-50080 |
| 85291B | Left front wiper blade for winter use | 85291-33060 |
| 89941 | rain sensor | 89941-42010 |
| 89943 | Rain sensor cover | 89943-42010 |
| 89944 | Rain sensor tape | 89944-42010 |
