Toyota CAMRY ABS 和 VSC — Figure 8414

Toyota CAMRY EPC diagram 8414, ABS 和 VSC, with 2 images and 11 PNC and OE references.

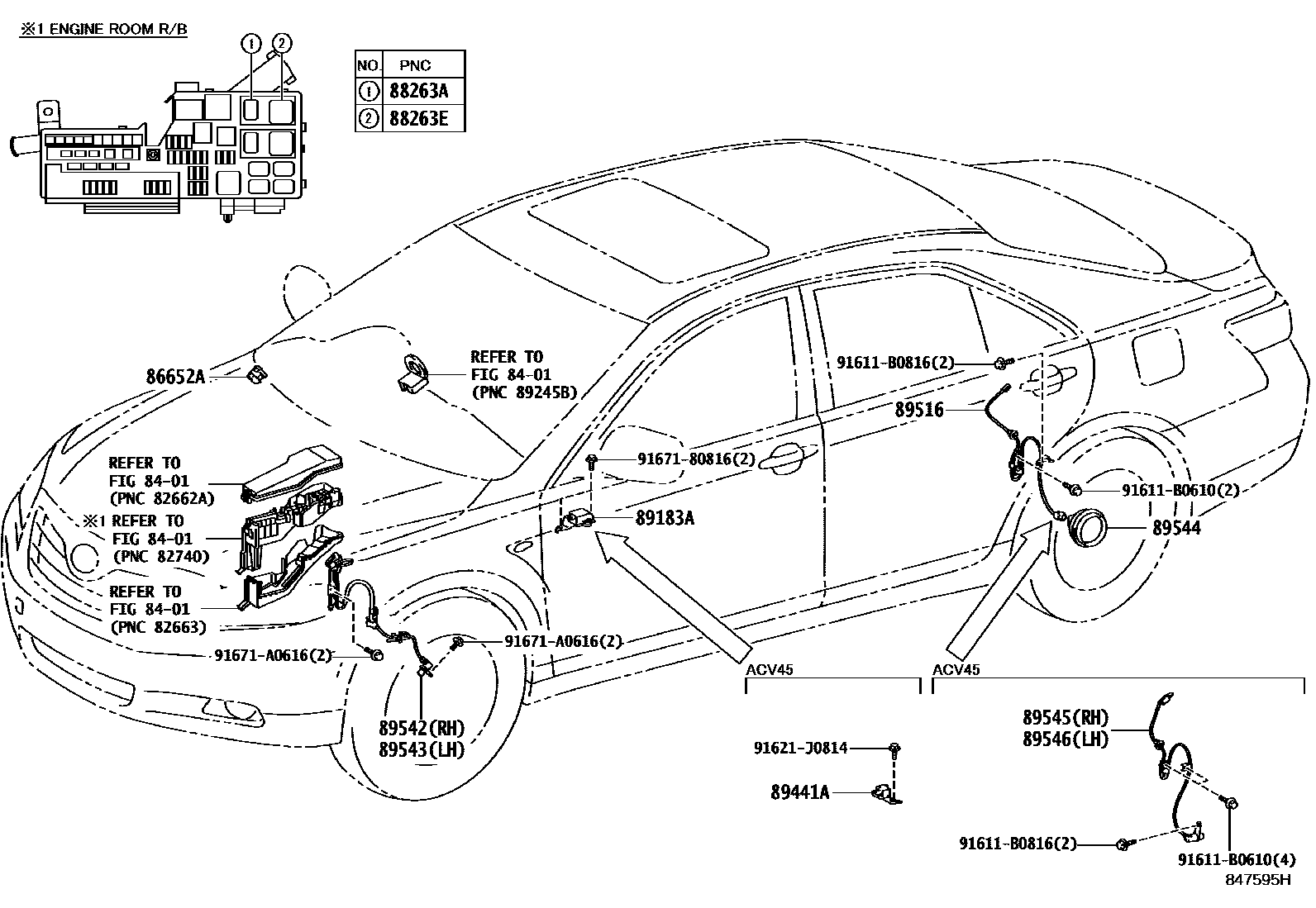

Toyota CAMRY ABS 和 VSC EPC diagram — 847595H
ABS 和 VSC — 847595H (200601 – 200901)

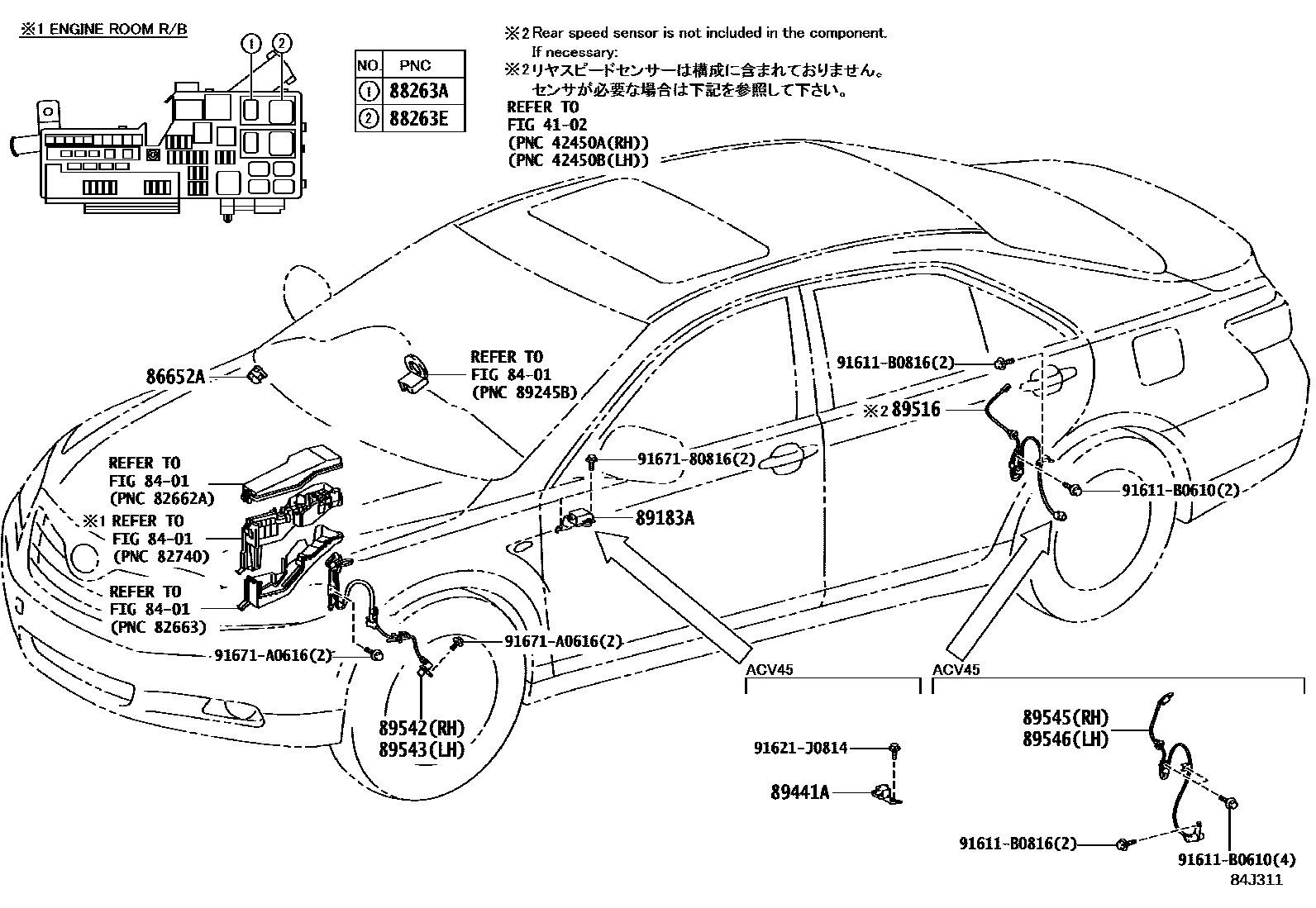

Toyota CAMRY ABS 和 VSC EPC diagram — 84J311
ABS 和 VSC — 84J311 (200901 – 999999)

PNC and OE references

PNCPart nameOE numbers
86652AAnti-skid control buzzer assembly86652-48010
88263AAnti-skid control relay88263-32070
88263ENo. 2 anti-skid control relay88263-21010
89183AYaw rate sensor89180-33050
89441Adeceleration sensor89440-33030
89516Anti-skid control sensor wiring harness89516-33030 · 89516-33040 · 89516-33050 · 89516-33060
89542Right front wheel speed sensor89542-33090
89543Left front wheel speed sensor89543-33080
89544Anti-skid control sensor89544-48010
89545Right rear wheel speed sensor89545-33050
89546Left rear wheel speed sensor89546-33050
