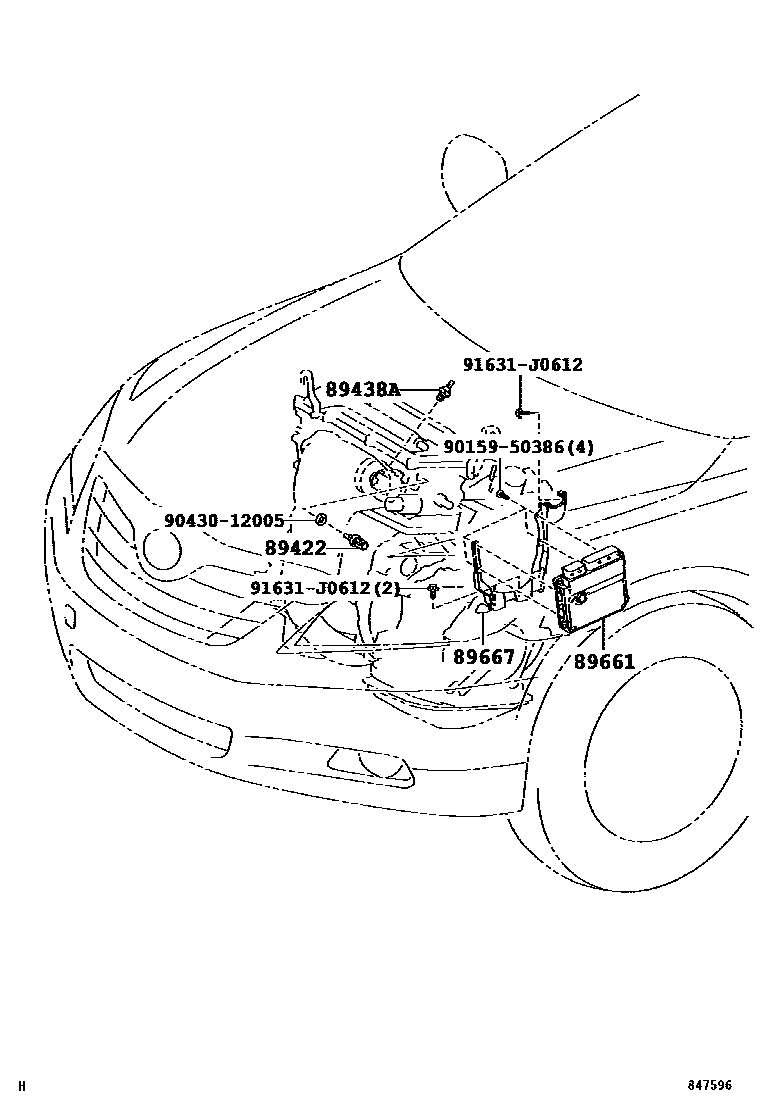

Toyota CAMRY 电子燃油喷射系统 — Figure 8404
Toyota CAMRY EPC diagram 8404, 电子燃油喷射系统, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89422 | Water temperature sensor (for E.F.I.) | 89422-0D010 · 89422-33030 |
| 89438A | Power steering oil pressure switch | 89438-33010 |
| 89661 | Engine control ECU | 89661-33G00 · 89661-33G10 · 89661-3T810 · 89661-3T820 |
| 89667 | Engine control ECU bracket | 89667-33180 |
