Toyota CAMRY 开关和继电器和ECU — Figure 8401

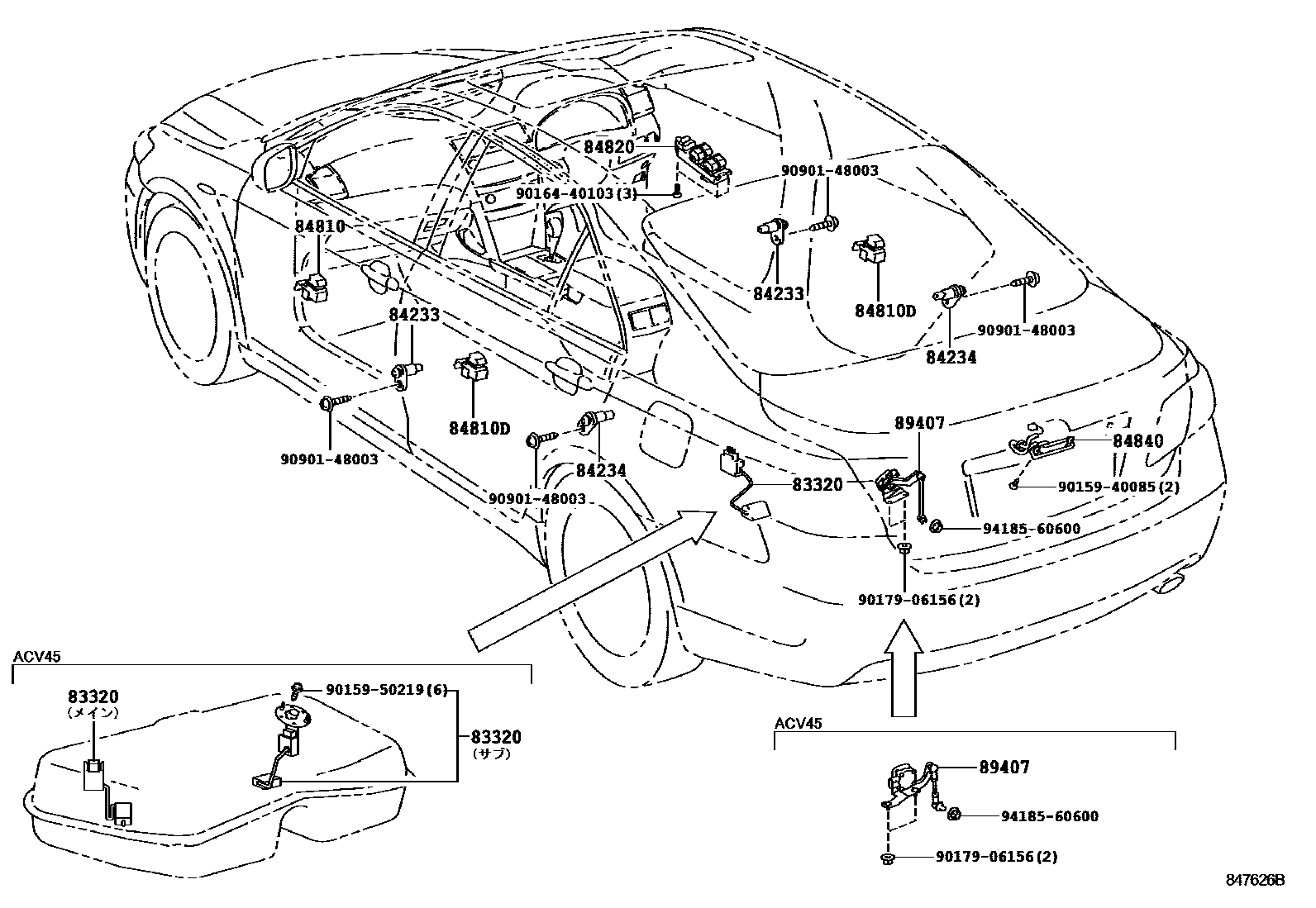

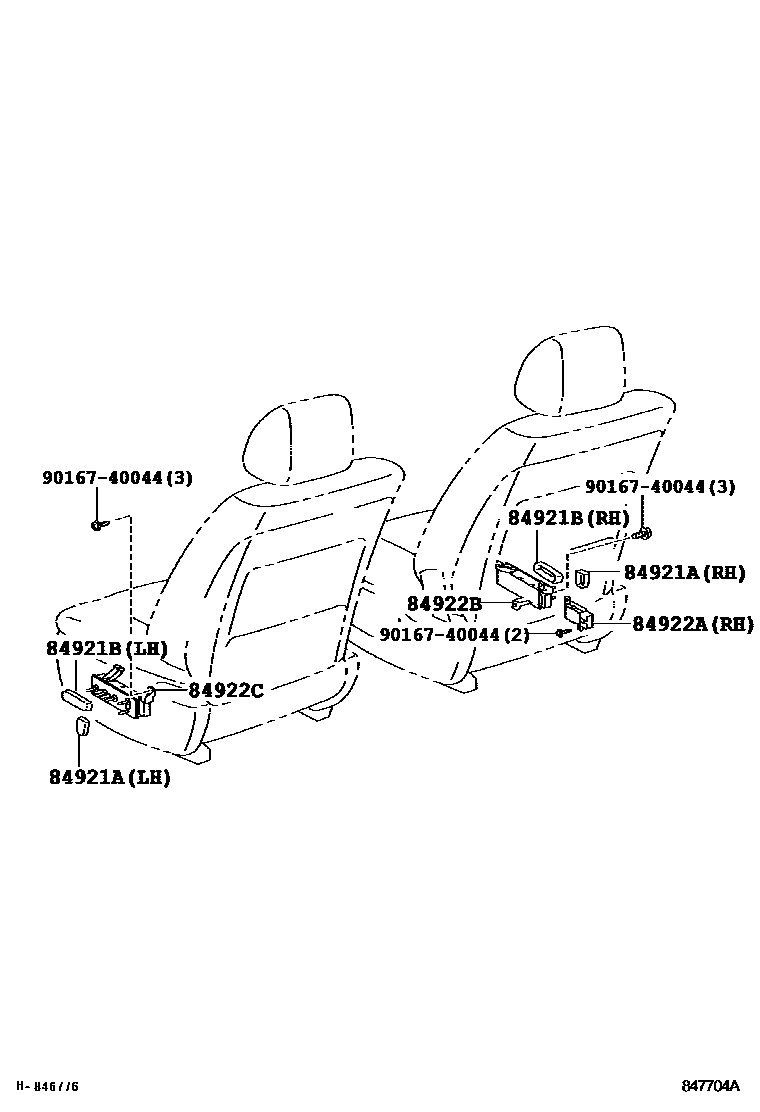

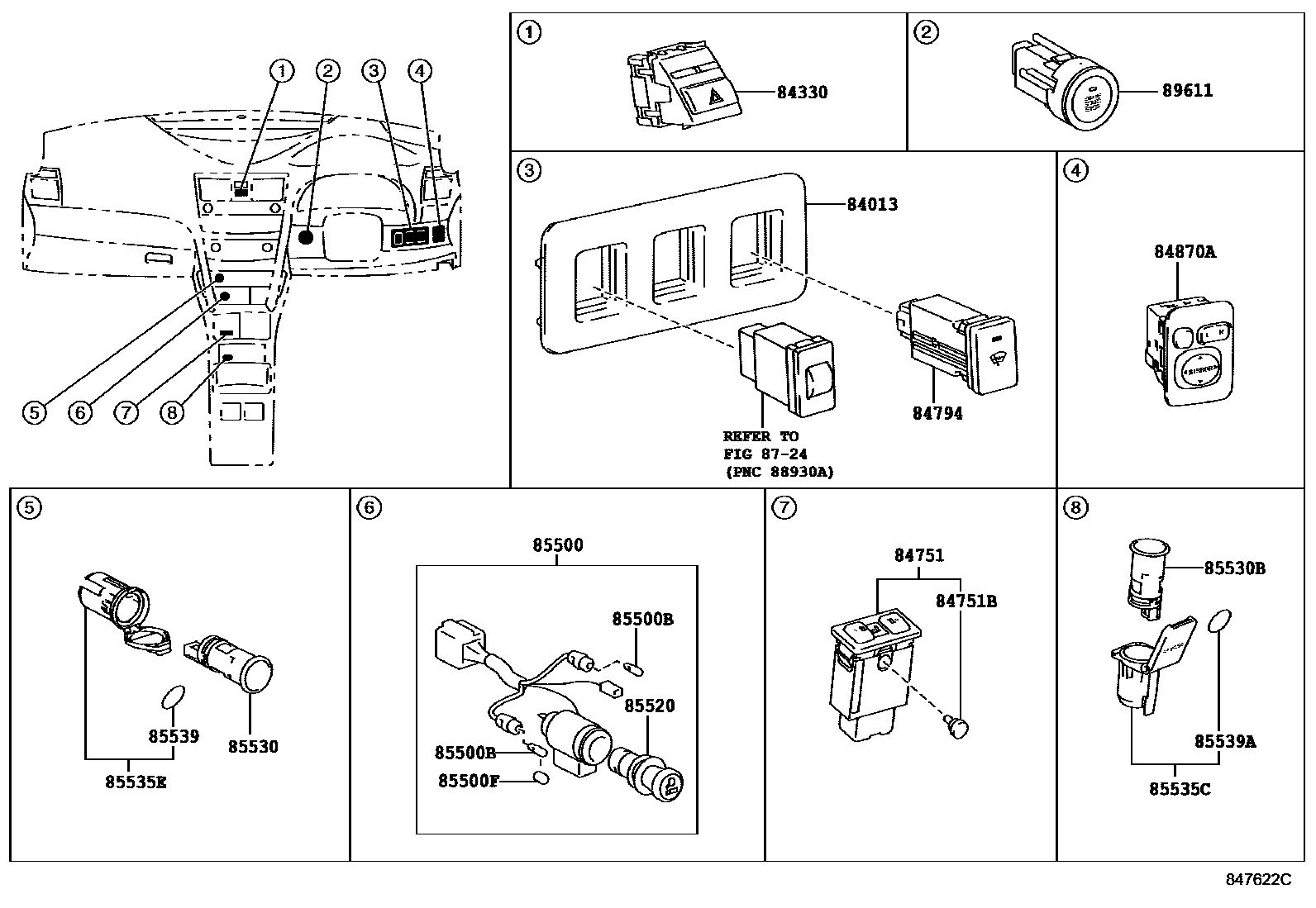

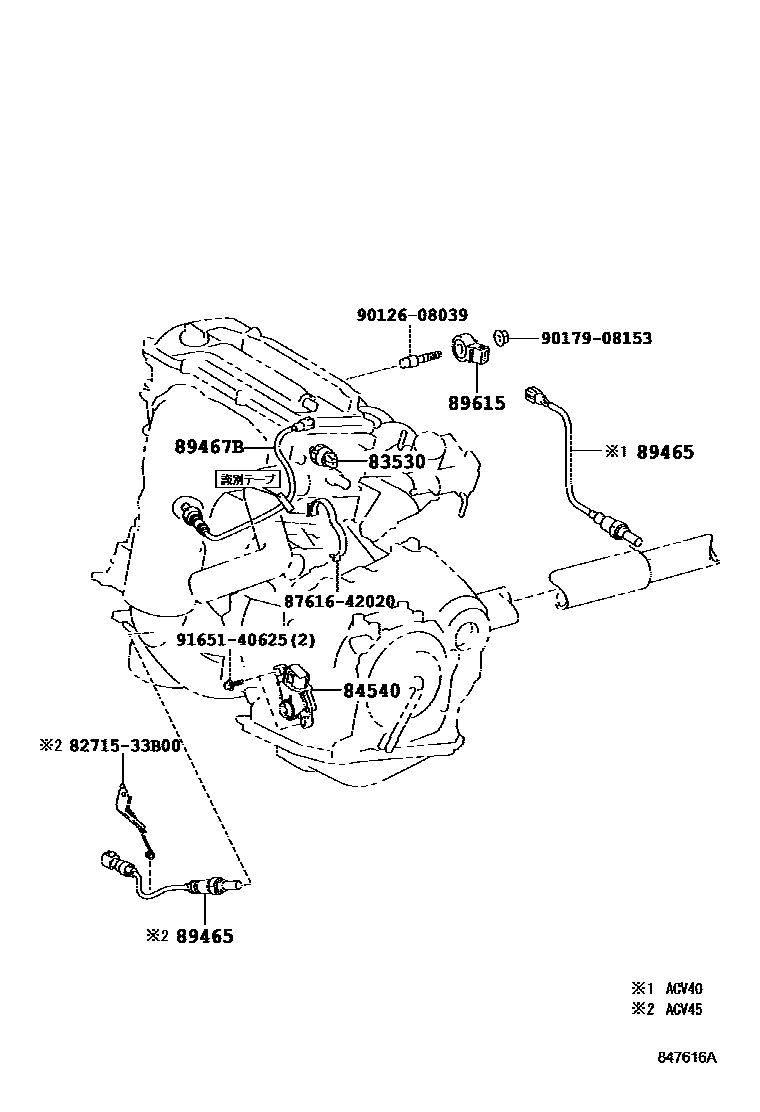

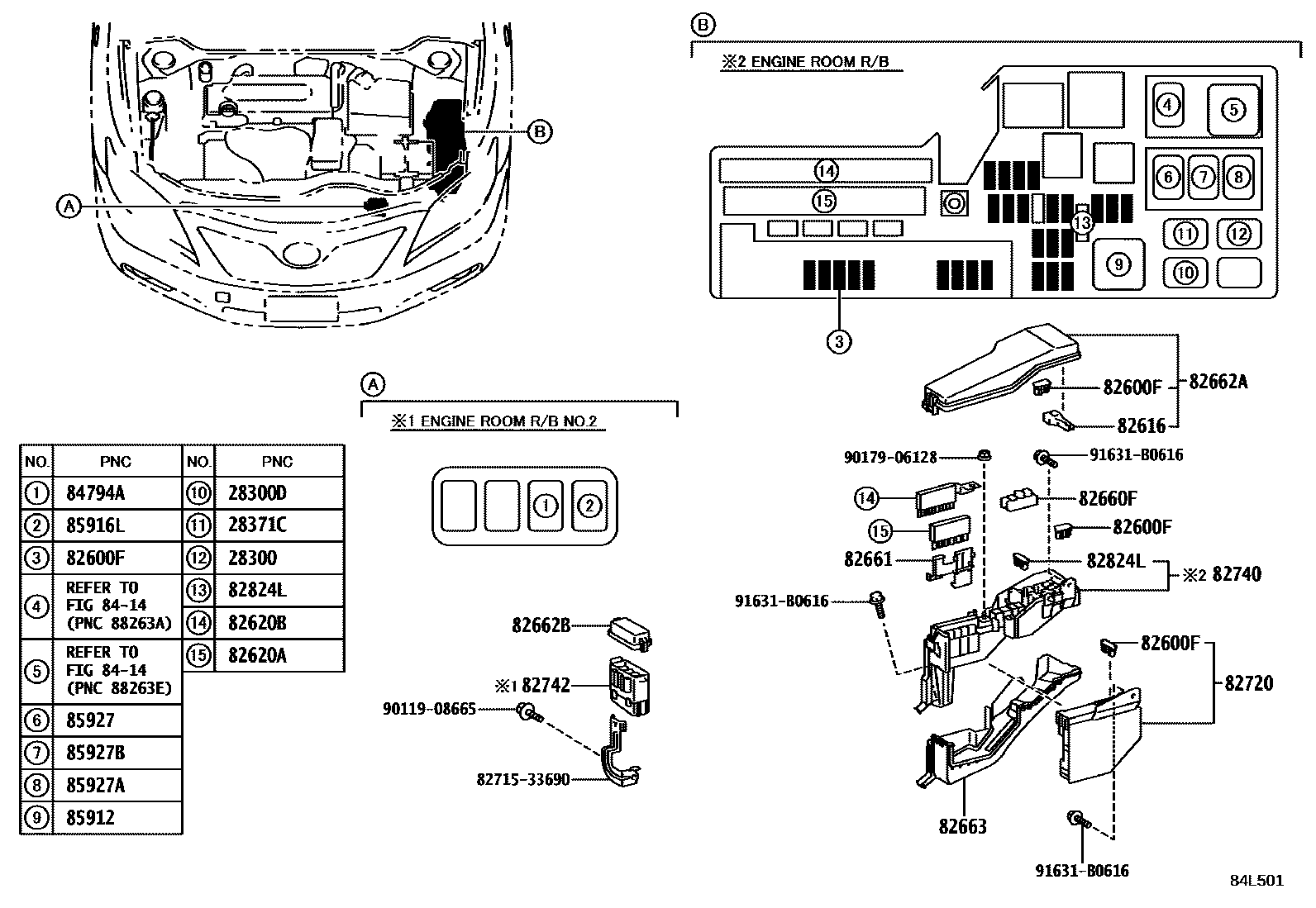

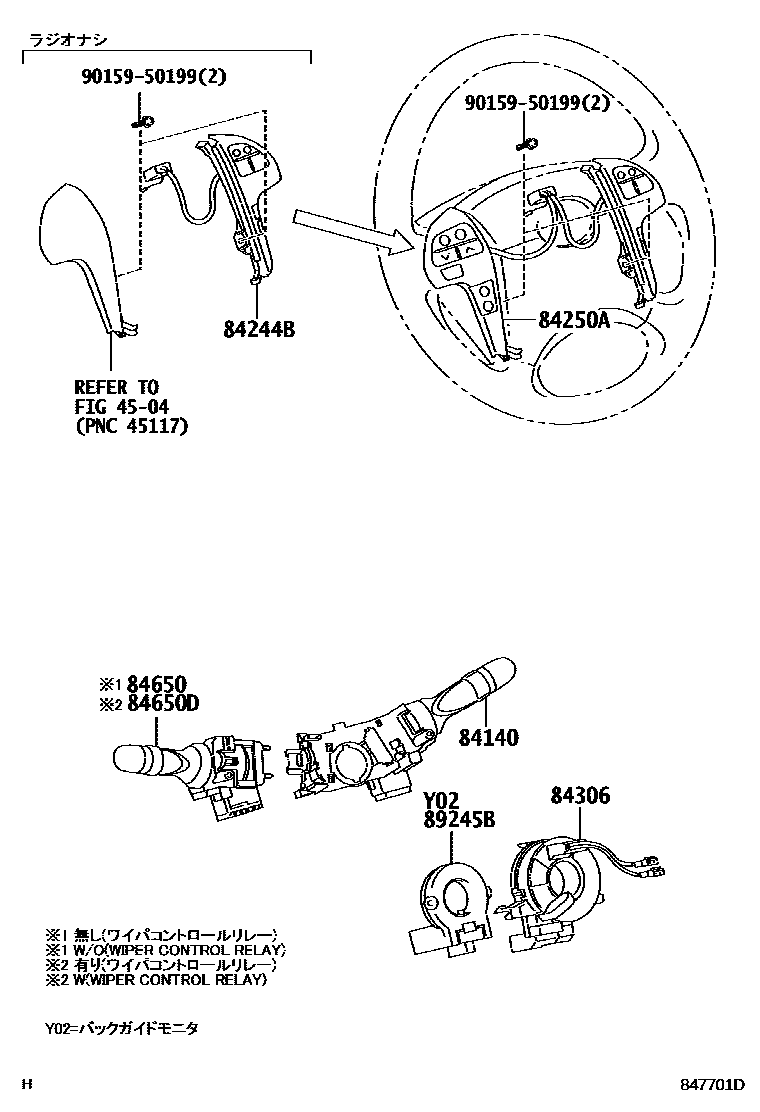

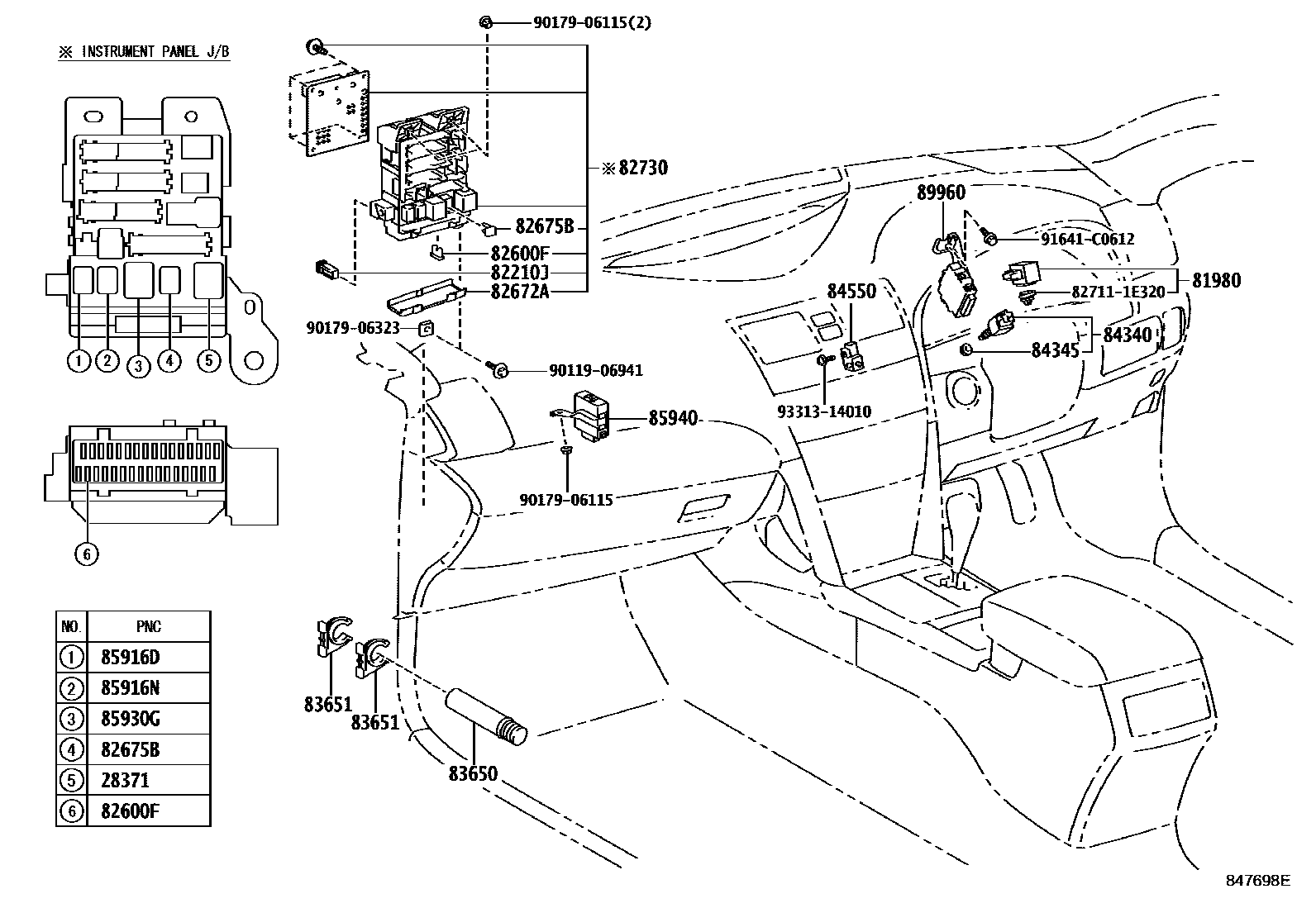

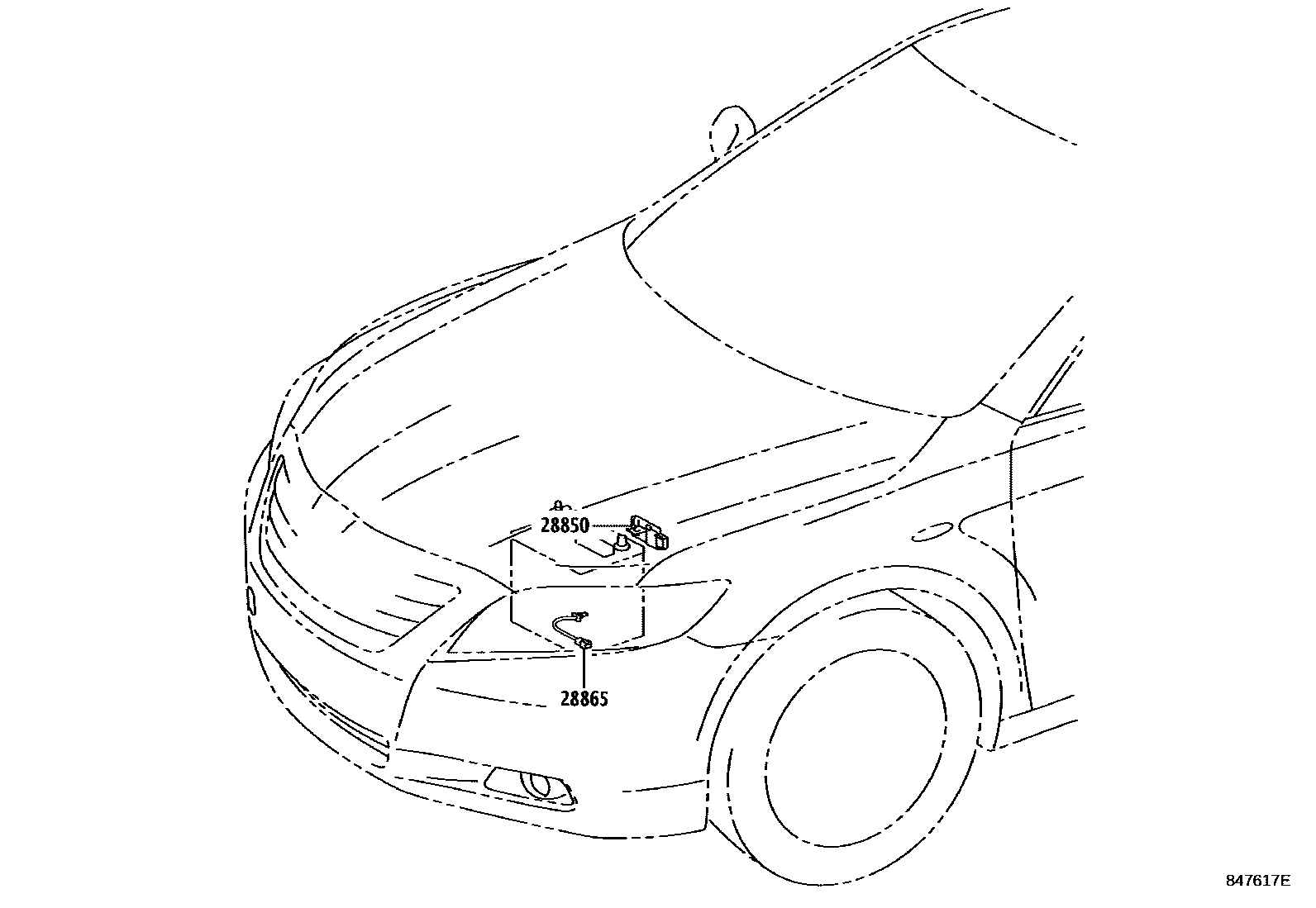

Toyota CAMRY EPC diagram 8401, 开关和继电器和ECU, with 8 images and 75 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-28010 |
| 28300D | starter cutoff relay | 90987-02027 |
| 28371 | No. 1 ignition relay | 90987-02025 · 90987-02030 |
| 28371C | No. 2 ignition relay | 90987-02027 |
| 28850 | Battery current sensor assembly | 28850-28010 |
| 28865 | battery thermometer sensor | 28865-28020 |
| 81980 | Turn signal flasher relay assembly | 81980-30170 |
| 82210J | fuse | 90982-08283 |
| 82600F | Spare fuse | 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82616 | fuse puller | 82616-58010 |
| 82620A | Fuse box assembly | 82620-33030 |
| 82620B | Fuse box assembly | 82620-07050 |
| 82660F | Relay assembly | 82660-33010 |
| 82661 | No. 1 relay box cover | 82661-07020 |
| 82662A | No. 1 relay box upper cover | 82662-33140 · 82662-33180 |
| 82662B | No. 2 relay box upper cover | 82662-33160 |
| 82663 | Relay box lower cover | 82663-33070 |
| 82672A | Junction box cover | 82672-33320 |
| 82675B | Terminal block | 82675-44010 |
| 82720 | Engine room junction box assembly | 82720-33120 |
| 82730 | Instrument panel junction box assembly | 82730-33740 · 82730-33741 · 82730-33D20 |
| 82740 | Engine room relay box assembly | 82740-33020 |
| 82742 | Engine room No. 2 relay box | 82742-33020 |
| 82824L | Shorting pin | 82824-41010 |
| 83320 | Fuel gauge sensor assembly | 83320-33080 · 83320-33100 · 83320-80394 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28020 · 83530-60020 · 83530-AA011 |
| 83650 | fuse | 90986-01005 |
| 83651 | fuse clip | 90468-25003 |
| 84140 | Headlight dimmer switch assembly | 84140-42070 · 84140-42080 |
| 84233 | Door control light switch assembly (for front door) | 84231-60070 |
| 84234 | Door control light switch assembly (for rear door) | 84231-60070 |
| 84244B | Steering wheel decorative cover right switch | 84244-33160 |
| 84250A | Steering wheel decorative cover switch assembly | 84250-33010 · 84250-33130 |
| 84306 | Spiral cable sub-assembly | 84306-48030 |
| 84340 | brake light switch assembly | 84340-19025 · 84340-69015 |
| 84345 | Brake light switch base adjuster | 84345-51010 |
| 84540 | Neutral start switch assembly | 84540-48010 |
| 84550 | Parking brake switch assembly | 84550-16060 |
| 84650 | Windshield wiper switch assembly | 84652-33450 |
| 84650D | Toyota part | 84652-52260 |
| 84751 | Seat heater switch | 84751-33050 |
| 84751B | Seat heater switch light bulb | 90011-01002 |
| 84794 | Front wiper de-icer switch | 84794-52010 |
| 84794A | Front wiper de-icer relay | 90987-02027 |
| 84810 | Electric window lift switch assembly | 84810-33120 |
| 84810D | Rear electric window lift switch assembly | 84810-33120 |
| 84820 | Electric window lift main switch assembly | 84040-33060 · 84040-33080 |
| 84840 | Trunk door opening switch assembly | 84840-20010 · 84840-33090 · 84905-33010 |
| 84922B | Front right electric seat switch | 84922-58010 |
| 84922C | Front left electric seat switch | 84922-60110 |
| 85500 | Cigarette lighter assembly | 85500-33050 |
| 85500B | Cigarette lighter bulb | 90981-11014 |
| 85500F | Cigarette lighter bulb cover | 84998-10510 |
| 85520 | Cigarette lighter button and cigarette lighter core assembly | 85520-28010 |
| 85530 | No. 1 power socket assembly | 85530-42010 |
| 85530B | No. 1 rear power socket assembly | 85530-42010 |
| 85535C | Rear power outlet cover | 85535-33070 |
| 85539 | Power socket attention labels | 85539-60010 |
| 85539A | Note label on rear power outlet | 85539-60010 |
| 85912 | defogger relay | 90987-04010 |
| 85916D | fog light relay | 90987-02027 |
| 85916L | Rear fog light relay | 90987-02027 |
| 85916N | Tail light relay | 90987-02027 |
| 85927 | cooling fan relay | 90987-02027 |
| 85927A | Cooling fan relay No. 2 | 90987-04004 |
| 85927B | Cooling fan relay No. 3 | 90987-02027 |
| 85930G | ACC relay | 90987-02025 · 90987-02030 |
| 85940 | Windshield wiper relay assembly | 85940-33120 · 85940-33180 |
| 89245B | steering sensor | 89245-33050 |
| 89407 | Right rear height control sensor sub-assembly | 89407-33040 · 89407-41010 |
| 89465 | oxygen sensor | 89465-33430 · 89465-33460 · 89465-33540 · 89465-33550 |
| 89467B | air fuel ratio sensor | 89467-33160 · 89467-58090 |
| 89611 | push button start switch | 89611-52010 · 89611-52011 · 89611-52012 · 89611-52013 |
| 89615 | knock control sensor | 89615-20090 |
| 89960 | Headlight beam height adjustment ECU assembly | 89960-33160 · 89960-33170 · 89960-33171 · 89960-33300 · 89960-33310 |
