Toyota CAMRY 仪表 — Figure 8301

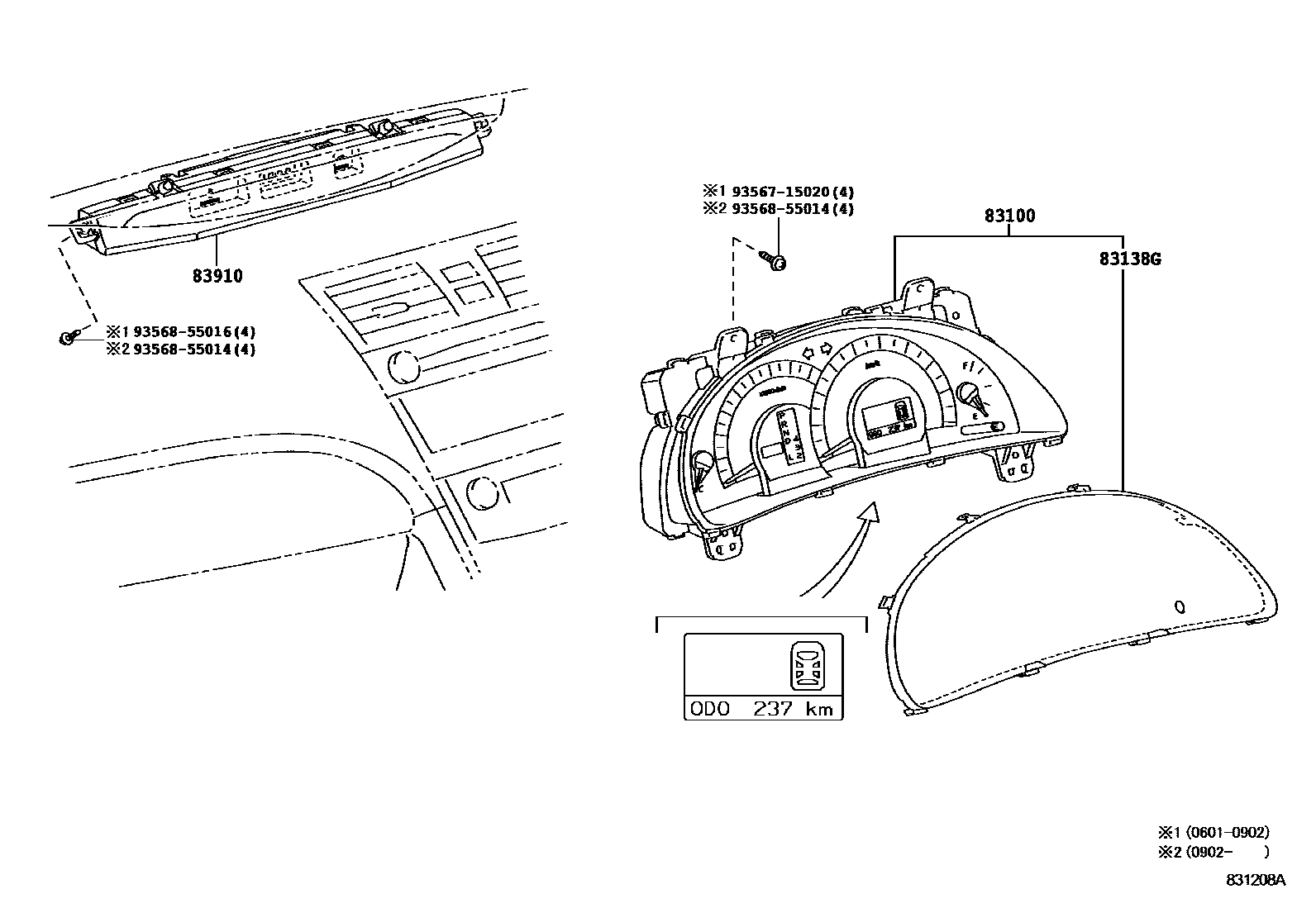

Toyota CAMRY EPC diagram 8301, 仪表, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83100 | Combined instrument assembly | 83800-33A50 · 83800-33A60 · 83800-33D60 · 83800-33D70 · 83800-33F20 · 83800-33F30 · 83800-33K10 · 83800-33K20 |
| 83138G | Instrument cluster glass | 83852-33870 |
| 83910 | clock assembly | 83910-33190 |
