Toyota CAMRY 线束和卡夹 — Figure 8202

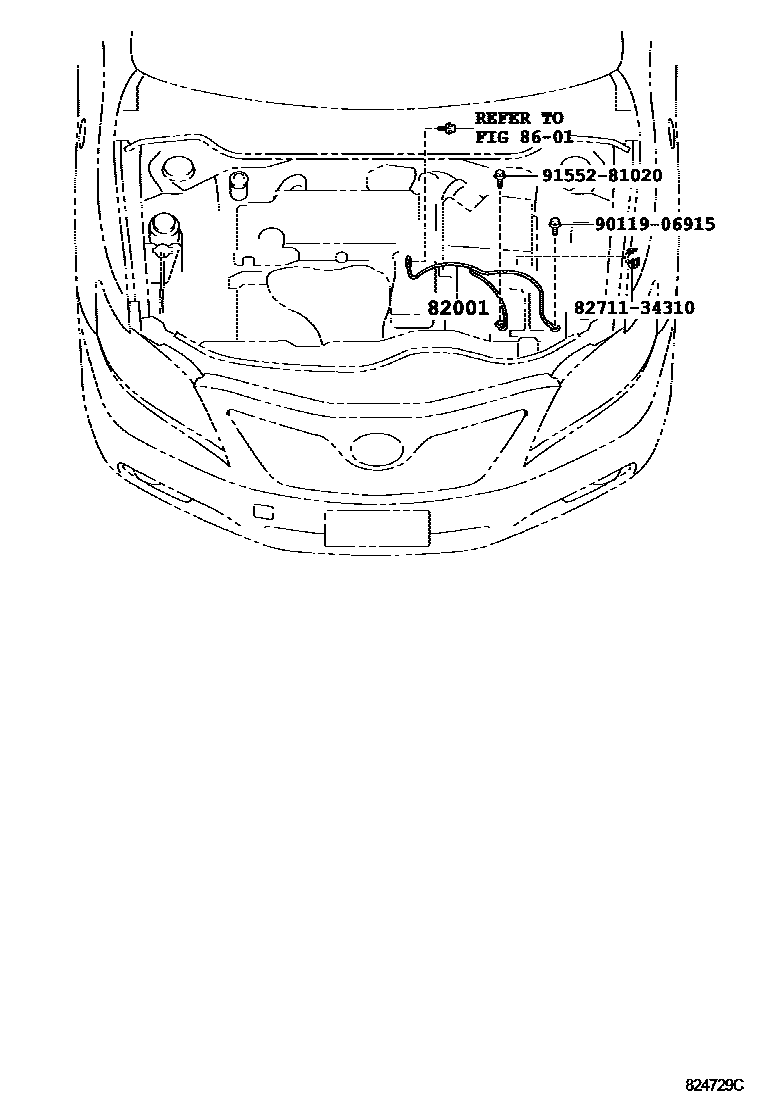

Toyota CAMRY EPC diagram 8202, 线束和卡夹, with 9 images and 53 PNC and OE references.

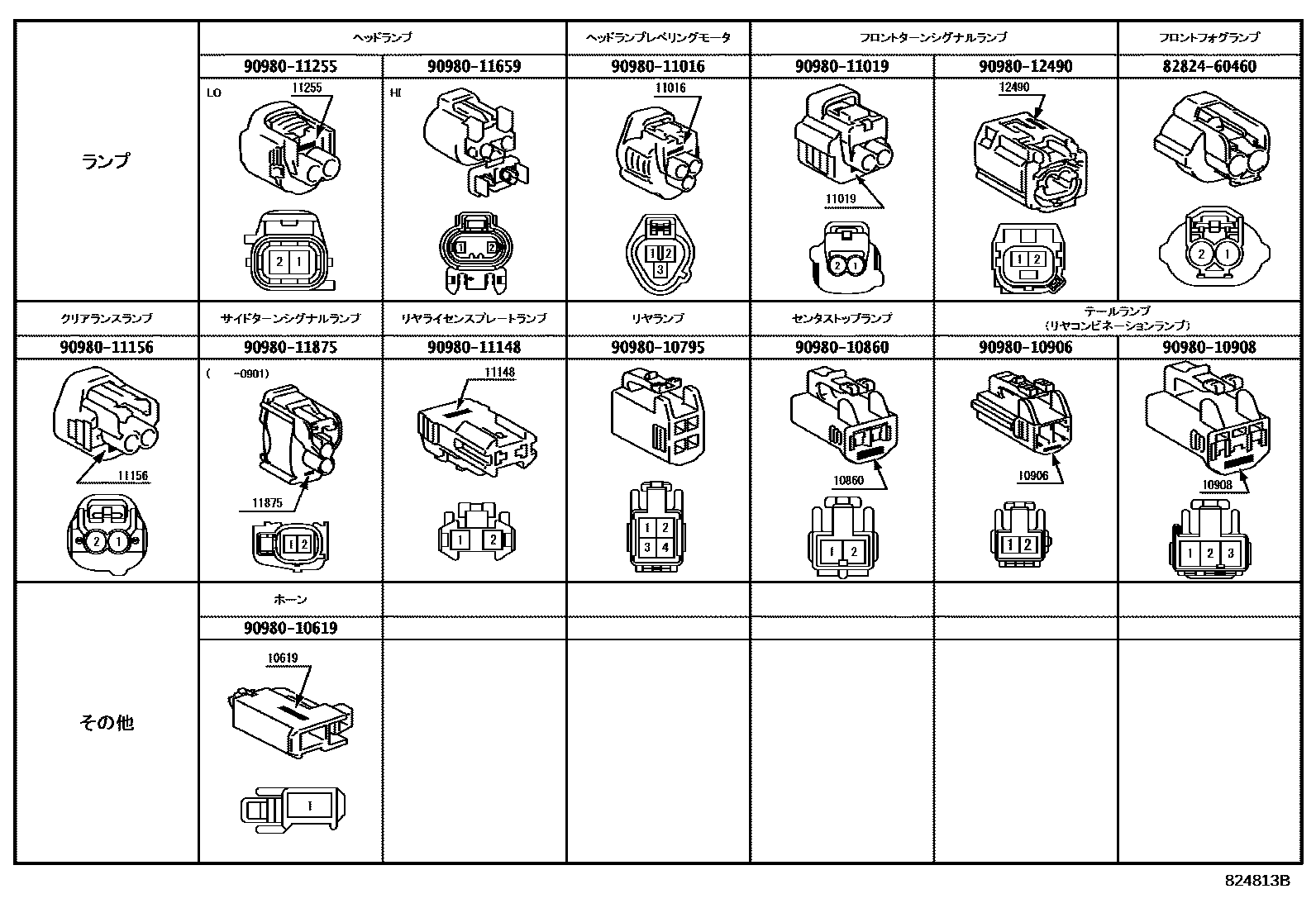

PNC and OE references

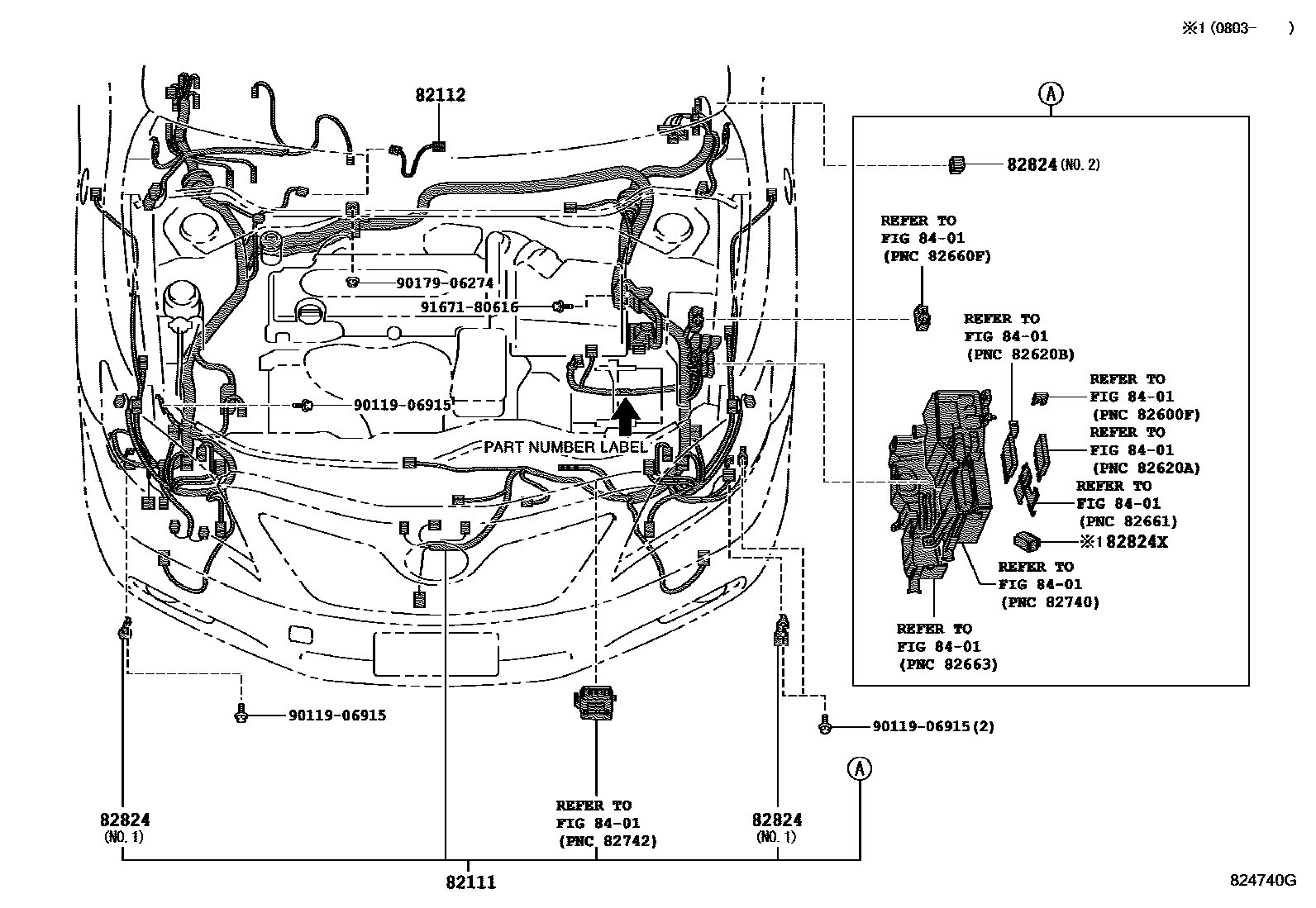

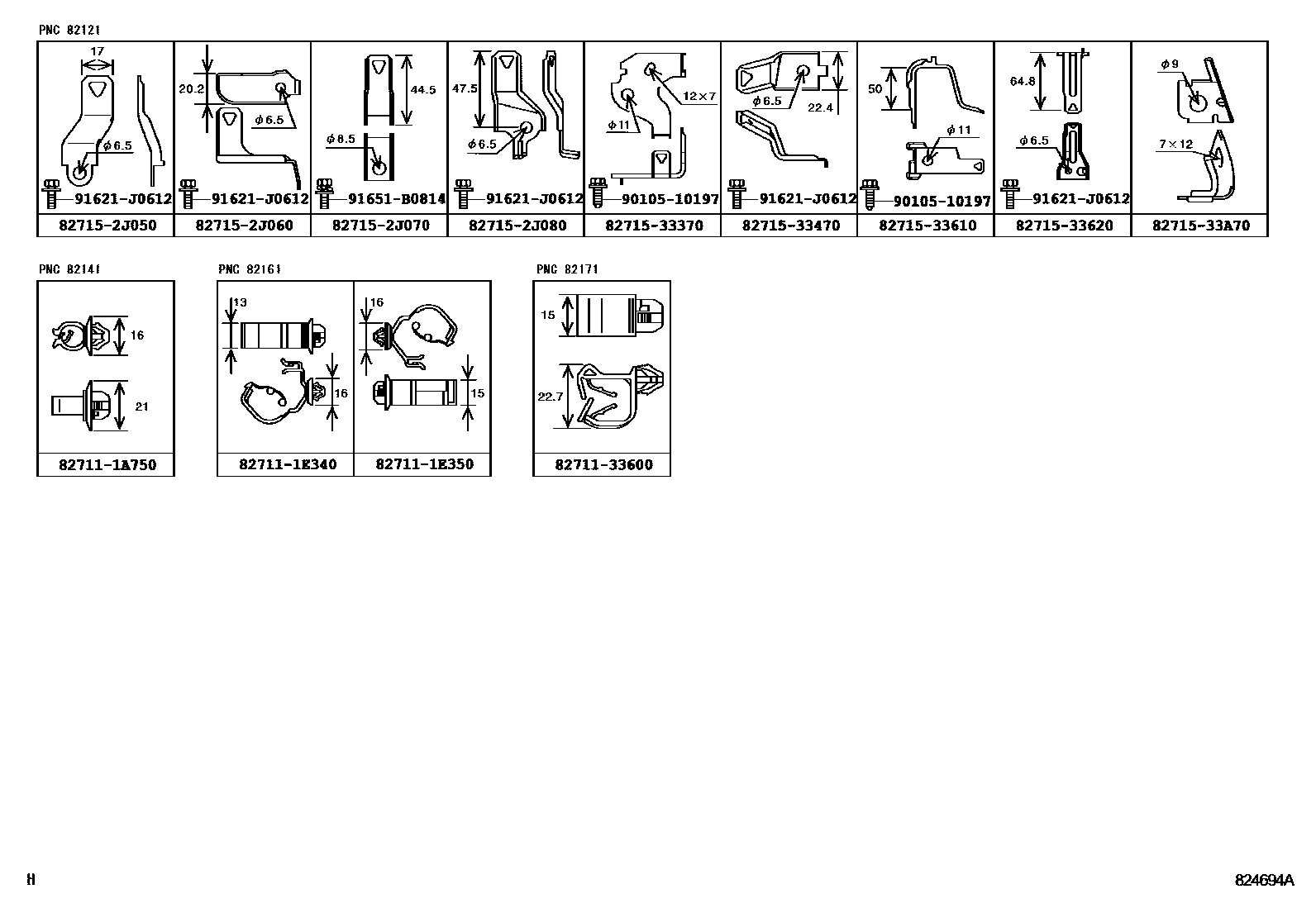

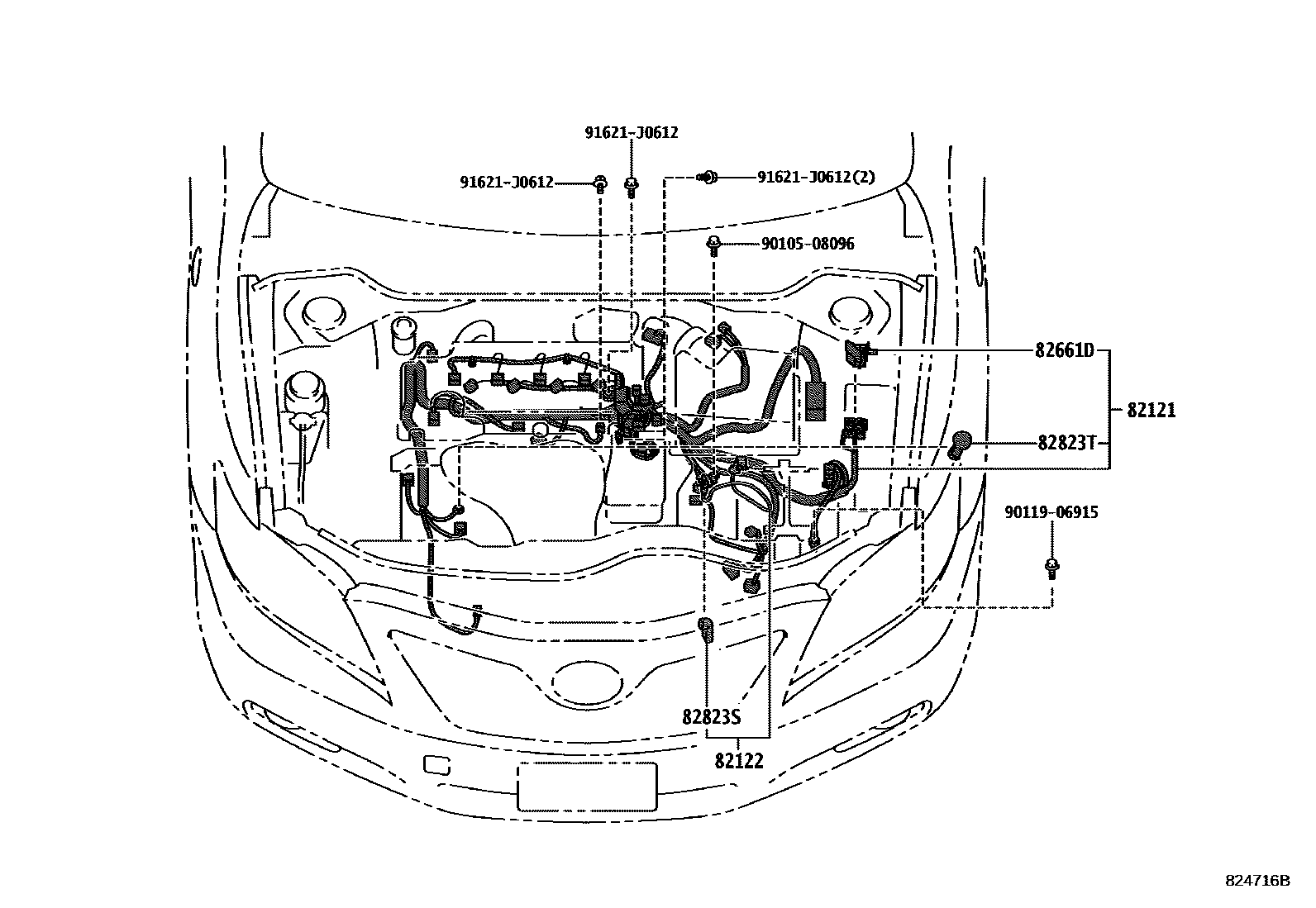

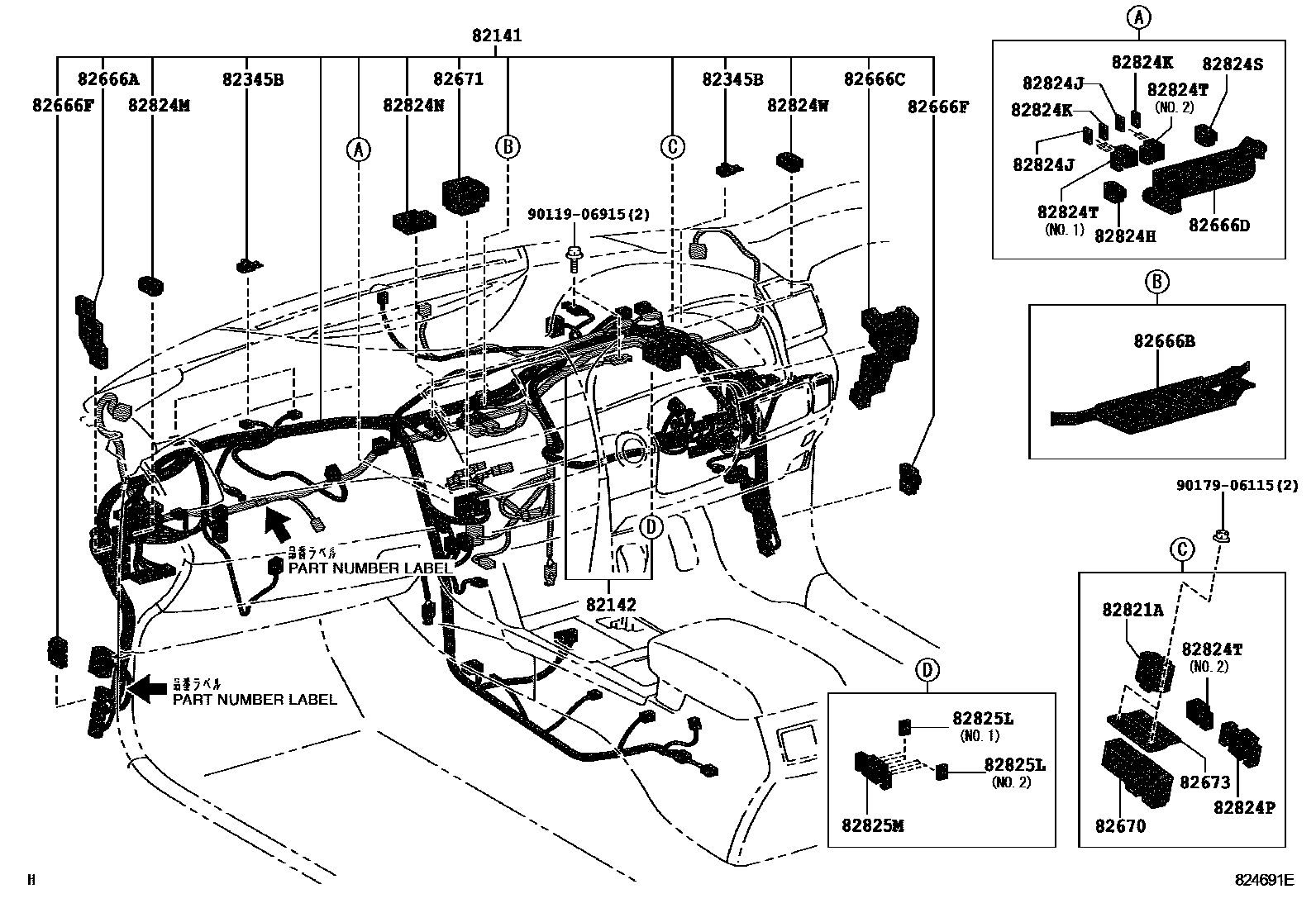

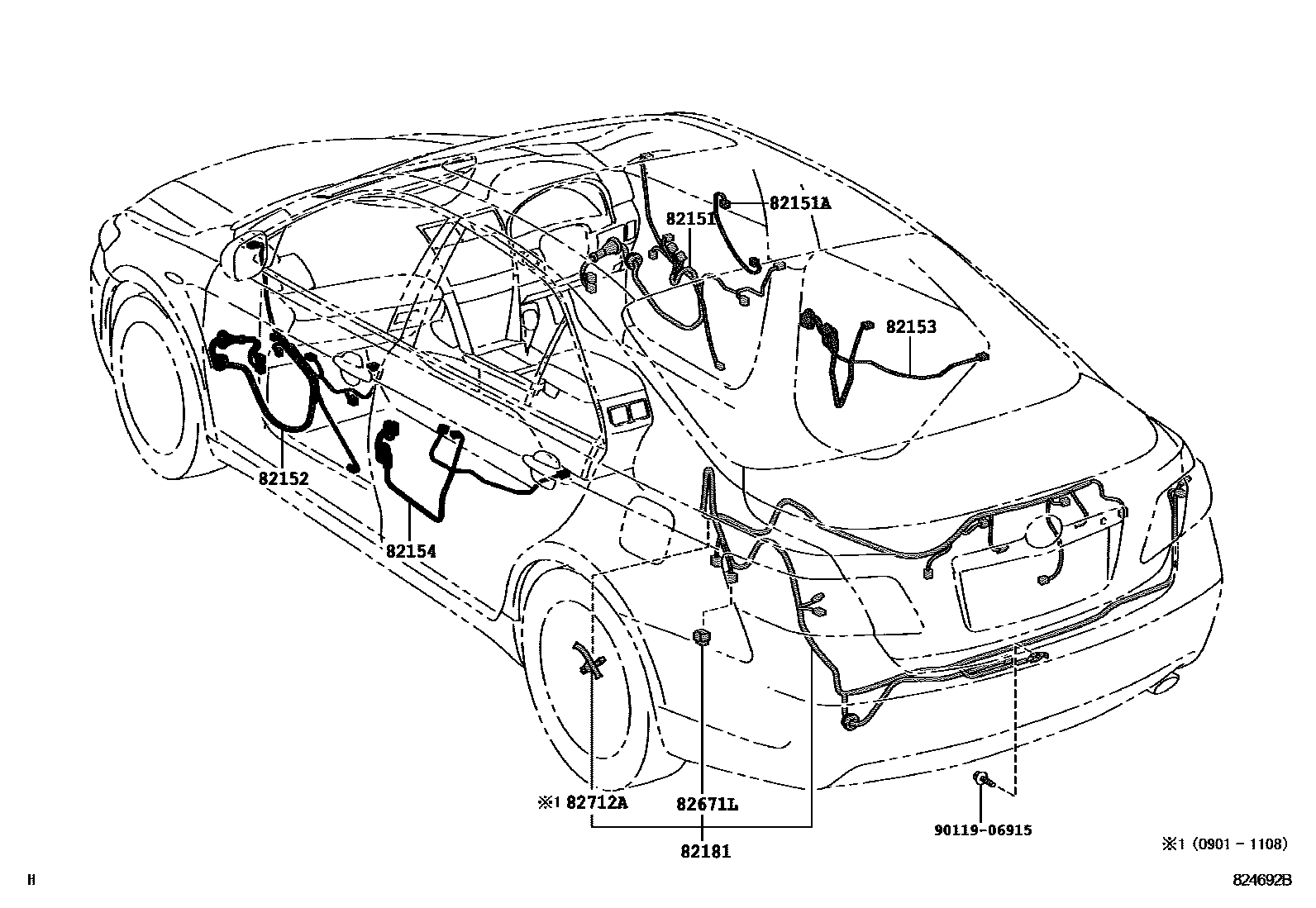

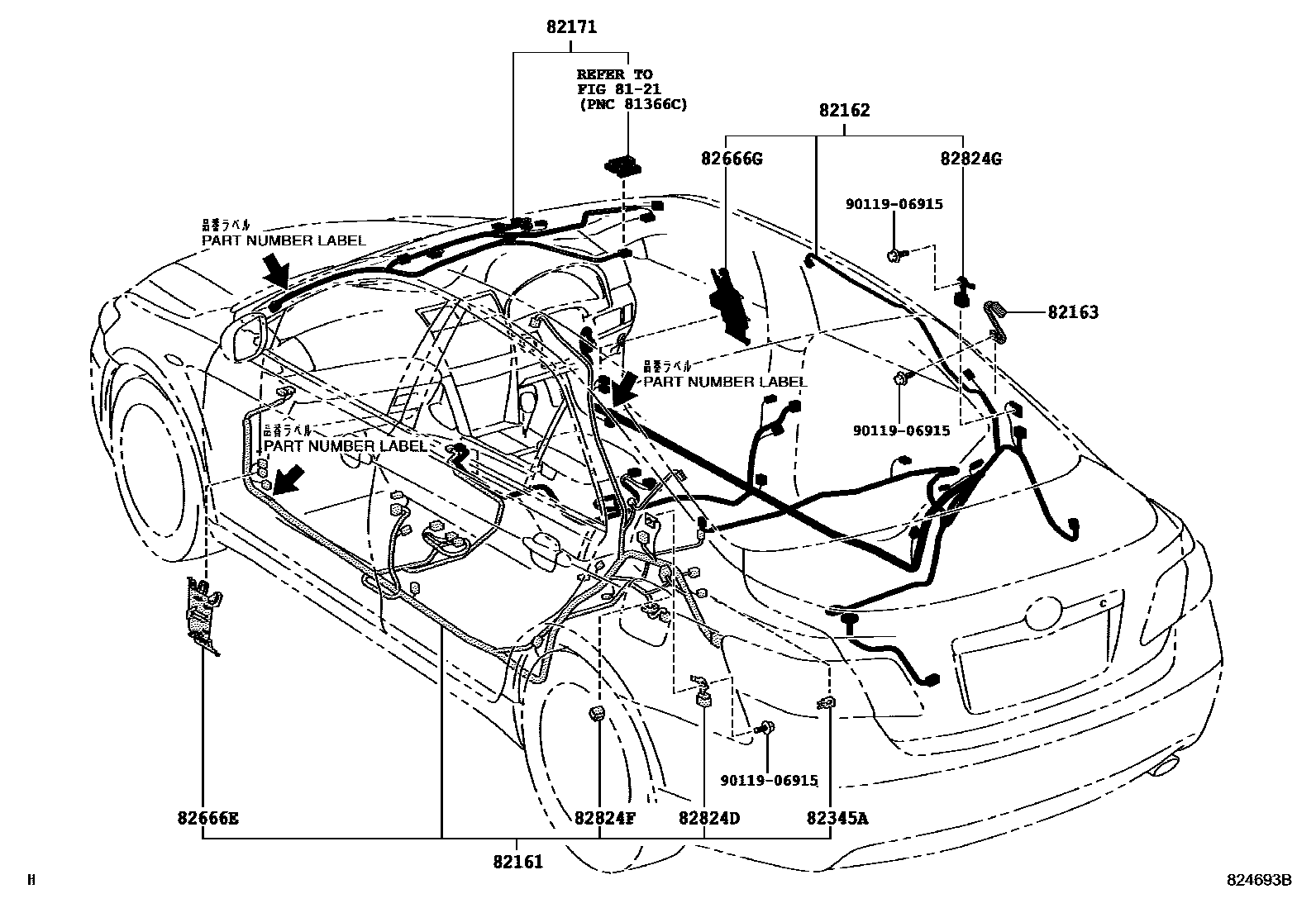

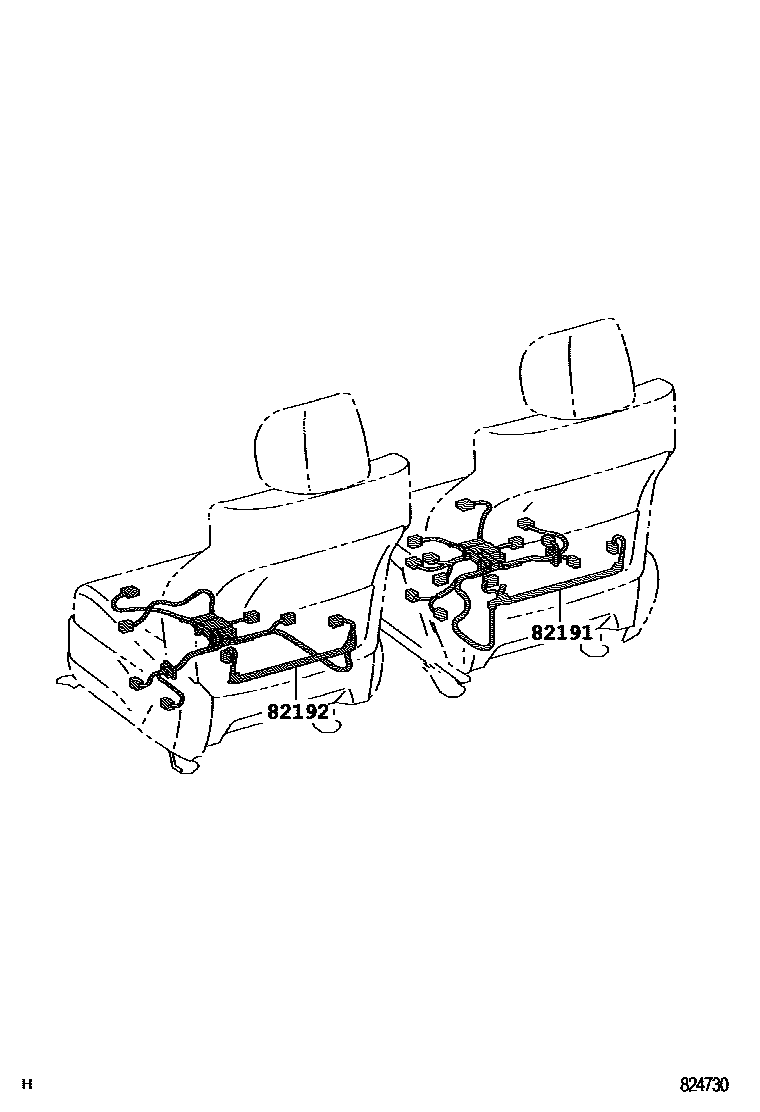

| PNC | Part name | OE numbers |
|---|---|---|
| 82001 | Connection cable No. 1 | 90980-07428 |
| 82111 | Engine room main wiring harness | 82111-33G70 · 82111-33G80 · 82111-33G90 · 82111-33K90 · 82111-33K91 · 82111-33L00 |
| 82112 | Engine room wiring harness No. 2 | 82112-33070 |
| 82121 | Engine wiring harness | 82121-33B30 · 82121-33B31 · 82121-33B32 · 82121-33B33 · 82121-33B34 · 82121-33B40 · 82121-33B41 · 82121-33B42 · 82121-33B43 |
| 82122 | Engine No. 2 wiring harness | 82122-33080 |
| 82141 | Dashboard wiring harness | 82141-33M80 · 82141-33M90 · 82141-33N00 · 82141-33N10 · 82141-33R40 · 82141-33R41 · 82141-33R50 · 82141-33R51 · 82141-33R60 · 82141-33R61 |
| 82142 | Instrument panel wiring harness No. 2 | 82142-33230 · 82142-33250 · 82142-33251 · 82142-33390 · 82142-33400 |
| 82151 | Right front door wiring harness | 82151-33A70 · 82151-33C00 |
| 82151A | Right front door wiring harness No. 2 | 82155-33020 |
| 82152 | Left front door wiring harness | 82152-33B00 · 82152-33C50 |
| 82153 | Rear door wiring harness No. 1 | 82153-33260 |
| 82154 | Rear door wiring harness No. 2 | 82154-33190 |
| 82161 | floor wiring harness | 82161-33E30 · 82161-33E40 · 82161-33E50 · 82161-33E60 · 82161-33K20 · 82161-33K30 · 82161-33K70 |
| 82162 | Floor wiring harness No. 2 | 82162-33E30 · 82162-33E40 · 82162-33E50 · 82162-33M40 · 82162-33M41 · 82162-33M50 · 82162-33M51 · 82162-33M60 · 82162-33M61 · 82162-33N10 · 82162-33N11 |
| 82163 | Floor wiring harness No. 3 | 82163-33090 |
| 82171 | Roof No. 1 wiring harness | 82171-33A50 · 82171-33A60 · 82171-33A70 · 82171-33A80 · 82171-33C40 · 82171-33D20 · 82171-33D40 · 82171-33D50 |
| 82181 | Luggage No. 1 wiring harness | 82181-33270 · 82181-33350 |
| 82191 | Front right seat wiring harness | 82191-33320 · 82191-33330 · 82191-33480 · 82191-33490 |
| 82192 | Front left seat wiring harness | 82192-33290 · 82192-33300 · 82192-33470 |
| 82345A | diode | 82345-32010 |
| 82345B | diode | 82345-32010 |
| 82661D | No. 1 relay box side cover | 82661-33010 |
| 82666A | Connector holder No. 2 | 82666-33330 |
| 82666B | No. 3 connector holder | 82666-33340 |
| 82666C | No. 4 connector holder | 82666-33350 |
| 82666D | No. 5 connector holder | 82666-33380 |
| 82666E | No. 6 connector holder | 82666-33360 |
| 82666F | No. 7 connector holder | 82666-60220 |
| 82666G | No. 8 connector holder | 82666-33370 |
| 82670 | No. 1 junction box assembly | 82671-33070 |
| 82671 | junction box | 82671-33080 |
| 82671L | No. 4 junction box | 82671-30340 |
| 82673 | Junction box bracket | 82673-33040 |
| 82712A | Wire harness bracket | 82712-33121 |
| 82821A | Connector cover | 82821-33250 |
| 82823S | Toyota part | 82823-12090 |
| 82823T | Toyota part | 82823-22080 |
| 82824 | Harness connector | 82824-48020 · 82824-52280 |
| 82824D | Harness connector | 82824-48070 · 82824-52080 |
| 82824F | Harness connector | 82824-30220 · 82824-48070 · 82824-52080 |
| 82824G | Harness connector | 82824-48070 |
| 82824H | Harness connector | 82824-20110 |
| 82824J | Harness connector | 82824-42200 |
| 82824K | Harness connector | 82824-42210 |
| 82824M | Harness connector | 82824-12210 |
| 82824N | Harness connector | 82824-48080 |
| 82824P | Harness connector | 82824-33250 |
| 82824S | Harness connector | 82824-50110 |
| 82824T | Harness connector | 82824-42180 · 82824-42190 |
| 82824W | Harness connector | 82824-30170 |
| 82824X | Harness connector | 82824-33300 |
| 82825L | Harness connector | 82824-42200 · 82824-42210 |
| 82825M | Harness connector | 82824-33240 |
