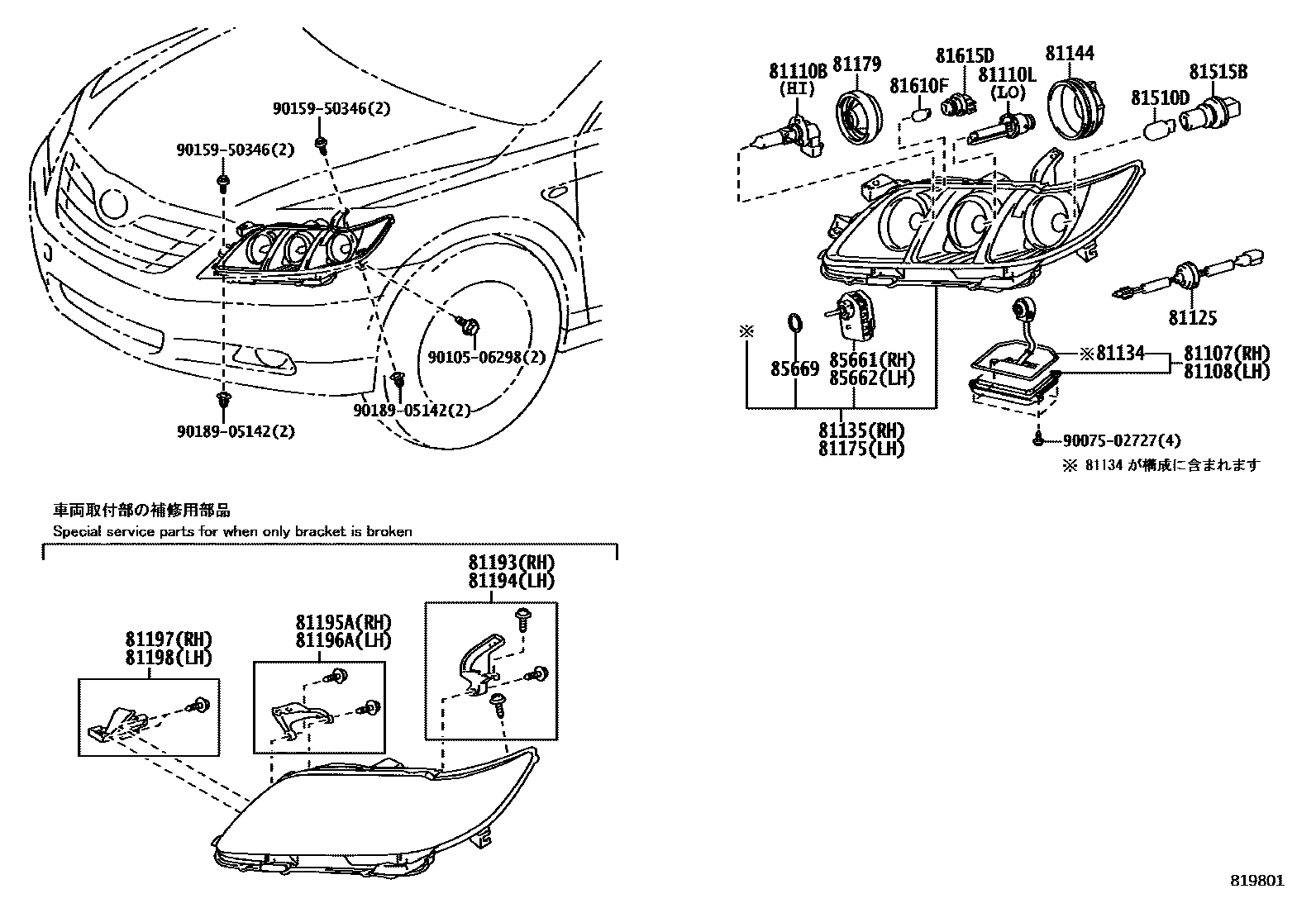

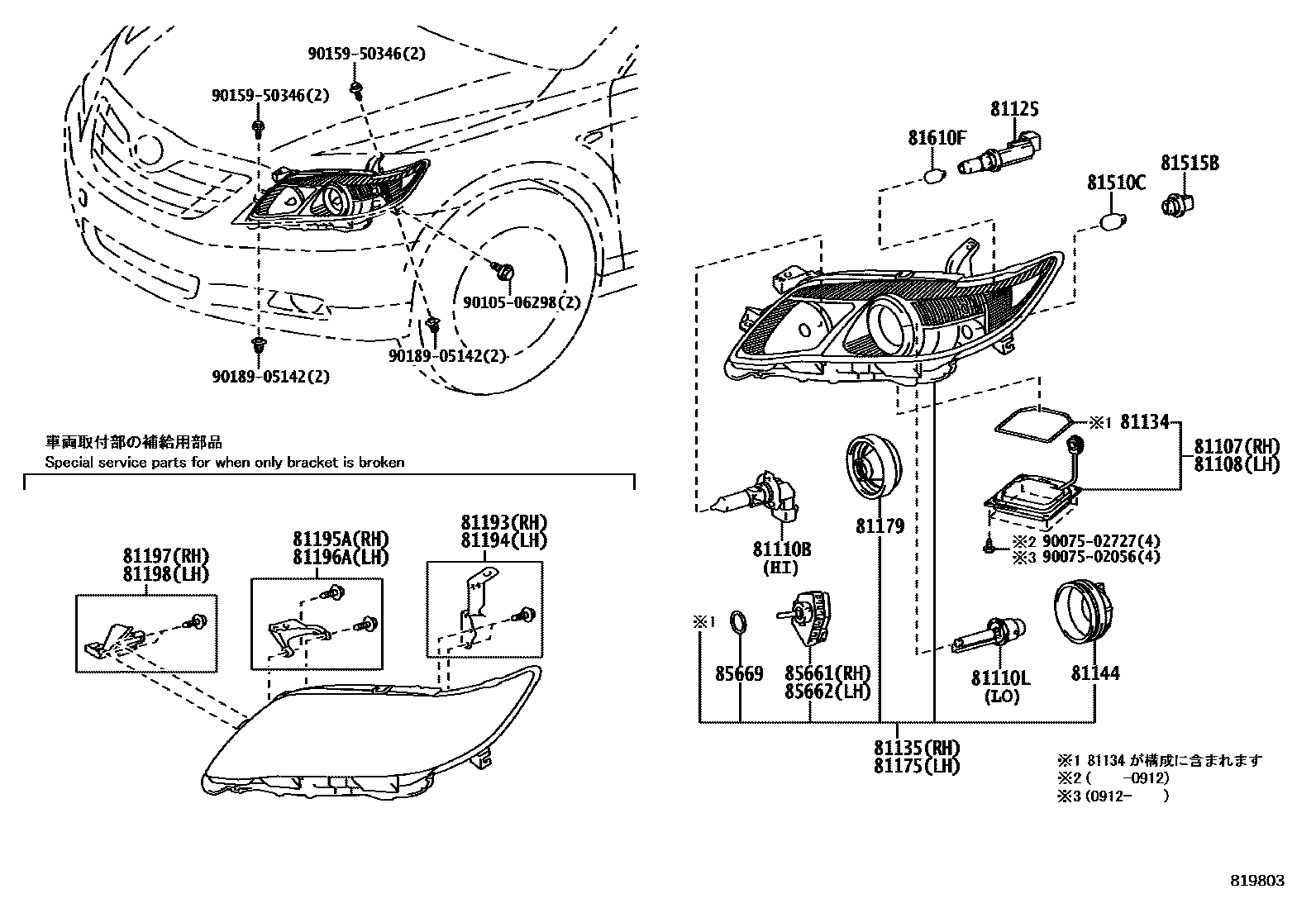

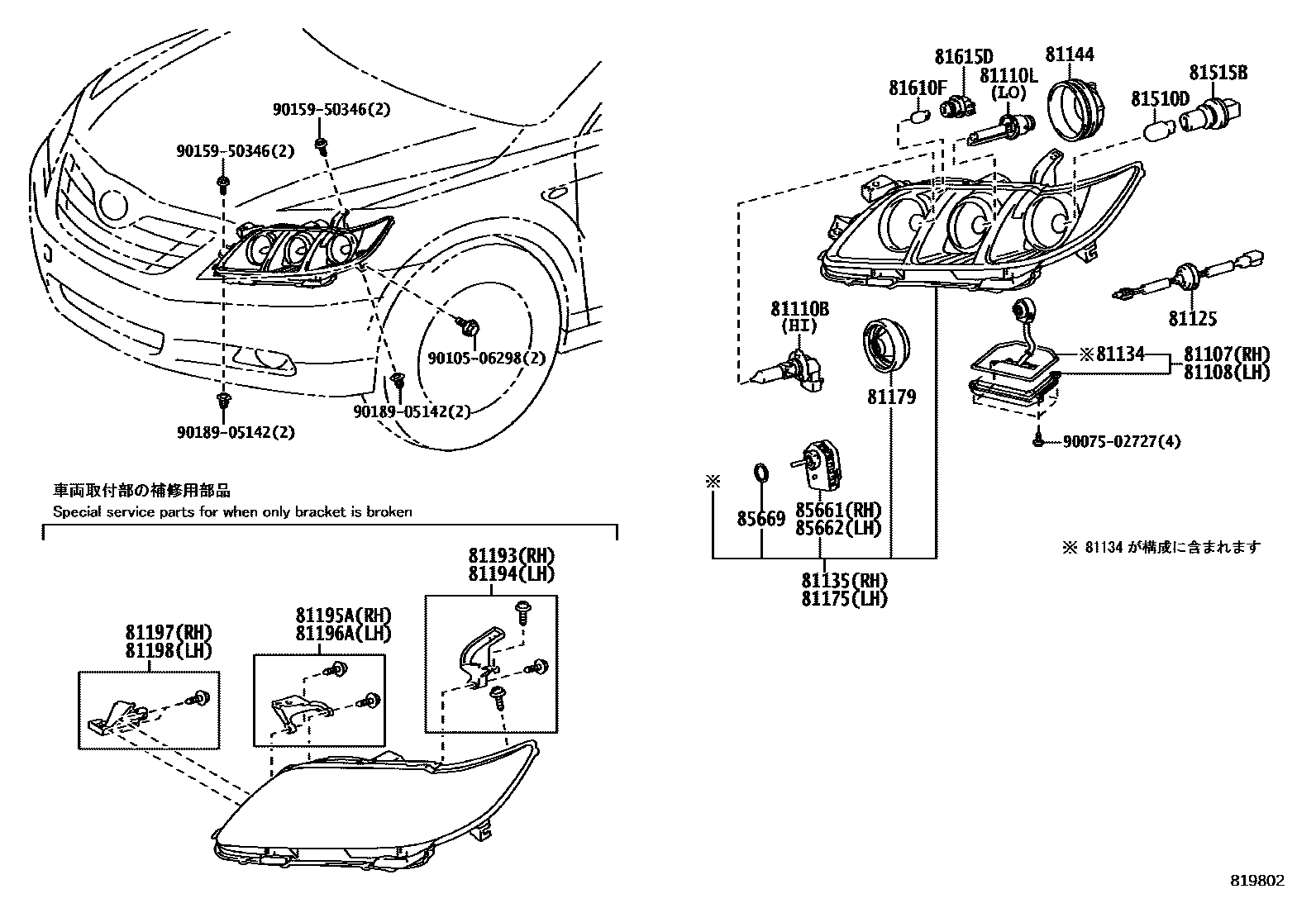

Toyota CAMRY Headlamp — Figure 8101
Toyota CAMRY EPC diagram 8101, Headlamp, with 3 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81107 | Right headlight control ECU sub-assembly | 81107-33620 · 81107-33721 |
| 81108 | Left headlight control ECU sub-assembly | 81107-33620 · 81107-33721 |
| 81110B | Bulb (for headlight No. 1) | 90080-81041 · 90981-13046 |
| 81110L | Discharge headlight bulb | 90981-20021 · 90981-20023 · 90981-20024 |
| 81125 | headlight wire | 81125-33620 · 81125-33700 |
| 81134 | headlight gasket | 90075-68007 |
| 81135 | Right headlight assembly | 81145-33620 · 81145-33621 · 81145-33720 |
| 81144 | No. 1 headlight cover | 81135-33620 |
| 81175 | Left headlight assembly | 81185-33620 · 81185-33621 · 81185-33720 |
| 81179 | Headlight lamp holder cover | 90075-65006 |
| 81193 | Right headlight upper protective ring | 81193-33050 · 81193-33060 |
| 81194 | Left headlight upper protective ring | 81194-33050 · 81194-33060 |
| 81195A | Right headlight lower protection ring | 81195-33020 |
| 81196A | Left headlight lower protection ring | 81196-33020 |
| 81197 | Right headlight lower bracket | 81197-33010 |
| 81198 | Left headlight lower bracket | 81198-33010 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15021 |
| 81510D | front turn signal light bulb | 90981-15021 |
| 81515B | Front turn signal lamp holder | 90075-60028 |
| 81610F | Light bulb (for width indicator light) | 99132-12050 |
| 81615D | Width light lamp holder | 90075-60077 |
| 85661 | Right headlight beam height adjustment motor | 85661-12020 |
| 85662 | Left headlight beam height adjustment motor | 85661-12020 |
| 85669 | Headlight beam height adjustment motor base seal | 90075-99120 |
