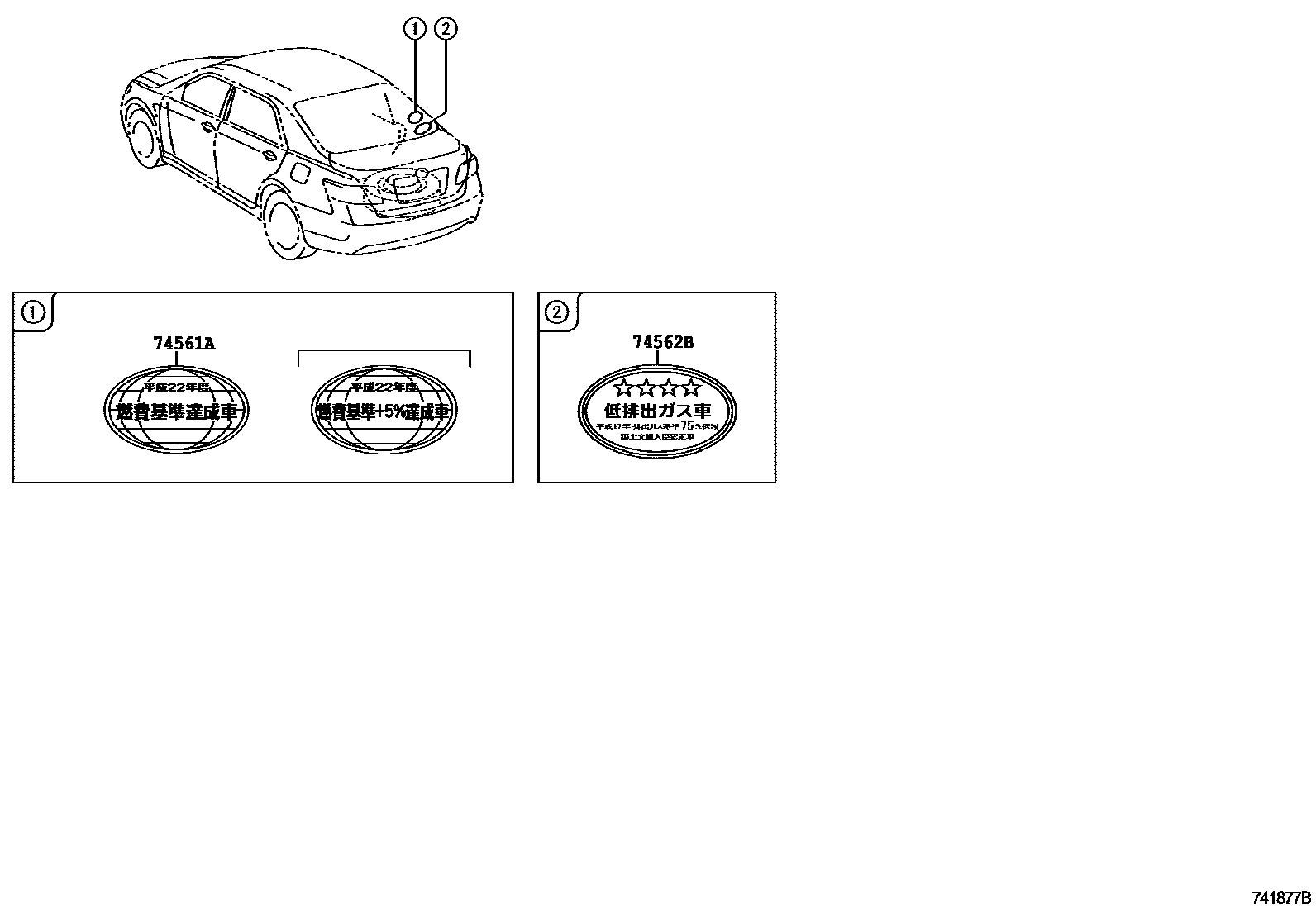

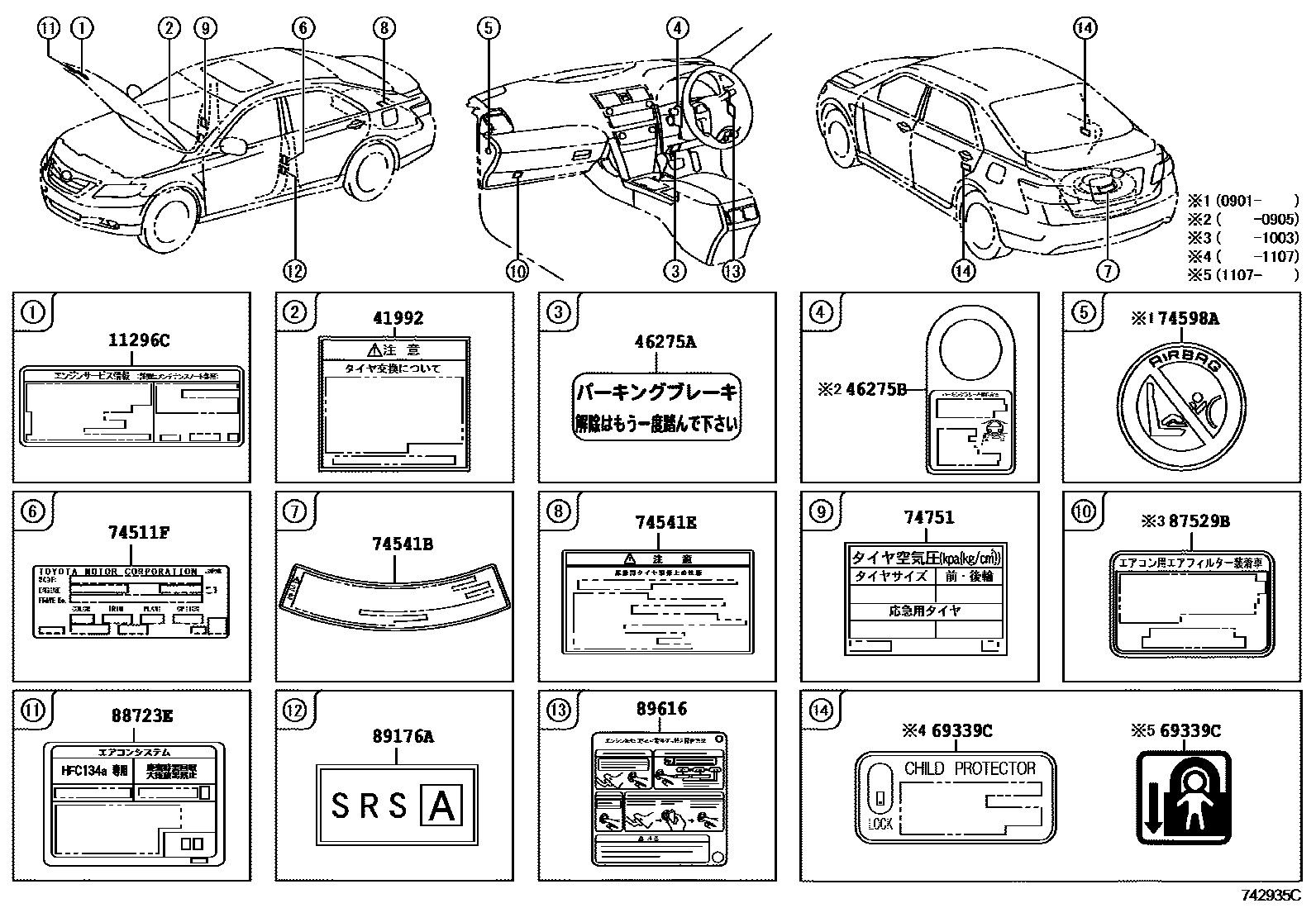

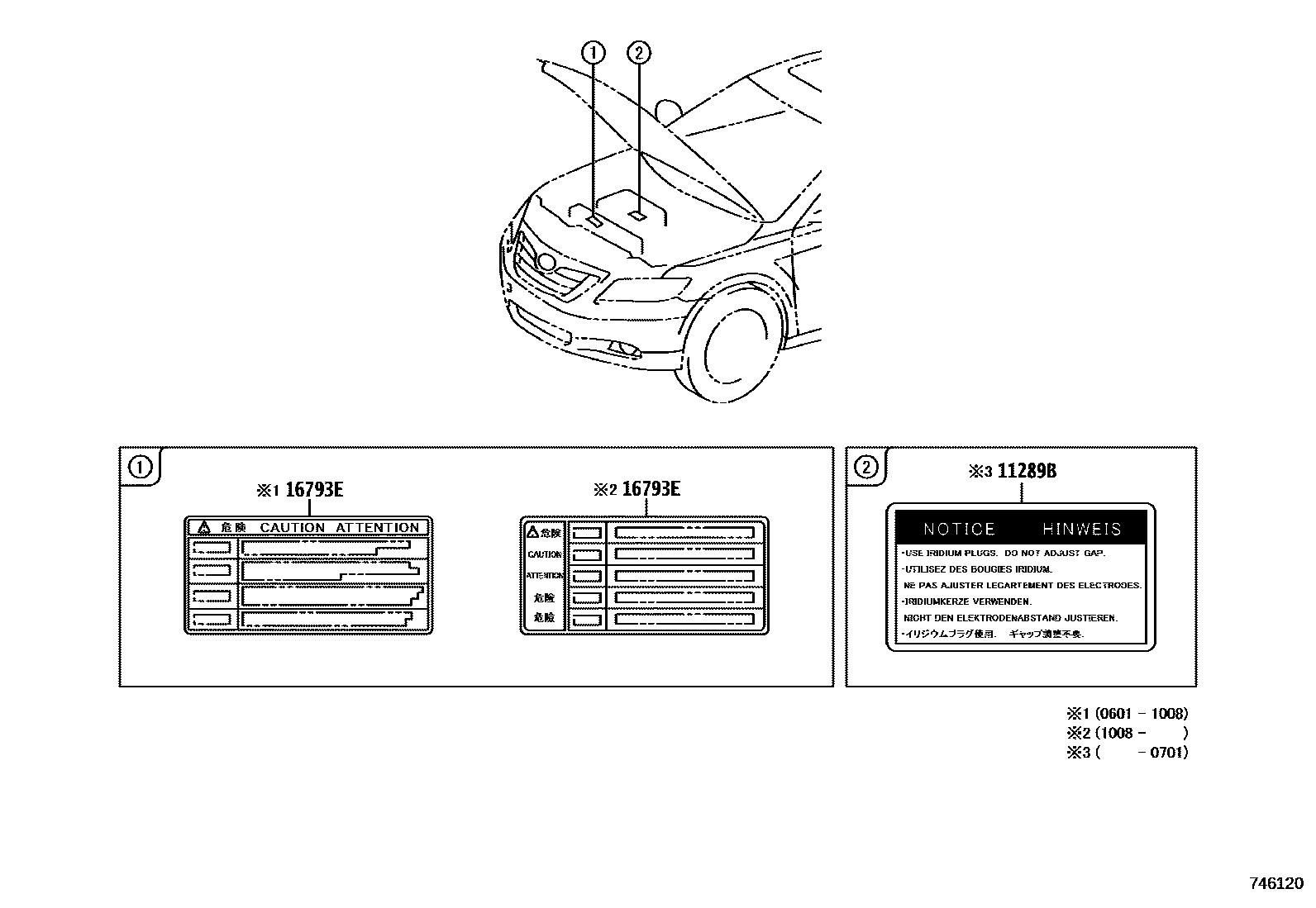

Toyota CAMRY 警示铭牌(车外和车内) — Figure 7403
Toyota CAMRY EPC diagram 7403, 警示铭牌(车外和车内), with 3 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11289B | spark plug caution label | 11289-28010 |
| 11296C | Engine maintenance information label | 11296-28100 |
| 16793E | Toyota part | 16793-28010 · 16793-28020 |
| 41992 | Differential attention label | 41992-33010 |
| 46275A | No. 1 parking brake release information label | 46275-32010 |
| 46275B | No. 2 parking brake release information label | 46275-47010 |
| 69339C | Child Restraint Information Label | 69339-12010 · 69339-33040 |
| 74511F | Nameplate (laser identification label) | 74511-2B300 |
| 74541B | Small spare tire warning plate | 42668-20030 |
| 74541E | Small spare tire warning plate | 42668-28060 |
| 74561A | fuel consumption information label | 74561-52010 · 74561-52020 |
| 74562B | Emission information label | 74562-47010 |
| 74598A | Passenger air bag warning label | 74598-20010 |
| 74751 | tire pressure information label | 42661-33640 |
| 87529B | Cabin filter information label | 87529-50020 |
| 88723E | Cooler maintenance warning label | 88733-17010 |
| 89176A | Air bag deployment information label | 89176-32010 |
| 89616 | Button start information label | 89616-52010 |
