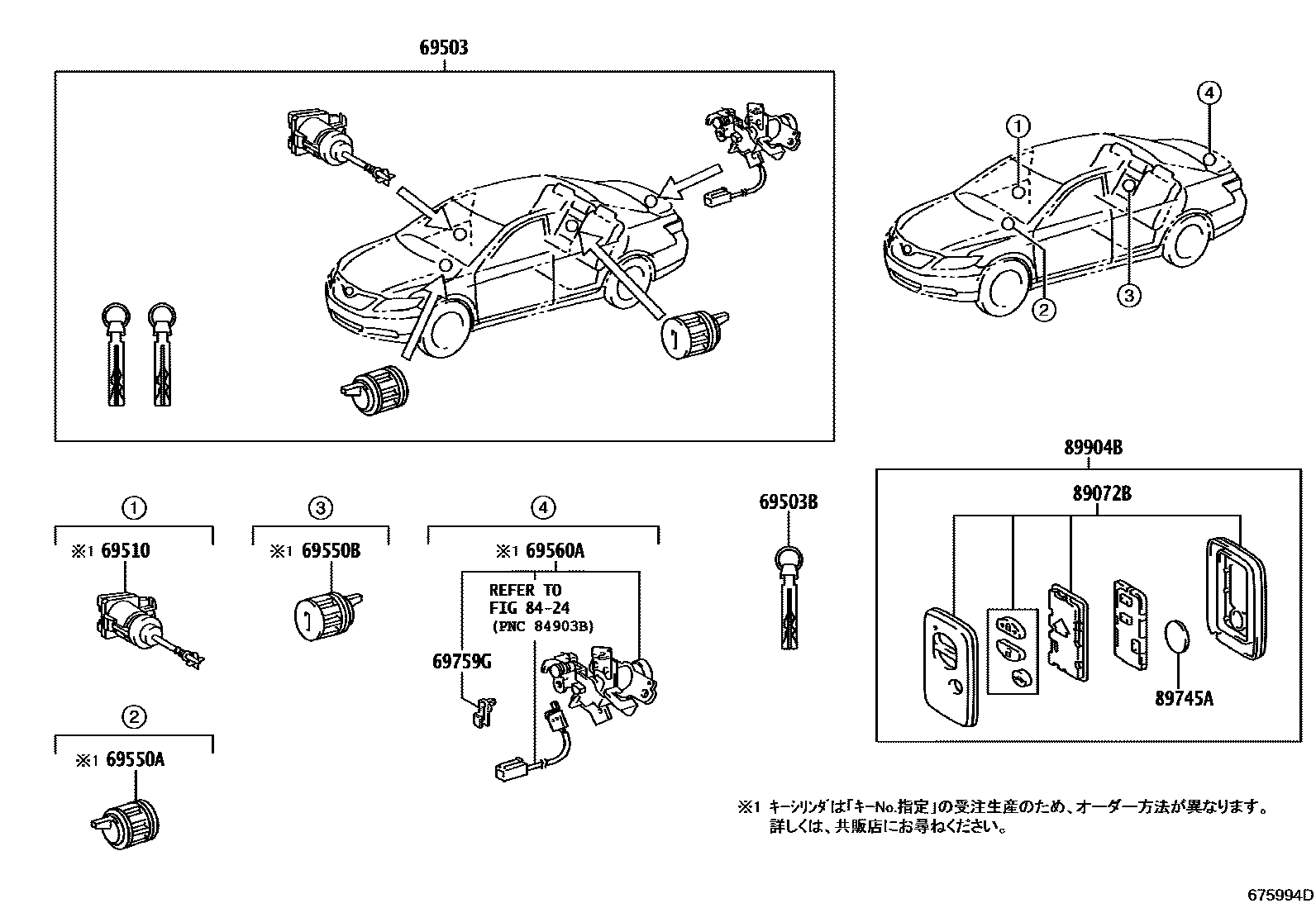

Toyota CAMRY 锁芯组件 — Figure 6712
Toyota CAMRY EPC diagram 6712, 锁芯组件, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69503 | Door lock cylinder components | 69005-33A80 |
| 69503B | internal tooth key | 69515-52110 |
| 69510 | Right front door lock cylinder assembly | 69510-33180 |
| 69550A | Glove box cover lock cylinder assembly | 69550-30150 |
| 69550B | Rear seat center armrest cover lock cylinder assembly | 69550-30150 |
| 69560A | Trunk door lock core assembly | 69560-33250 |
| 69759G | Trunk door lock core buckle | 69759-24080 |
| 89072B | Remote key shell assembly (for smart key) | 89072-33610 · 89072-33620 |
| 89745A | Transmitter battery | 89745-52020 |
| 89904B | Electronic key transmitter sub-assembly | 89904-33160 · 89904-33161 · 89904-33290 · 89904-33330 · 89904-33590 |
