Toyota CAMRY 前门板和前门玻璃 — Figure 6701

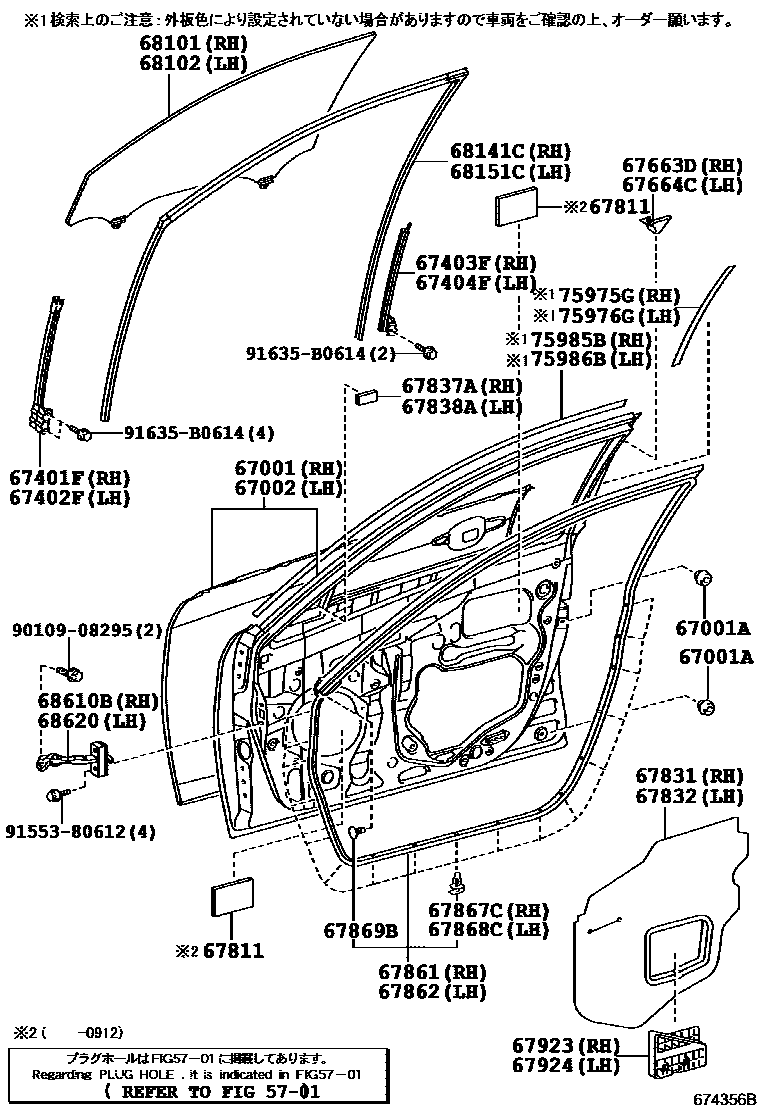

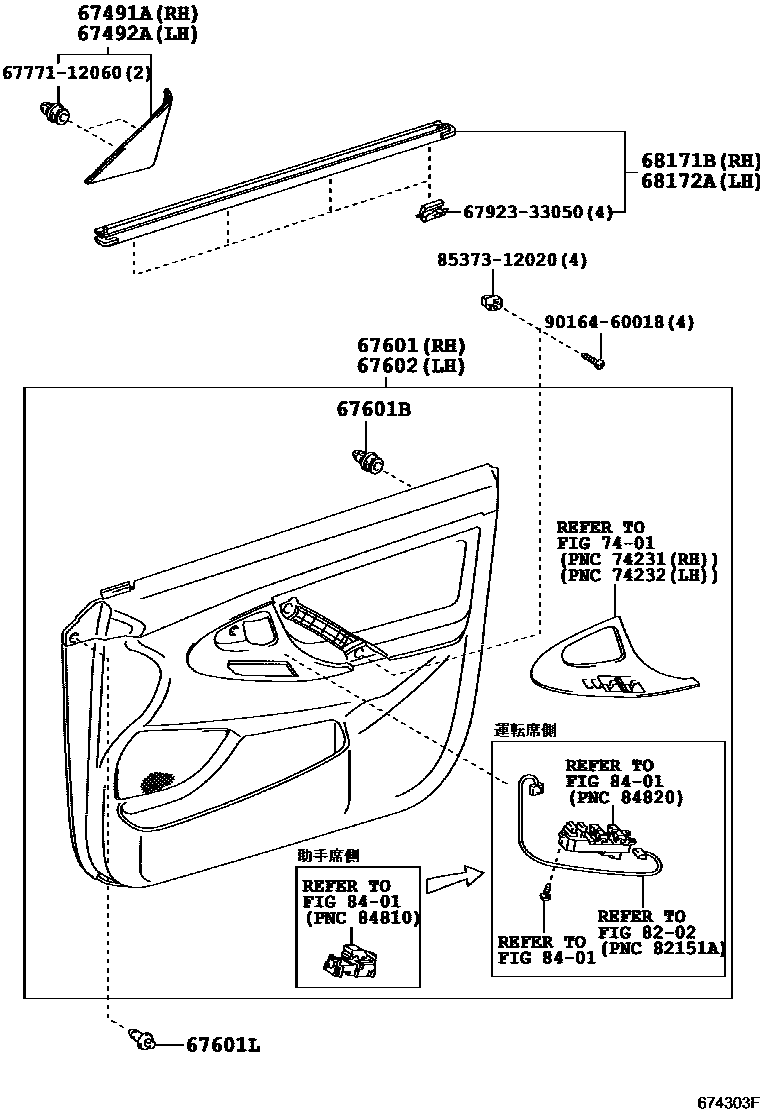

Toyota CAMRY EPC diagram 6701, 前门板和前门玻璃, with 2 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-33160 |
| 67001A | Front door panel cushion | 90541-09117 · 90541-09124 · 90541-09138 |
| 67002 | Left front door panel sub-assembly | 67002-33160 |
| 67401F | Right front door front lower door frame sub-assembly | 67401-33070 |
| 67402F | Left front door front lower door frame sub-assembly | 67402-33070 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-33050 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-33050 |
| 67491A | Right front door lower door frame bracket decorative strip | 67491-33110 |
| 67492A | Left front door lower door frame bracket decorative strip | 67492-33110 |
| 67601B | Catch (for front door trim panel) | 90467-09206 |
| 67663D | Right door frame decorative strip | 67663-33010 |
| 67664C | Left door frame decorative strip | 67664-33010 |
| 67811 | Front door silencer pad | 67811-33040 |
| 67831 | Right front door access hole cover | 67831-33090 |
| 67832 | Left front door access hole cover | 67832-33090 |
| 67837A | Right front door ventilator seal | 67837-51010 |
| 67838A | Left front door ventilator seal | 67837-51010 |
| 67861 | Right front door seal | 67861-33060 · 67861-33080 |
| 67862 | Left front door seal | 67862-33060 · 67862-33080 |
| 67867C | Right front door seal strip fixing | 67867-12150 |
| 67868C | Left front door seal strip fixing | 67867-12150 |
| 67869B | Front door seal strip clip | 67868-30030 |
| 67923 | Front door No. 1 reinforcement cushion pad | 67923-33060 |
| 67924 | Front door No. 2 reinforcement cushion pad | 67924-33030 |
| 68101 | Right front door glass sub-assembly | 68101-33130 |
| 68102 | Left front door glass sub-assembly | 68102-33130 |
| 68141C | Right front door glass lift channel | 68141-33090 |
| 68151C | Left front door glass lift channel | 68151-33080 |
| 68171B | Right front door glass inner sealing strip | 68171-33060 |
| 68172A | Left front door glass inner sealing strip | 68172-33070 |
| 68610B | Right front door opening limiter assembly | 68610-33070 |
| 68620 | Left front door opening limiter assembly | 68620-33070 |
| 75975G | Right front door outer lower trim strip | 75975-33010 |
| 75976G | Left front door outer lower trim strip | 75976-33010 |
| 75985B | Right front door trim | 75985-33010 |
| 75986B | Left front door trim | 75986-33010 |
