Toyota CAMRY 杂物箱板和行李箱垫 — Figure 6403

Toyota CAMRY EPC diagram 6403, 杂物箱板和行李箱垫, with 2 images and 11 PNC and OE references.

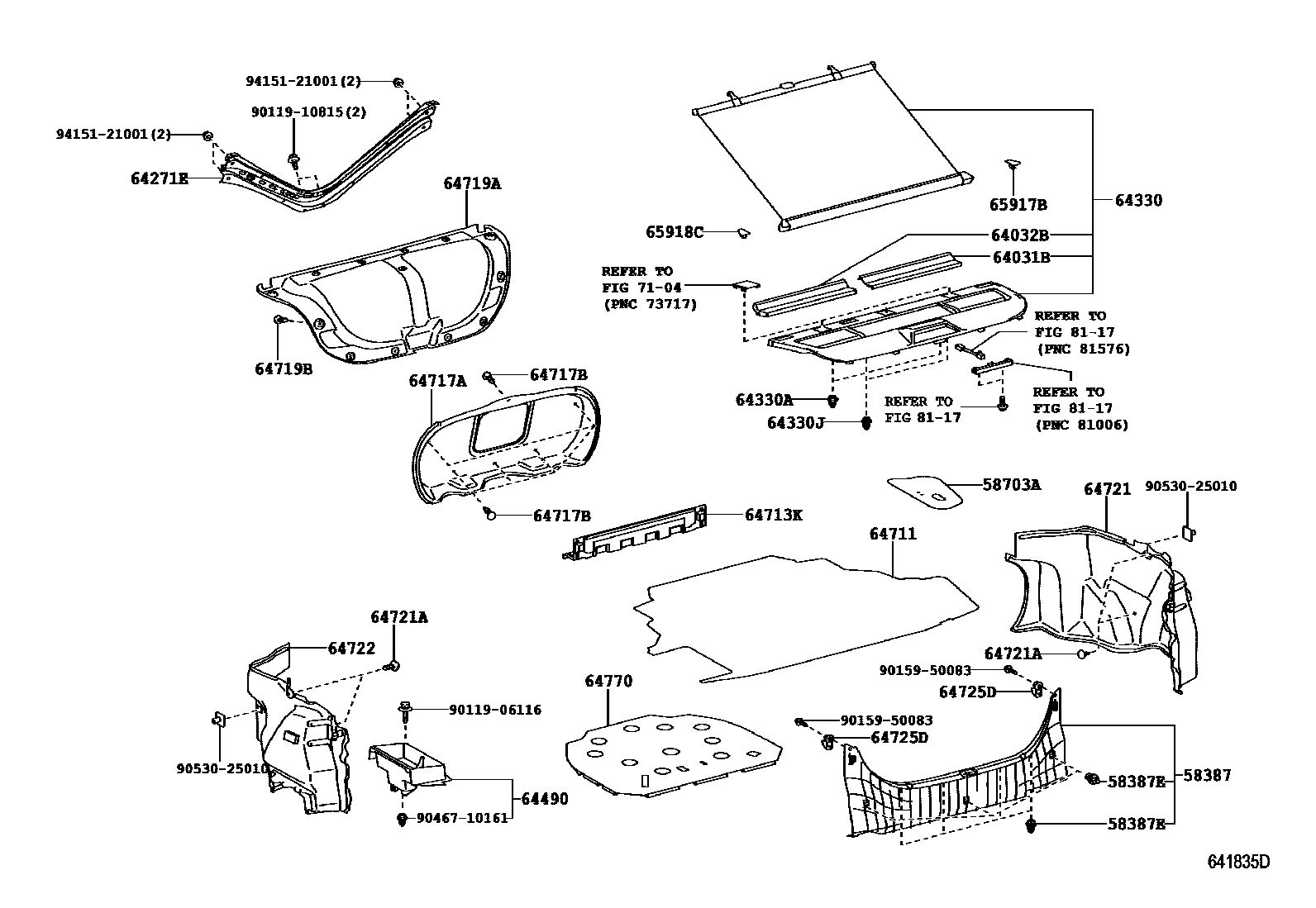

Toyota CAMRY 杂物箱板和行李箱垫 EPC diagram — 641835D
杂物箱板和行李箱垫 — 641835D (200601 – 999999)

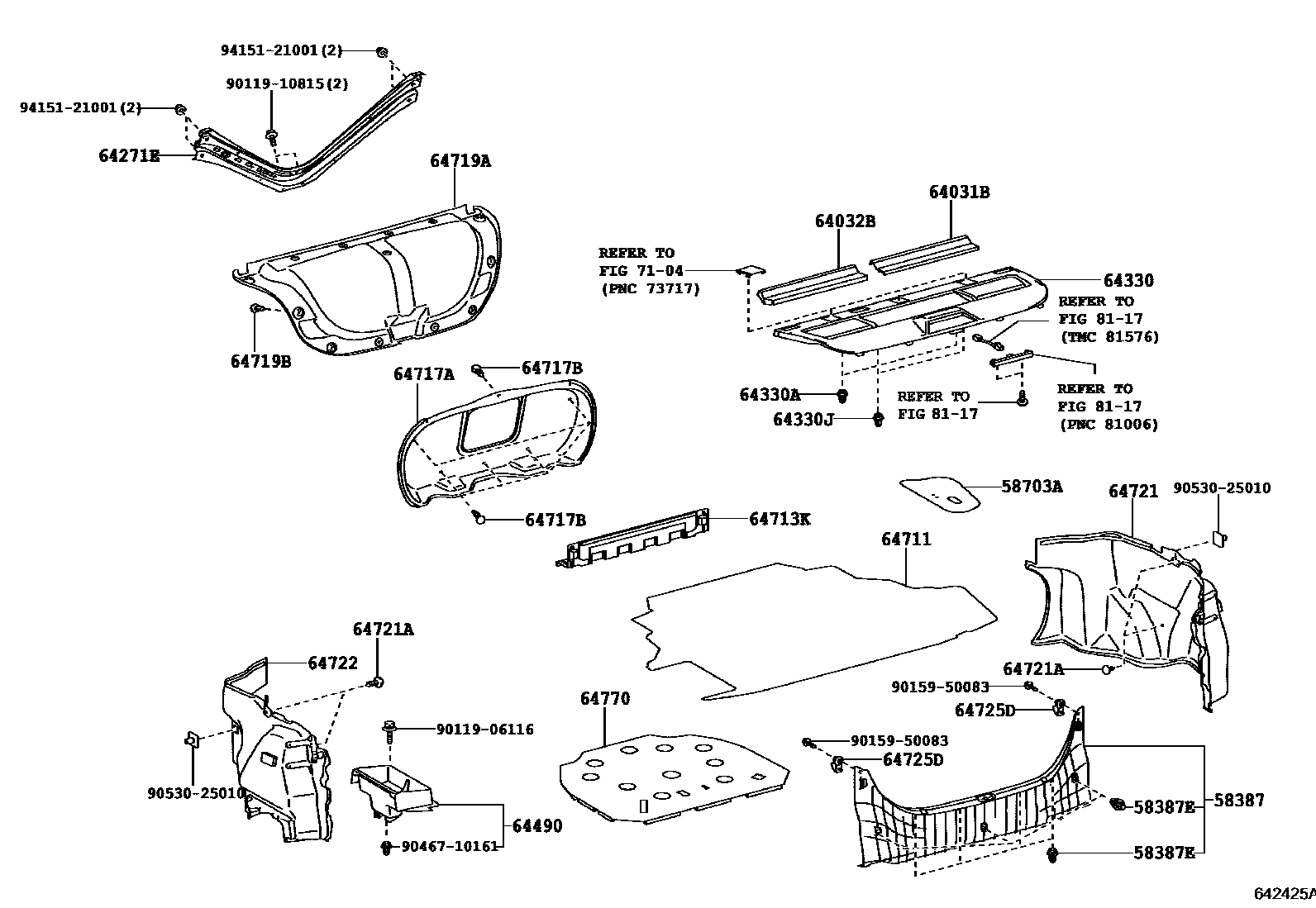

Toyota CAMRY 杂物箱板和行李箱垫 EPC diagram — 642425A
杂物箱板和行李箱垫 — 642425A (200901 – 999999)

PNC and OE references

PNCPart nameOE numbers
58387Rear floor decorative panel58387-33090
58387EClip (for rear floor trim panel)90467-10161
58703ATrunk door right side decorative cover sub-assembly58703-33050
64271Ecompartment partition64241-33040
64330AClip (for glove box decorative panel)90467-10161
64330JClip (for glove box decorative panel)90467-10167
64490Luggage side bracket assembly64490-33030
64725DLuggage decorative hook No. 164725-33061
64770Spare tire cover assembly64770-33090
65917BCurtain slide rail right end cap65917-33020
65918CCurtain slide rail left end cap65918-33010
