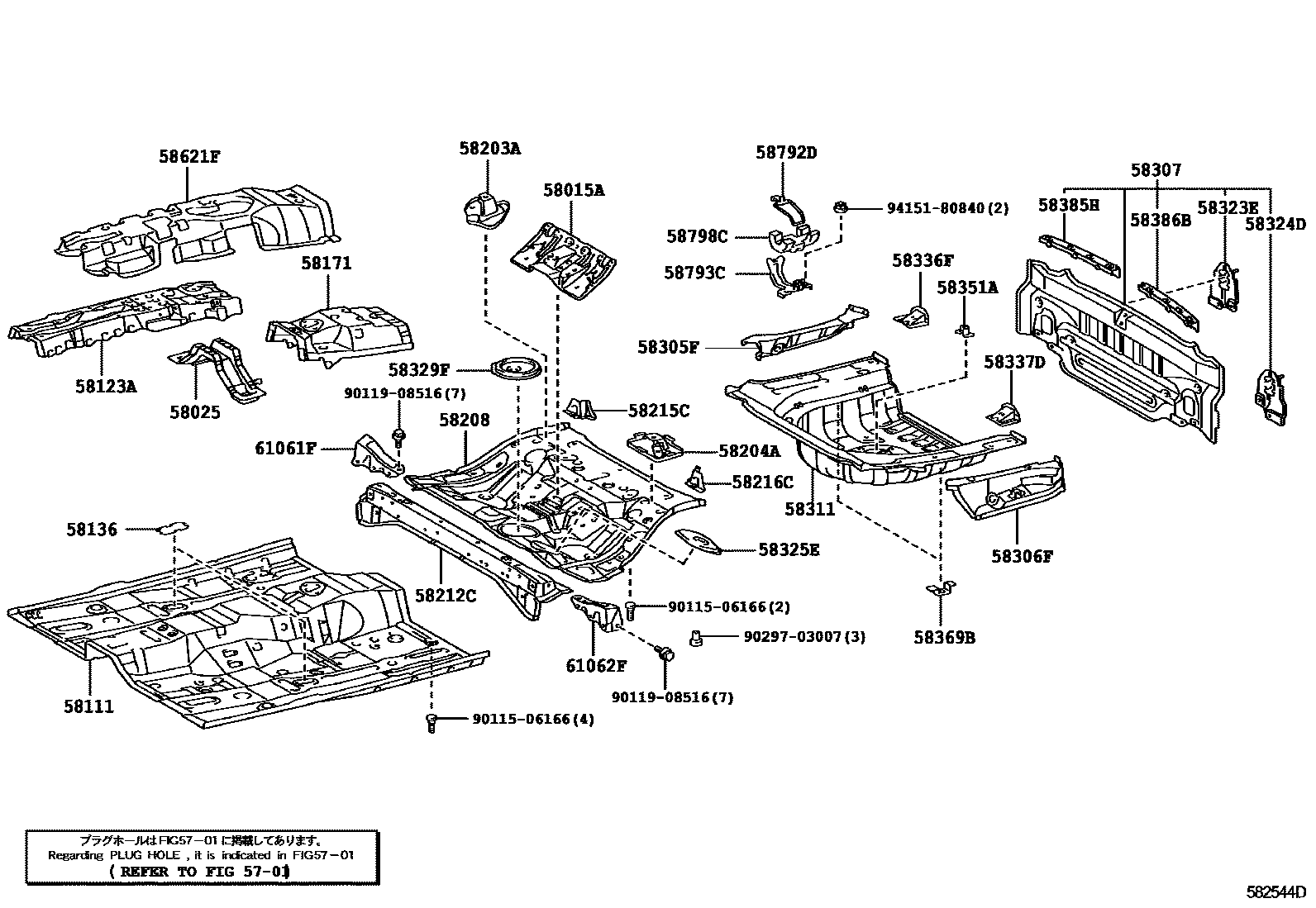

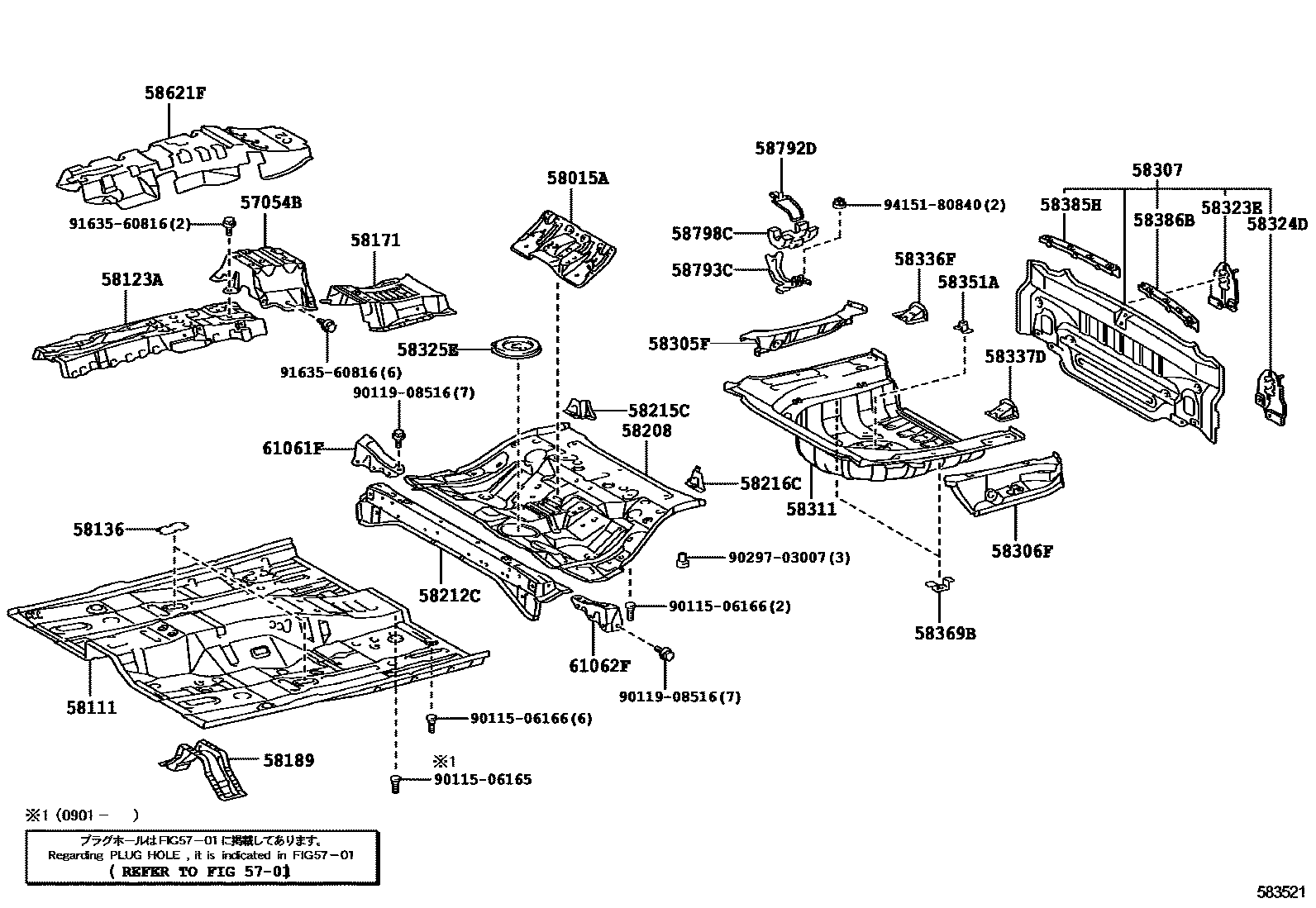

Toyota CAMRY 浅盘形地板和车身下背板 — Figure 5801
Toyota CAMRY EPC diagram 5801, 浅盘形地板和车身下背板, with 2 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57054B | Floor No. 4 beam reinforcement sub-assembly | 57054-33040 |
| 58015A | Right No. 3 seat belt anchor reinforcement sub-assembly | 58015-33041 |
| 58025 | Drive shaft center bracket reinforcement sub-assembly | 58025-33011 |
| 58111 | front floor pan | 58111-33070 · 58111-33080 |
| 58123A | shift lever bracket | 58013-33070 |
| 58136 | Front floor hole cover | 58136-33010 |
| 58171 | Parking brake base reinforcement | 58171-33080 · 58171-33090 |
| 58189 | Exhaust pipe clamp bracket reinforcement | 58189-33050 · 58189-33070 |
| 58203A | Center floor right reinforcement sub-assembly | 58203-33031 |
| 58204A | Center floor left reinforcement sub-assembly | 58204-33020 |
| 58208 | central floor base | 58211-33142 · 58211-33153 |
| 58212C | Center floor front floor | 58202-33010 |
| 58215C | Center floor No. 2 right reinforcement | 58215-33040 |
| 58216C | Center floor No. 2 left reinforcement | 58216-33030 |
| 58305F | Rear floor right side panel sub-assembly | 58305-33070 |
| 58306F | Rear floor left side panel sub-assembly | 58306-33030 |
| 58307 | Body lower back panel sub-assembly | 58307-33130 · 58307-33150 |
| 58311 | rear floor pan | 58311-33070 · 58311-33071 |
| 58323E | Rear bumper arm right bracket reinforcement | 58323-33080 |
| 58324D | Rear bumper arm left bracket reinforcement | 58324-33060 |
| 58325E | Rear floor access hole cover | 58325-33020 · 58325-33030 · 58325-33050 |
| 58329F | Rear floor manhole cover No. 2 | 58329-33010 |
| 58336F | Rear floor bottom panel right reinforcement | 58336-33020 |
| 58337D | Rear floor bottom left reinforcement | 58337-33030 |
| 58351A | Spare tire rack bracket | 58351-33010 |
| 58369B | No. 3 fuel pipe bracket | 58369-32010 |
| 58385H | Rear bumper cover No. 1 bracket | 58385-33030 |
| 58386B | Rear bumper cover bracket No. 2 | 58386-33010 |
| 58621F | Center console silencer No. 1 | 58621-33090 · 58621-33100 |
| 58792D | jack stand | 58792-33010 |
| 58793C | Jack Bracket No. 1 | 58793-33010 |
| 58798C | Jack bracket cushion | 58798-33010 |
| 61061F | No. 1 side wheel cover corner plate sub-assembly | 61061-33010 |
| 61062F | No. 2 side wheel housing corner plate sub-assembly | 61062-33010 |
