Toyota CAMRY 前围板和挡风玻璃 — Figure 5503

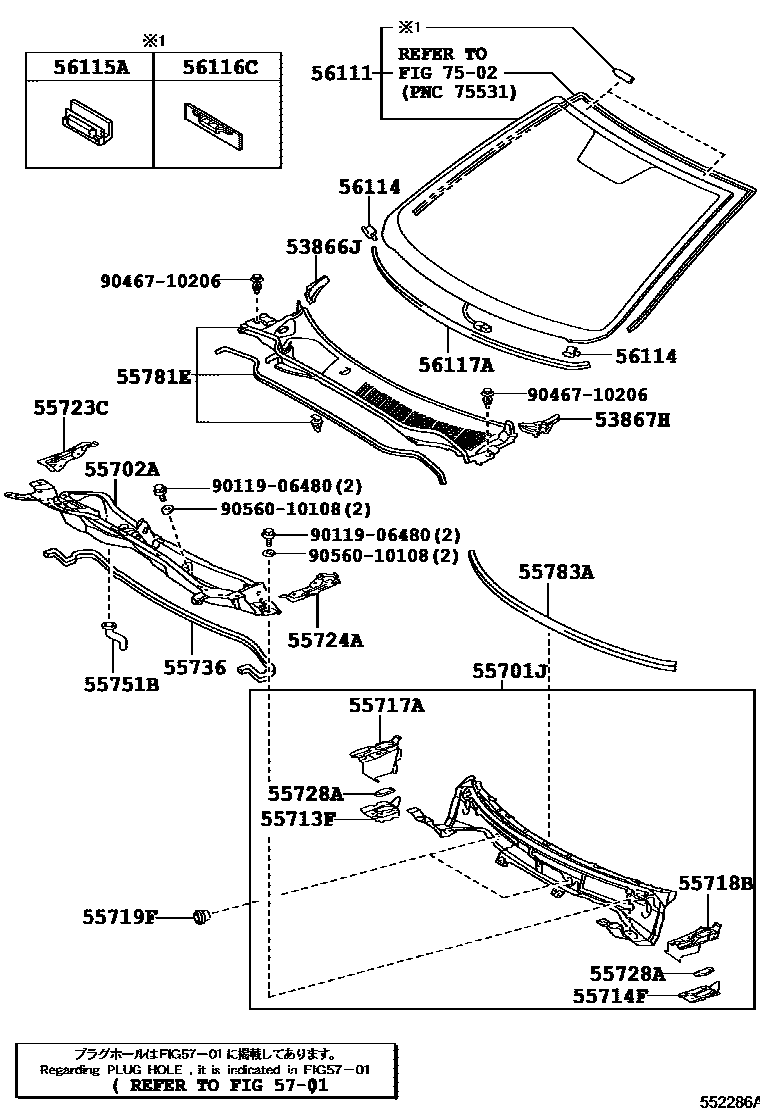

Toyota CAMRY EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53866J | Right front fender to cowl side seal | 53866-33060 |
| 53867H | Left front fender to cowl side seal | 53867-33060 |
| 55701J | Front wall upper outer panel sub-assembly | 55701-33160 |
| 55702A | Front cowl upper outer front panel sub-assembly | 55702-33020 |
| 55713F | Right front wall upper side reinforcement | 55713-33030 |
| 55714F | Left front wall upper side reinforcement | 55714-33030 |
| 55717A | Upper right inner panel of cowl | 55717-33040 |
| 55718B | Upper left inner panel of front wall | 55718-33040 |
| 55719F | Front lower panel seal | 55719-33020 |
| 55723C | Right front wall upper side reinforcement | 55723-33040 |
| 55724A | Left front wall upper side reinforcement | 55724-33040 |
| 55728A | Engine cover block reinforcement | 55728-33030 |
| 55736 | Waterproof cover plate seal | 55736-33020 · 55736-33030 |
| 55751B | Front no. 1 water hose | 55751-33020 |
| 55781E | Ventilation grille sub-assembly on front apron | 55708-33110 · 55708-33130 |
| 55783A | Front cowl upper cover silencer pad | 55783-33060 |
| 56111 | windshield | 56101-33320 · 56101-33321 · 56101-33330 · 56101-33331 · 56101-33340 · 56101-33341 · 56101-33350 · 56101-33351 · 56101-33610 · 56101-33611 · 56101-33620 · 56101-33621 · 56101-33640 · 56101-33650 |
| 56114 | windshield stopper | 56114-22050 · 56114-33050 |
| 56115A | Windshield block No. 1 | 56115-30120 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56117A | Window glass adhesive seals | 56117-33100 |
