Toyota CAMRY Floor stringers — Figure 5305

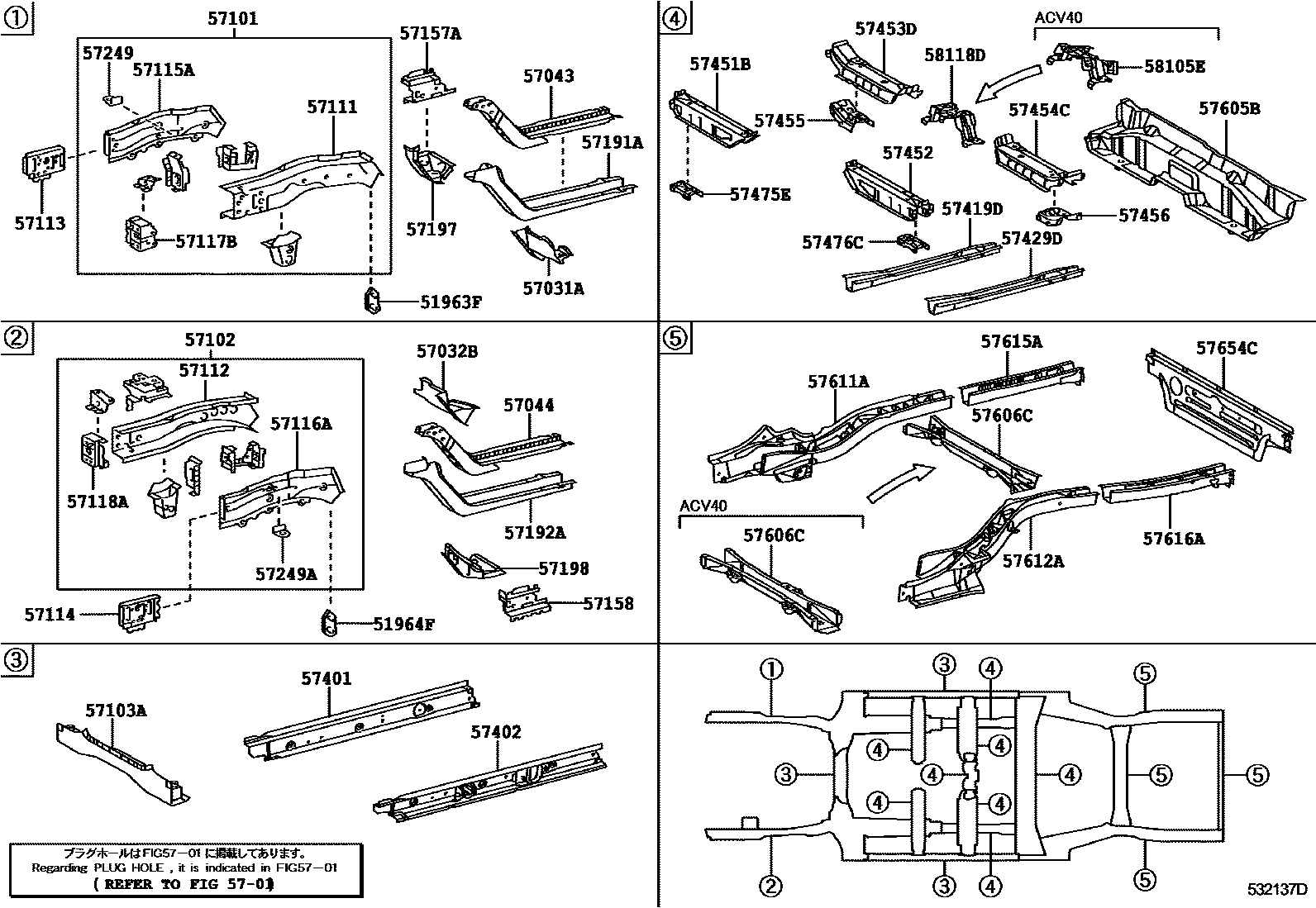

Toyota CAMRY EPC diagram 5305, Floor stringers, with 1 images and 46 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51963F | transport hook | 51963-33020 |
| 51964F | left transport hook | 51964-33010 |
| 57031A | No. 2 right front longitudinal beam reinforcement sub-assembly | 57031-33010 |
| 57032B | No. 2 left front longitudinal beam reinforcement sub-assembly | 57032-33010 |
| 57043 | Right front longitudinal beam rear reinforcement sub-assembly | 57043-33040 |
| 57044 | Left front longitudinal beam rear reinforcement sub-assembly | 57044-33020 |
| 57101 | Right front longitudinal beam sub-assembly | 57027-33901 · 57027-33902 |
| 57102 | Left front longitudinal beam sub-assembly | 57028-33901 · 57028-33902 |
| 57103A | Floor No. 3 beam sub-assembly | 57103-33051 · 57103-33060 |
| 57111 | Right front longitudinal beam | 57111-33020 · 57111-33021 |
| 57112 | Left front longitudinal beam | 57112-33030 · 57112-33031 |
| 57113 | Right front longitudinal beam extension | 57107-33031 · 57107-33032 |
| 57114 | Left front longitudinal beam extension | 57108-33031 · 57108-33032 |
| 57115A | Right front longitudinal beam outer panel | 57115-33030 |
| 57116A | Left front longitudinal beam outer panel | 57116-33020 |
| 57117B | Install reinforcement on the right side of the front bumper | 57117-33050 |
| 57118A | Install reinforcement on the left side of the front bumper | 57118-33050 |
| 57157A | No. 4 right front longitudinal beam reinforcement | 57157-33020 |
| 57158 | No. 4 left front longitudinal beam reinforcement | 57158-33020 |
| 57191A | Right rear longitudinal member inside front floor | 57191-33010 |
| 57192A | Left rear longitudinal member inside front floor | 57192-33010 |
| 57197 | Right front torsion box section piece | 57197-33030 |
| 57198 | Left front anti-torsion box section piece | 57198-33030 |
| 57249 | No. 1 Flexible Hose Bracket | 57249-10040 |
| 57249A | No. 1 Left Flexible Hose Bracket | 57249-10040 |
| 57401 | Main floor right longitudinal beam sub-assembly | 57401-33110 · 57401-33111 |
| 57402 | Main floor left longitudinal beam sub-assembly | 57402-33110 · 57402-33111 |
| 57419D | Front floor right rear lower reinforcement | 57419-33050 |
| 57429D | Left rear reinforcement under front floor | 57429-33020 |
| 57451B | Front floor right cross member | 57451-33060 |
| 57452 | Front floor left cross member | 57452-33030 · 57452-33031 |
| 57453D | Front floor right cross member | 57453-33050 |
| 57454C | Front floor left longitudinal beam | 57454-33050 · 57454-33051 |
| 57455 | Front right seat outer mounting bracket | 57455-33030 |
| 57456 | Front left seat outer mounting bracket | 57456-33030 |
| 57475E | Front floor right cross member panel | 57475-33010 |
| 57476C | Front floor left cross member panel | 57476-33010 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-33090 · 57605-33100 |
| 57606C | Rear floor No. 2 cross member sub-assembly | 57606-33060 · 57606-33100 · 57606-33140 |
| 57611A | Rear floor right longitudinal beam | 57611-33901 · 57611-33903 |
| 57612A | Rear floor left longitudinal beam | 57612-33901 · 57612-33902 |
| 57615A | Rear floor right rear longitudinal member | 57615-33911 · 57615-33912 · 57615-33918 · 57615-33919 |
| 57616A | Rear floor left rear longitudinal member | 57616-33908 · 57616-33909 |
| 57654C | Rear floor beam No. 3 | 57654-33020 |
| 58105E | Front floor and rear upper sub-panel sub-assembly | 58105-33020 |
| 58118D | Front floor left reinforcement | 58118-33020 |
